Spring Test Probe Pointed Tip P156-B Pogo Pin
P156-B Pointed Spring Test Needle Test Pin Test tool P156-B Pogo Pin
The P156-B is a spring-loaded pogo pin, also called a test probe, typically used in test jigs for printed circuit boards (PCBs). It is part of the P156 series of probes and is known for its flexible, sharp, needle-point tip.

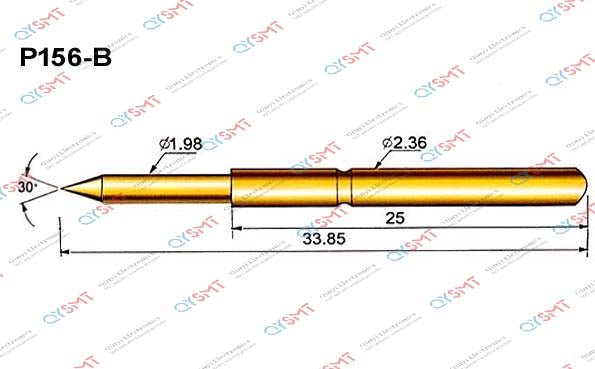

Key specifications
- Head type: B head (pointed)
- Tip diameter: 1.98 mm
- Outer tube diameter: 2.36 mm
- Overall length: 33.85 mm
- Recommended drilling size: 2.7–2.75 mm
- Material: Metal (brass) with a gold-tone finish
Applications
The P156-B spring test probe is designed for use in various electronic testing scenarios where a precise, pointed contact is needed.
- Testing PCBs: The probe makes contact with solder joints on PCBs, which is useful for functional and in-circuit testing.
- Data writing and burn-in testing: It is used in fixtures for automated testing processes.
- DIY electronics: The probes can be soldered into test fixtures or used by electronics hobbyists.
- Production line testing: The spring-loaded mechanism allows for quick and reliable connections in a production environment.
