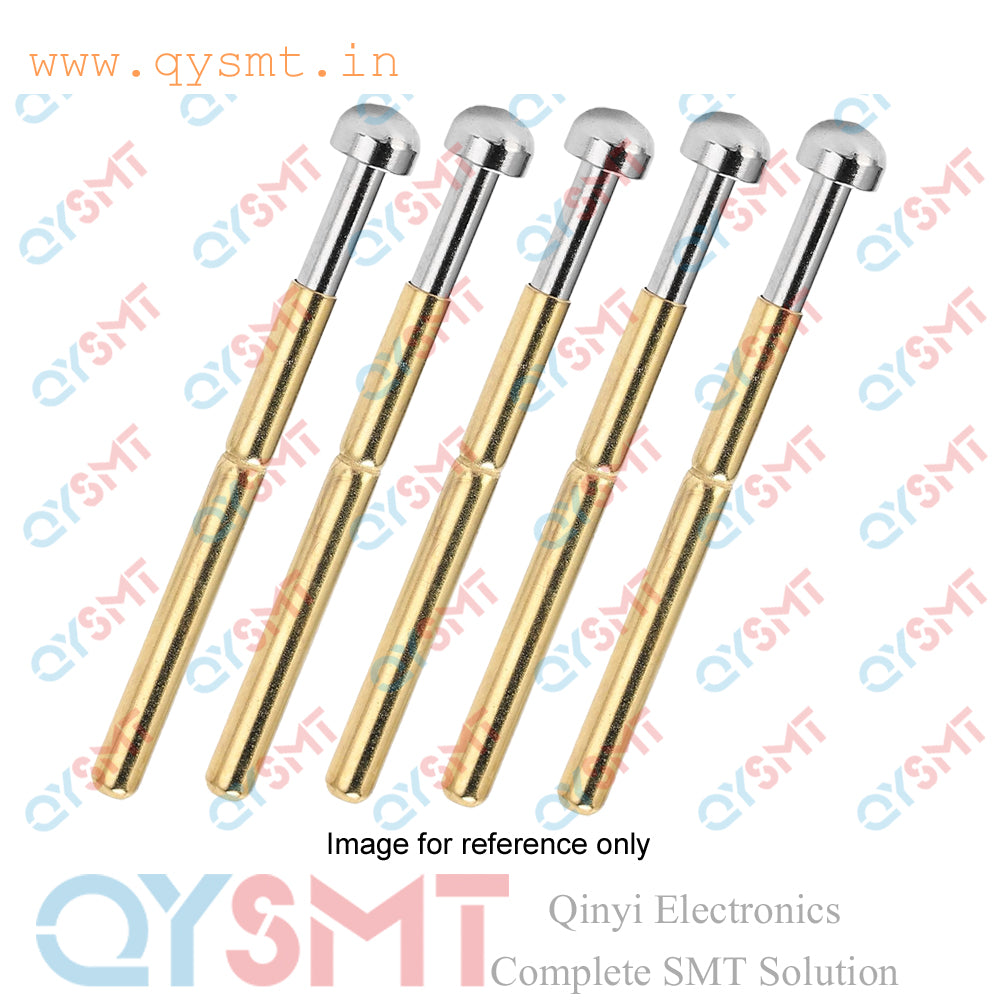

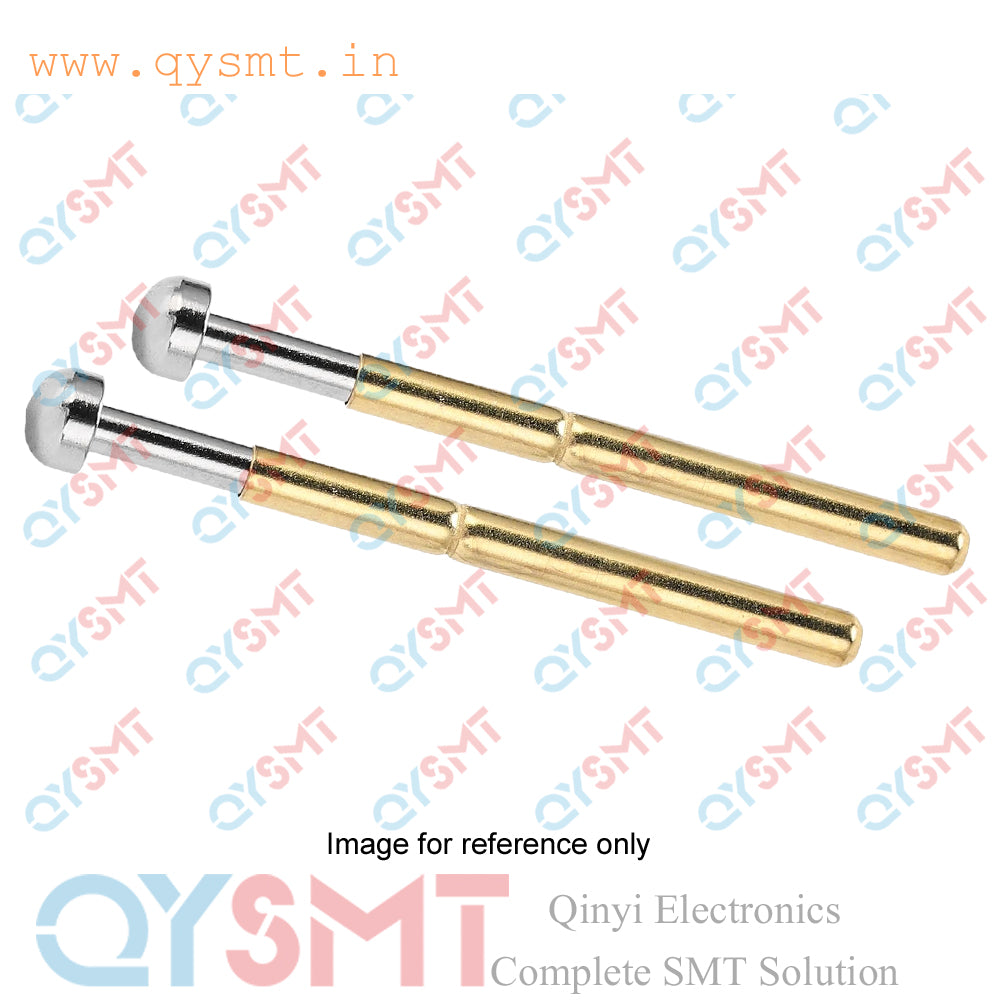

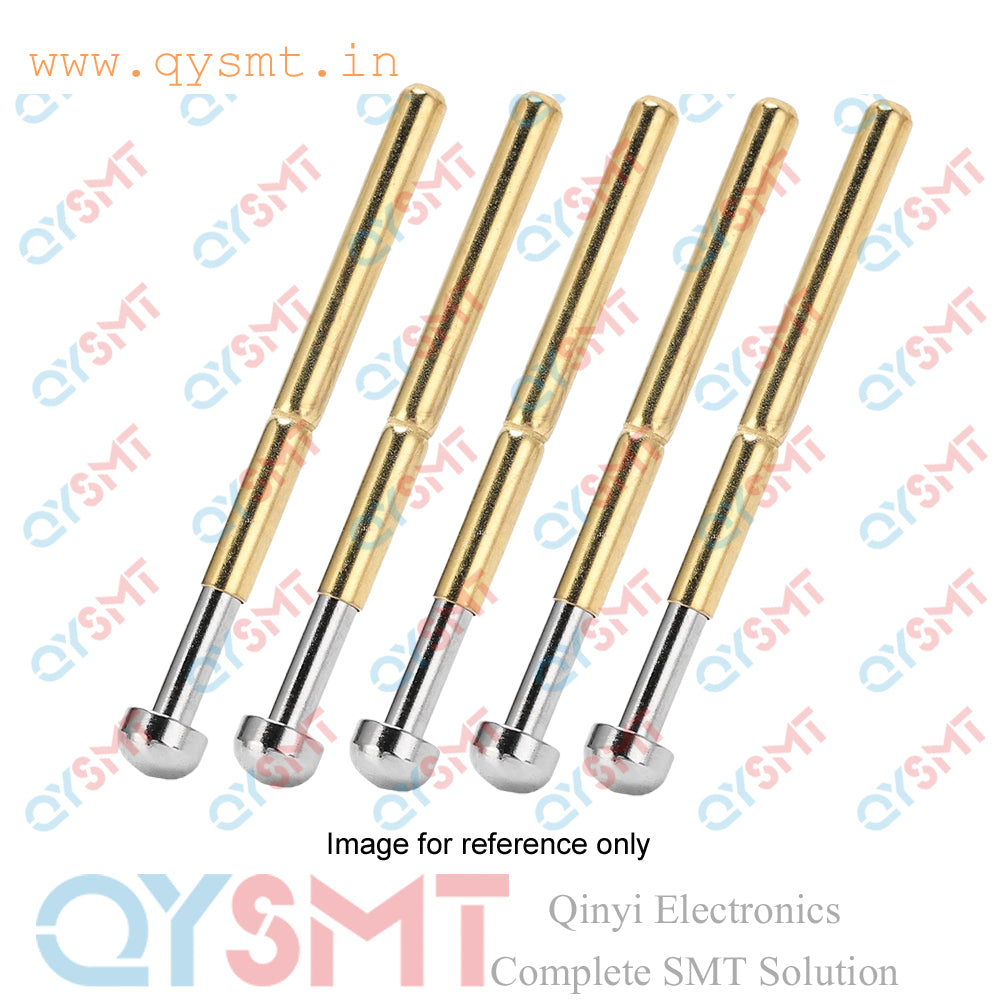

Spring Test Probe Round Tip P156-D Pogo Pin
P156-D Round Spring Test Needle Test Pin, test tool P156-D Pogo Pin
The P156-D spring test probe is a pogo pin used for testing electronic components and printed circuit boards (PCBs). The pin features a round tip and provides a reliable, temporary electrical connection in applications like test jigs.
Key specifications

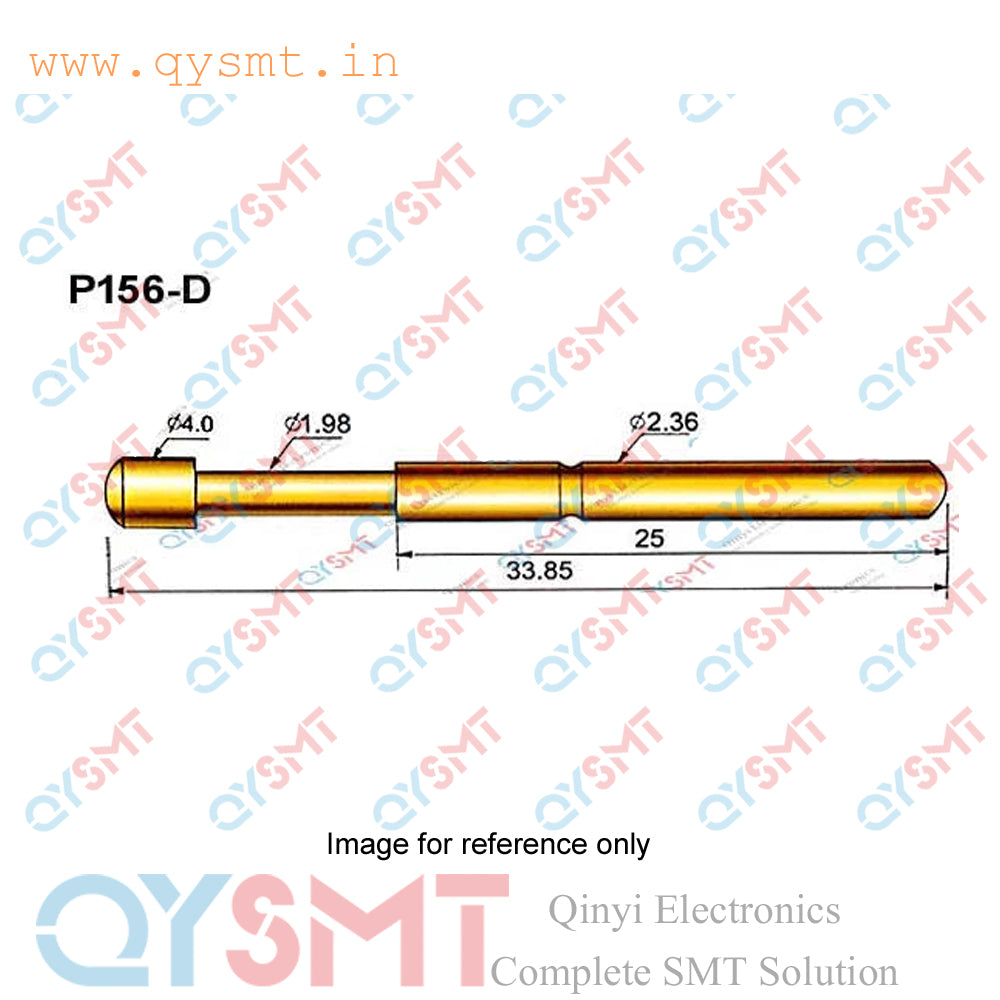

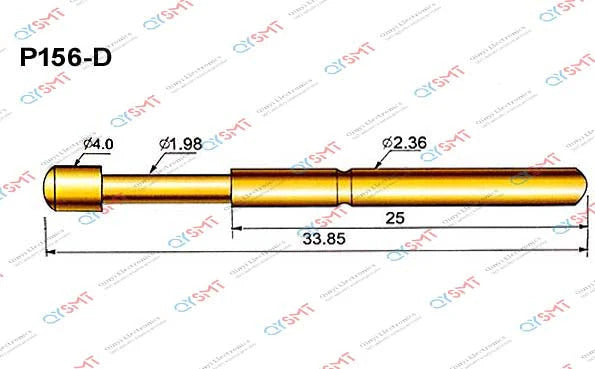

- Tip shape: Round head.
- Needle tube diameter: 2.36mm.
- Pin/Probe head diameter: 4.0mm.
- Total length: 34mm.
- Current rating: Up to 3A.
- Material: Copper with nickel plating, often with a gold finish for improved conductivity and corrosion resistance.
- Applications: Suitable for testing equipment, including PCB parameter testing, burn-in testing, and data writing
- Reliable conductivity: The spring-loaded design of the pogo pin ensures a secure and consistent electrical connection, which is crucial for accurate testing.
- Durability: Pogo pins are designed for thousands of connection cycles, making them ideal for manufacturing and testing environments where repeated connections are needed.
- Ease of use: You can simply insert the probe into a receptacle or press it onto a test pad, making the setup process quick and hassle-free.
