Spring Test Probe Crown Tip P156-H Pogo Pin

P156-H Crown Spring Test Needle Test Pin, test tool P156-H Pogo Pin

The P156-H Spring Test Probe is a crown-tip pogo pin used for making temporary but reliable electrical contacts in testing and programming jigs. It is primarily made of brass and is available in silver or gold finishes.

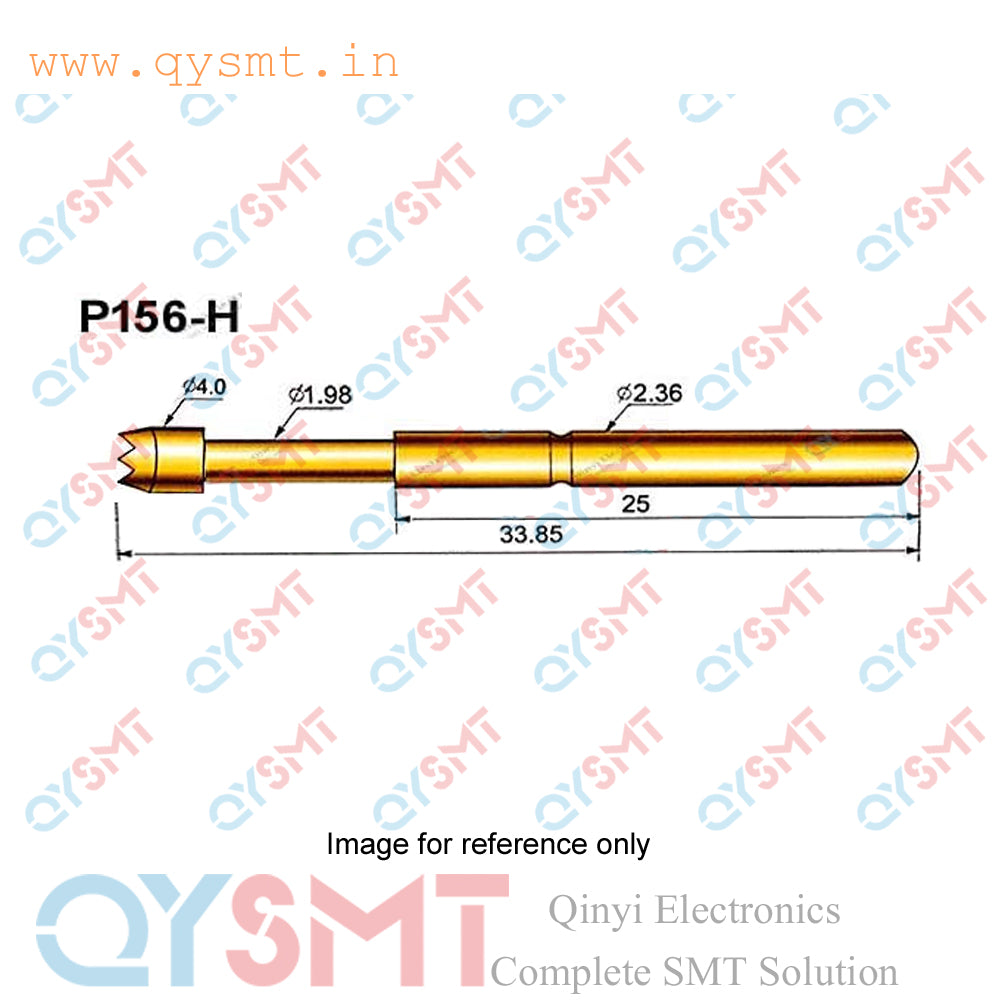

Specifications

• Model number: P156-H
• Material: Brass
• Total length: 33.85 mm
• Tip type: Crown
• Tip diameter: 4 mm
• Needle sleeve diameter: 2.36 mm
• Current rating: 5A
• Stroke: 6.5 mm total stroke
• Contact resistance: 50 mΩ
• Spring pressure: 250 g
