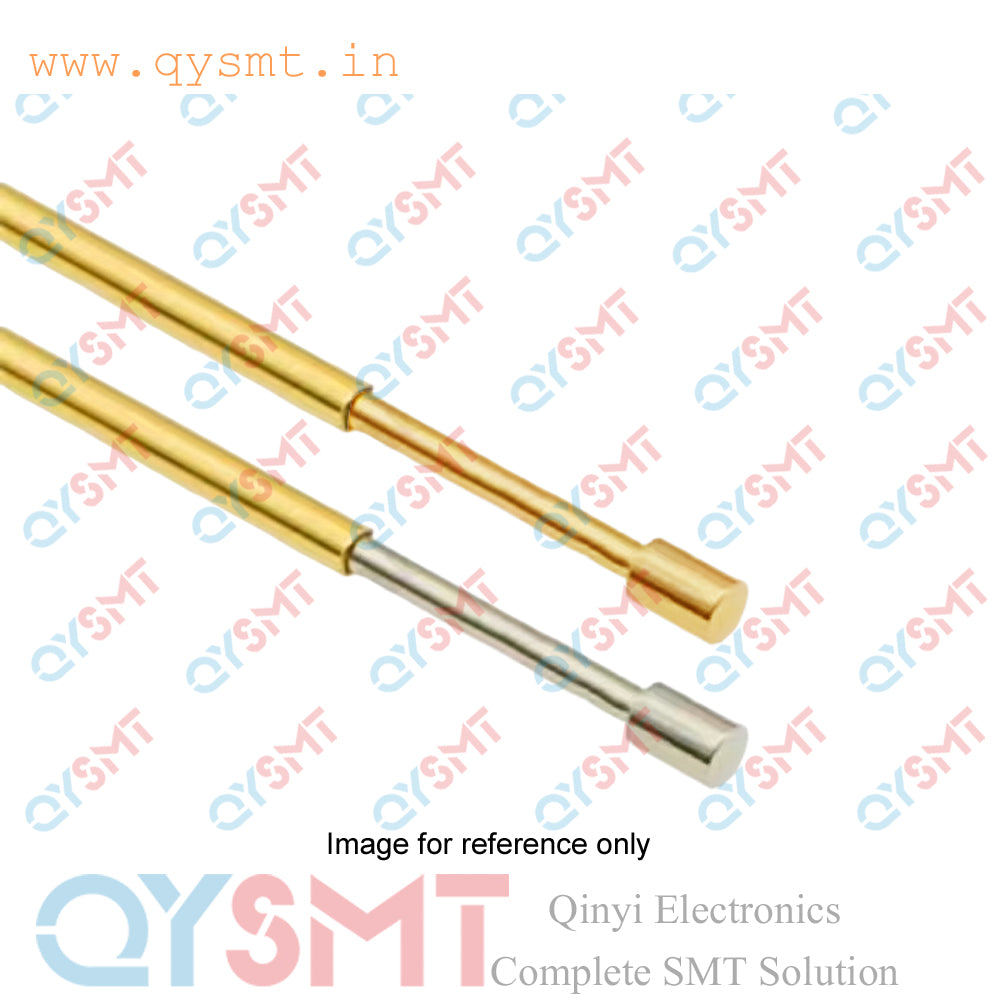

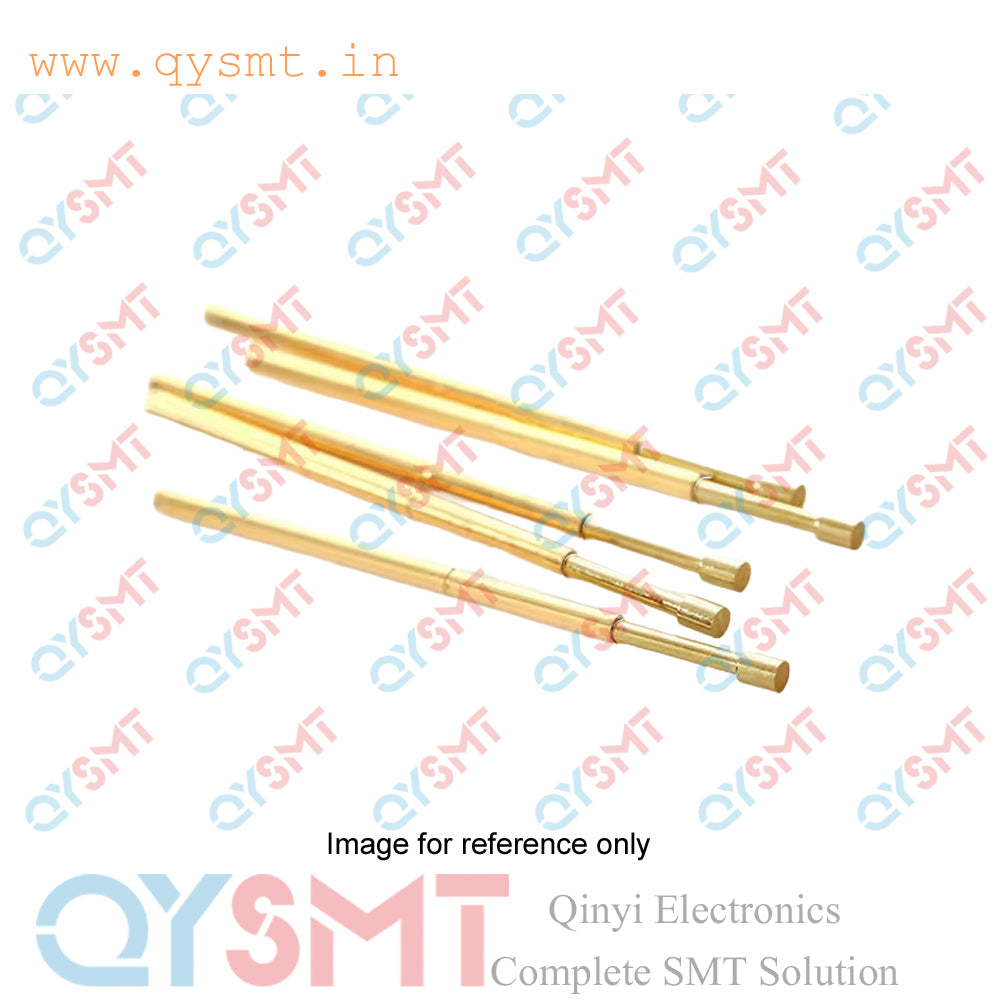

Spring Test Probe PL50-G2 Pogo Pin
Gold Plated Test Pin PL50-G2 Test Probe
The PL50-G2 spring test probe is a type of pogo pin test needle used for electrical testing of printed circuit boards (PCBs) and other electronic components. It is characterized by its concave tip, which creates a secure contact point. The probes are commonly made of copper with gold-plated tips for high conductivity and resistance to corrosion.

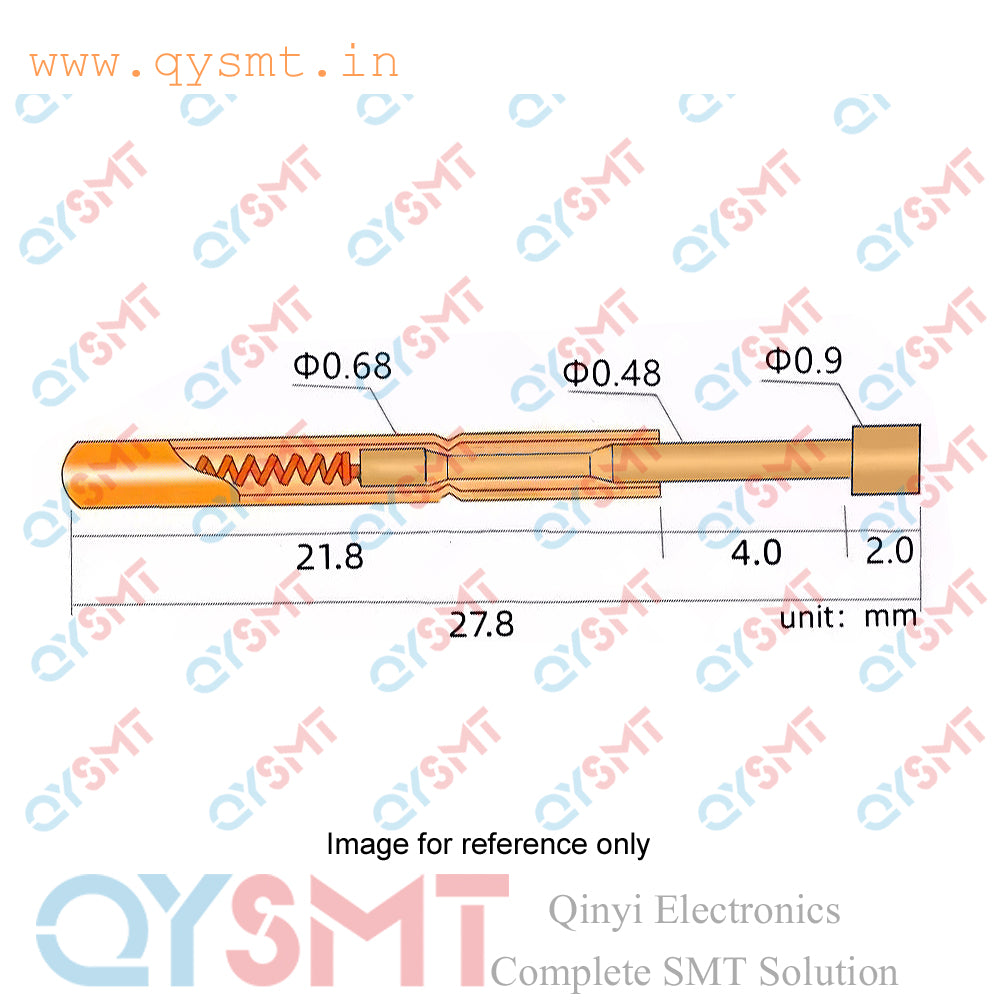

Features and specifications
- Total Length: 27.8mm
- Needle Tube Diameter: 0.68mm
- Needle Tip Diameter: 0.9mm
- Tip Type: Concave ("G2" or "G")
- Rated Current: 3A
- Current Resistance: 50mΩ
-
Construction Material: Copper (plunger), with gold-plated tips. Other P50-series probes often use beryllium copper for the plunger and brass for the barrel.
Applications
The PL50-G2 pogo pin is suitable for a variety of electronics testing and industrial uses:
- PCB testing and inspection: Engineers and technicians use these probes to test individual components or pathways on a circuit board.
- Production jigs: They are ideal for use in test fixtures on production lines to quickly check a device's functionality before final assembly.
- Research and development: Hobbyists and developers can use them for prototyping and testing circuits.
