Power Unit Module

Power Unit Module

Power unit module

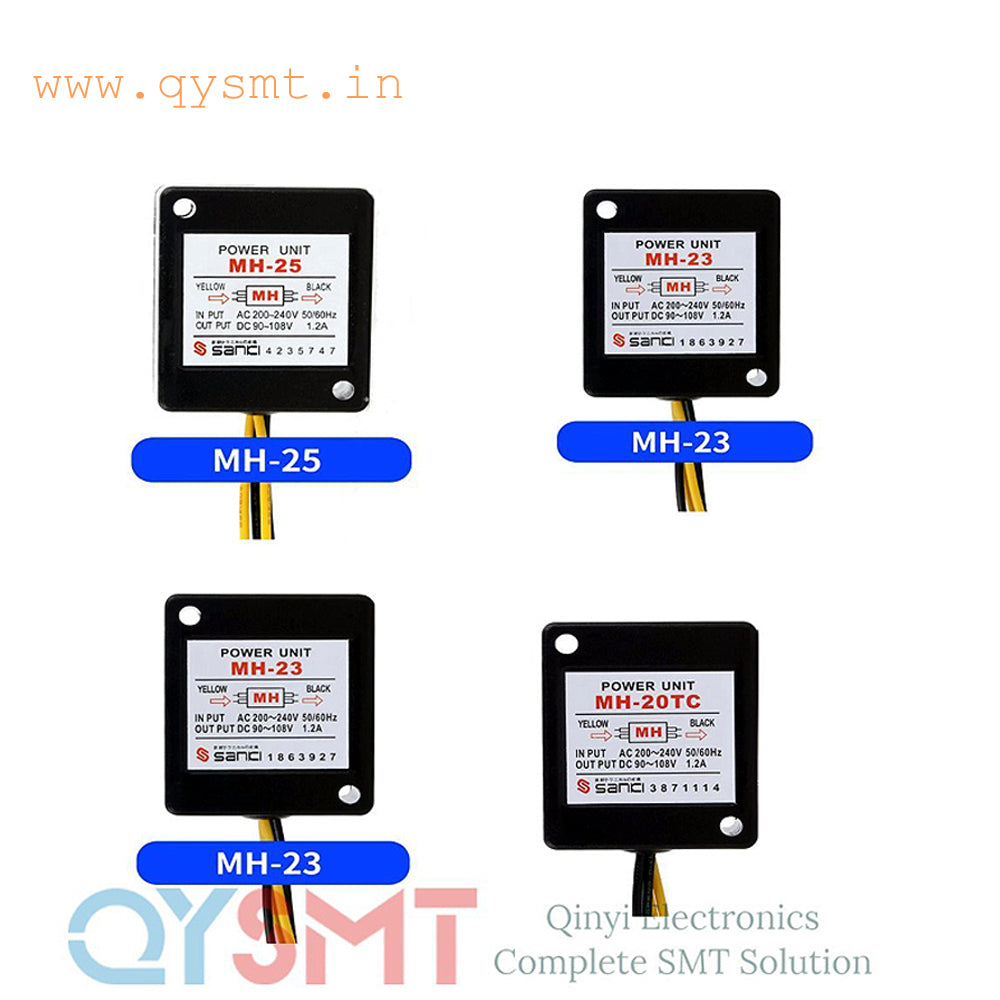

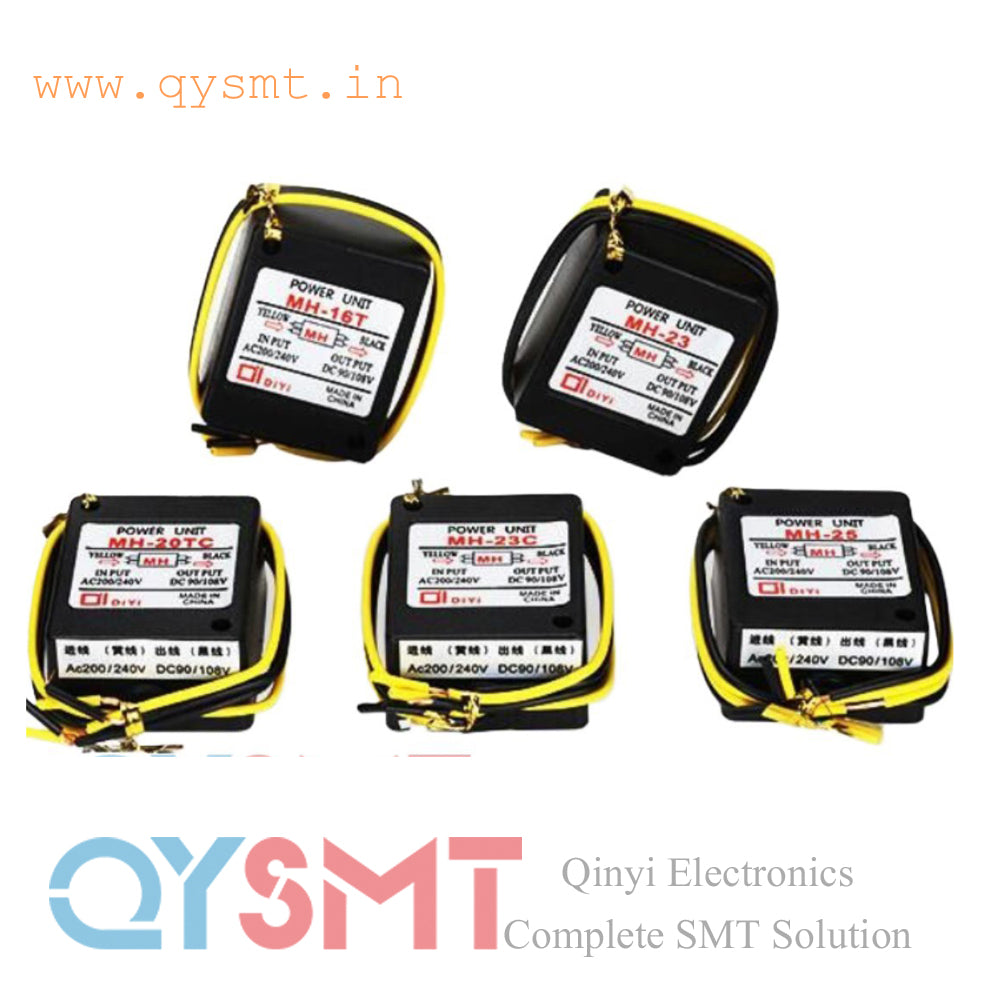

MH-20T MH-20TC MH-25MH-23 MH-23C MH-16T
diode typeRelay typeThe brake motor is composed of a motor and a brake. The brake part is composed of a mechanical brake and an electronically controlled rectifier. The mechanical brake and the electronically controlled rectifier jointly affect the braking performance. The quality of the mechanical brake determines the mechanical life, but the selection of electronically controlled rectifiers with different performances has a greater impact on the rapidity of braking. (No load is only 0.02 seconds, that is, one cycle of 50Hz alternating current).
Rectifier MH-23C from AC AC200/240V to DC DC90/108V

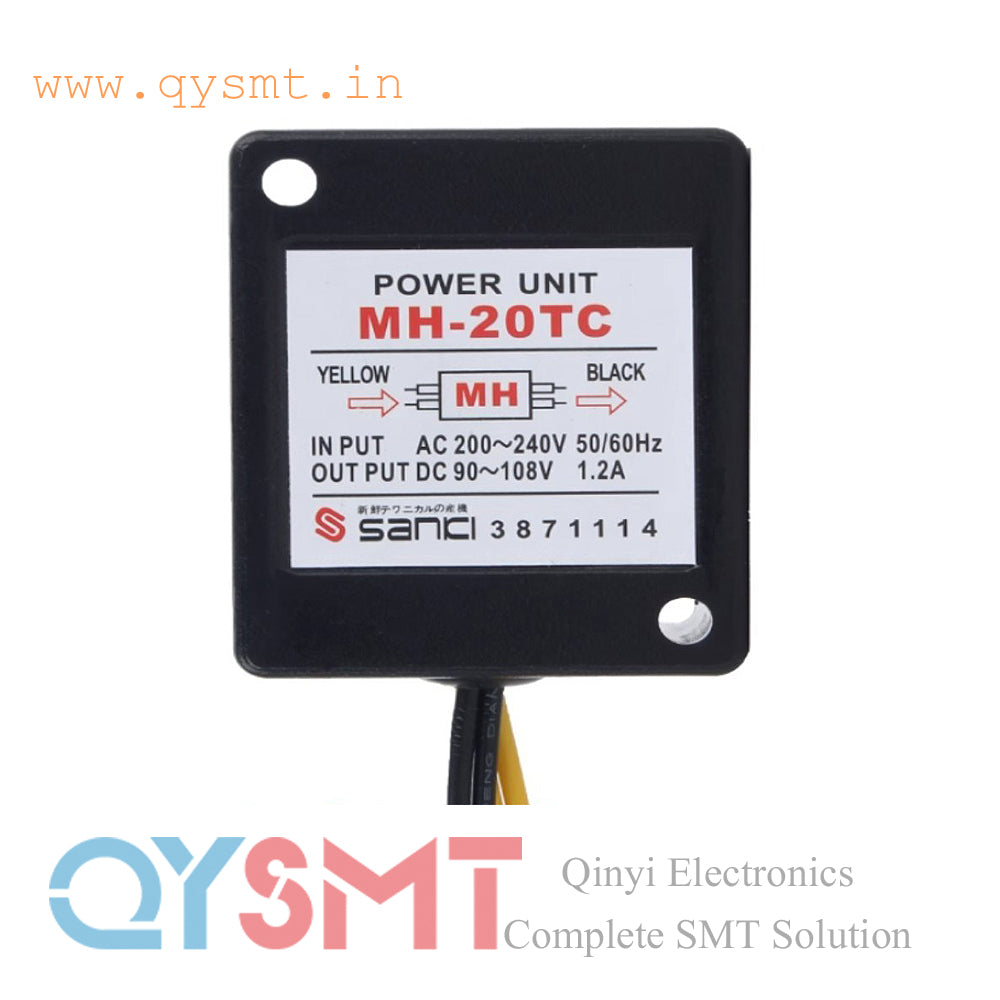

Rectifier MH-20TC from AC AC200/240V to DC DC90/108V

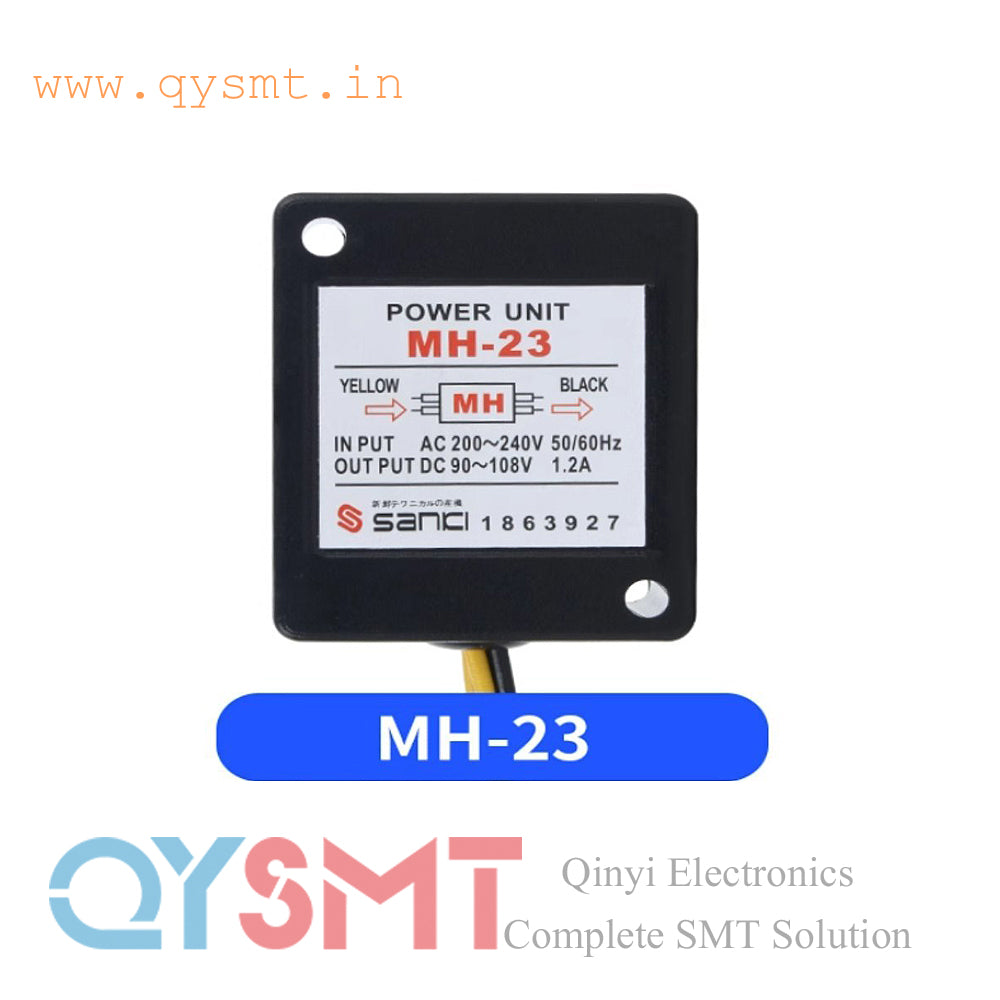

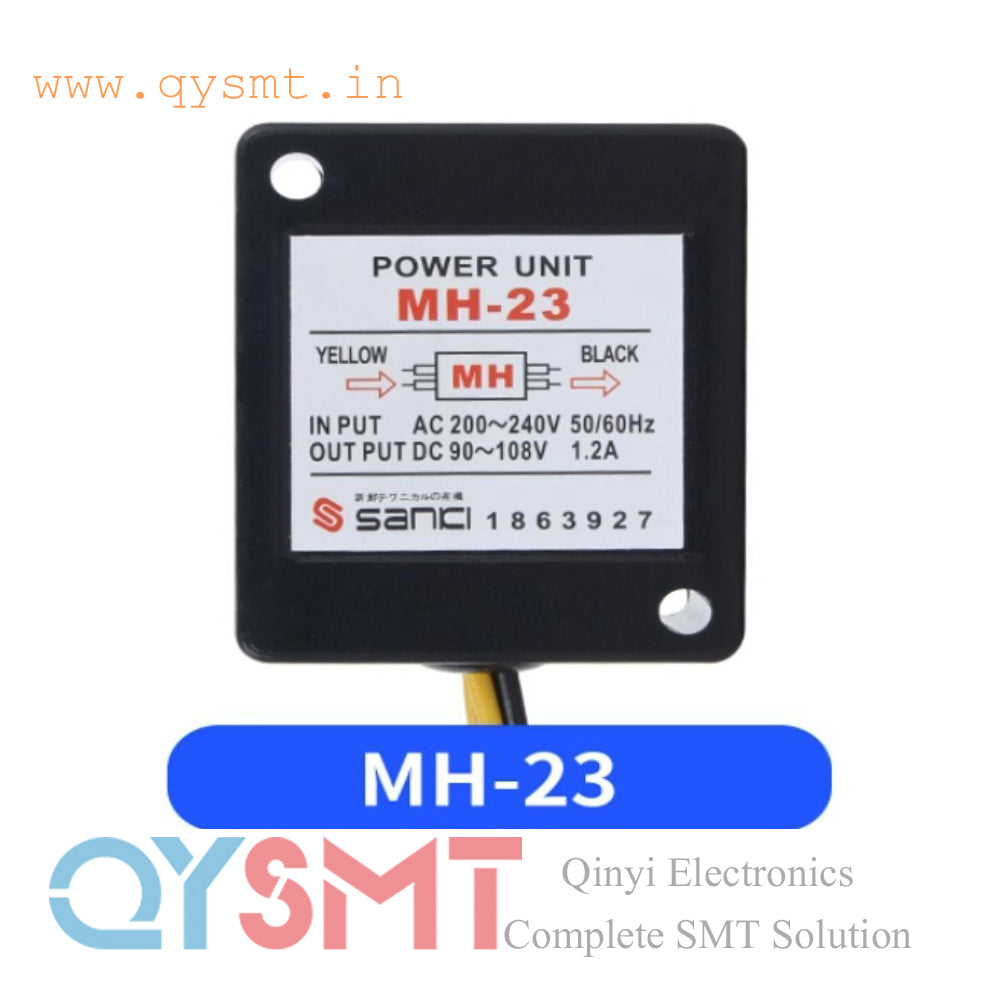

Rectifier MH-23 from AC AC200/240V to DC DC9 0/108V

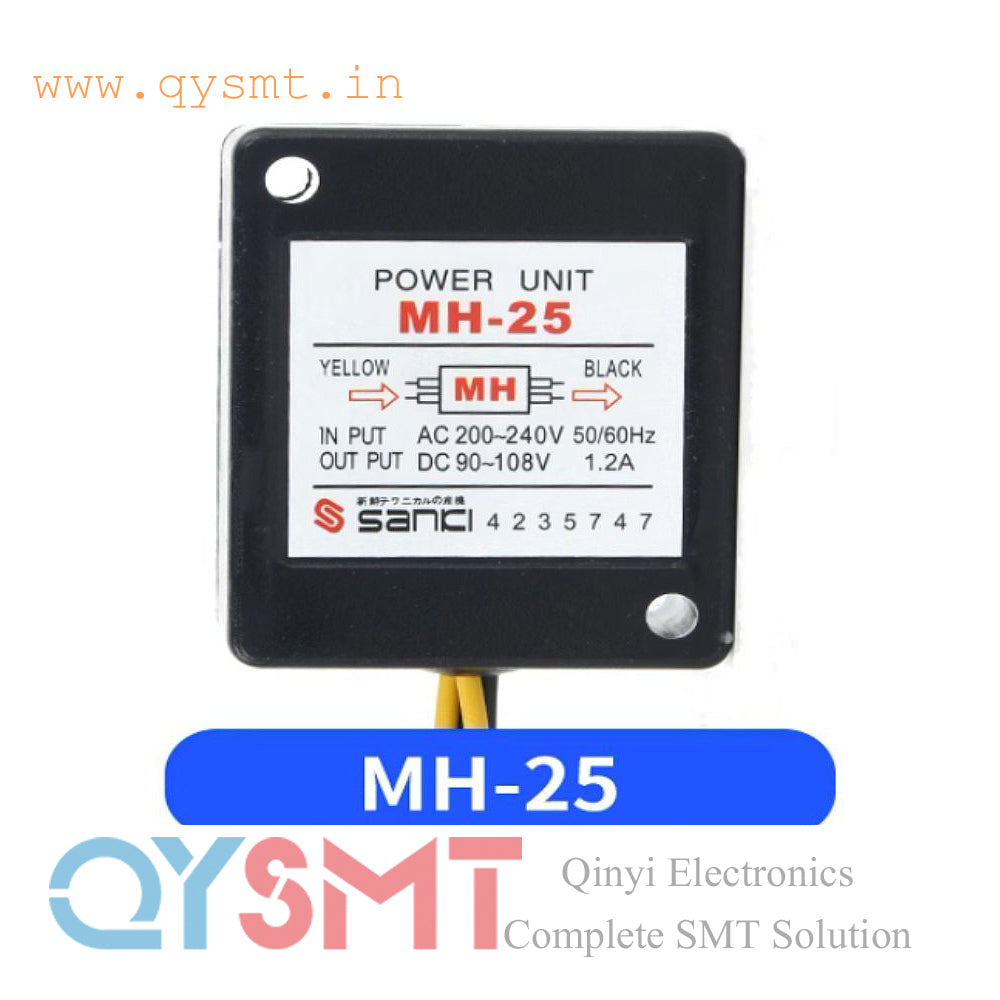

Rectifier MH-25 from AC AC200/240V to DC DC90/108V

(No-load only 0.02 seconds, that is, a cycle of 50Hz alternating current), 2 to 5 years of life.
Rectifier MH-25  from AC AC200/240V to DC DC90/108V
Rectifier MH-23C from AC AC200/240V to DC DC90/108V
Rectifier MH-20TC from AC AC200/240V to DC DC90/108V
Rectifier MH-23 from AC AC200/240V to DC DC90/108V
