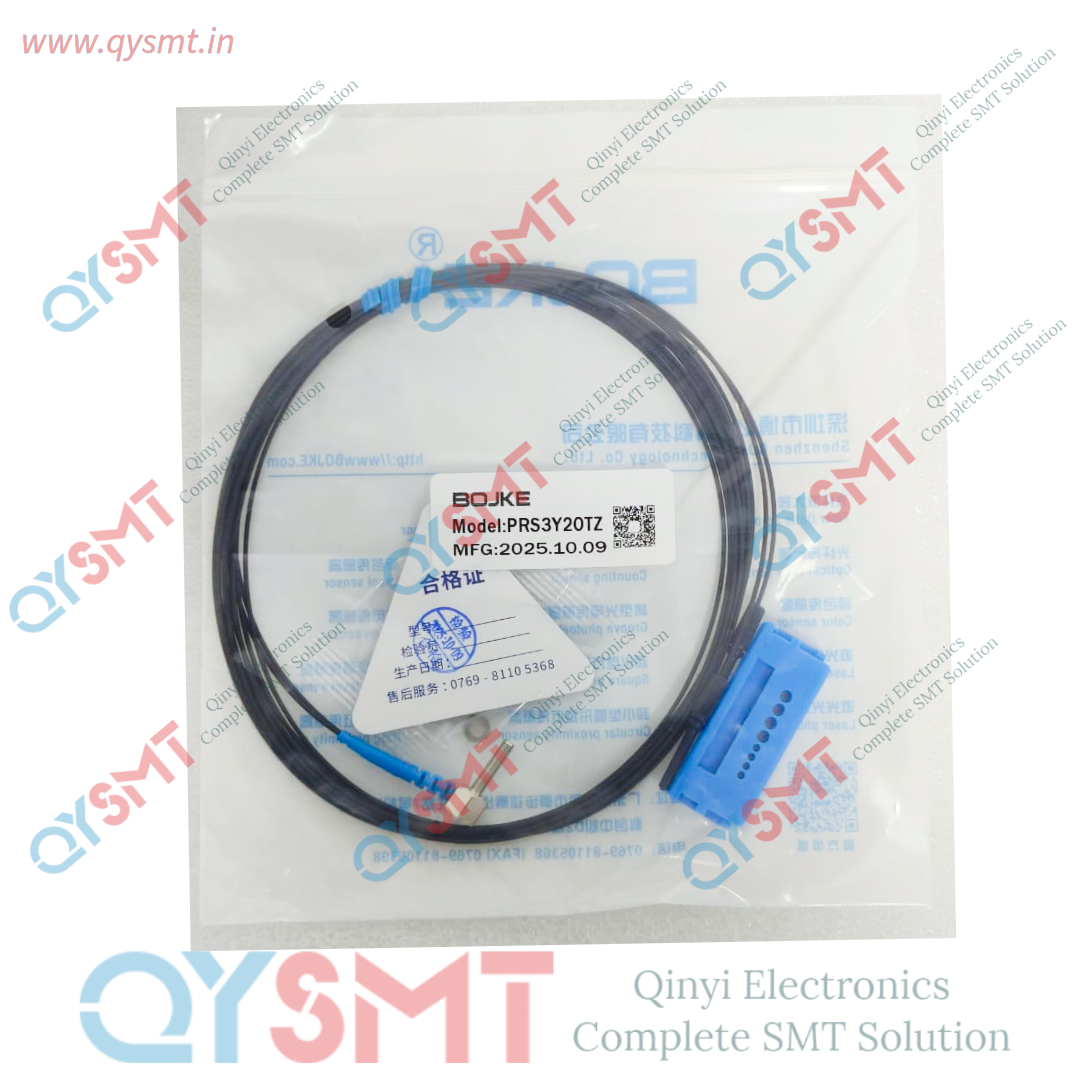

PRS3Y20TZ Proximity sensor

PRS3Y20TZ Proximity sensor
Key Specifications

• Type: Diffuse reflective fiber optic probe.

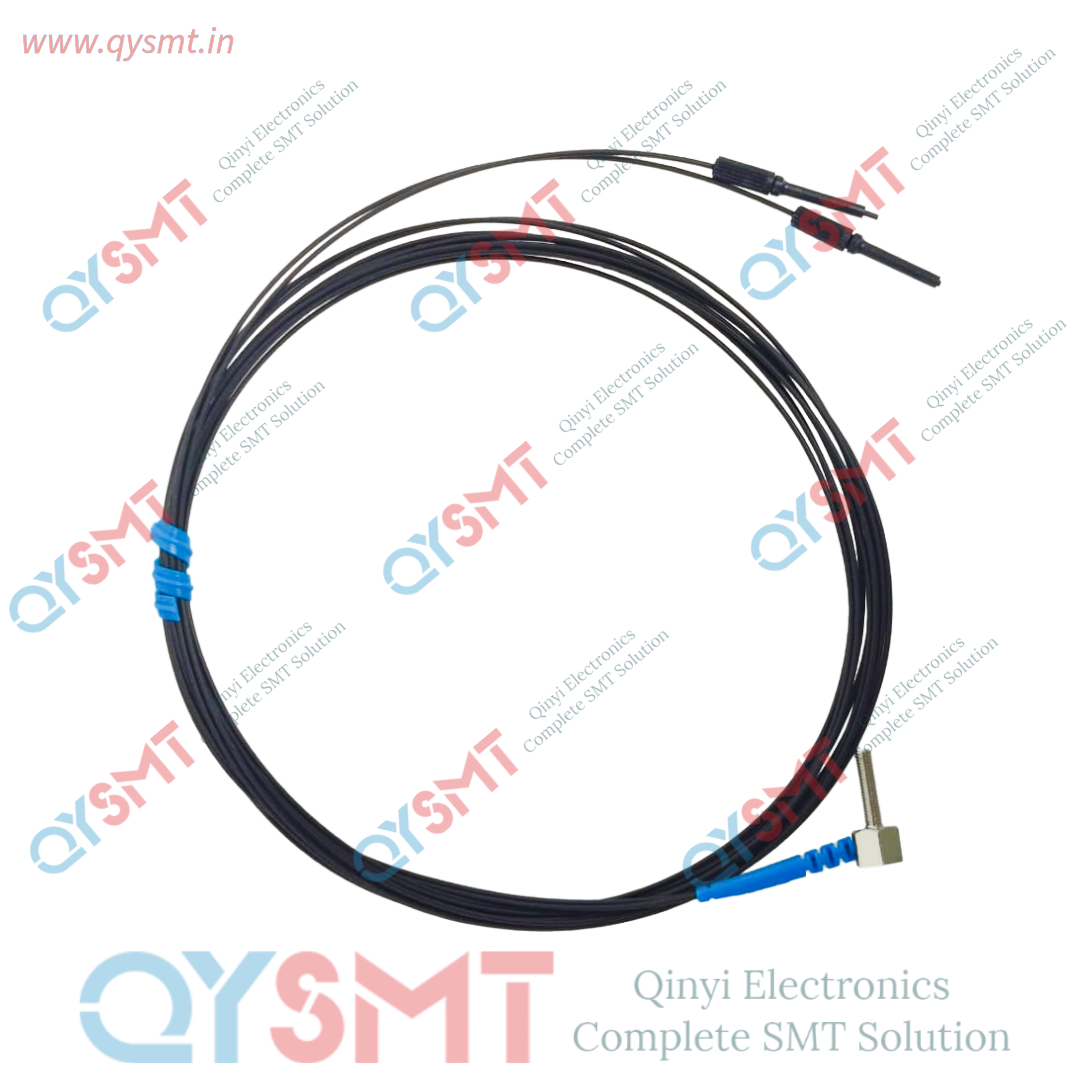

• Design: Right-angle (90°) lens. This helps you put the sensor in small spaces without bending the fiber cable too much.
• Mounting: M3 thread. This means it screws into small, standard holes.
• Sensing: Good at seeing target objects in tight paths.

How It Works

1. Light is sent. A main fiber optic cable shines light out of the sensor's tip.
2. Light bounces back. When an object passes in front of the tip, it bounces the light back into the sensor.
3. Switch turns on. The sensor sees the light. It sends an electronic signal to a machine's brain (like a PLC).

Common Uses

• Factory robots: Knowing exactly when a part is picked up or dropped off.
• Assembly lines: Counting objects moving on a fast conveyor belt.
• Tight machines: Fitting sensors into spots where normal sensors are too big to fit.
