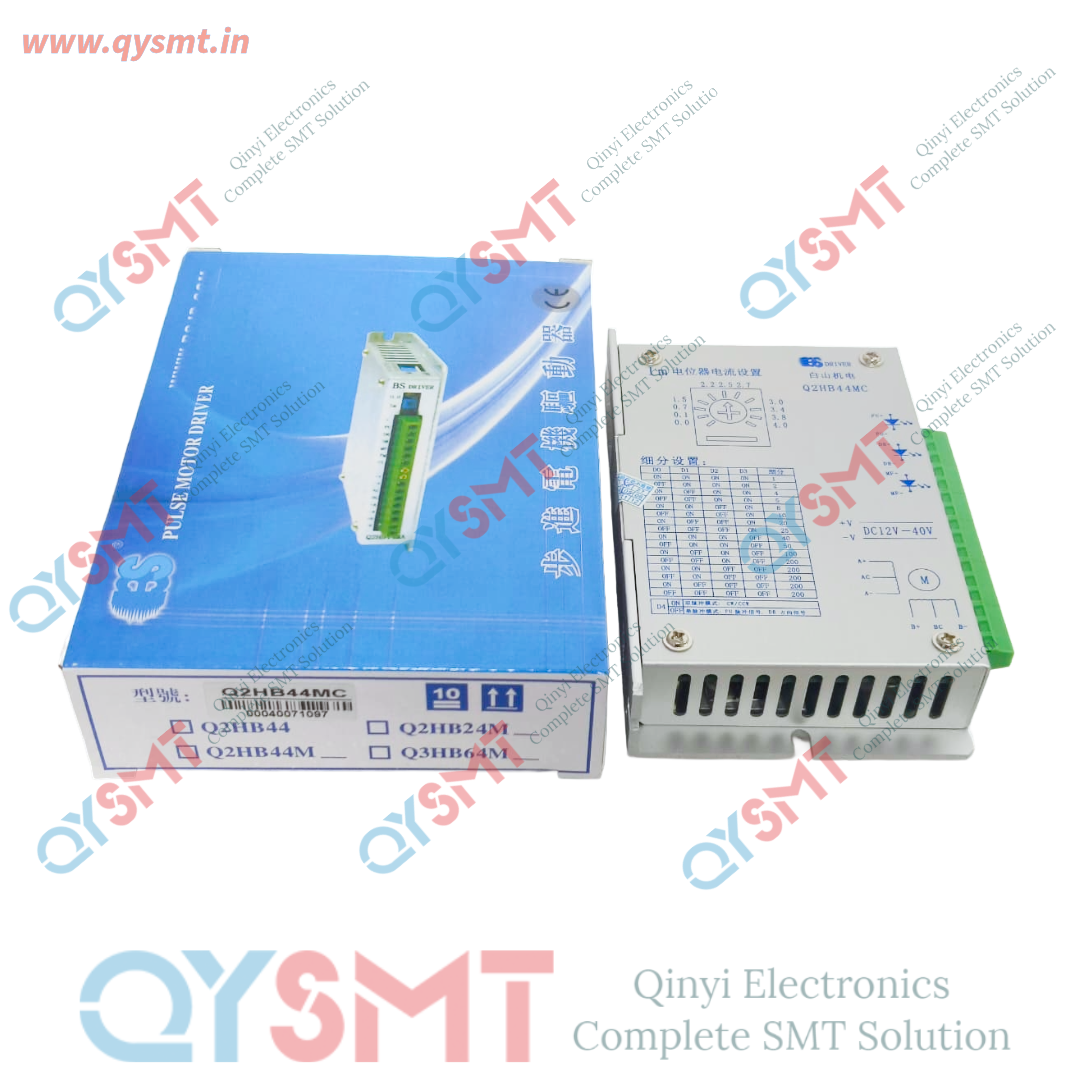

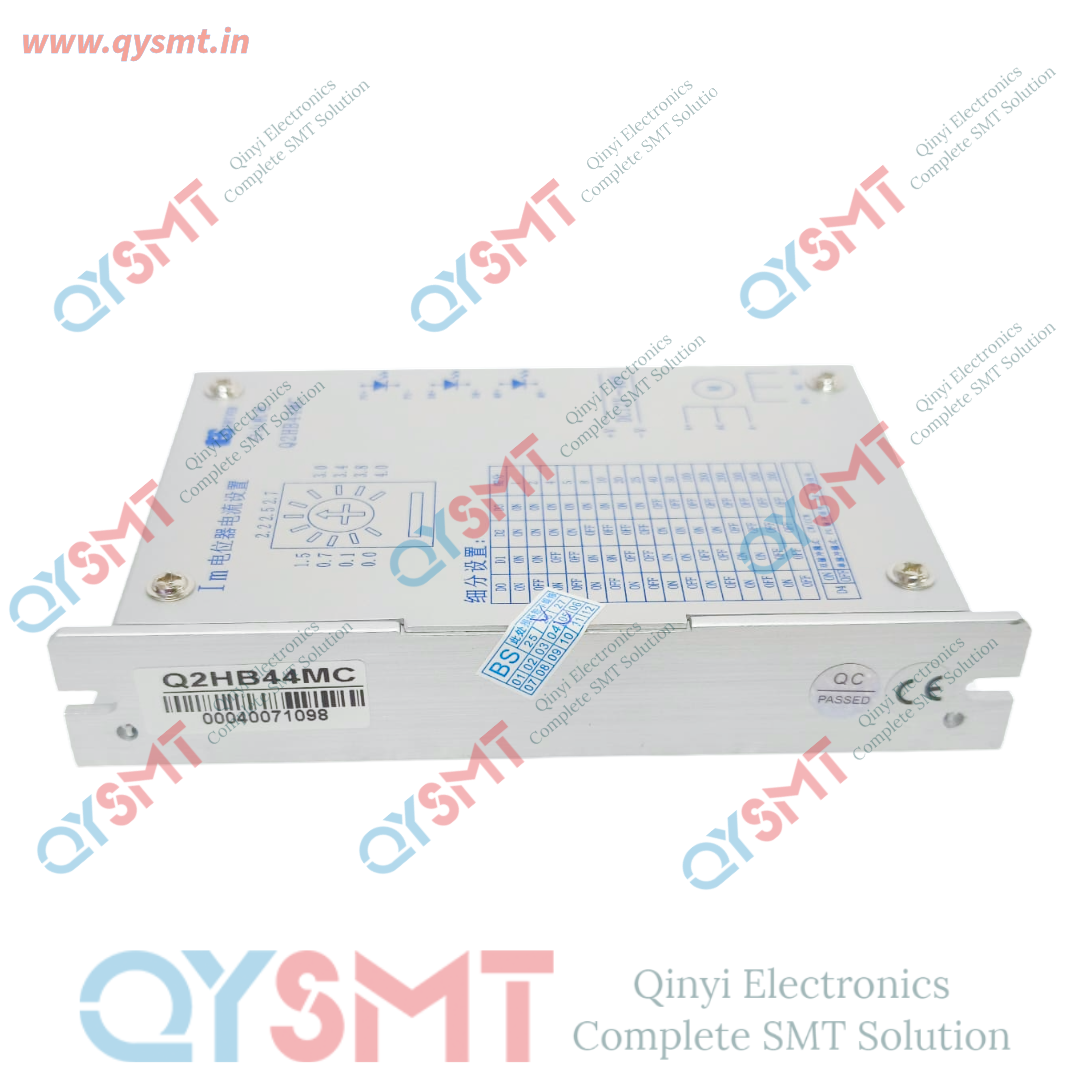

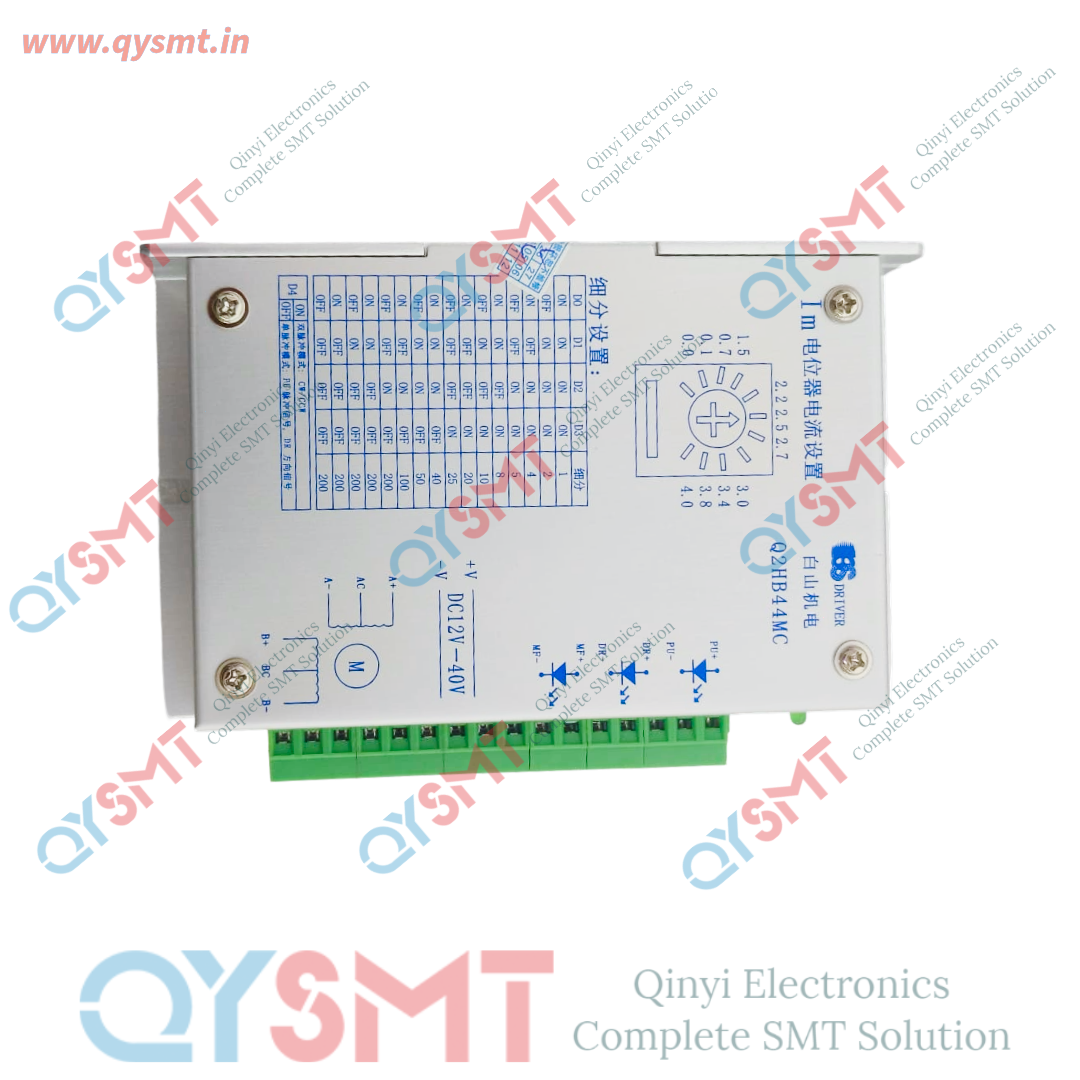

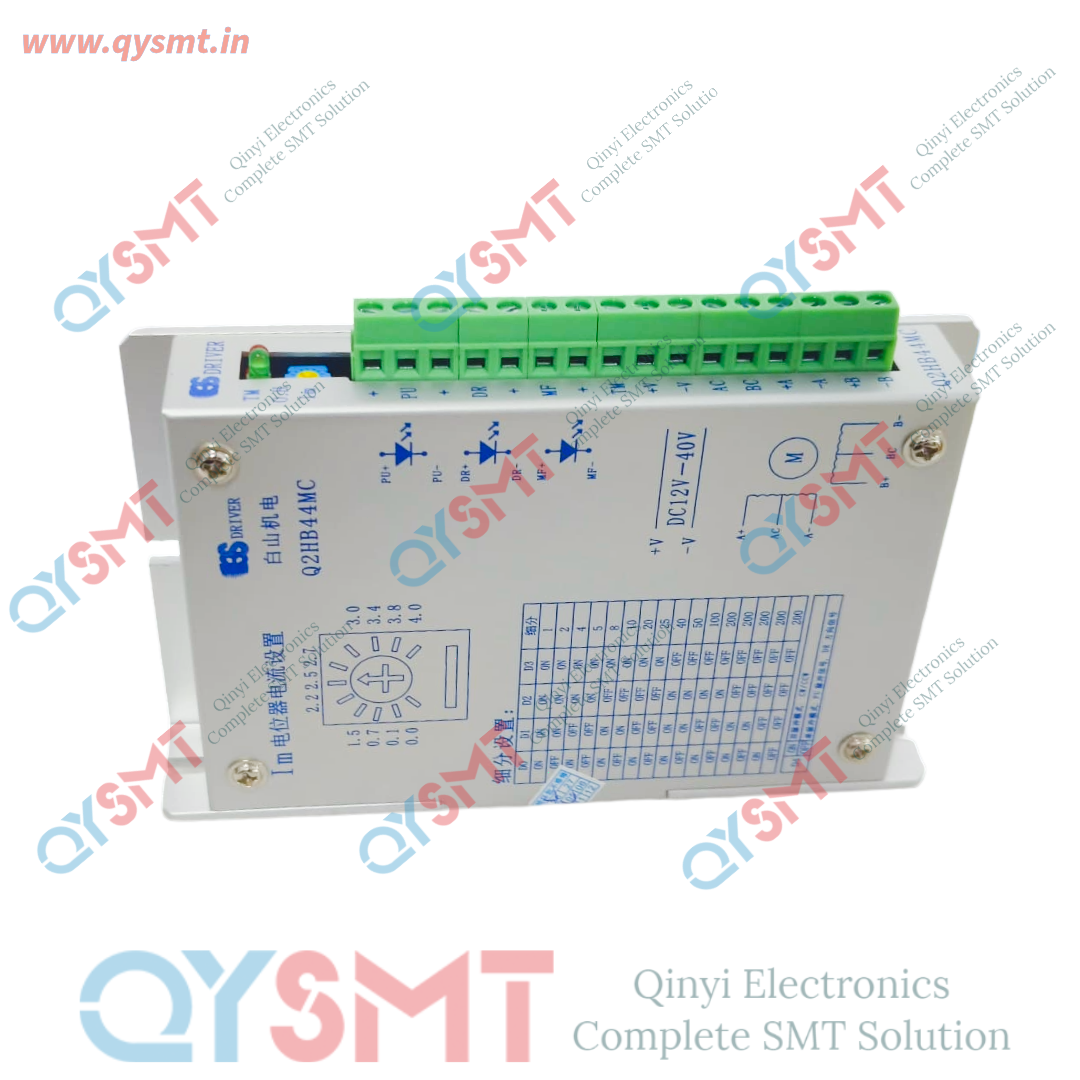

Q2HB44MC Servo drive assay

Q2HB44MC Servo drive assay
Technical Specifications & Limits

• Input Voltage: DC 12V to 40V
• Output Current: Adjustable from 0.5A to 4A per phase
• Microstepping: Up to 200 subdivisions (12/8 channels)
• Automatic Current Halfing: Coil current drops by approx. 50% when no pulse is received for more than 100ms
• Protection/Features: Photoelectric isolation signal I/O

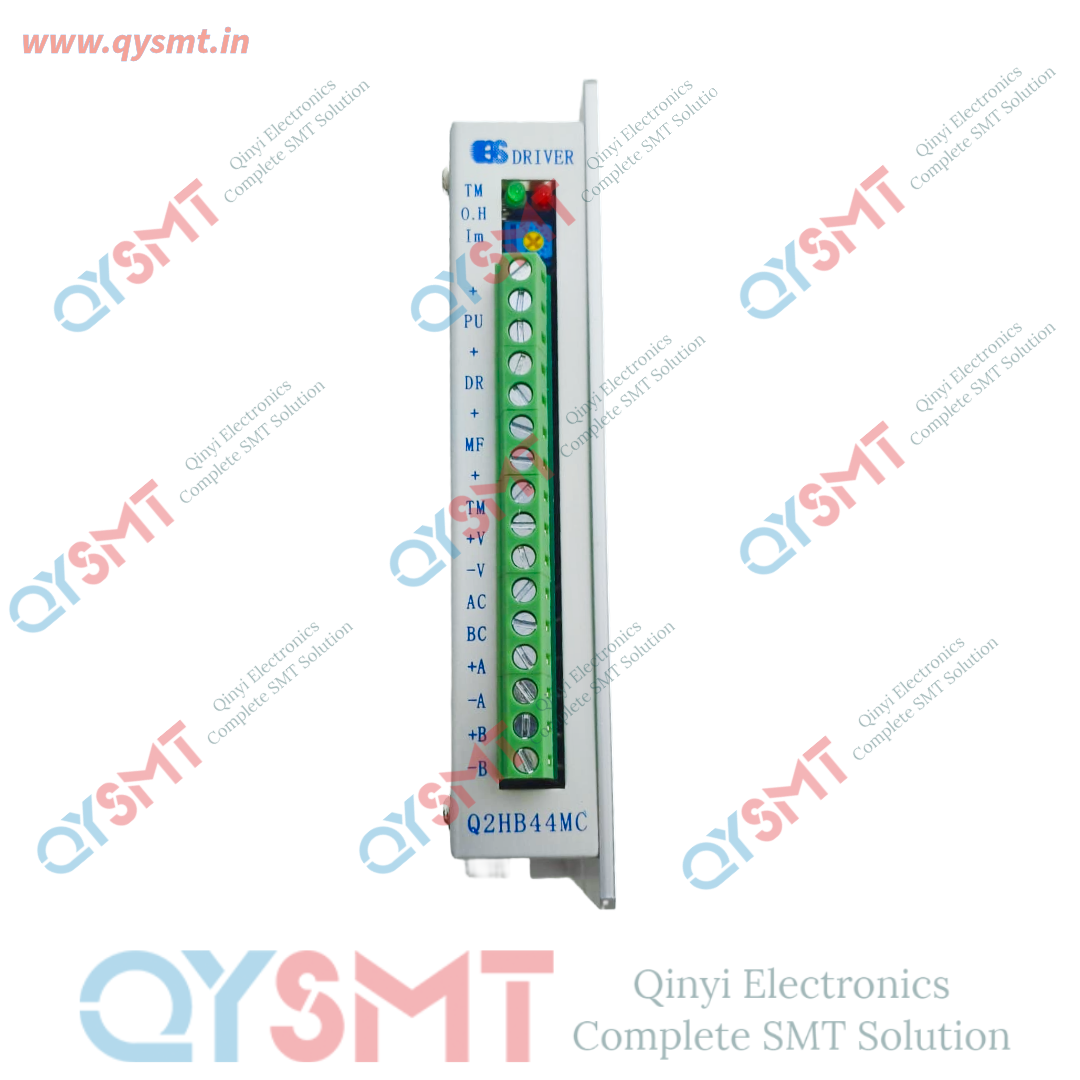

 Wiring Pinout Overview

• Power Connections:
  • +V: DC Power Supply (12V–40V)
  • GND: DC Power Ground
• Motor Phase Connections (2-Phase, 6 or 8 Lead Motors):
  • A+, A-: Phase A motor leads
  • B+, B-: Phase B motor leads
• Signal Connections (Logic):
  • PUL+, PUL-: Pulse/Step input signal (TTL differential)
  • DIR+, DIR-: Direction input signal

 Assay & Diagnostic StepsIf you are troubleshooting, repairing, or benchmarking this driver, follow these steps:

1. Visual Inspection: Check for burnt components, bulging capacitors, or damaged dip switches on the driver casing.
2. Voltage Check: Ensure your power supply outputs a steady DC voltage between 12V and 40V. Over-voltage will damage the board.
3. Coil & Motor Check: Use a multimeter to check the resistance of your stepper motor coils before connecting. A shorted motor can blow the driver's internal MOSFETs.
4. Current Setting: Verify that the dip switches on the driver are set to match the rated current of your specific motor. Running the driver at too high of a current will cause severe heating.
5. Signal Test: Use a pulse generator or a microcontroller (like an Arduino) sending known Step/Dir signals to test for rotation. If the motor holds position but doesn't rotate, check your PUL/DIR voltage level and ground wiring.

Finding or replacing this driver is possible through industrial parts suppliers on platforms like eBay or Alibaba.
