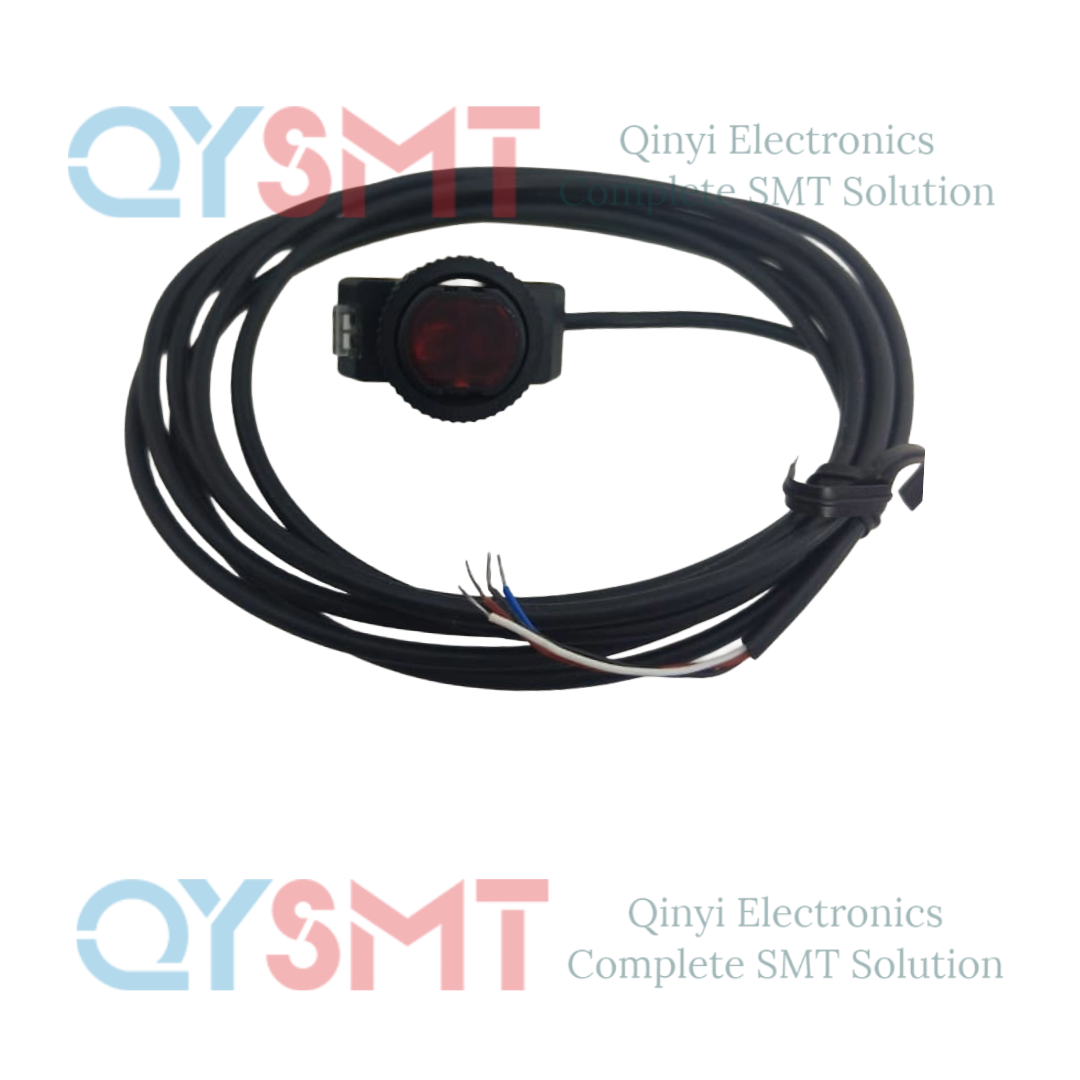

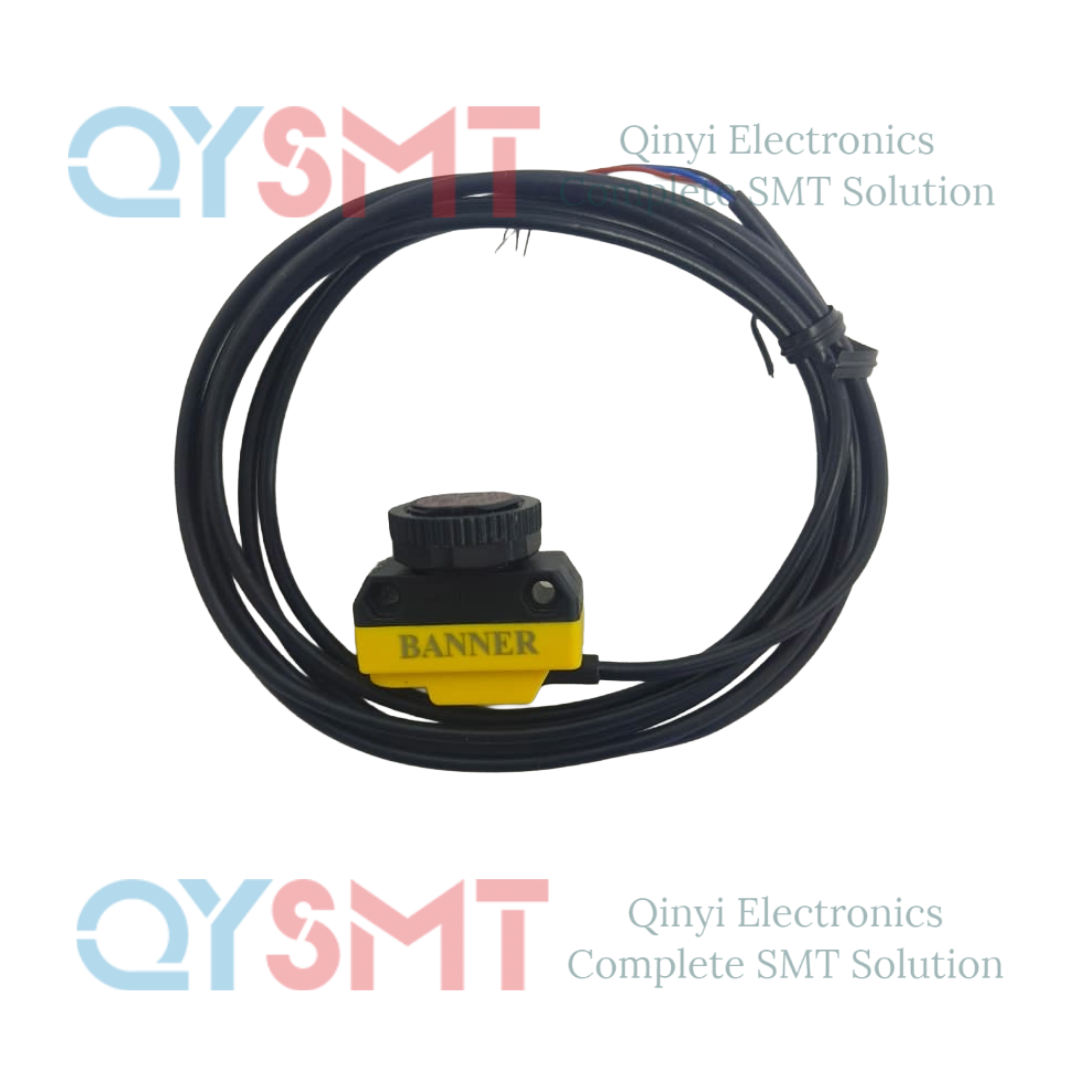

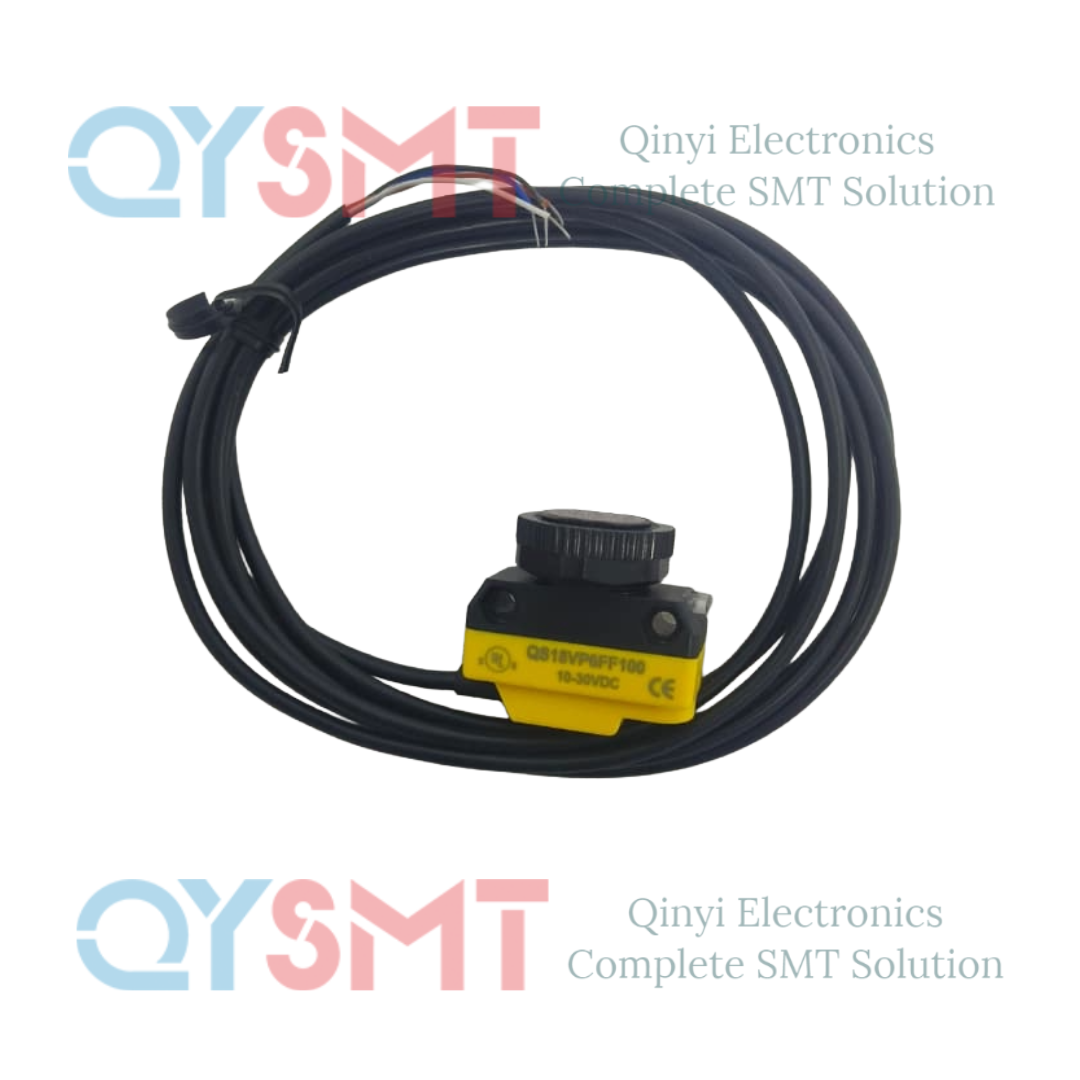

QS18VP6FF100 Banner Engineering WORLD-BEAM QS18 Series photoelectric sensor

• QS18VP6FF100  Banner Engineering WORLD-BEAM QS18 Series photoelectric sensor

• Sensing Method: Fixed background suppression.
• Sensing Range: Up to 100 mm (3.937").
• Output Configuration: PNP (sourcing current), complementary solid-state (NO/NC).
• Power Supply: 10V to 30V DC.
• Light Source: Visible red LED with 630 nm wavelength.
• Response Time: 0.85 ms.
• Connection Method: 2 m (6.5 ft) pre-wired cable.
• Housing Material: Rugged ABS plastic.
• IP Rating: IP67 and NEMA 4X/6P, indicating resistance to dust and water ingress.
• Operating Temperature: -20°C to +70°C (-4°F to +158°F).
• Indicators: Bright LED status indicators visible from 360°.

Where to BuyYou can purchase the Banner Engineering QS18VP6FF100 online from various industrial automation suppliers.
