QSM-M3-4, QSM-M5-4, QSML-M5-4, QSM-M5-6, QSML-M5-6, QSML-M3-4 festo fitting
- QSM: Quick Star Mini series, featuring a Straight orientation.

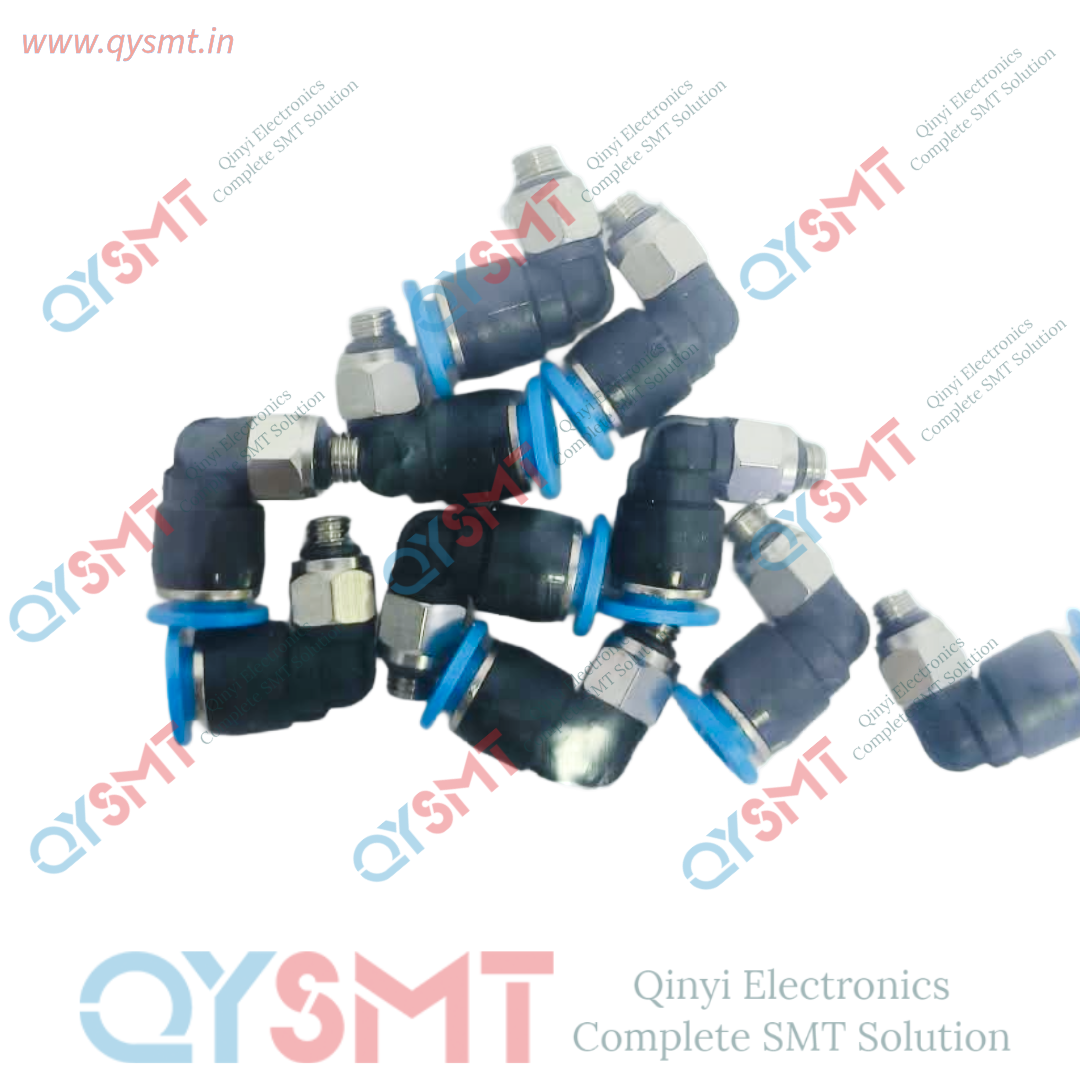

- QSML: Quick Star Mini L-series, featuring a 90-degree Elbow orientation.
- First Measurement (M3 / M5): The metric male thread size.
- Second Measurement (4 / 6): The required outer diameter (OD) of the pneumatic tubing in millimetres.
Festo Part Specifications Matrix
| Part Number | Type / Orientation | Thread Size | Tubing Outer Diameter (OD) |
|---|---|---|---|
| QSM-M3-4 | Straight
|
M3 Male | 4 mm |
| QSM-M5-4 | Straight | M5 Male | 4 mm |

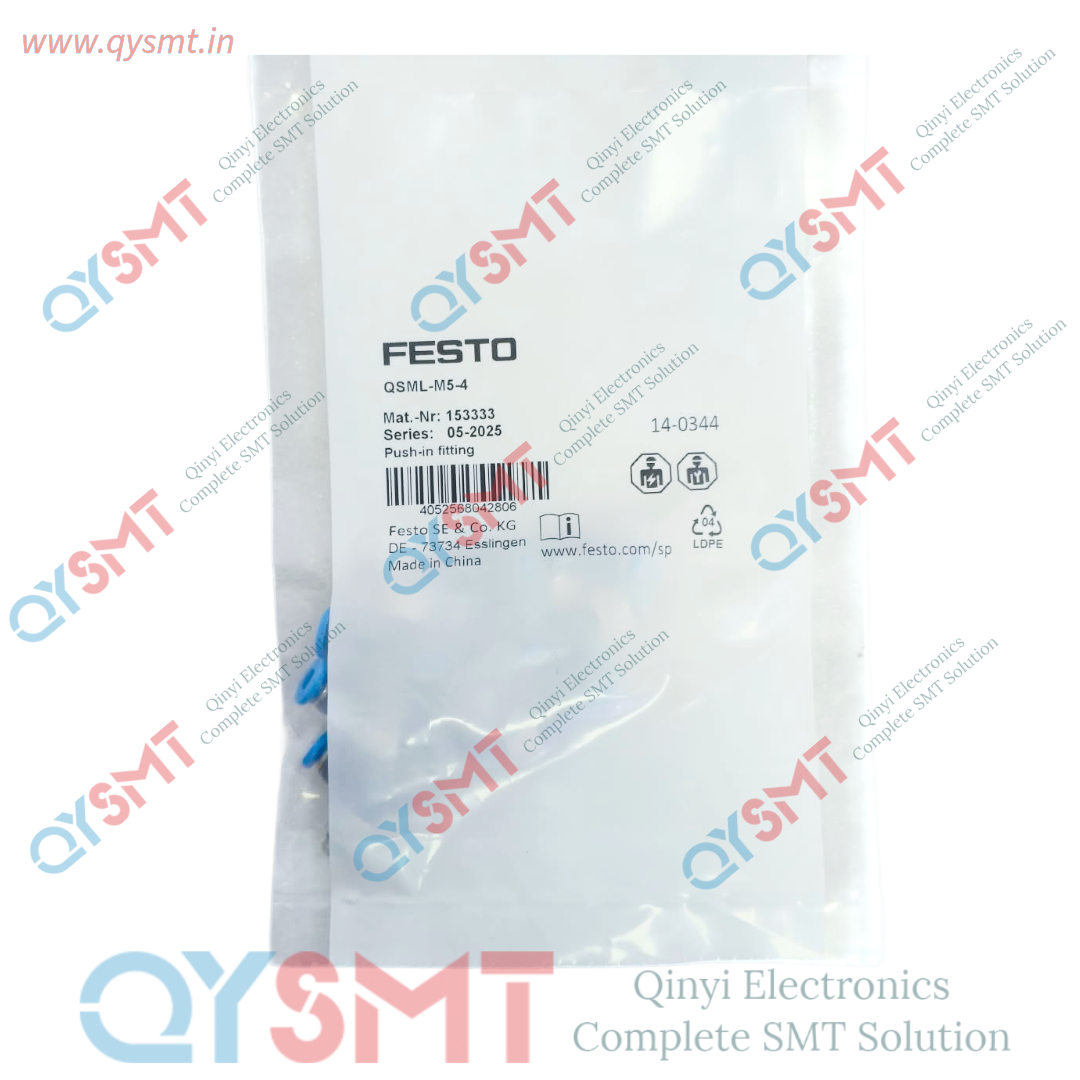

| QSML-M5-4 | 90° Elbow | M5 Male | 4 mm |
| QSM-M5-6 | Straight | M5 Male | 6 mm |

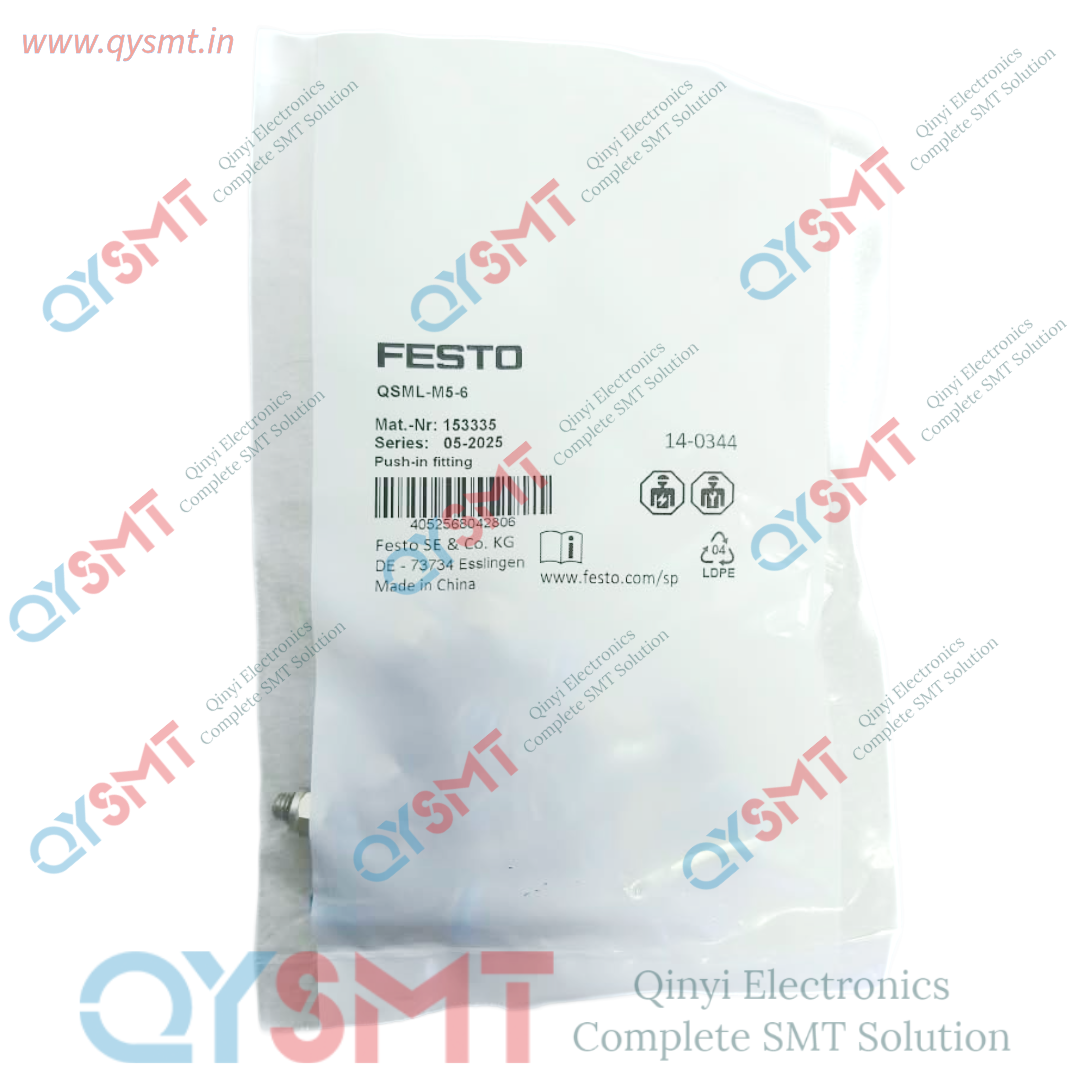

| QSML-M5-6 | 90° Elbow | M5 Male | 6 mm |
| QSML-M3-4 | 90° Elbow | M3 Male | 4 mm |
Technical Operating Conditions
- Pressure Range: -0.95 bar to 14 bar (suitable for vacuum and standard industrial compressed air applications).
- Temperature Range: -10°C up to 80°C.
- Material Construction: Nickel-plated brass bodies for straight fittings (QSM) and polybutylene terephthalate (PBT) polymers for elbow configurations (QSML).
Are you sourcing these parts for a 3D printer modification (like a Prusa MMU unit) or a custom pneumatic automation rig? If you need to make a purchase, let me know your location or how many units you need so I can locate local stock options.
