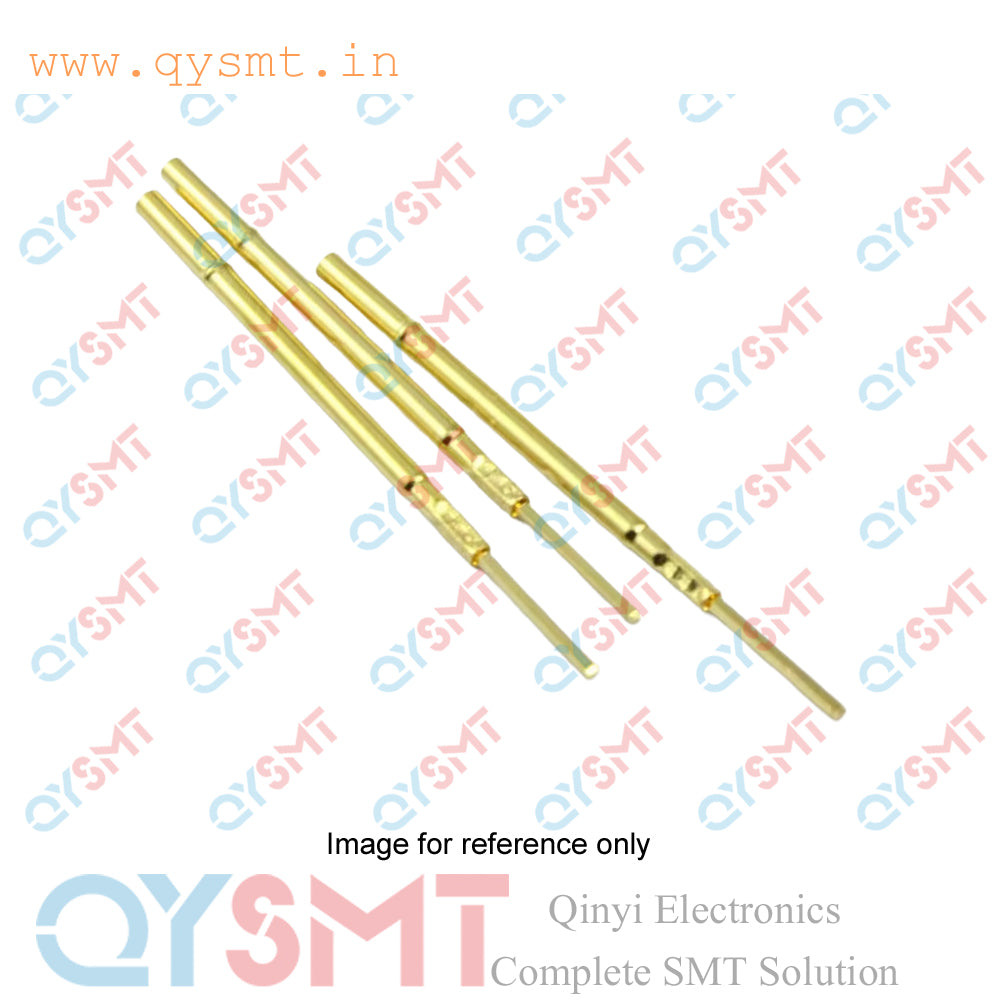

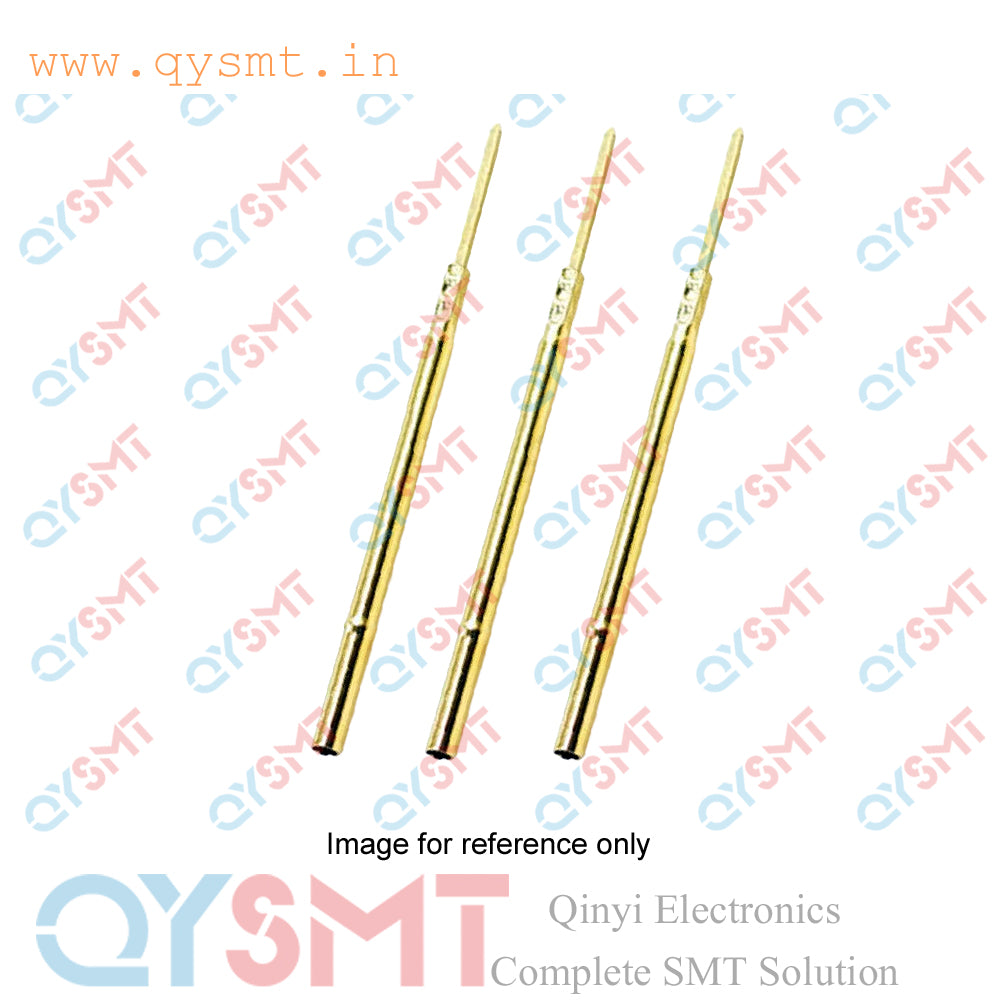

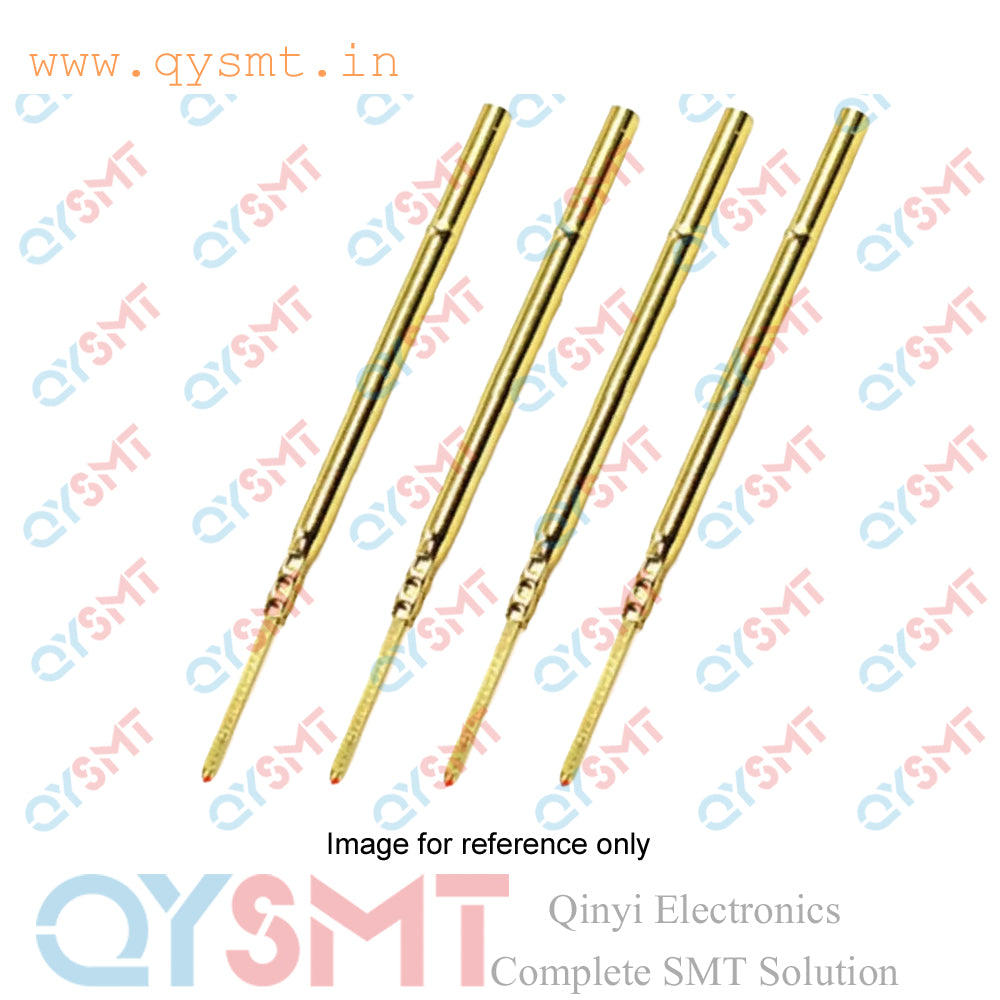

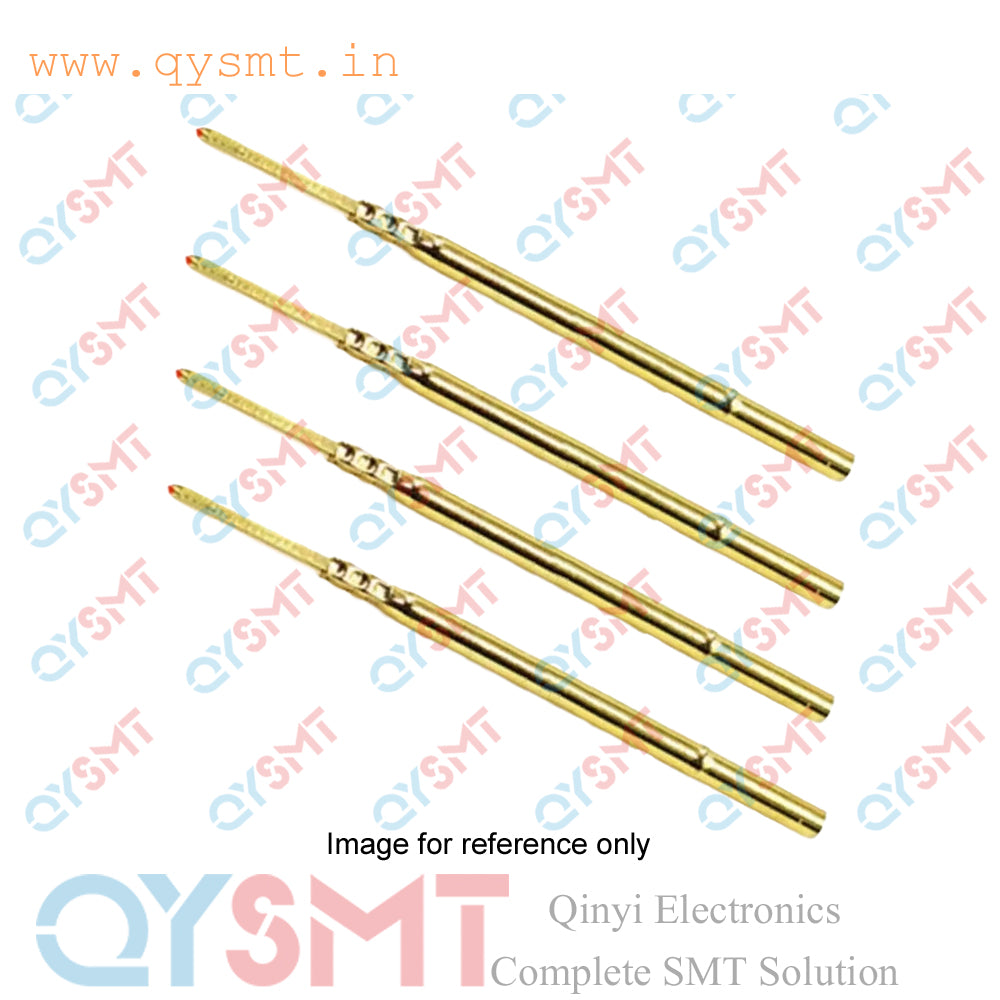

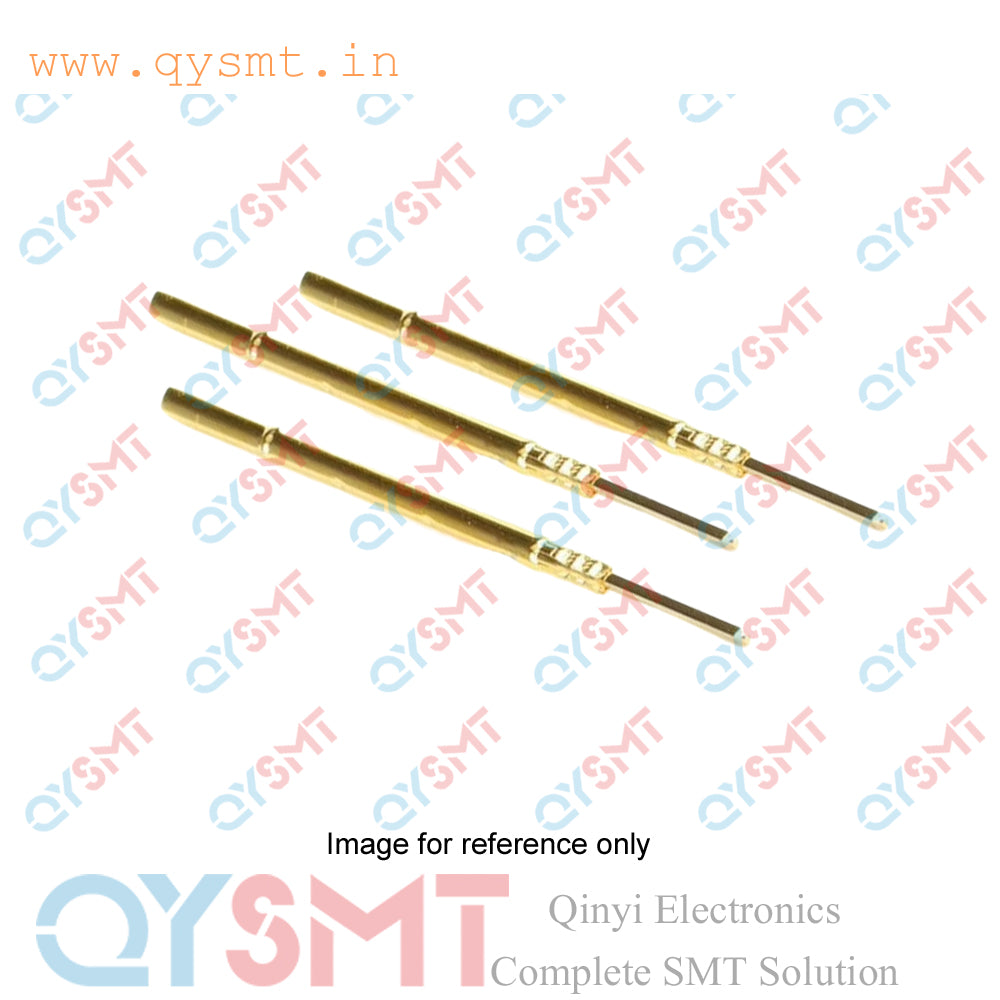

R100-4W Pogo Pin Receptacle
R100-4W Pogo Pin Receptacle
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Call or Whatsapp
+91 9319902096
Email: harshita@qysmt.in
Spring Test Probe Receptacle R100-4W Needle Tube Socket Sleeve
Needle Sleeve R100-4W Receptacle For Pogo Pin, Test Pin Socket R100-4W Pogo Pin Holder
The R100-4W is a specific model of a spring test probe receptacle, or sleeve, commonly used to hold spring-loaded test probes for testing printed circuit boards (PCBs). These receptacles are essential components in a test fixture, and their design allows for quick and easy replacement of the probes they hold.

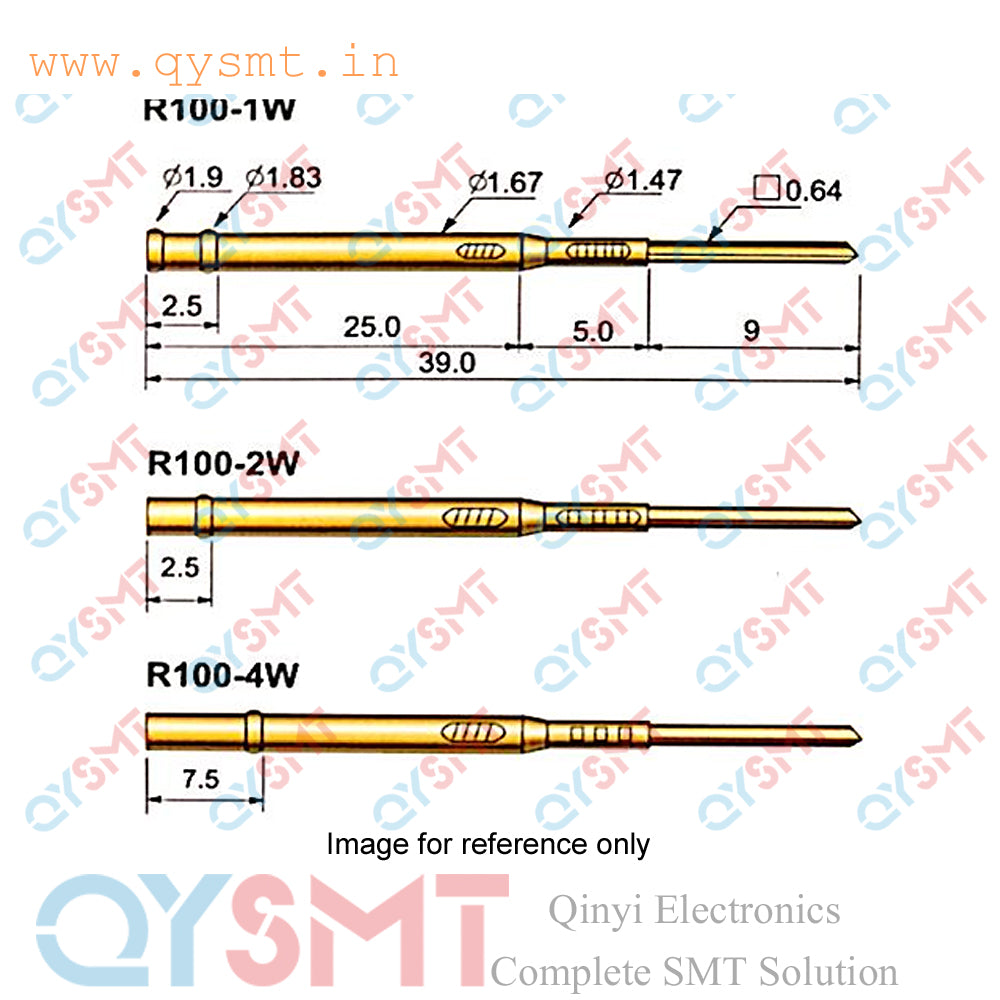

Key specifications
- Probe compatibility: Designed to be used with P100-series spring-loaded probes.
- Receptacle outer diameter: 1.67 mm.
- Overall length: 39mm.
- Collar height: 7.5 mm.
- Mounting hole diameter: 1.70 mm to 1.75 mm.
- Minimum center-to-center pitch: 2.54 mm (100 mil).
- Connection type: wire-wrap style for secure connections.
- Material: Brass, with gold plating for improved electrical transmission.
Function and features
- Function: In electronics manufacturing, spring test probes are pressed against contact points on a PCB to test for continuity, shorts, and other functional parameters. The R100-4W receptacle holds the probe in place within the test fixture.
- Easy replacement: The design of the receptacle allows a test probe to be easily removed and replaced from the fixture's wiring side. This is valuable for maintenance and to extend the life of the test station.
- Durability and signal integrity: The use of materials like gold-plated brass provides good electrical contact and durability, which are critical for stable and reliable testing.
- Applications: The R100-4W is a cost-effective solution often used in test fixtures for in-circuit testing (ICT) and functional testing (FCT).
