Spring Test Probe Receptacle R50-2C Needle Pogo Pin Connect Socket

Test Pin Socket R50-2C Needle Sleeve for Pogo Pin Female Socket Connector

The R50-2C socket is a type of receptacle for a spring test probe, also known as a pogo pin. It is primarily used for testing printed circuit boards (PCBs). The socket is a tube-shaped component that is inserted into a hole in a test fixture or board to hold and make an electrical connection with a corresponding test probe.

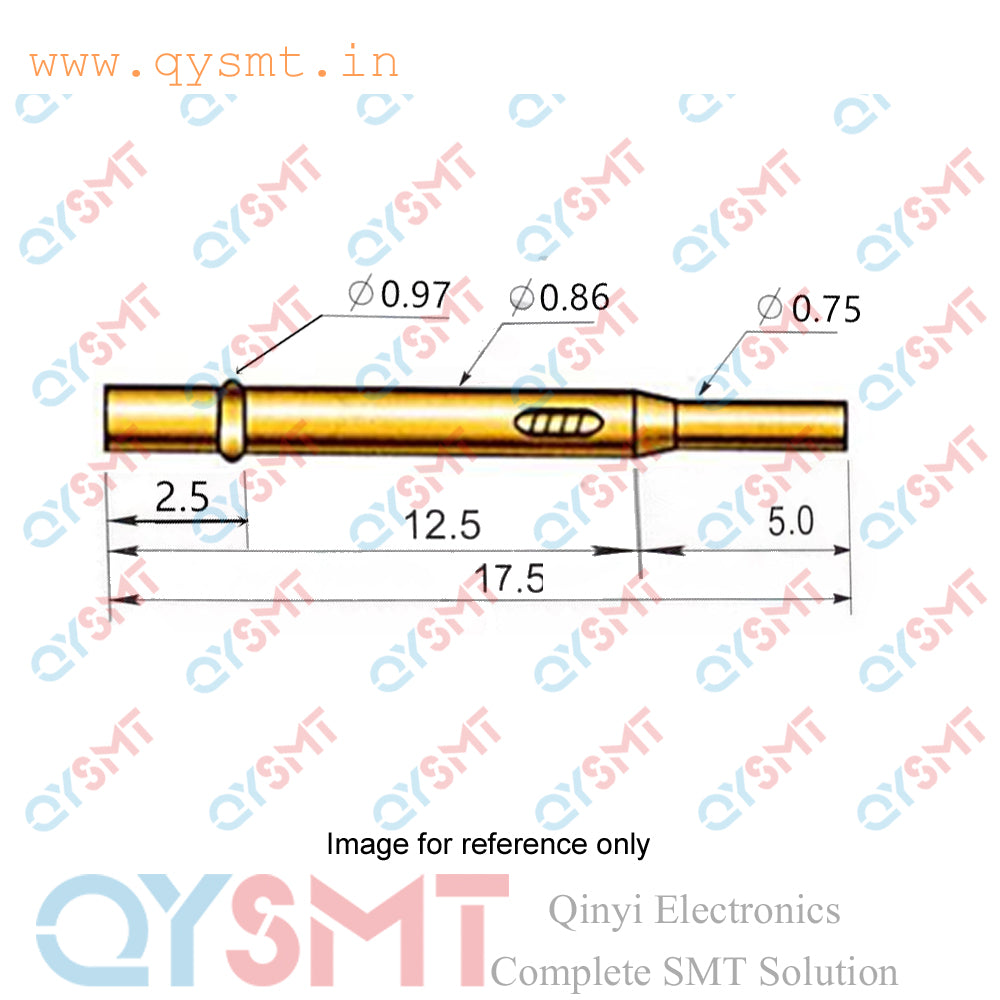

• Dimensions:
  • Outer diameter: 0.86 mm.
  • Total length: 17.5 mm.
  • Collar height: 2.5 mm.
• Performance:
  • Rated current: 3 amperes (3A).
  • Contact resistance: 50 milliohms (50mΩ).
• Installation:
  • Mounting hole diameter: 0.9 mm.
  • Connection type: Solder.
• Compatibility: Designed to be used with a P50-series or PA50-series test probe.
