Reflow oven Blower motor CY100L

Reflow oven Blower motor CY100L

Reflow oven Blower motor CY100L CY100 CY076L CY125L

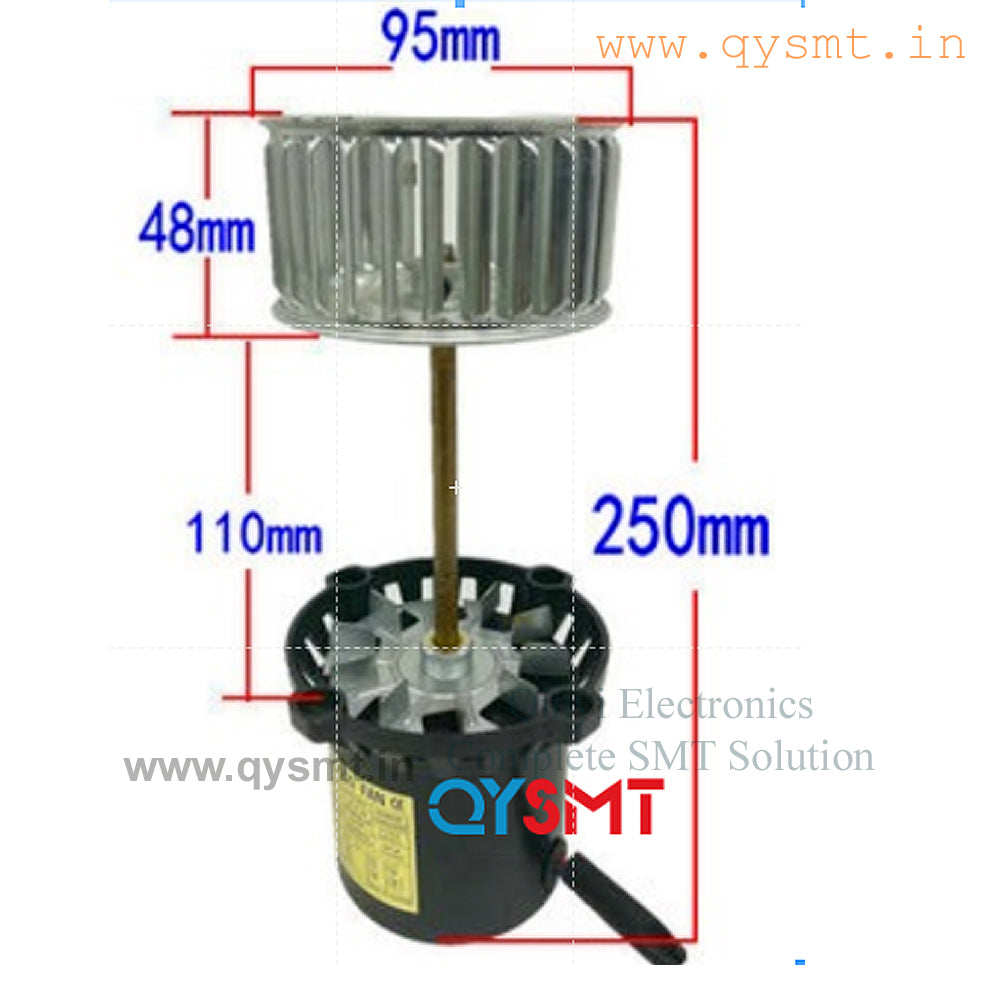

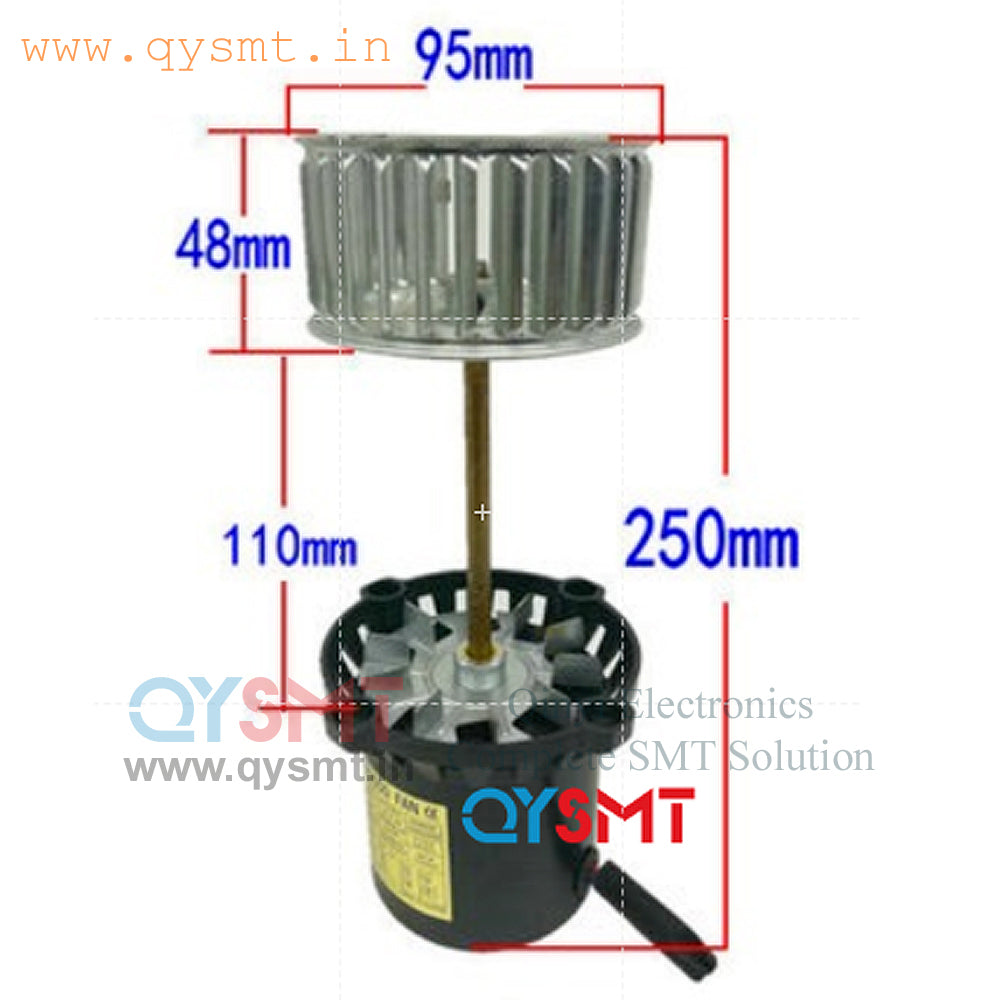

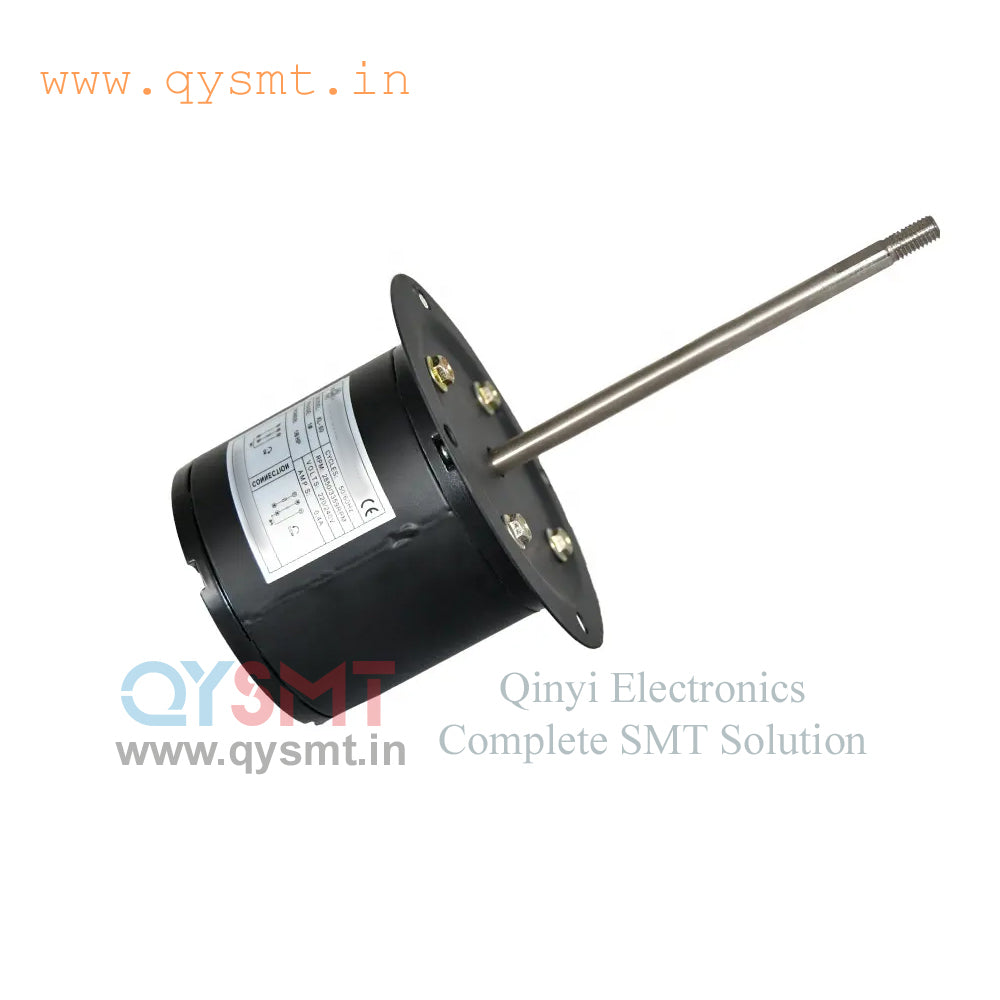

1. The motor shaft length is 125MM, the shaft diameter is 8MM, and the motor height is 92MM. The motor mounting plate is made of aluminum alloy with four mounting holes. The center distance from hole to hole is 74MM, and the inner diameter of the fixing hole is 7MM.

2. The size of the impeller is 95MM outer diameter, 50MM high, and 8MM inner hole

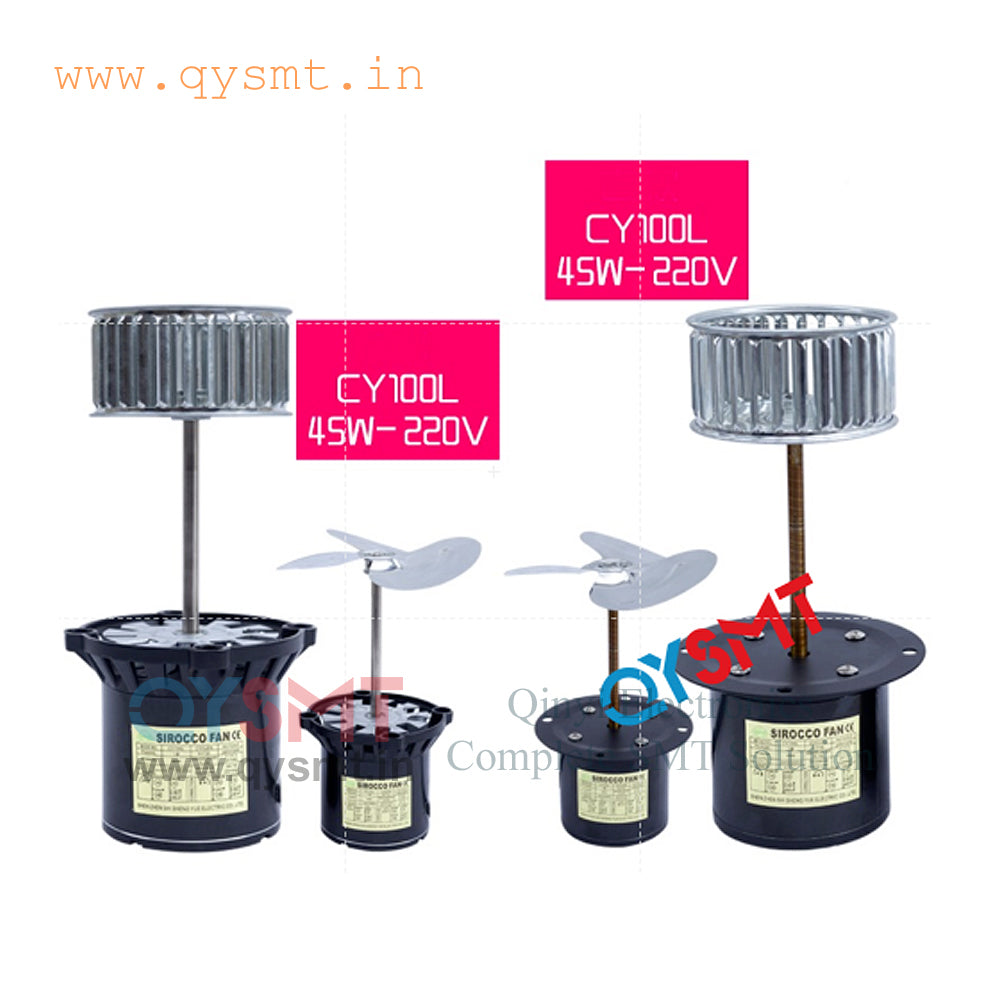

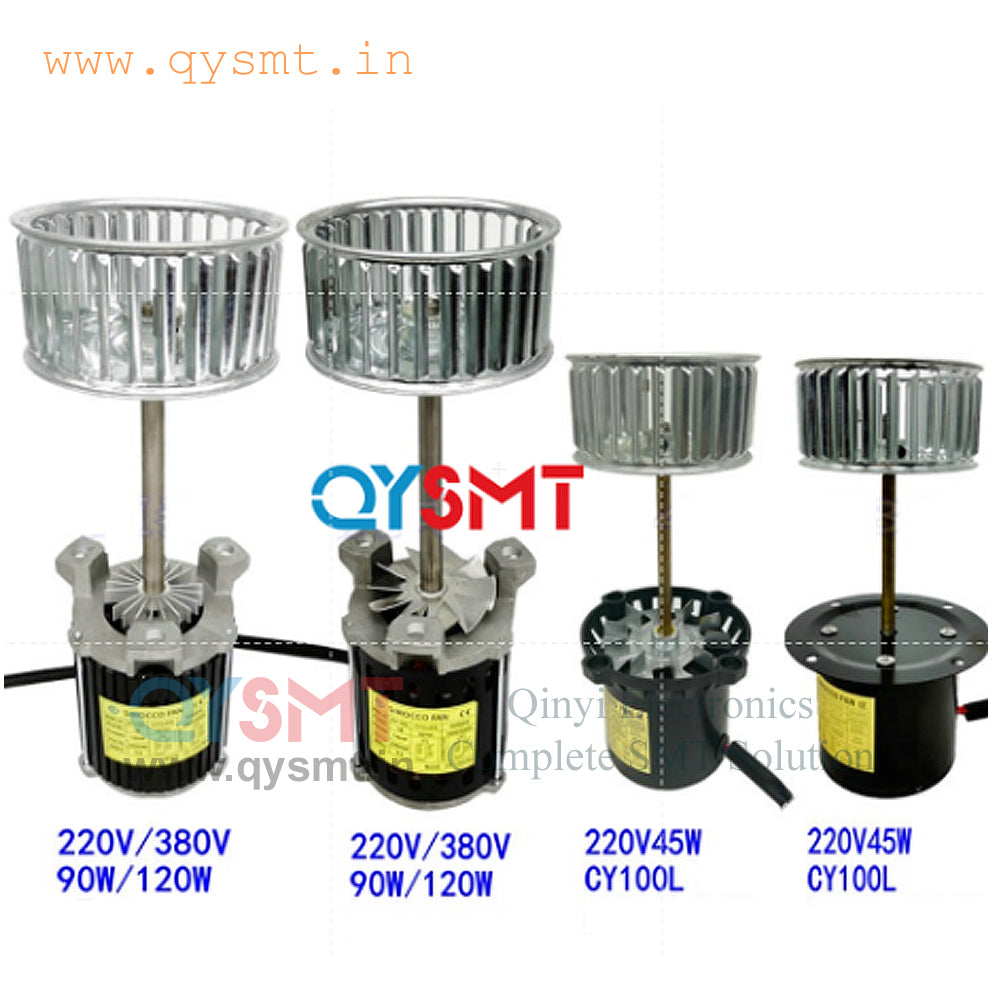

CY100L 45W（RPM：2850/3200，VOLTS：220/240，CYCLES：60/50HZ）

CY076L 25W（RPM：1600/1450，VOLTS：220/240，CYCLES：60/50HZ

*******************************************************
