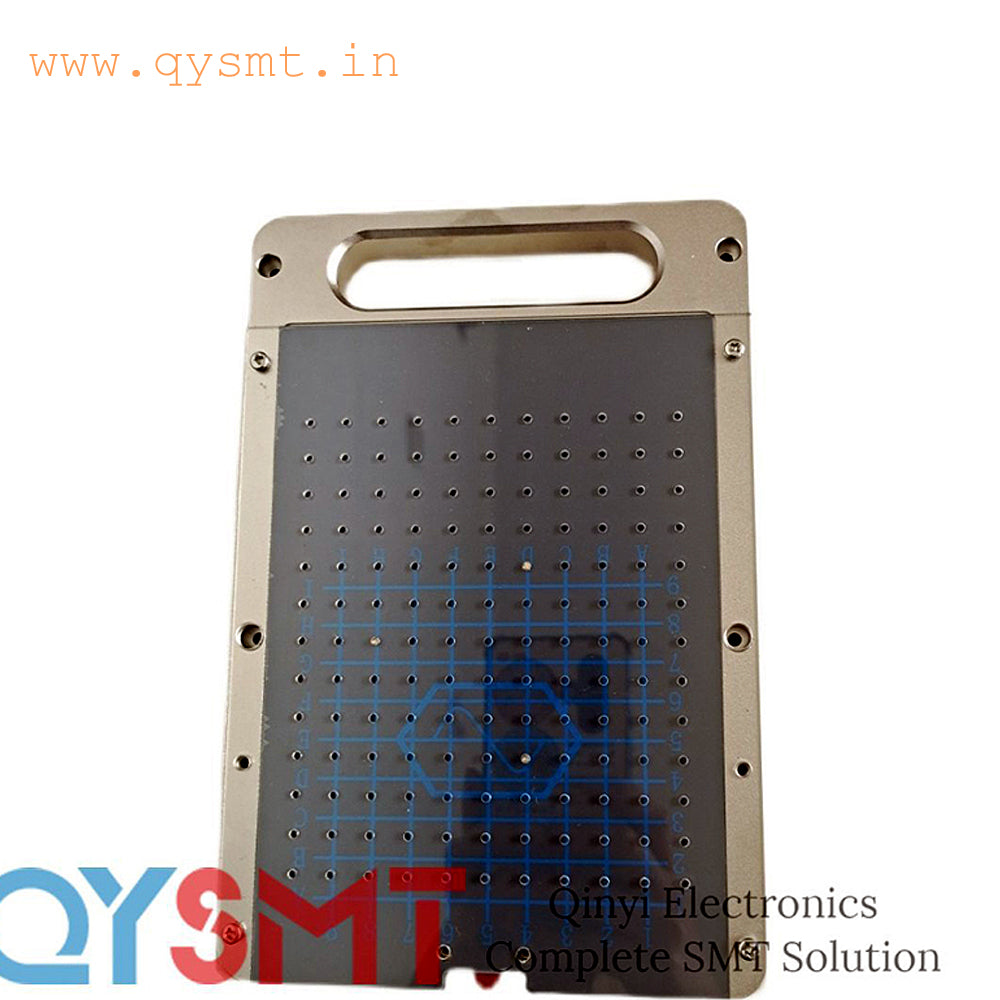

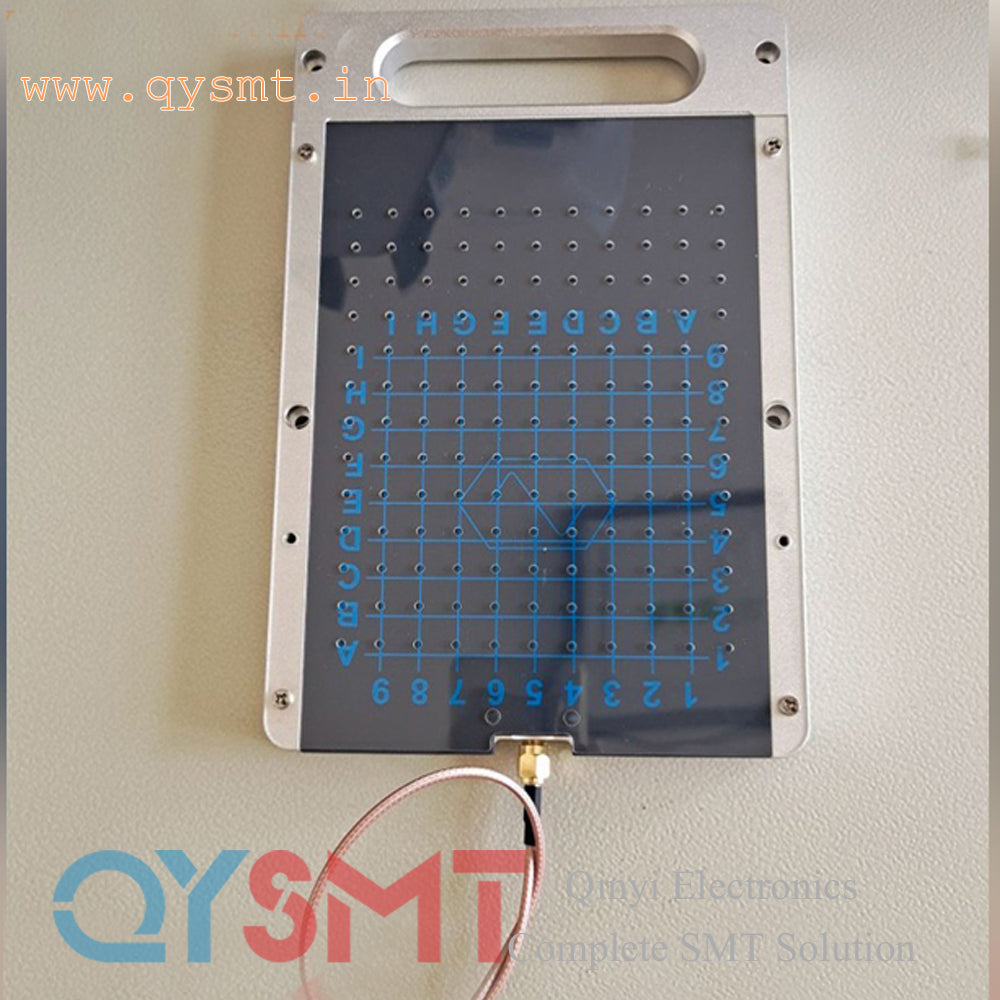

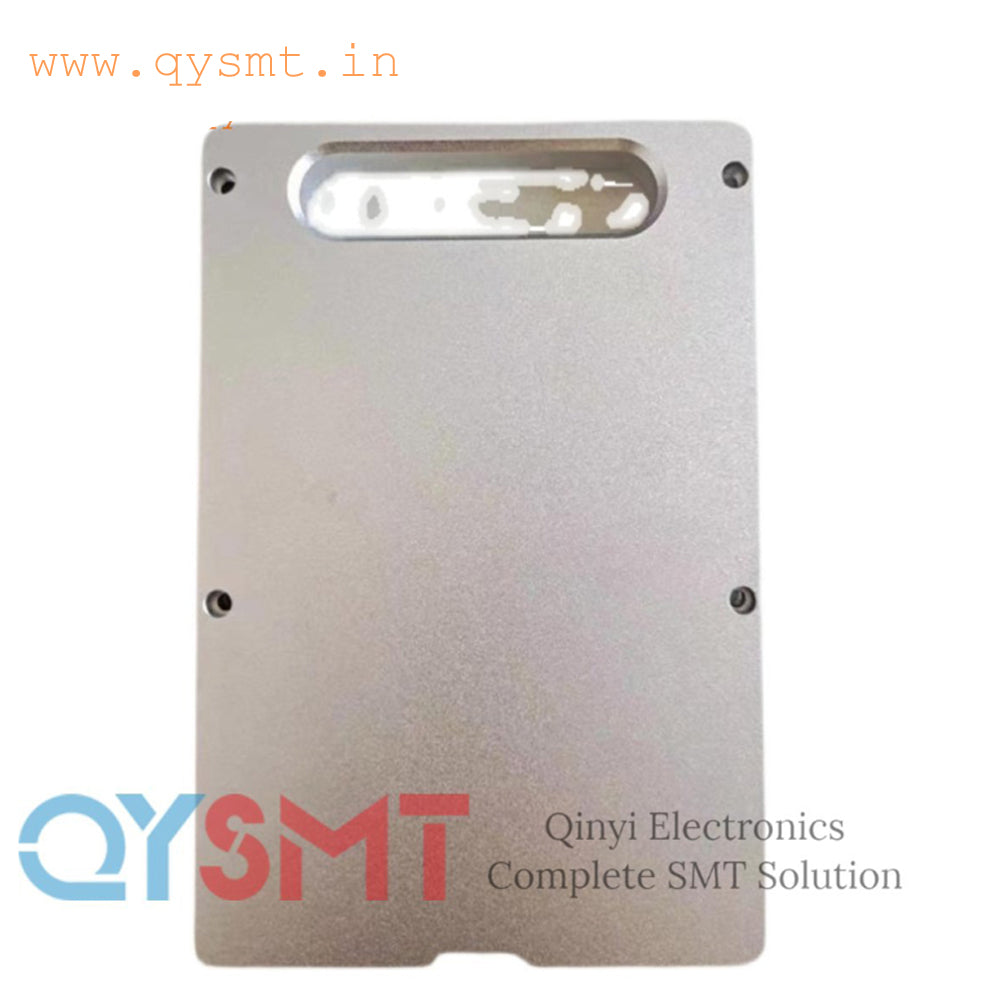

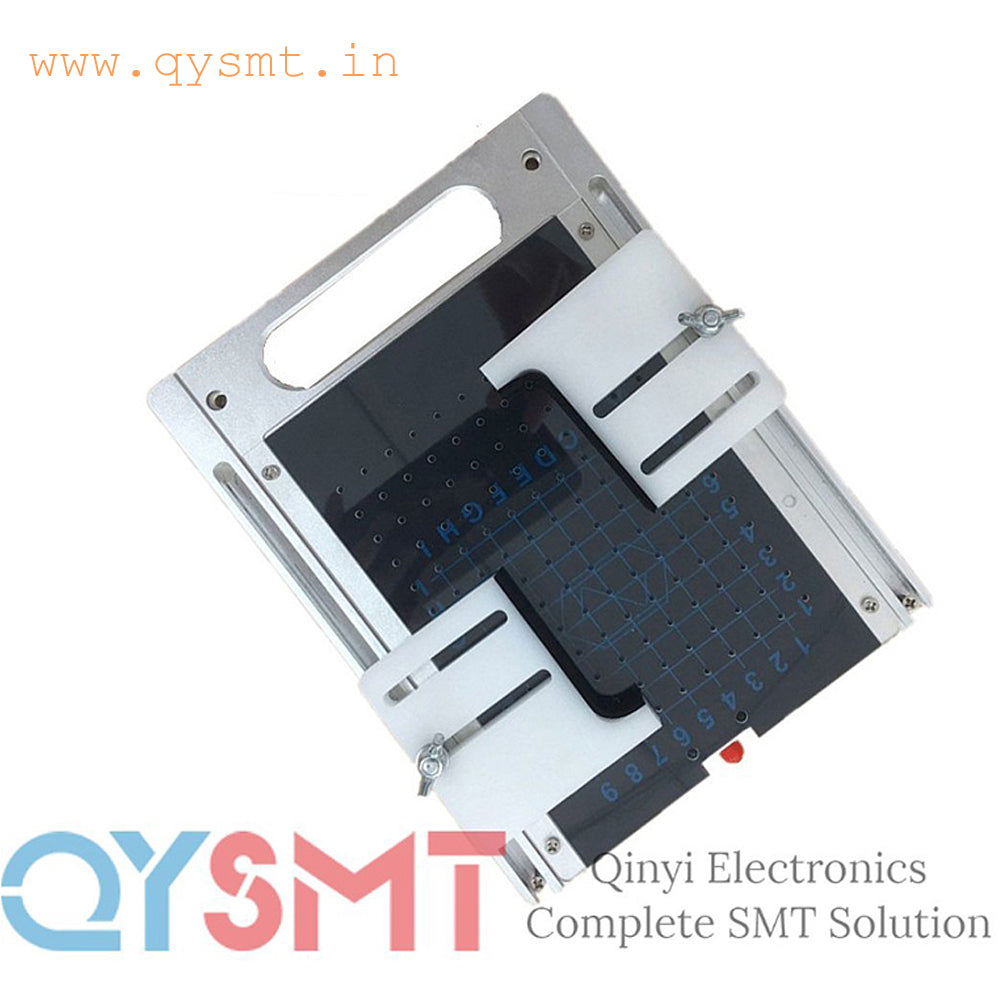

RF coupling plate 2G 3G 4G 5G 6G

RF coupling plate 2G 3G 4G 5G 6G

Contact Seller :- Call or Whatsapp +91-9354676493 Email:

Call or Whatsapp +91-9354676493


RF coupling plate 2G 3G 4G 5G 6G

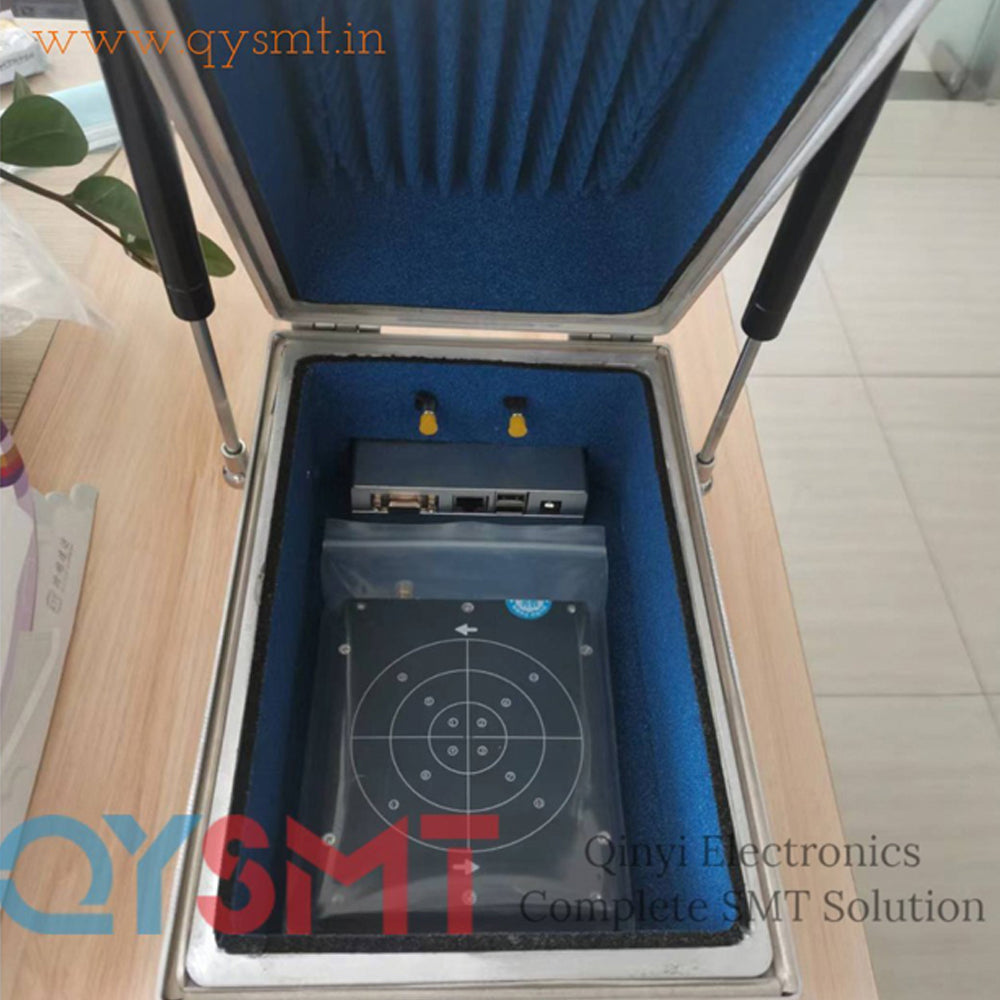

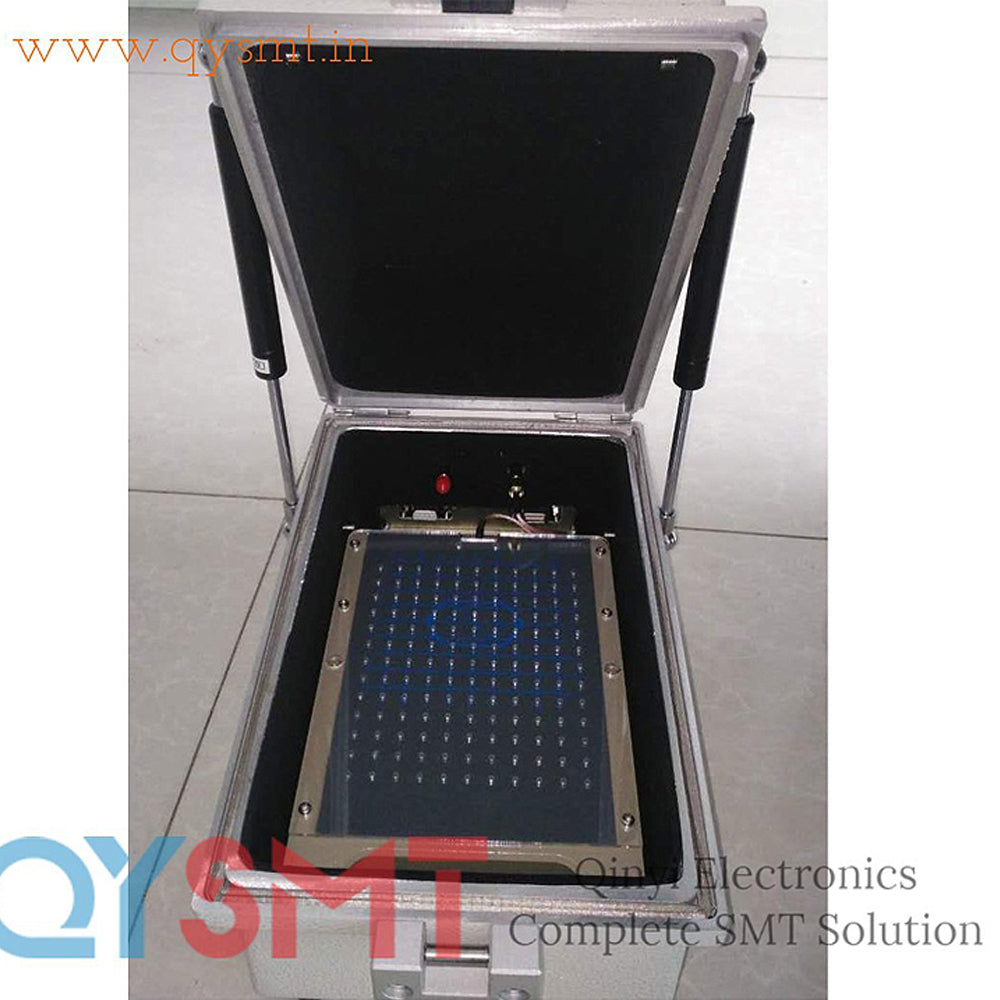

Shielding box comprehensive test coupling board 2G 3G coupling board mobile phone Bluetooth/antenna coupling board RF mobile phone test board 1. Main functions and scope of application
      RF test
      coupling test
Two specification parameters
      Operation mode: manual
      Dimensions: (L)210mm x (W) 140mmx (H) 16mm
      Working Dimensions: (L) 180mm x (W) 120mmx (H) 16mm
      Cabinet material: cast aluminum
    Surface color: gold plated
      Weight : about 1 Kg
      Shielding characteristics: 80 ~3GHz
      Insertion loss: 8~20dB
      Standing wave ratio: less than 1 : 1.7
Three accessories
      SMA ( m ) to SMA(m) wire       1PCS
