Spring Test Probe Needle Sleeve RL75-4W Pogo Pin Receptacle

Pogo Pin Receptacle RL75-4W Test Pin Needle Sleeve, Spring Test Probe Sleeve RL75-4W Receptacle

The RL75-4W is a wire-wrap receptacle designed for use with spring-loaded test probes in in-circuit and functional testing of printed circuit boards. It provides a secure and easily replaceable connection point for test pins in automated testing fixtures.

• Product Name: Receptacle for ICT/FCT spring test probe.
• Model Number: RL75-4W.
• Connection Type: Wire-wrap.
• Material: Gold-plated brass tube.
• Color: Golden.

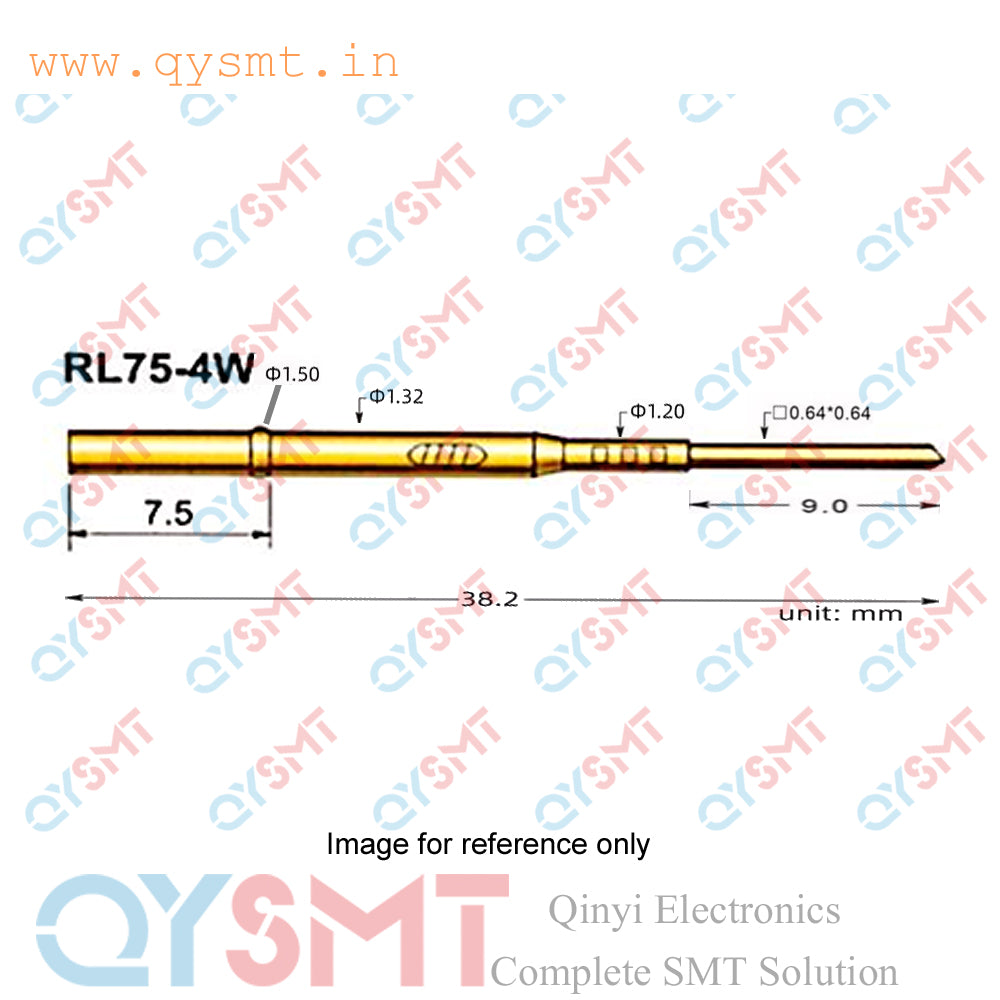

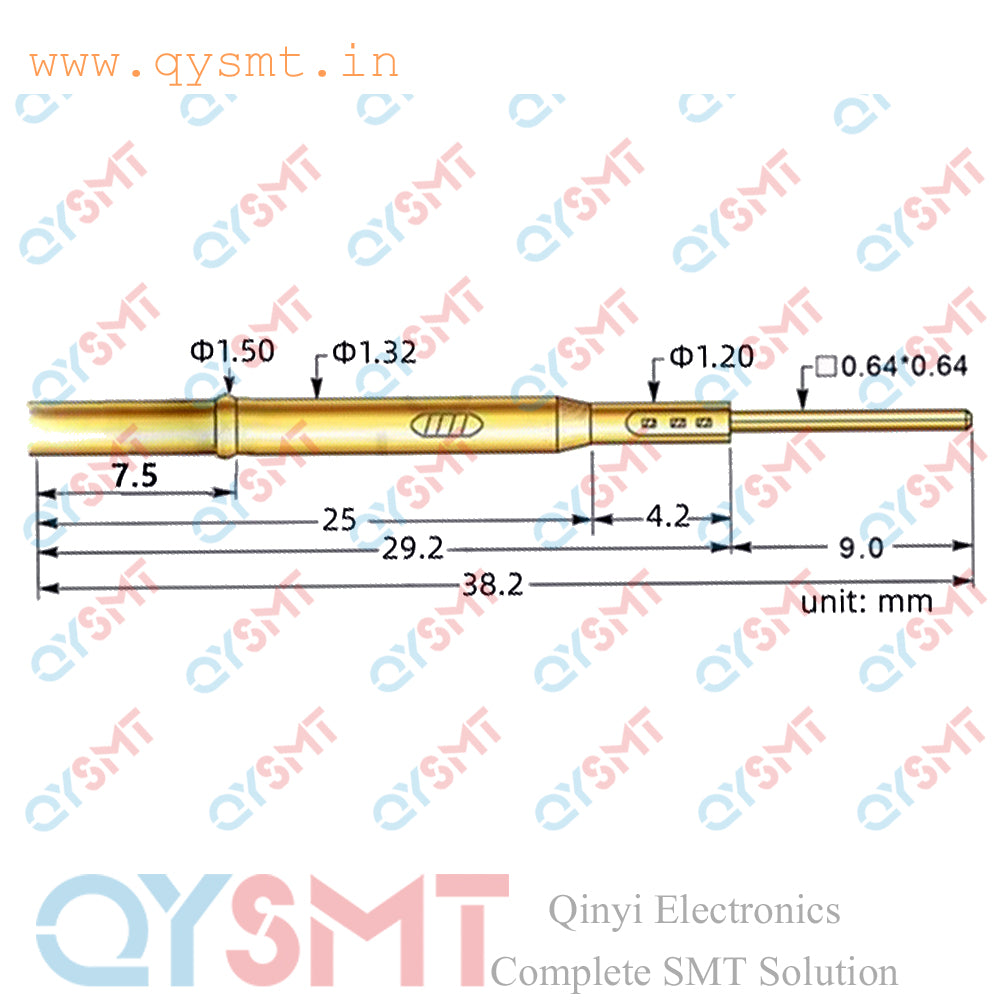

• Overall Length: 38.2 mm.
• Outer Diameter: 1.32 mm.
• Mounting Hole Diameter: 1.40 mm.
• Collar Height: 7.5 mm.
• Collar Diameter: 1.50 mm.
• Wire-Wrap Post Length: 9 mm.
• Current Rating: 2A (in combination with a pogo pin).
• Resistance: 50mΩ (in combination with a pogo pin).

• Easy replacement: The receptacle design allows for easy installation and removal of test probes, simplifying maintenance and replacement when a probe reaches its end-of-life or a fixture needs to be serviced.
• Reliable connection: The gold-plated brass construction ensures a stable and conductive connection for accurate testing.
• Wire-wrap termination: The "W" in the model number indicates a wire-wrap post for making connections. Other models in the RL75 series may use solder or crimp connections.
• No internal spring: It is important to note that the receptacle does not contain a spring. It is the housing for a separate, spring-loaded test probe (such as the
  PL75-B1).
