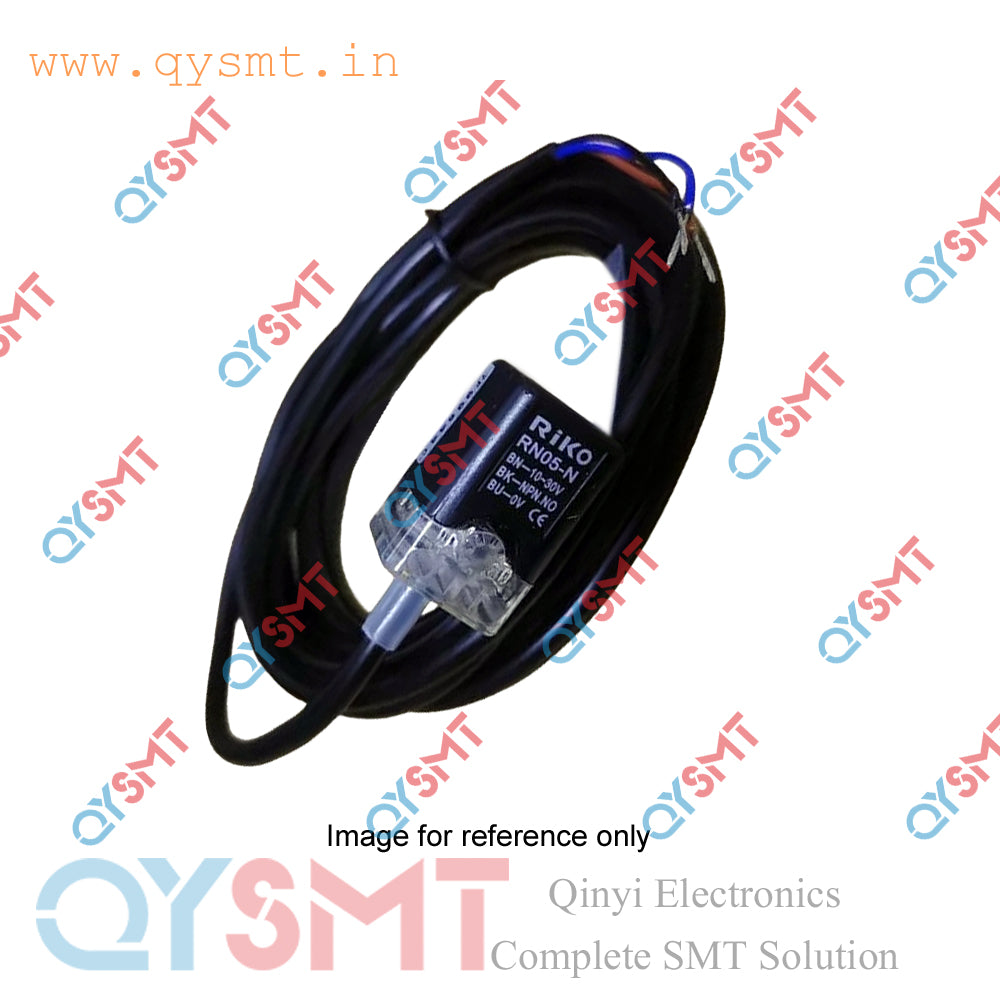

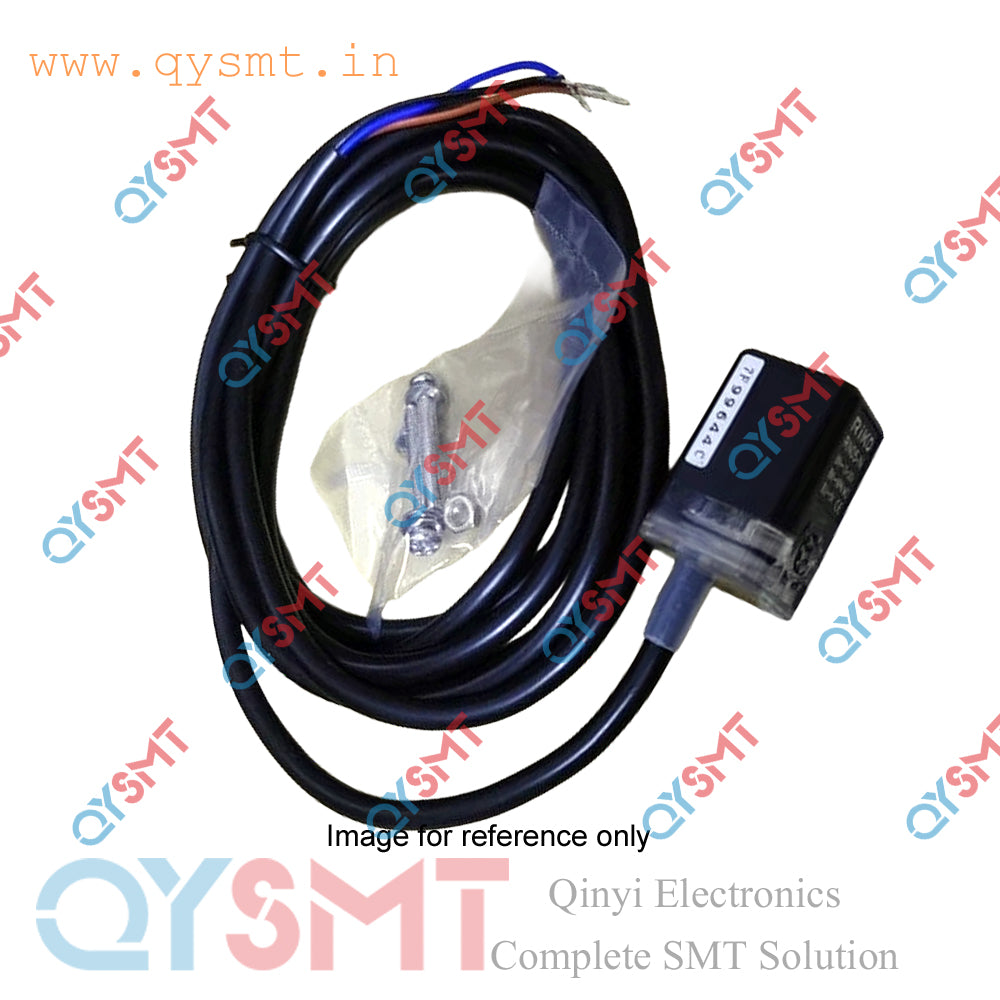

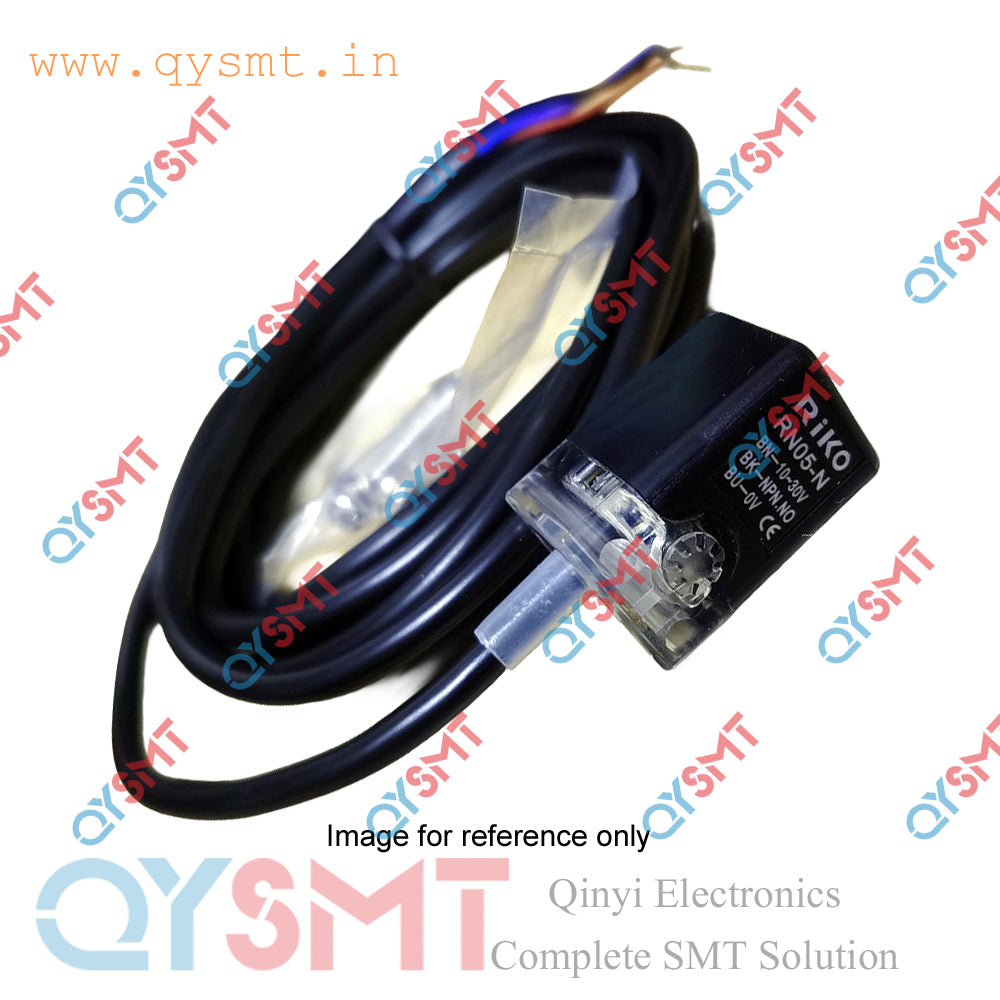

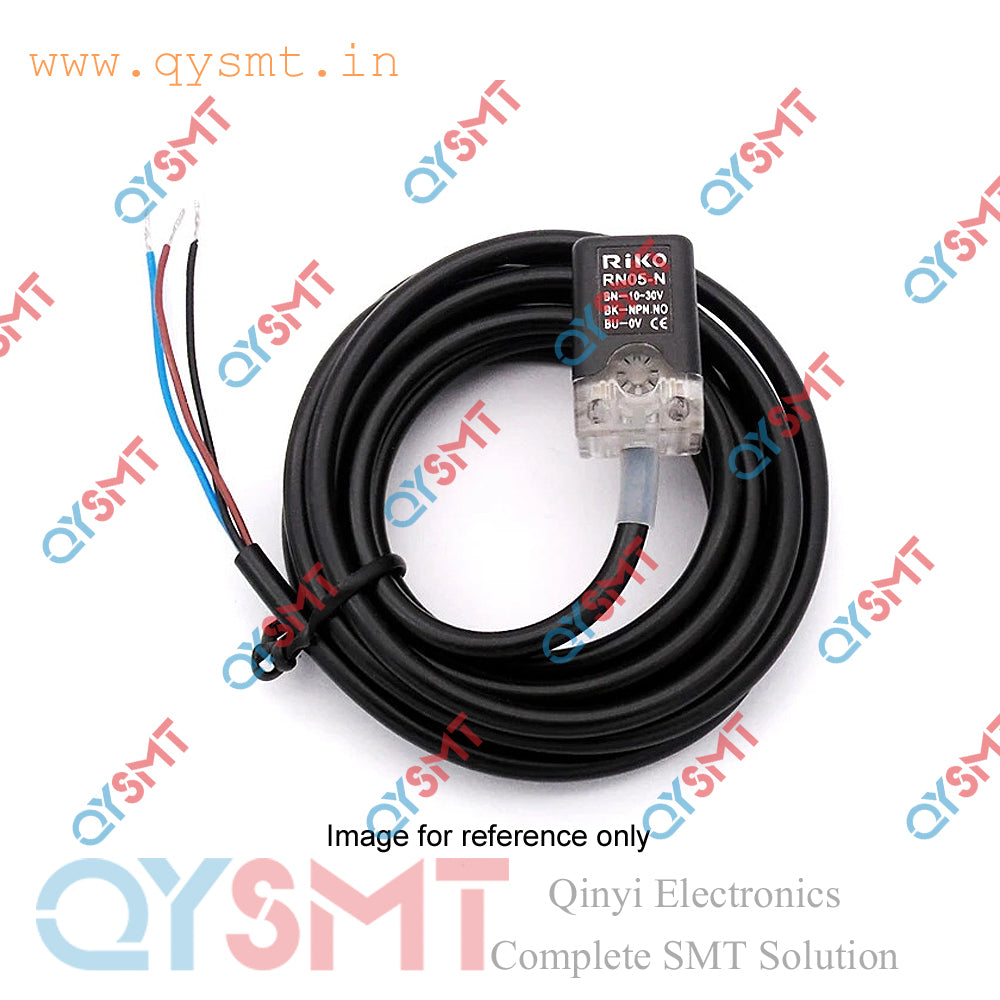

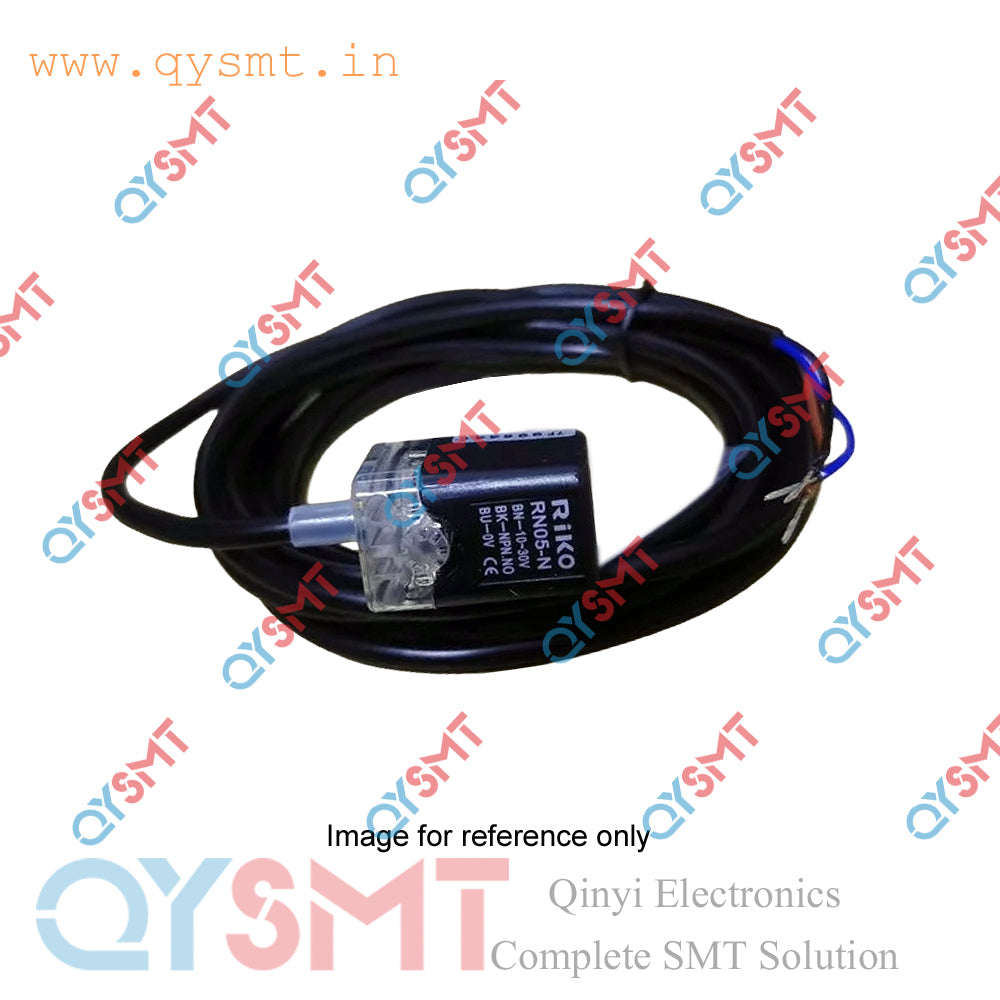

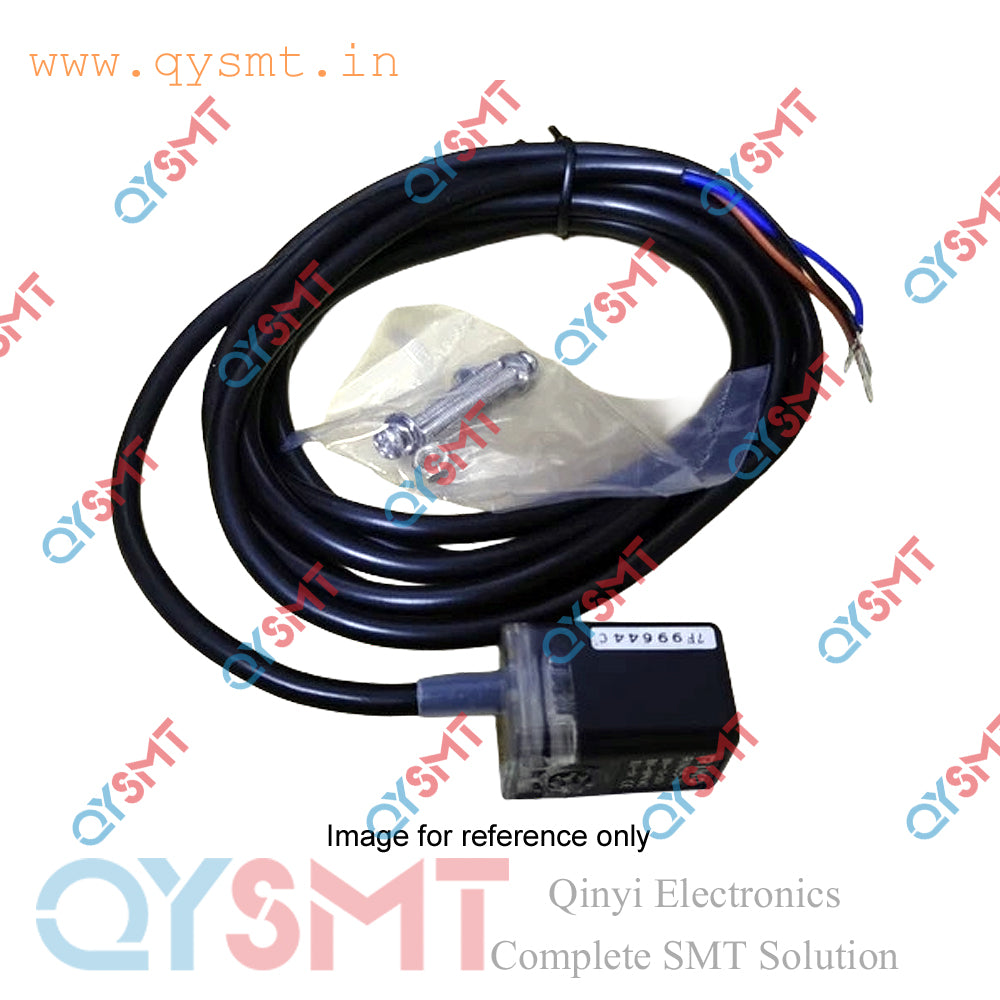

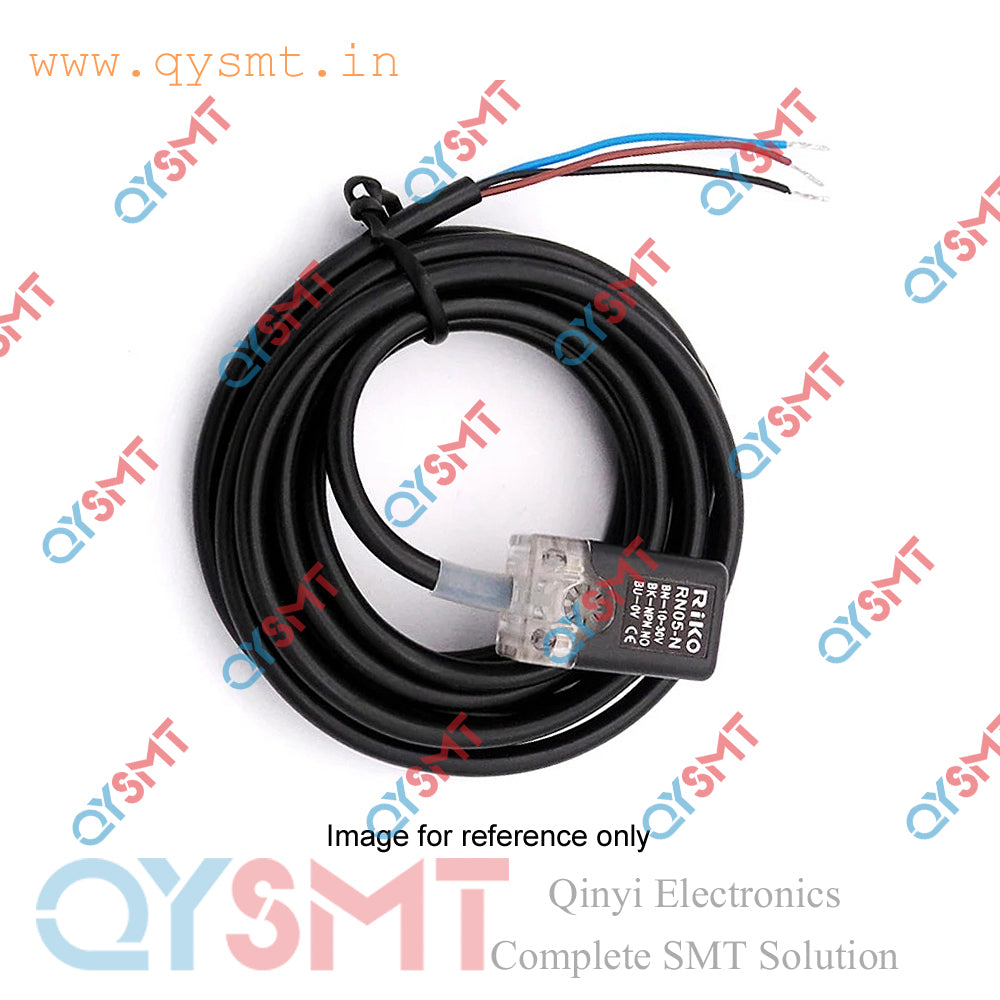

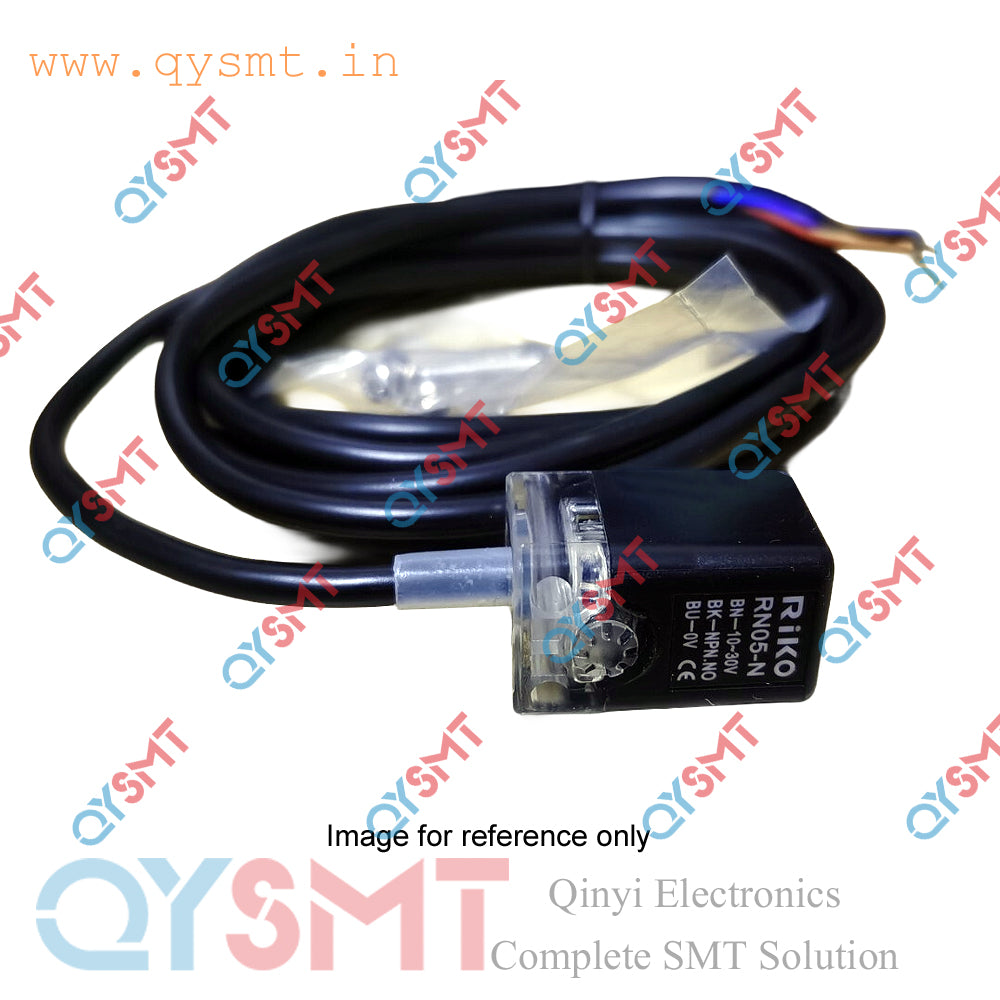

Riko RN05-N Proximity Sensor

Riko RN05-N Square Proximity Sensor Front Surface Detection, 4 mm Detection distance, NPN NO Output Mode, DC 10~30V Operating Voltage, -20~60 °C Ambient Temperature, IP64

Specification/Additional Details

• Sensing Distance : 4 mm
• Usage : For Industrial
• Body Material : PBT plastic
• Brand : Riko
• Sensor Type : Inductive proximity sensor
• Model Name/Number : RN05-N

• Control output : NPN Normally Open (NO)

• Operating Voltage : 10~30V DC

• Detection Object : Magnetic metals, with iron (18x18x1mm) as the standard sensing object

• Detection Direction : Front surface

• Protection Degree : IP64

• Operating Temperature : -20°C to +60°C

• Wiring Method : Dia. 4.2 x 2M / 3 wires
