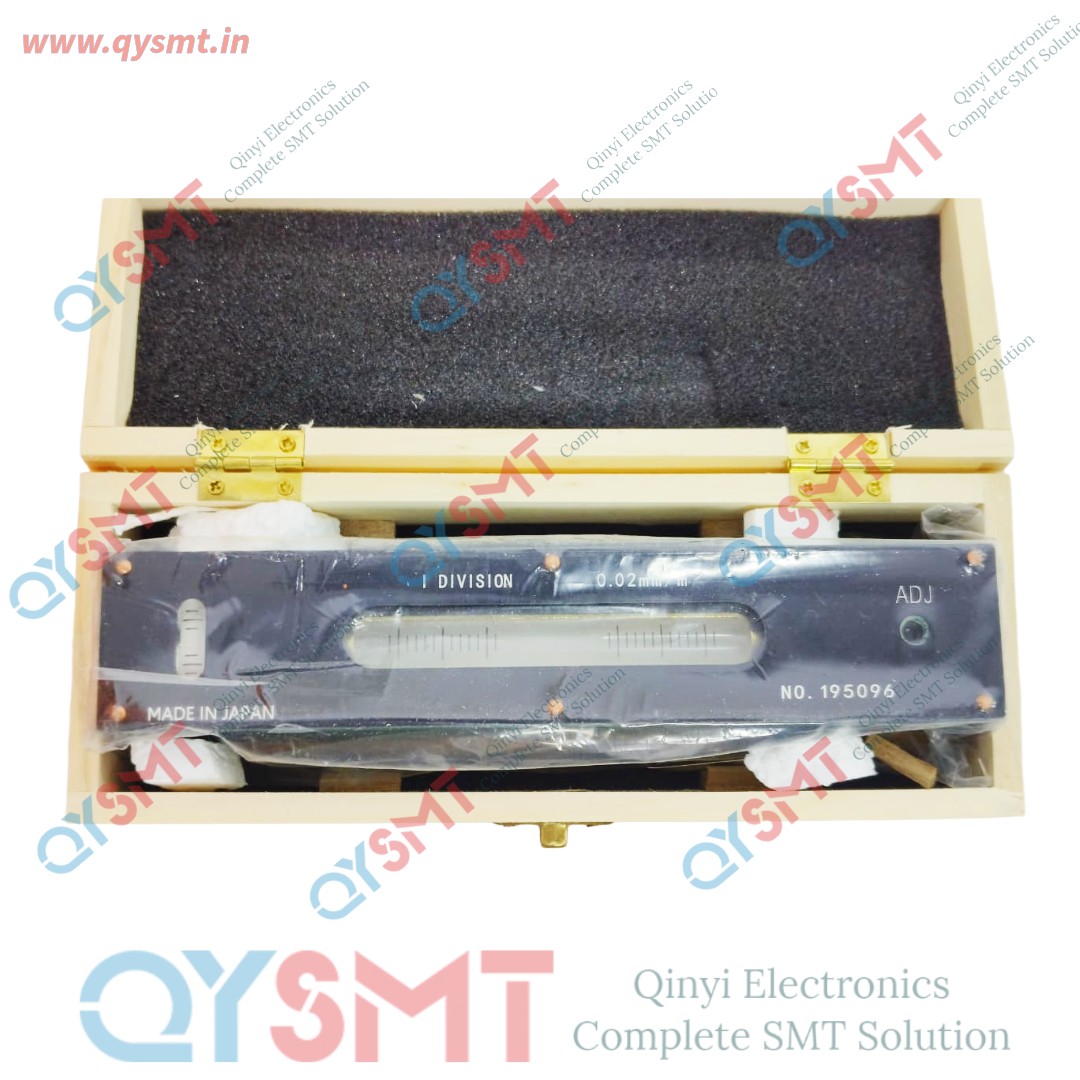

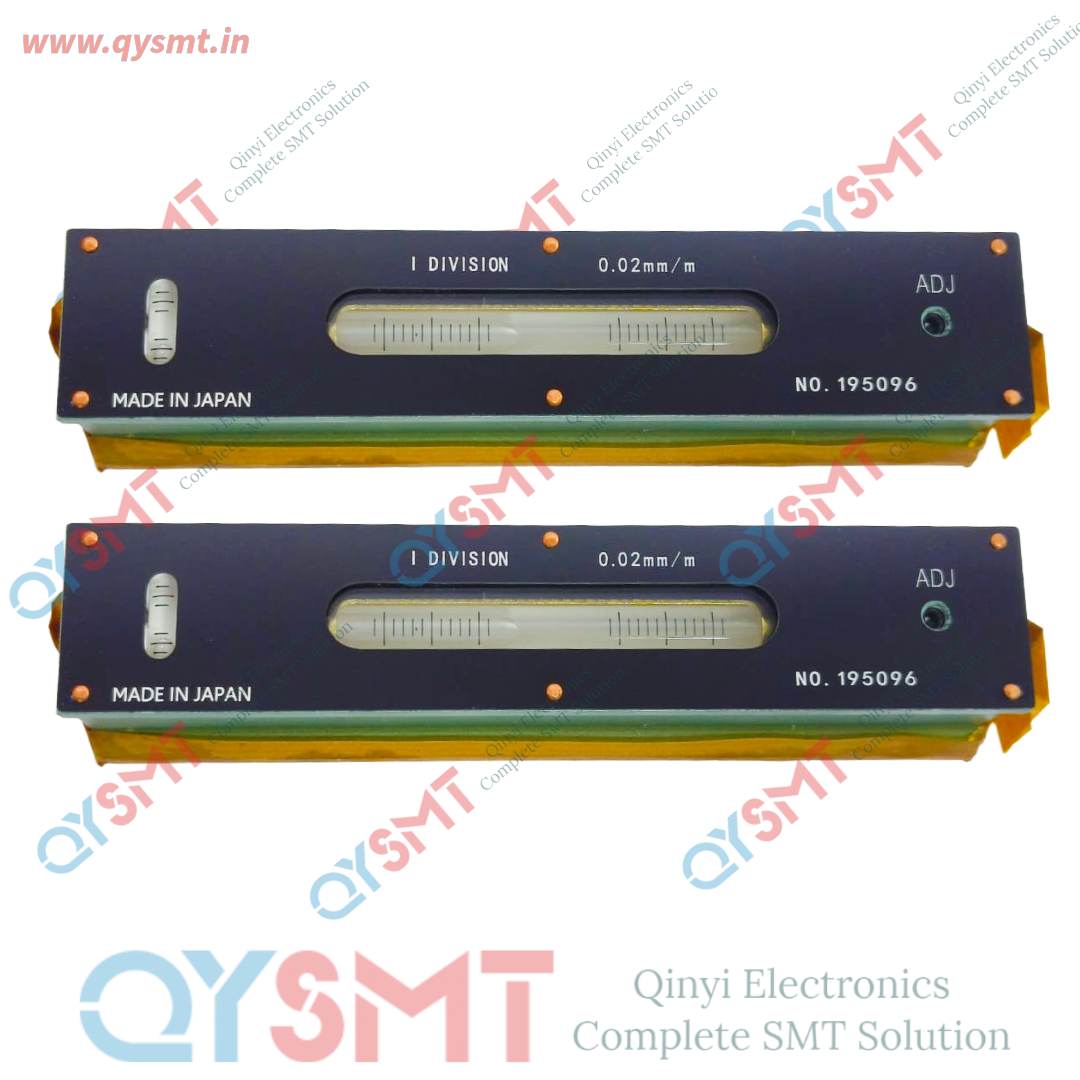

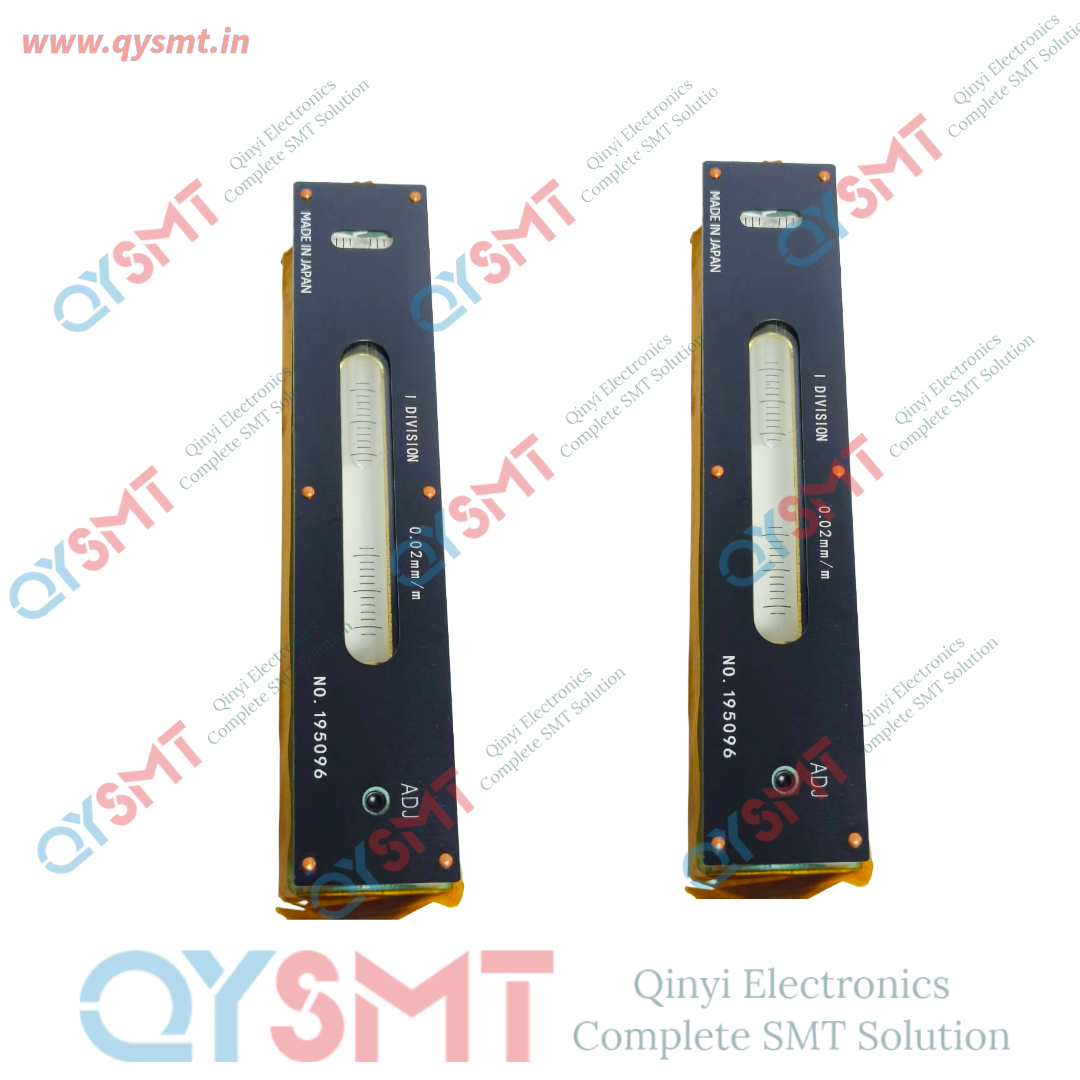

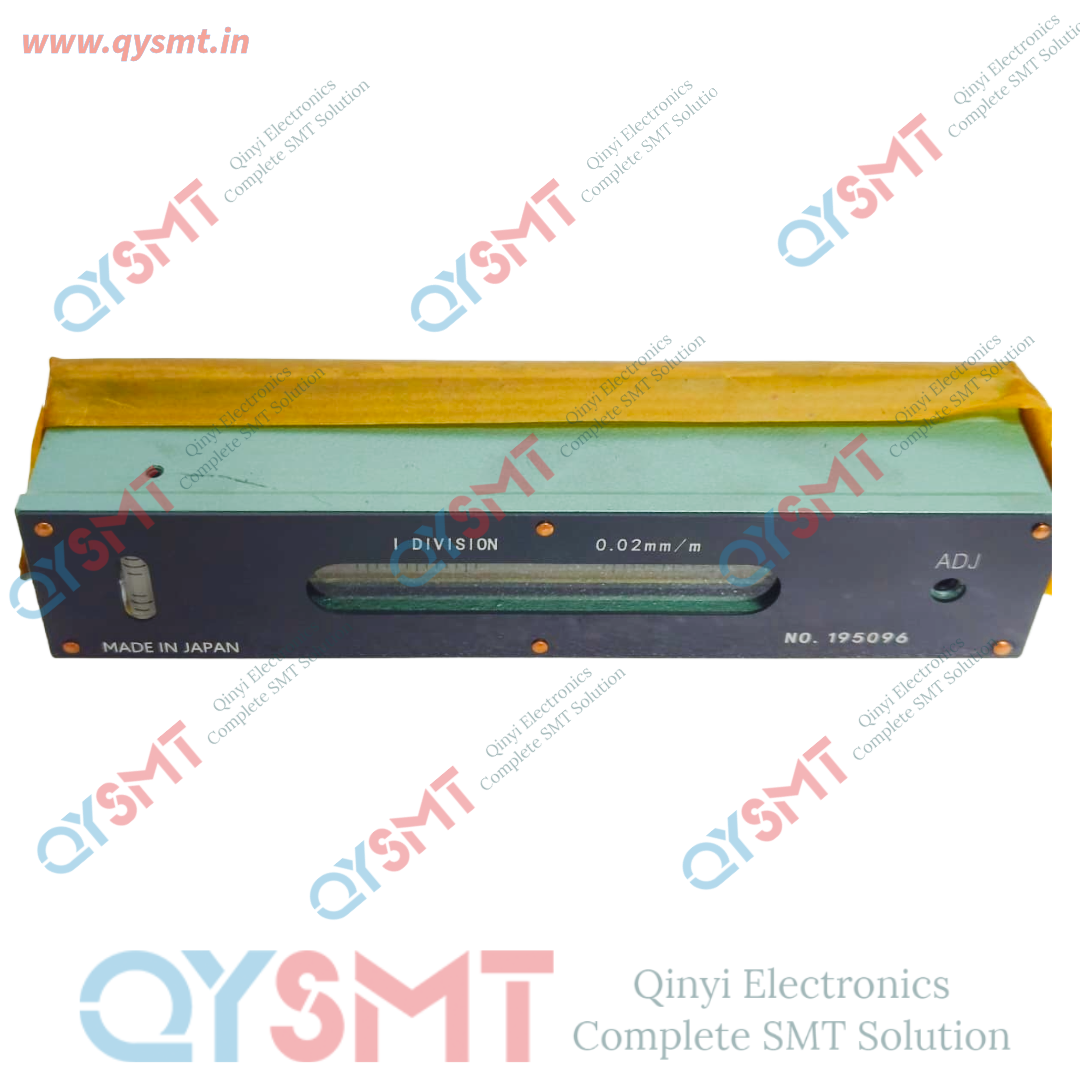

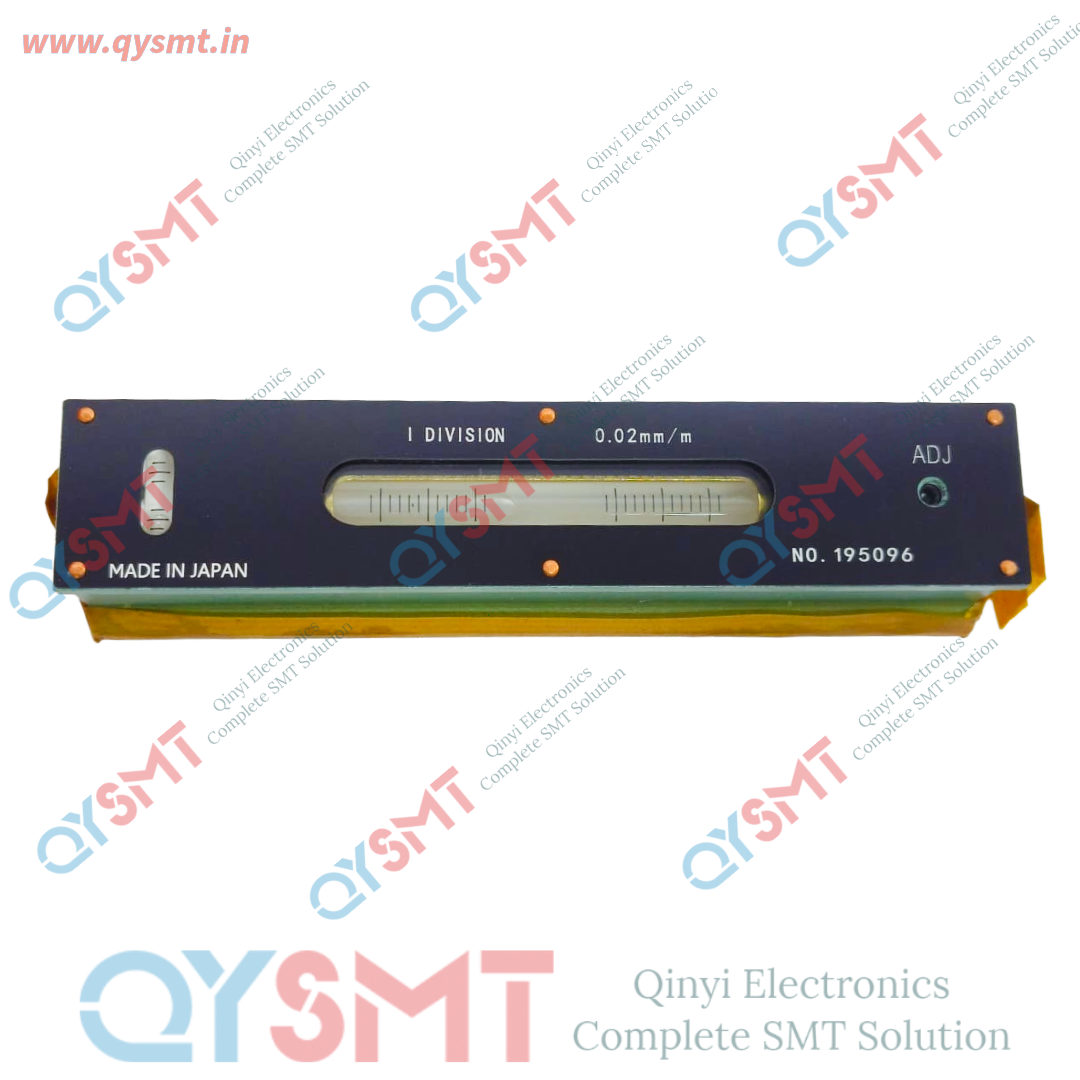

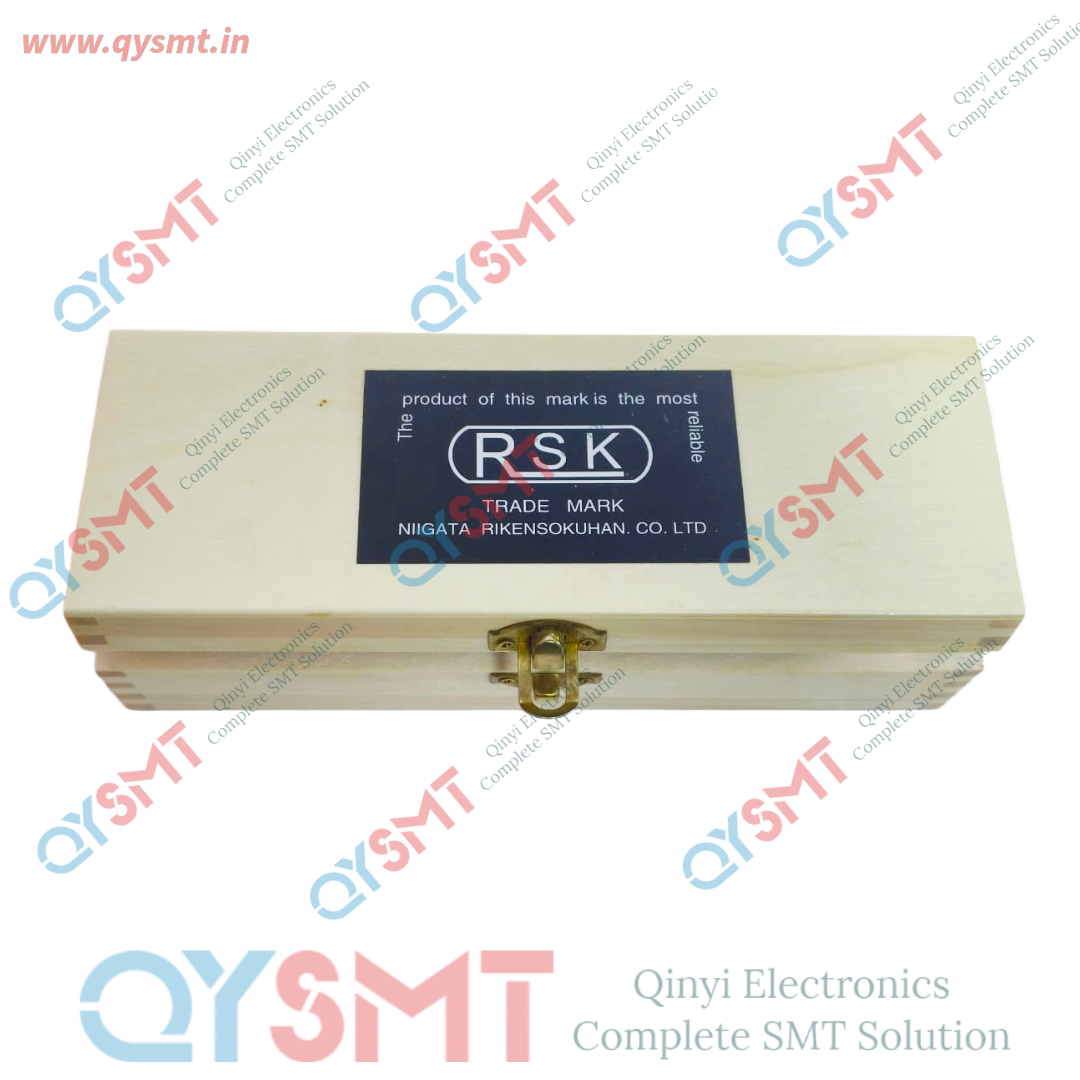

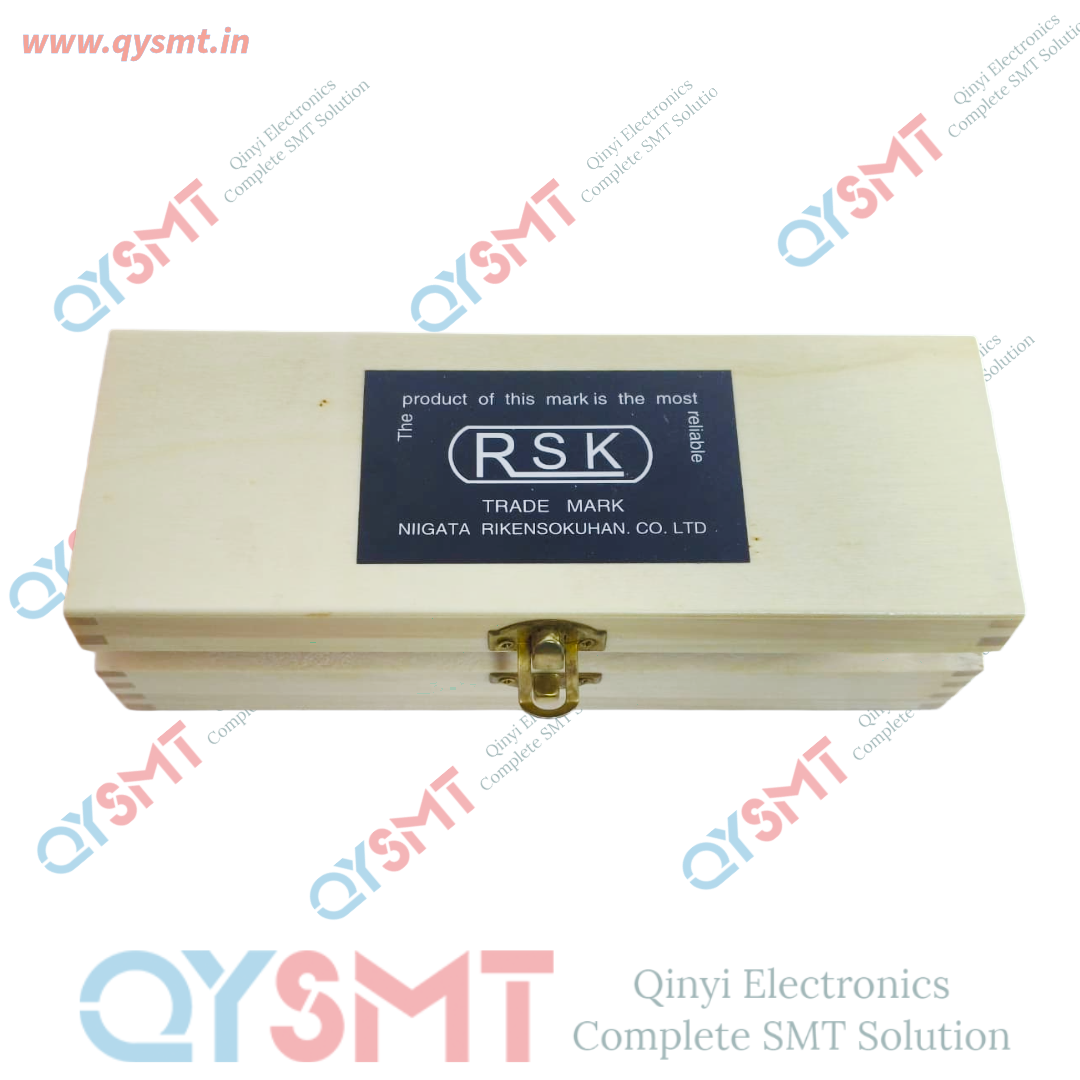

Rsk Japan Block Level 0-200Mm L.c.0.02mm, Size

Rsk Japan Block Level 0-200Mm L.c.0.02mm, Size
Key Features

• Length: 200mm (approx. 8 inches) base length.
• Sensitivity/Graduation: 0.02mm per meter (bubble moves by one graduation division when tilted by 0.02mm over a 1-meter distance).
• Material: High-grade seasoned cast iron or steel with a precision-ground V-groove or flat base.
• Application: Industrial metrology, workshop setup, and precision engineering alignment.

How to Use

• Clean the measuring surface and the bottom of the level free of dust and oil.
• Place the 200mm base flat or onto the cylindrical shaft (using the V-groove).
• Wait for the bubble to come to a complete stop.
• Read the offset deviation based on the center markings where each line represents 0.02mm/m.
• Reverse the level 180 degrees (reversal technique) to verify calibration and eliminate base error.

If you need help with calibration steps, interpreting the bubble reading, or finding a specific brand (like RSK or Insize), let me know!
