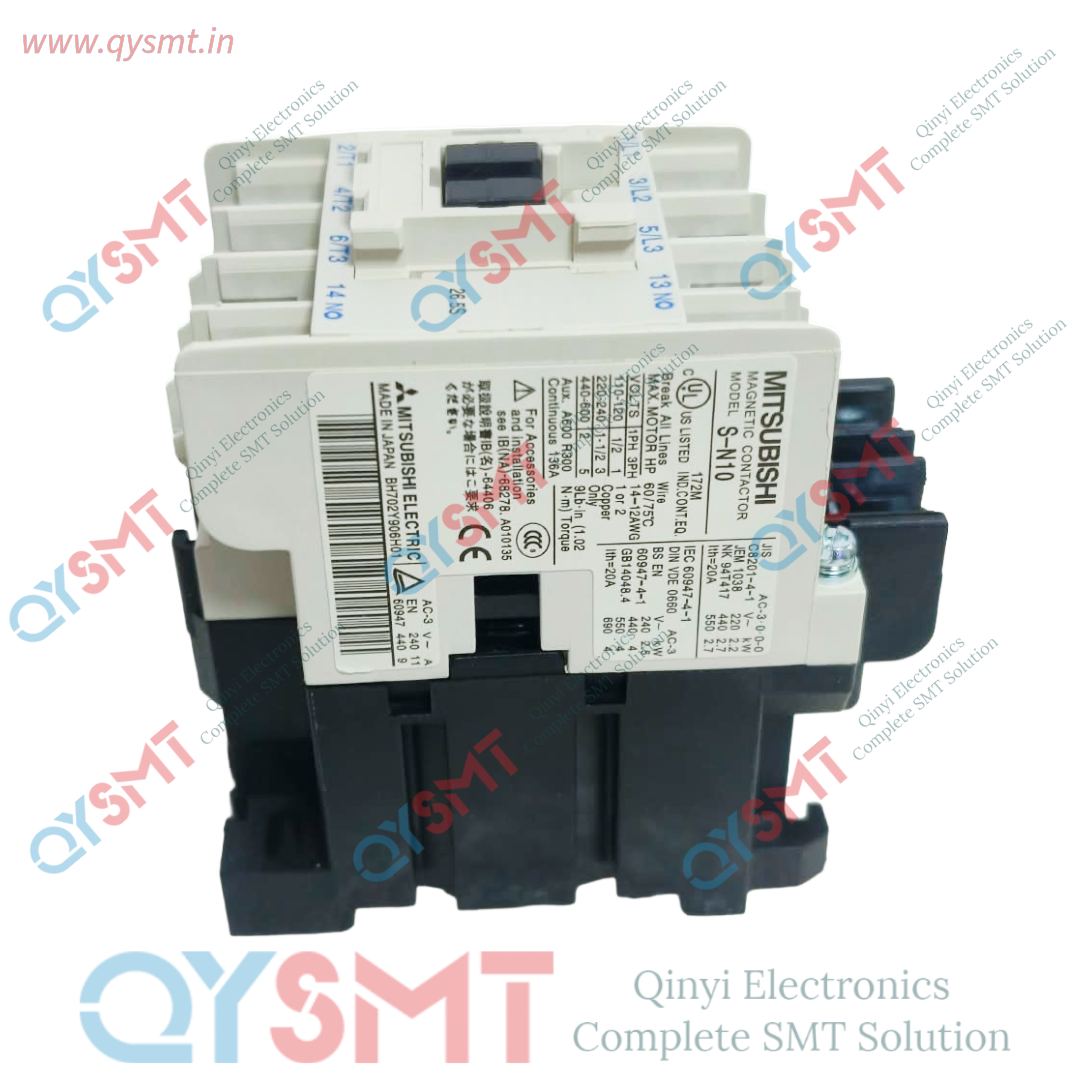

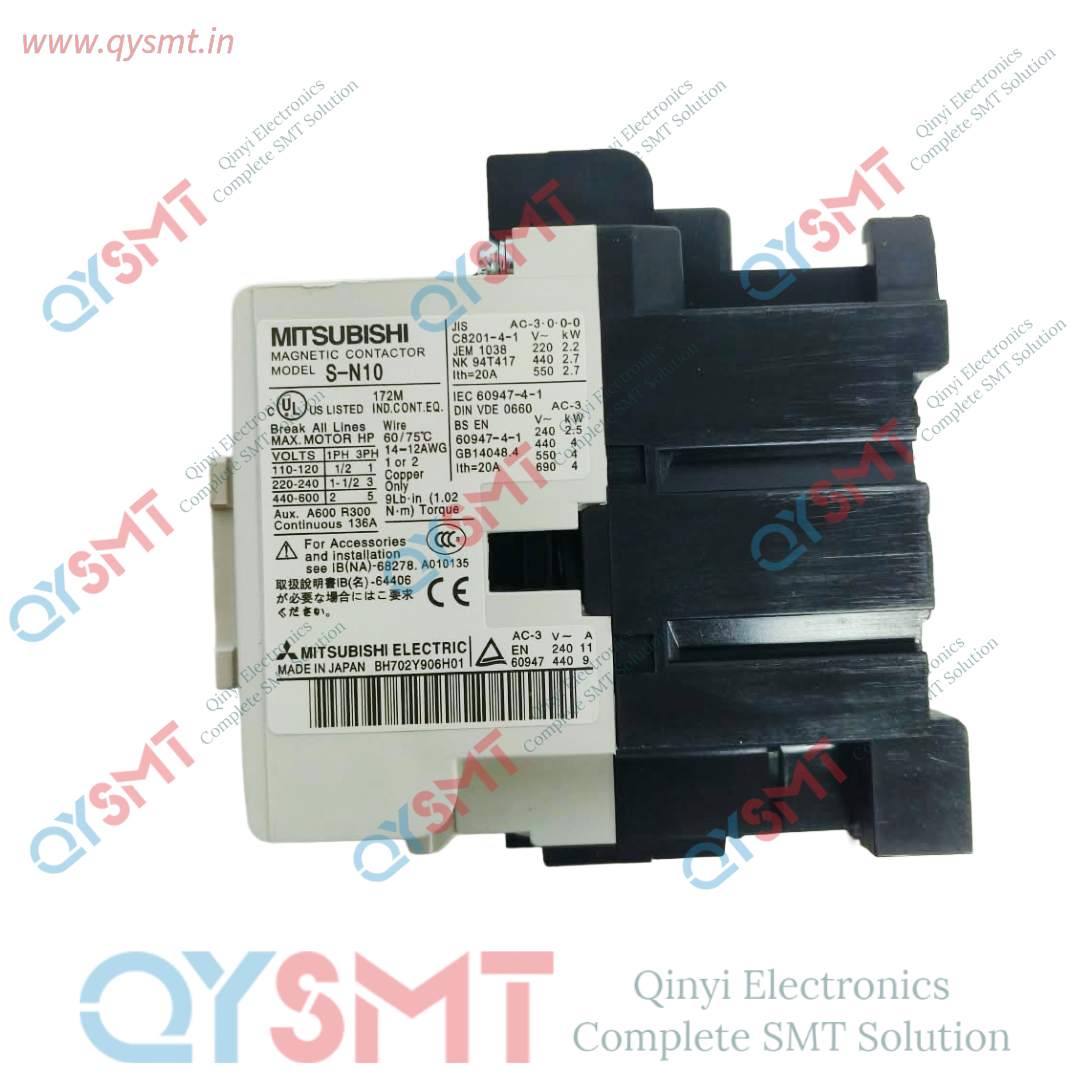

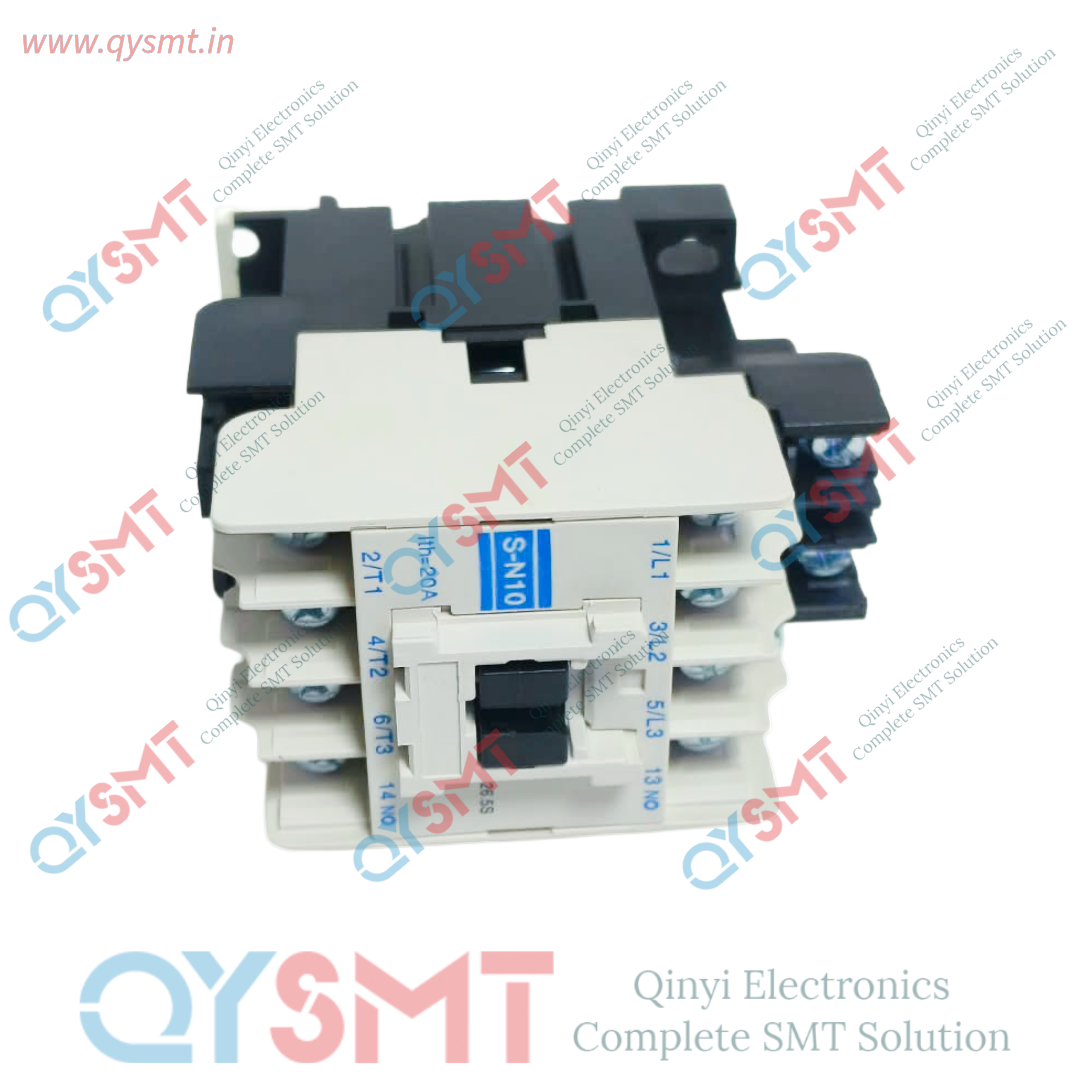

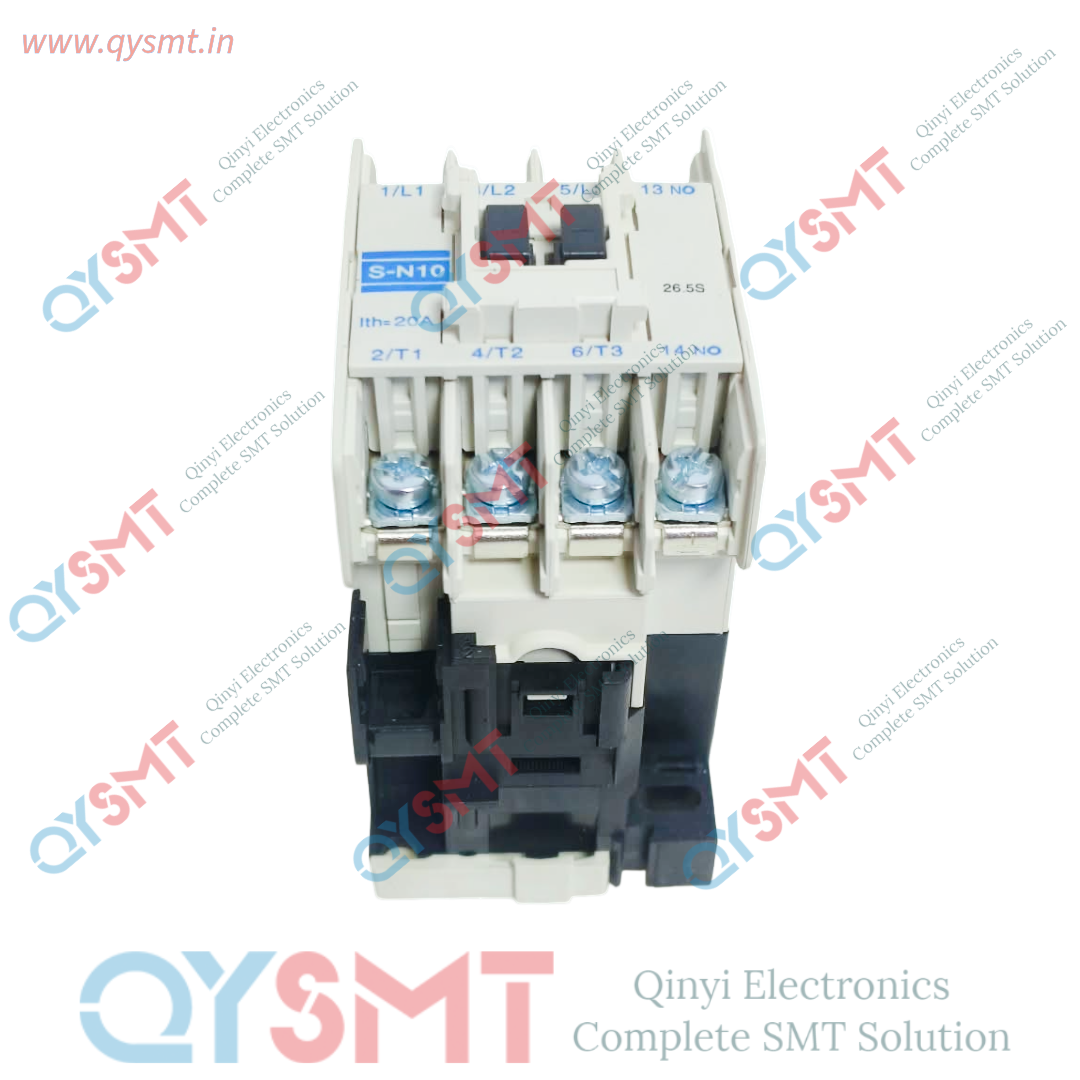

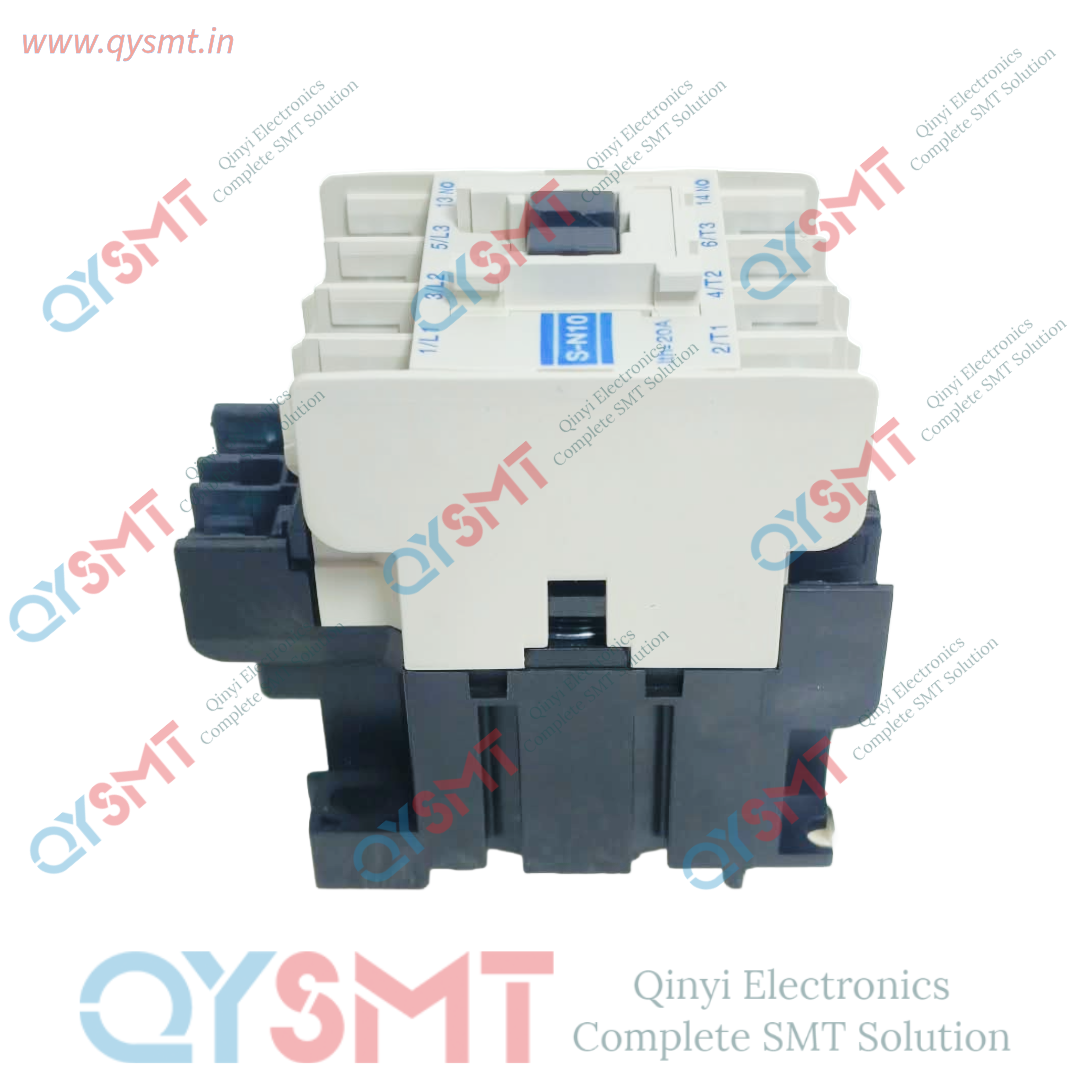

S-N10 S-N10 220V CONTACTOR MITSHUBISHI
Key Specifications
- Poles & Contacts: 3 Main Poles (3NO) + 1 Normally Open (1NO) Auxiliary Contact standard.
- Thermal Current (\(I_{th}\)): 20A continuous thermal current rating.
- Operational Power (AC-3 Duty): Optimized for 2.2 kW to 4 kW motors, equivalent to 3 HP at 220V–240V 3-Phase or 5 HP at 440V–480V 3-Phase.
- Control Voltage Support: Continuous 200V–240V AC operation at 50/60Hz.
- Design & Mounting: Ultra-compact 43mm width frame featuring an integrated space-saving arc suppression window. Supports standard 35mm DIN rail mounting or direct screw surface mounting.
Physical & Technical Overview
| Feature | Specification Details |
|---|---|
|
|
|
| Series Model | MS-N Series / S-N10 Frame |
| Main Contact Current | 9A (at 380V/440V AC-3), up to 20A Resistive (AC-1) |
| Insulation Voltage | 690V AC |
| Terminal Connection | Screw-clamp M3.5 terminals (14-12 AWG copper wire compatible) |
| Global Standards | CE, UL, CSA, TÜV, CCC, IEC 60947 compliant |
Are you searching for this contactor to replace an existing failed unit, or are you looking to purchase a brand-new replacement or a specific compatible thermal overload relay (such as the TH-N series) to pair with it? Let me know so I can track down the exact components or data you need.
