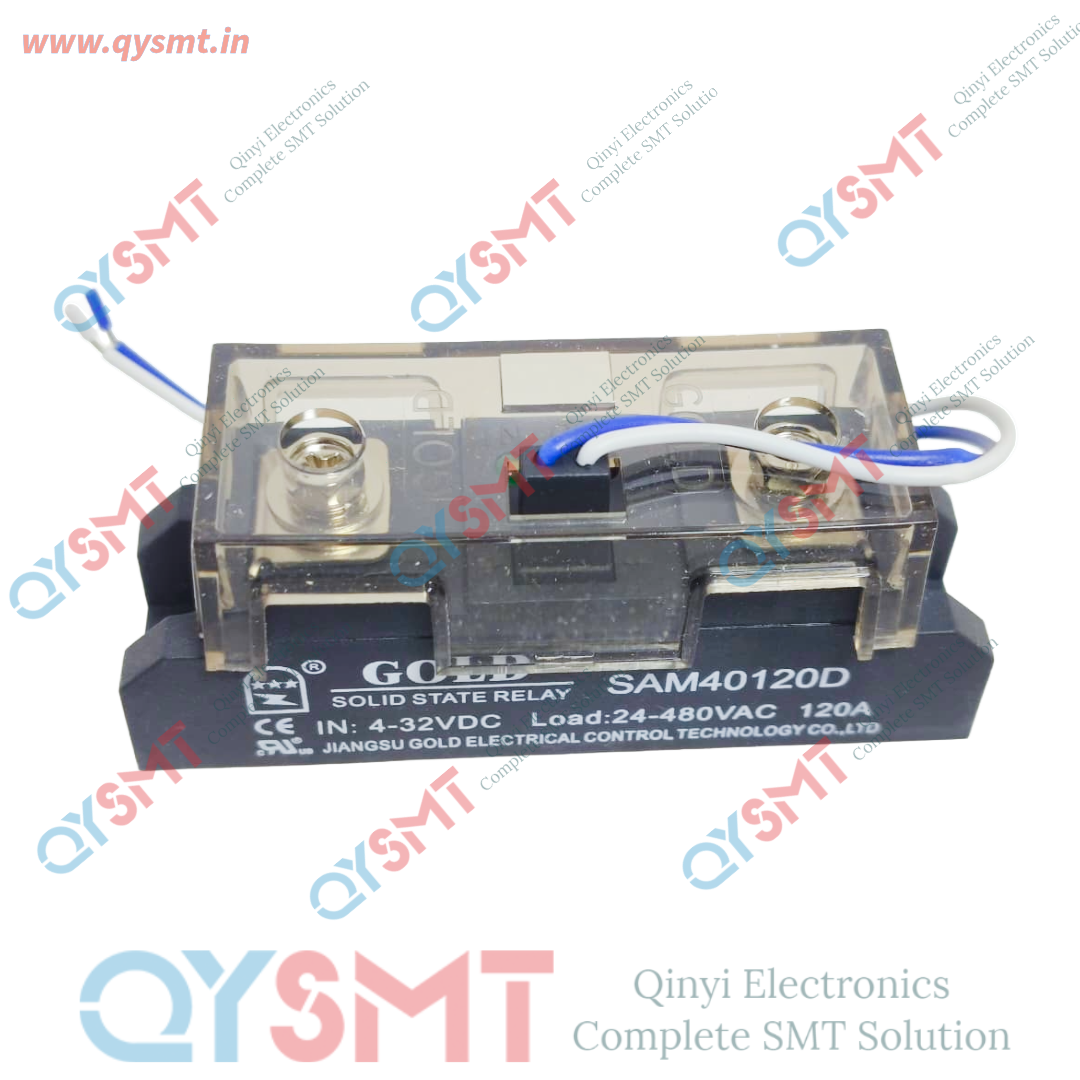

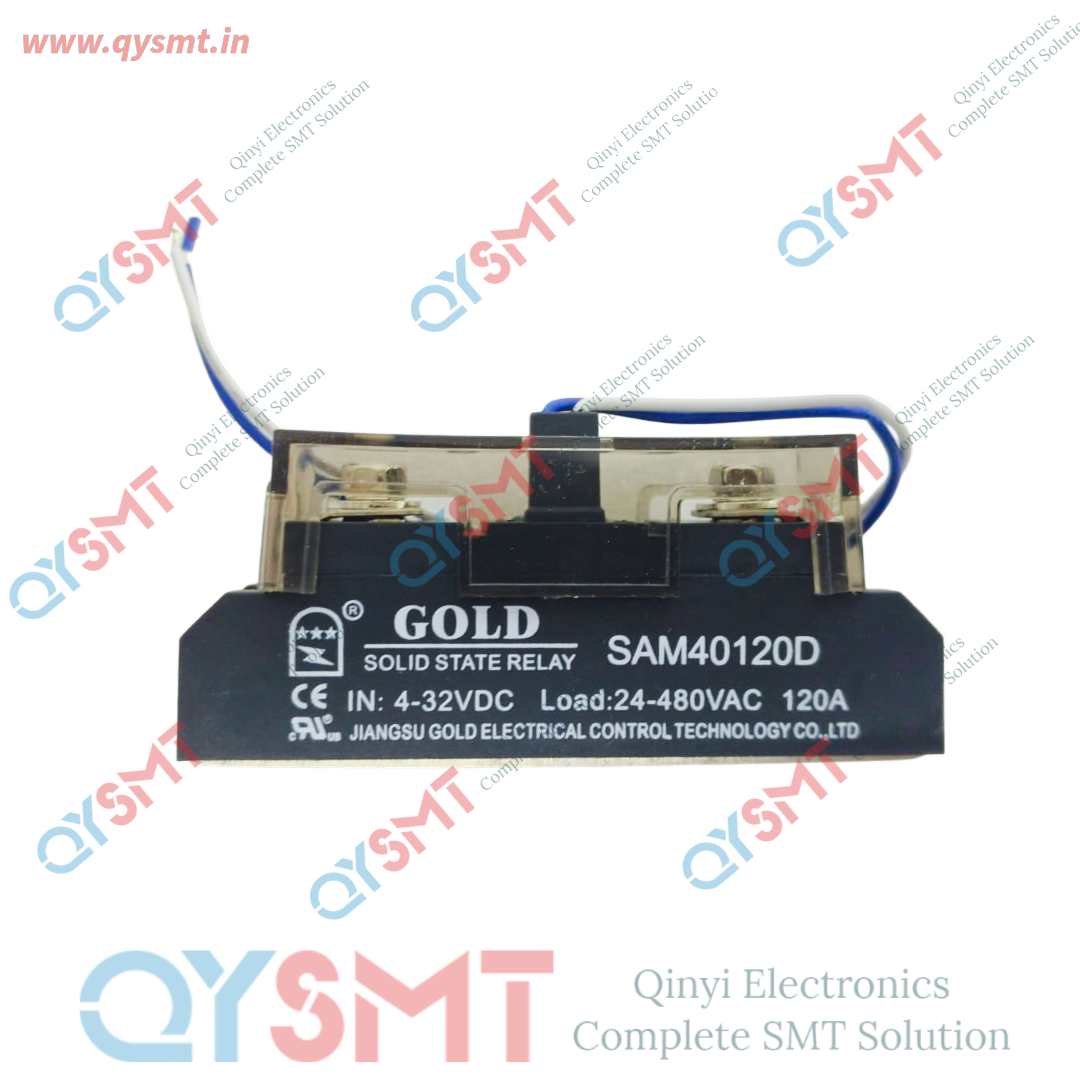

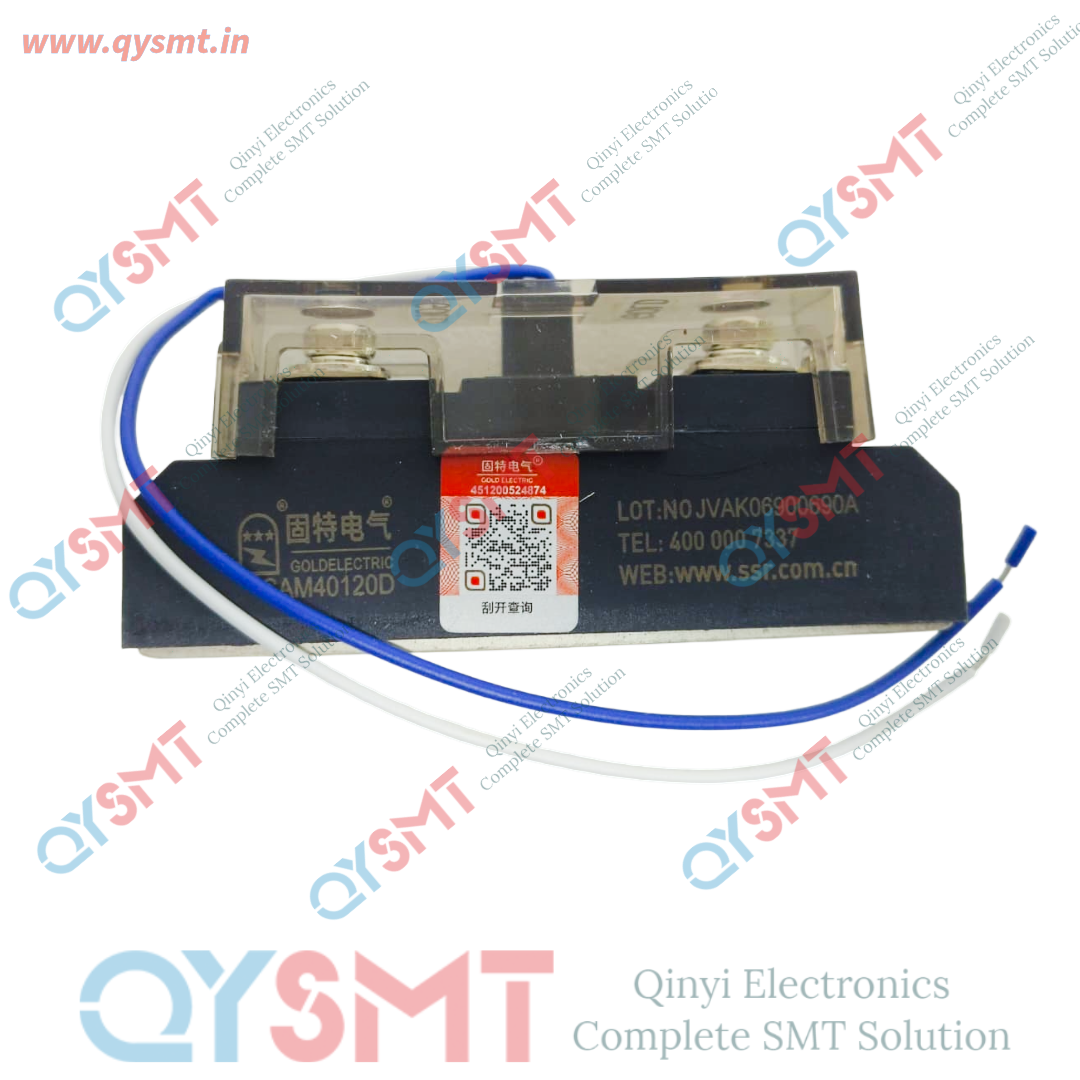

SAM40120D DC-controlled AC solid-state relay

SAM40120D DC-controlled AC solid-state relay
Technical Specifications

• Model Identifier: SAM40120D
• Brand Manufacturer: GOLD
• Maximum Load Current: 120 Amperes
• Control Input Voltage: 3–32V DC / 4–32V DC
• Load Output Voltage: 24–480V AC (Single Phase applications)
• Relay Switching Type: DC to AC switching [1, 2, 3]

Key Structural Features

• Contactless Switching: Eliminates physical contact wear, avoiding electrical arcing and extending operational life.
• Sealed Protection: Built with high environmental resistance to protect internal circuitry against dust, moisture, and debris.
• Integrated Indicators: Features a built-in LED input status indicator light to visually verify when the control signal is active.
• Safety Design: Typically includes a removable IP20 touch-safe protective terminal cover to safeguard operators from accidental shocks.
• Modular Assembly: Designed with a compact large-current structure for quick mounting and straightforward integration into control panels
