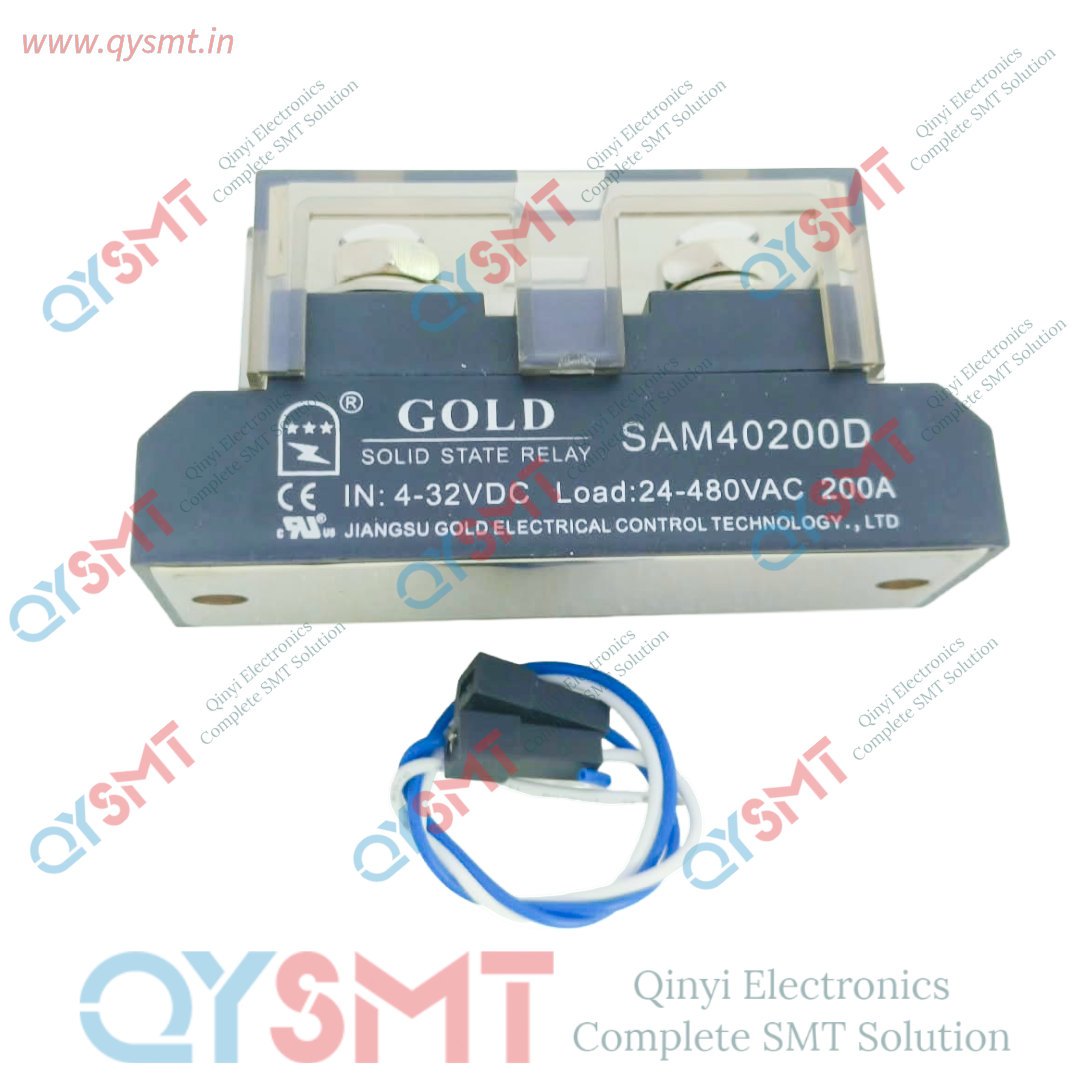

SAM40200D 200A GOLD Solid State Relay
Key Specifications

• Brand / Model: GOLD SAM40200D
• Type: Single-phase, panel-mount solid-state relay with zero-cross switching
• Load Current Rating: 200 A
• Load Voltage Range: 24–480 V AC
• Control Voltage (Input): 4–32 V DC (SAM40xxD series)
• Features: Red LED status indicator, gilded terminals, copper baseplate, and a removable IP20 touch-safe cover
• Operating Temperature: -40°C to 80°C

Common Applications

• Electric industrial heating systems
• Single-phase or three-phase motor controls
• Transformers and solenoid valves
• Heavy-duty automated switching environments requiring silent, spark-free operation
