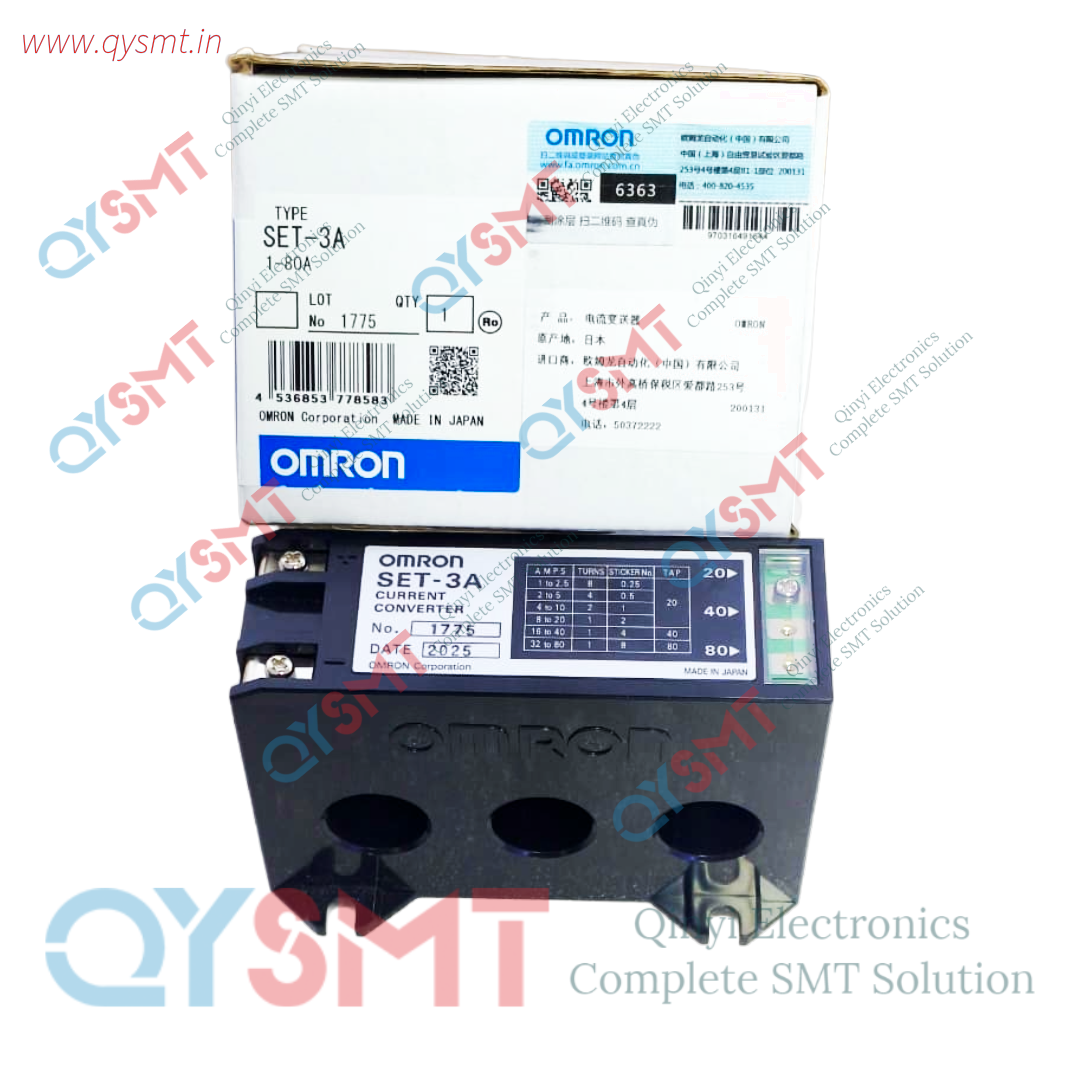

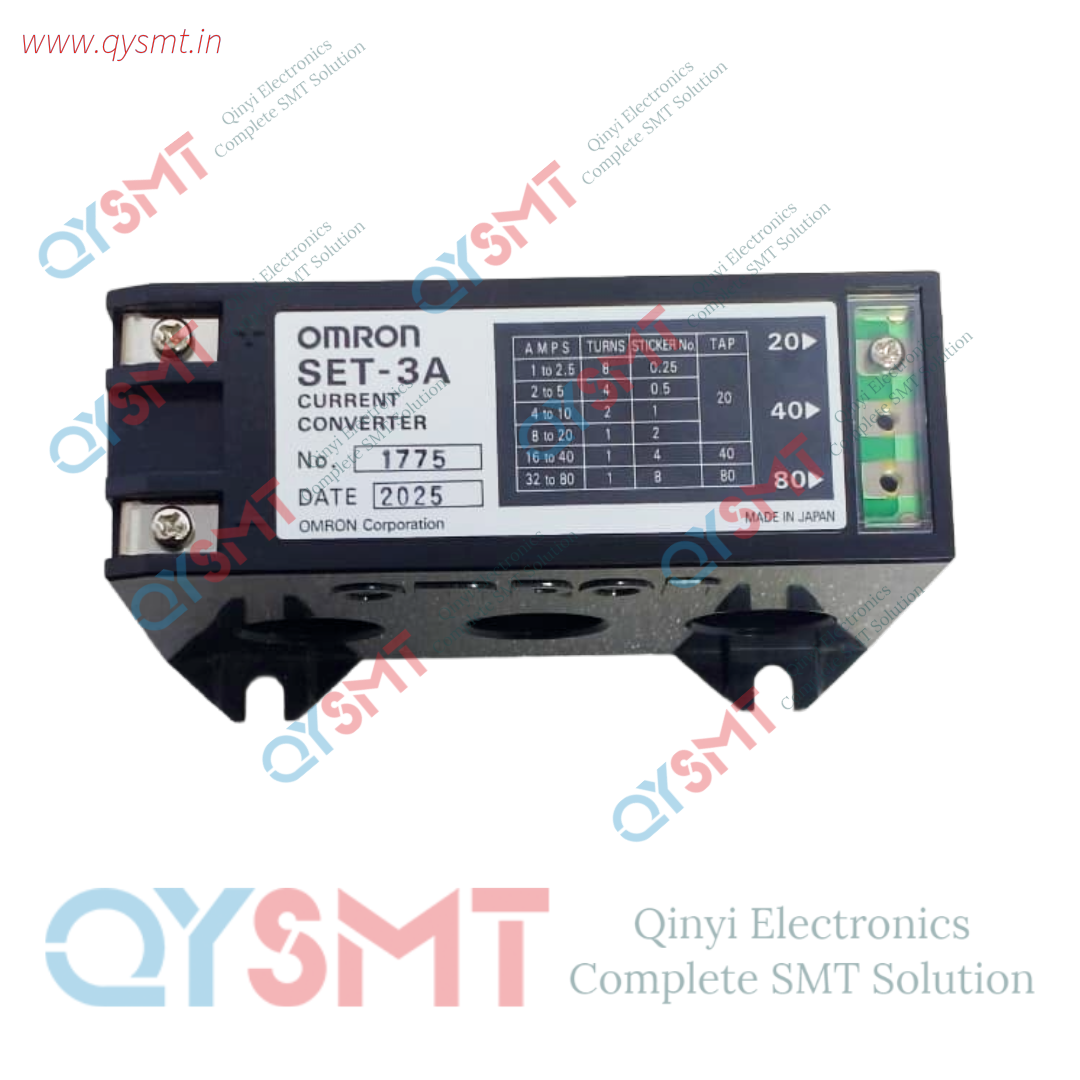

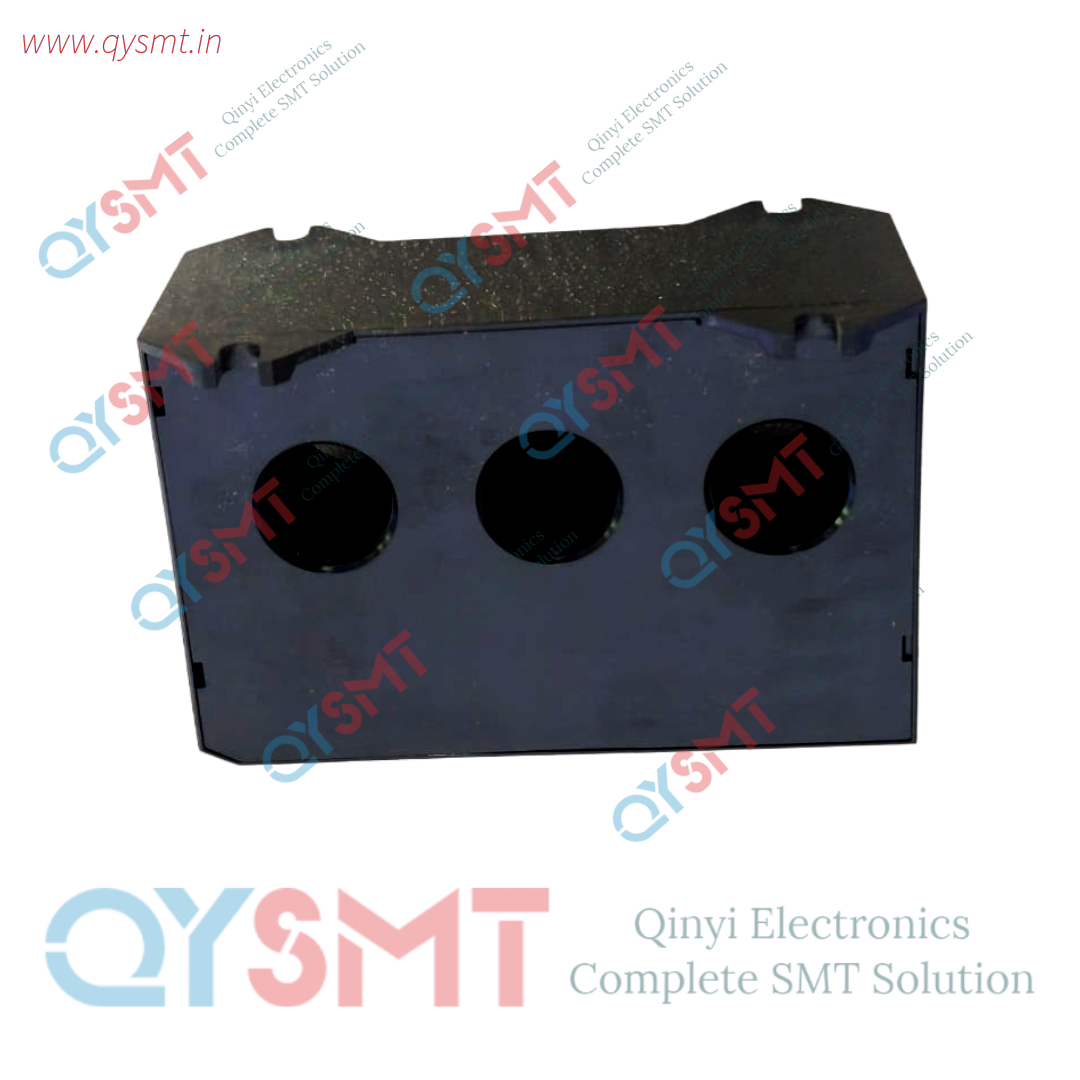

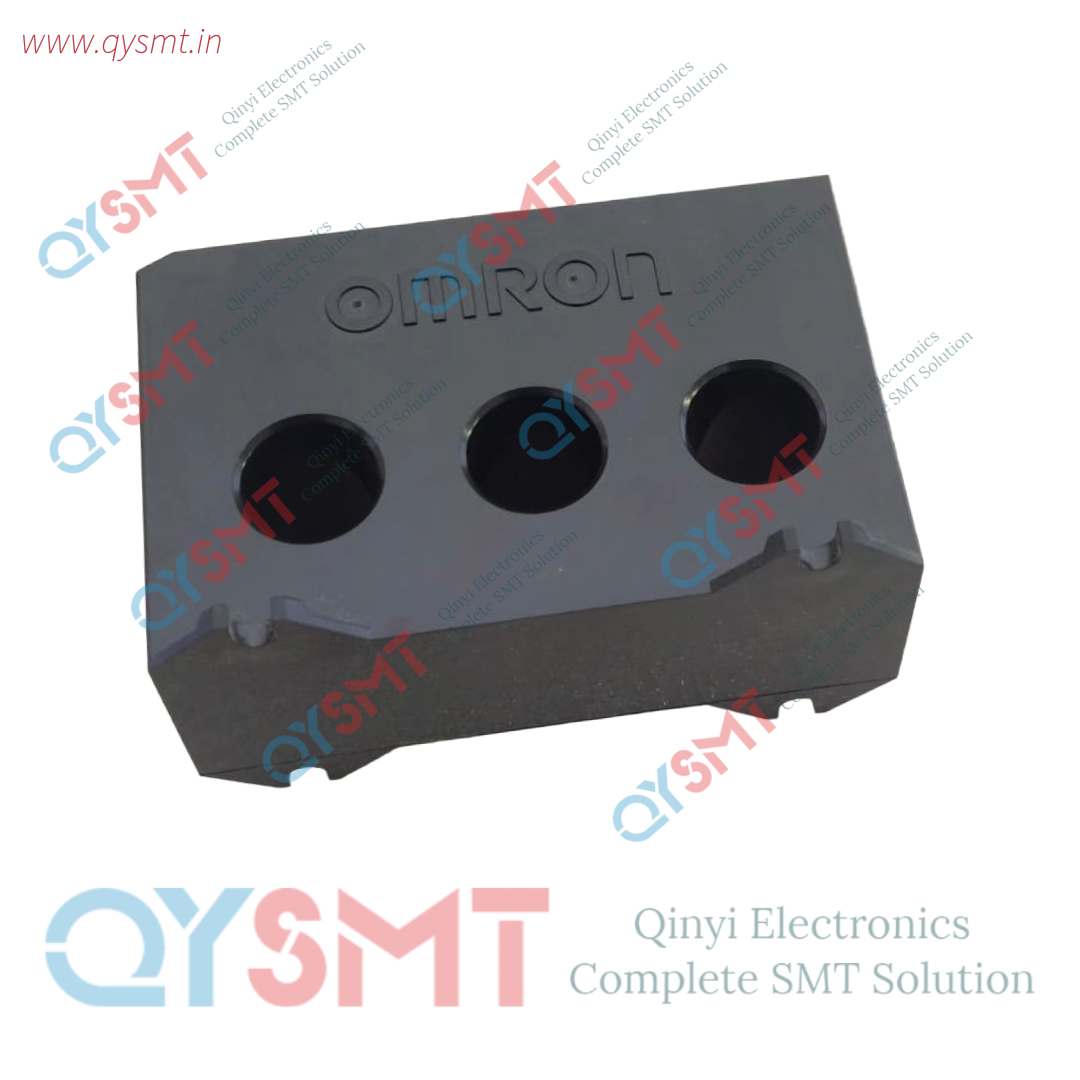

SET-3A CURRENT CONVERTER
Key Specifications

• Current Range: 1A to 80A.
• Primary Voltage: Maximum 500 VAC (3-phase).
• Output Voltage: Approximately 21 VDC at 100% of the current setting and 42 VDC at 200%.
• Compatibility: Used and SAO Series motor relays.
• Manufacturing: Produced by Omron Corporation in Japan.

Functional Highlights

• Static Type Overcurrent Protection: It is considered one of the most suitable components for static-type motor overcurrent protection.
• Ease of Use: The plug-in design simplifies mounting, removal, and wiring.
• CT Part Exchange: Large current values do not require a change of the Current Transformer (CT) part.
• Usage Constraints: This device cannot be used in circuits with distorted current waveforms, inverter circuits, or capacitor loads.
