Omron Limit Switch SHL-D55-01

SHL-D55-01 Micro Load Plunger Limit Switch Omron, SHL-D55-01 Omron SHL General Purpose Switch

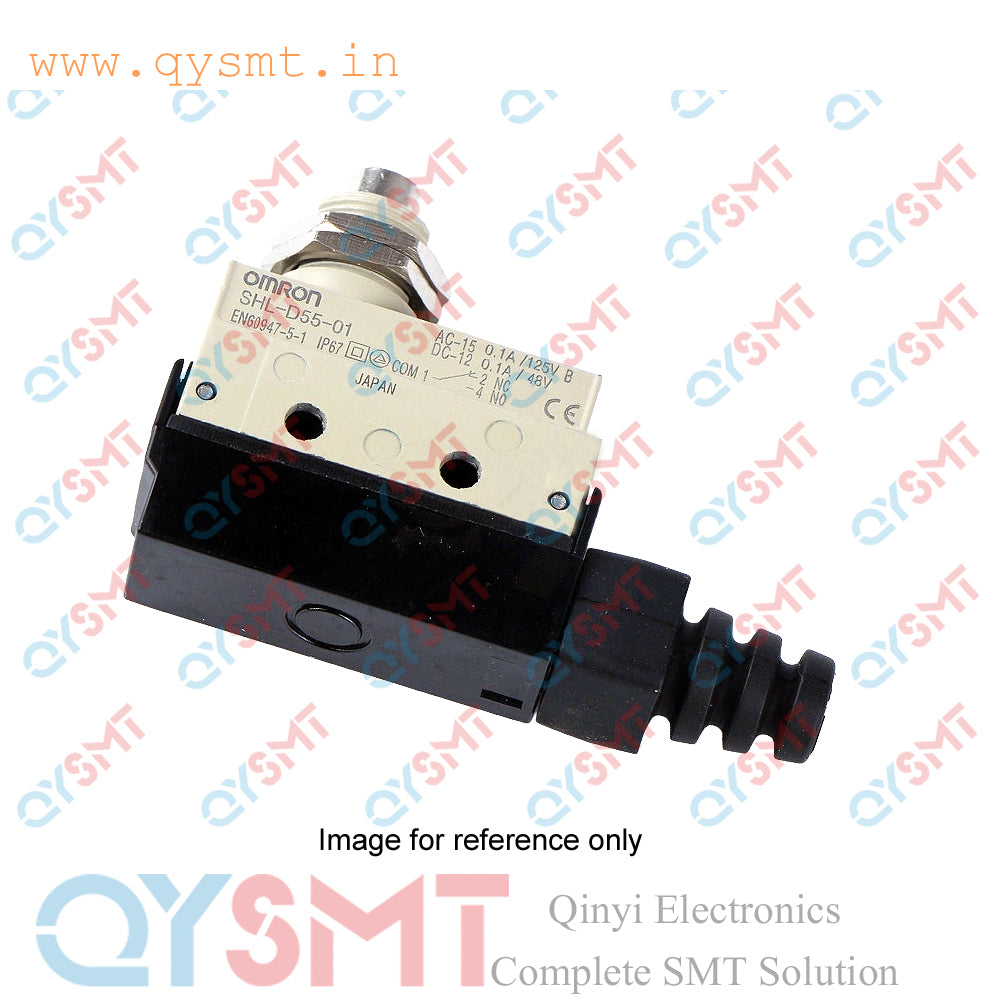

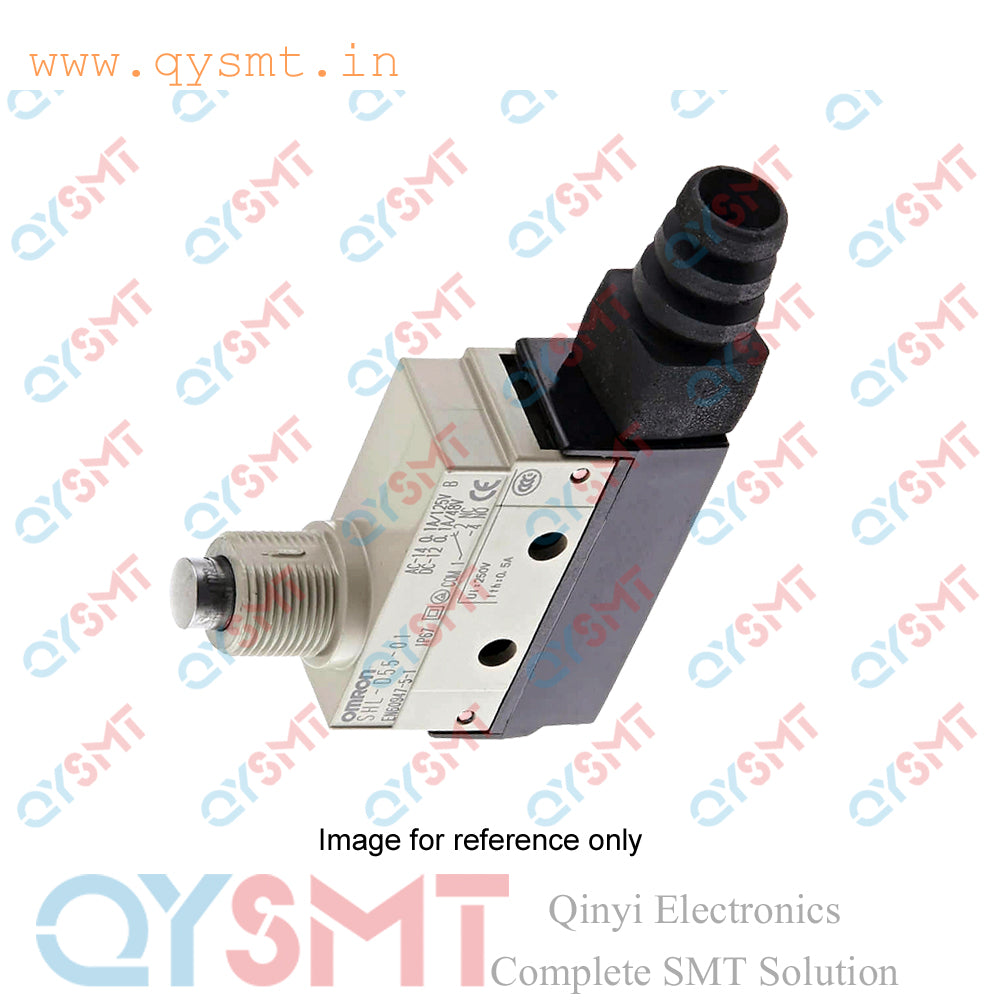

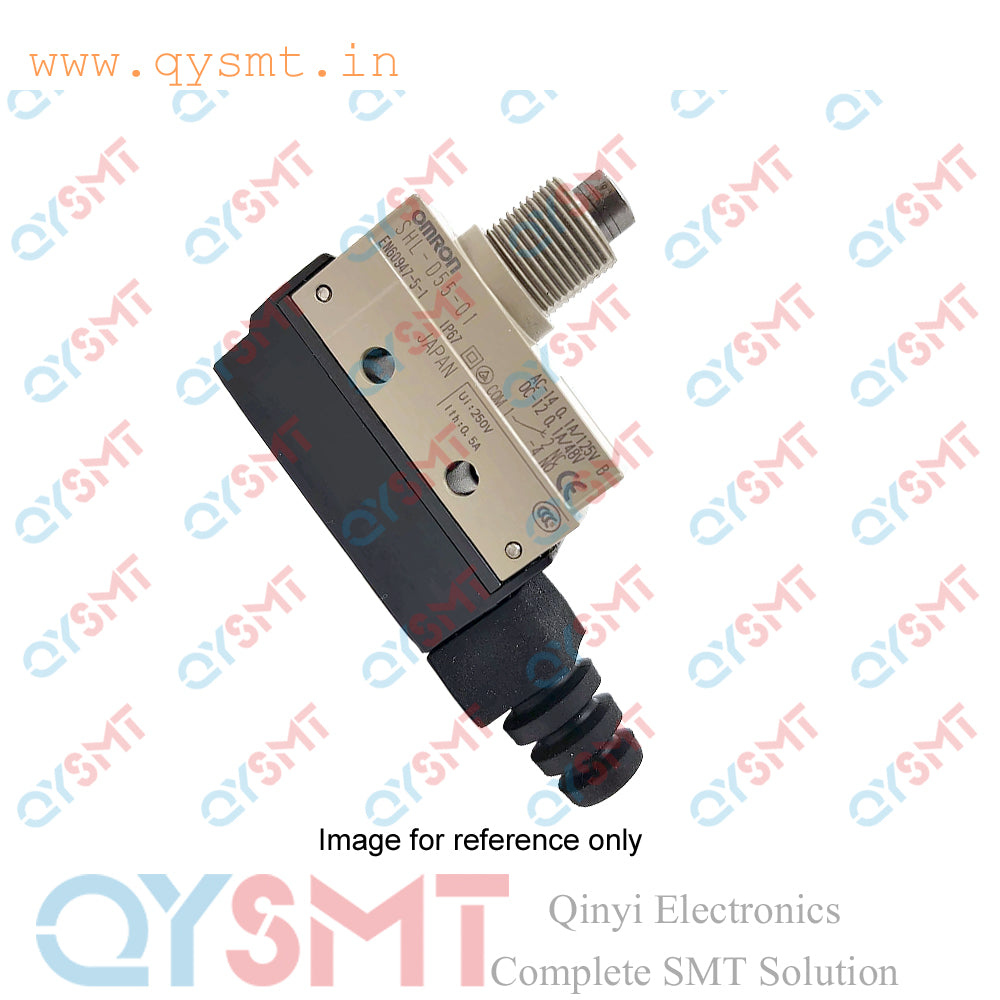

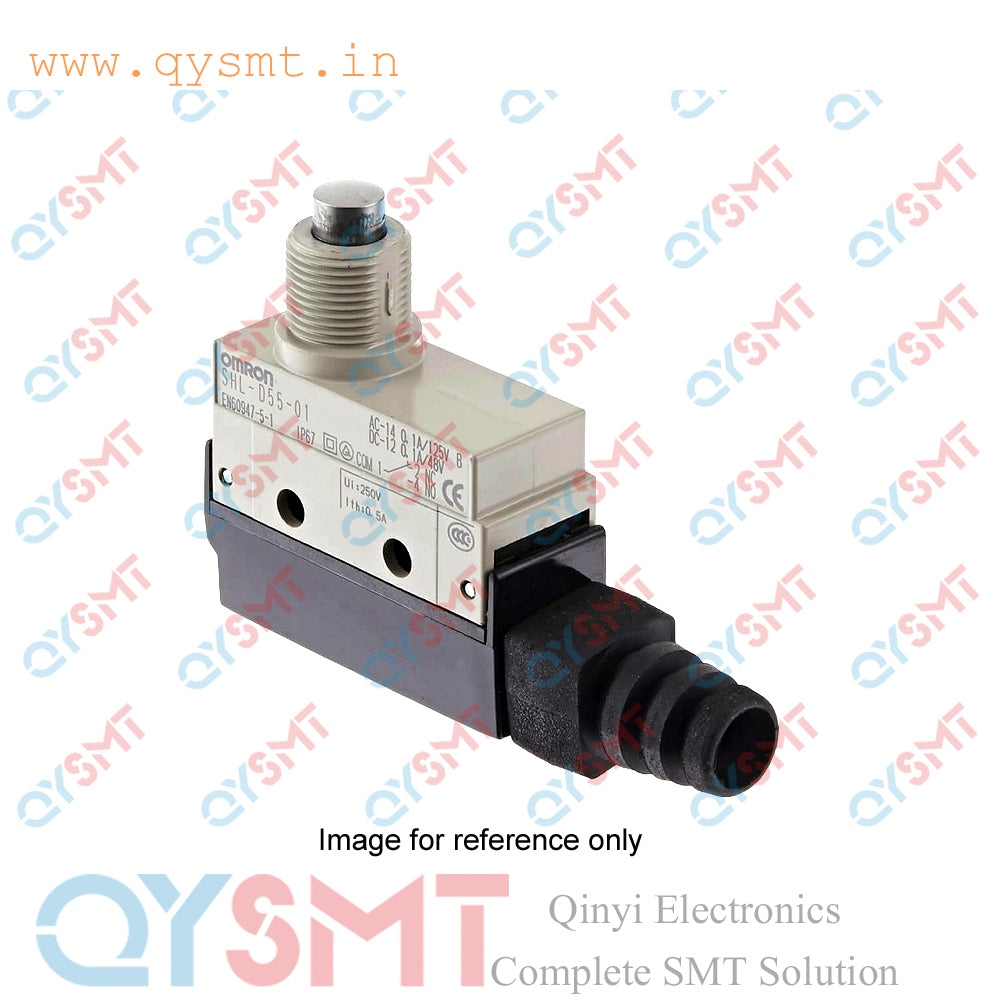

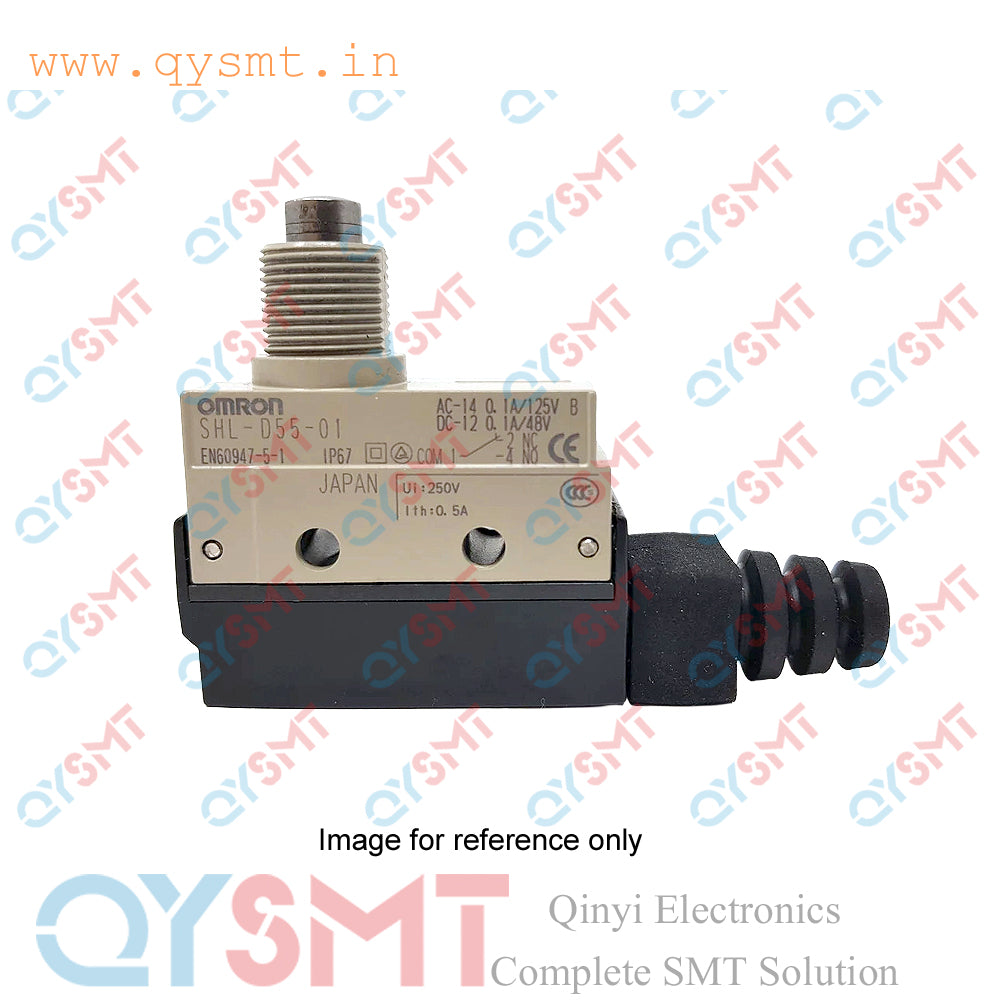

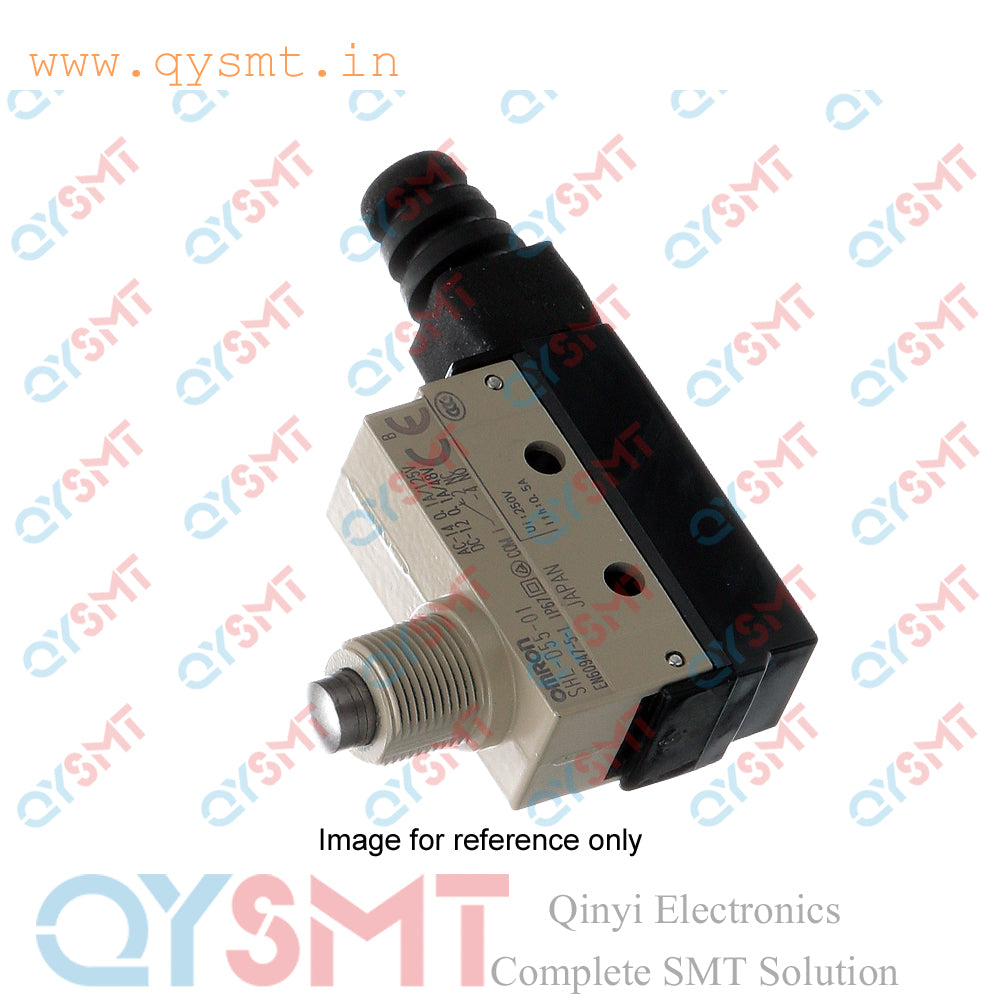

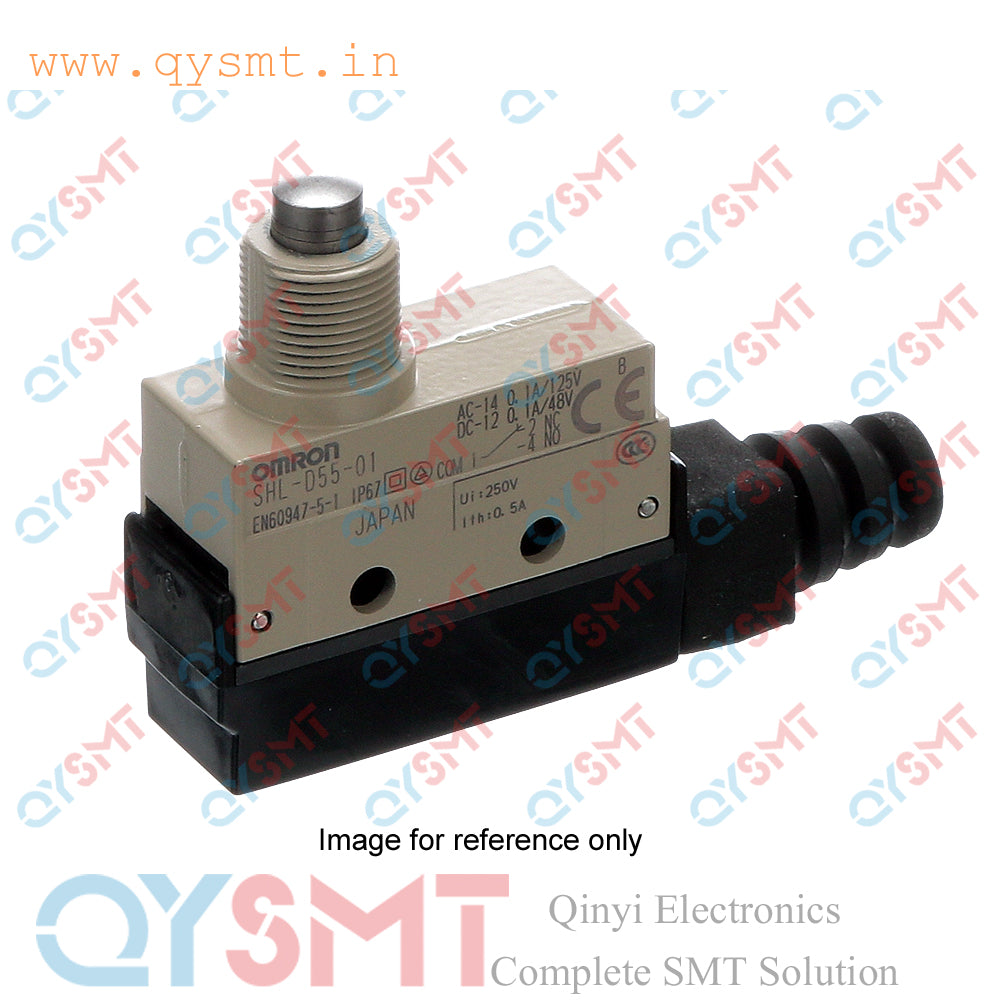

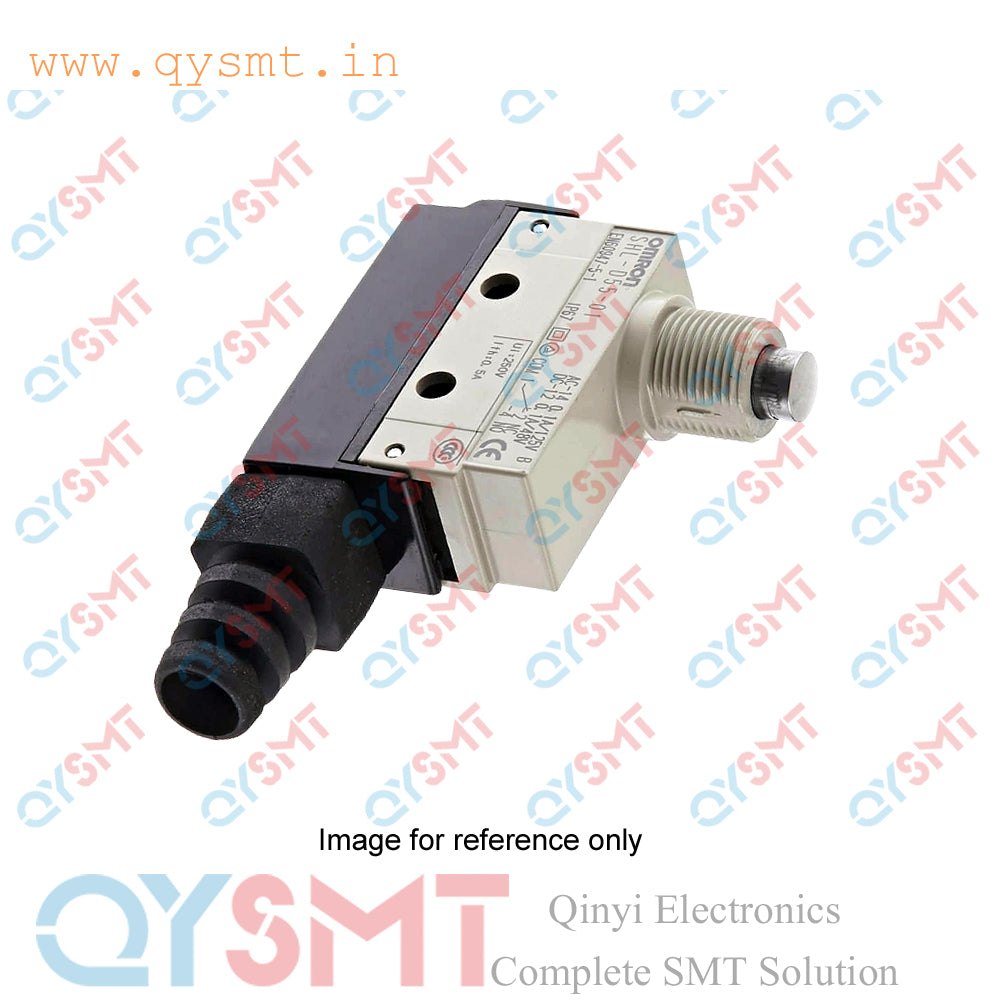

The Omron SHL-D55-01 limit switch is a compact, enclosed, horizontal limit switch with a snap-action plunger actuator, designed for industrial automation applications. It features an IP67 rating for dust and water resistance and uses a Single Pole Double Throw (SPDT) contact configuration.

Key Specifications

• Actuator Type: Plunger (stainless steel pin plunger).
• Housing Material: Zinc die-cast.
• IP Rating: IP67 (dust-tight and protected against immersion in water).
• Contact Configuration: SPDT (1 x 1NO + 1NC).
• Action Type: Snap action.
• Rated Voltage (AC): 125 VAC max.
• Maximum Current: 0.1 A max (for micro loads).
• Operating Force: 9.81 N.
• Operating Position: 34 mm ±0.8 mm.
• Terminal Type: Screw terminals/wiring chamber.
• Operating Temperature: -10°C to +80°C.
• Durability (Mechanical): 10 million operations min.
