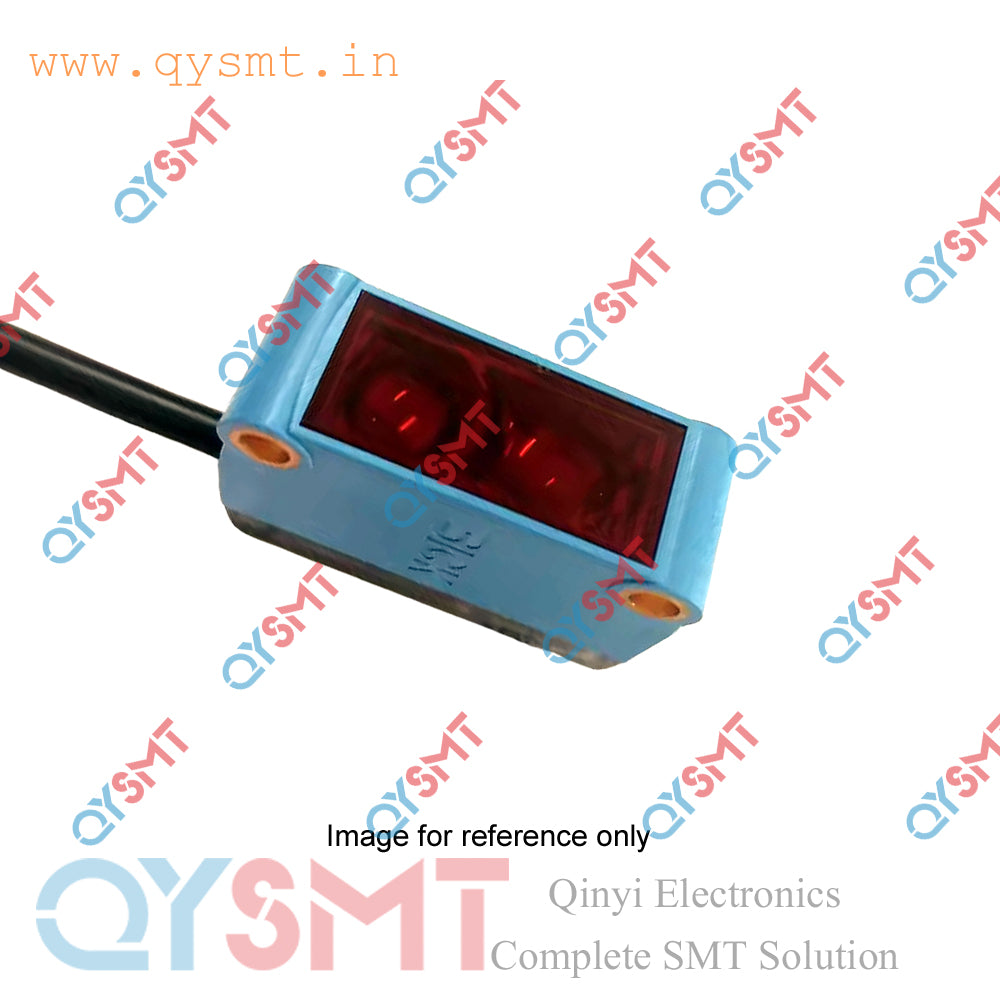

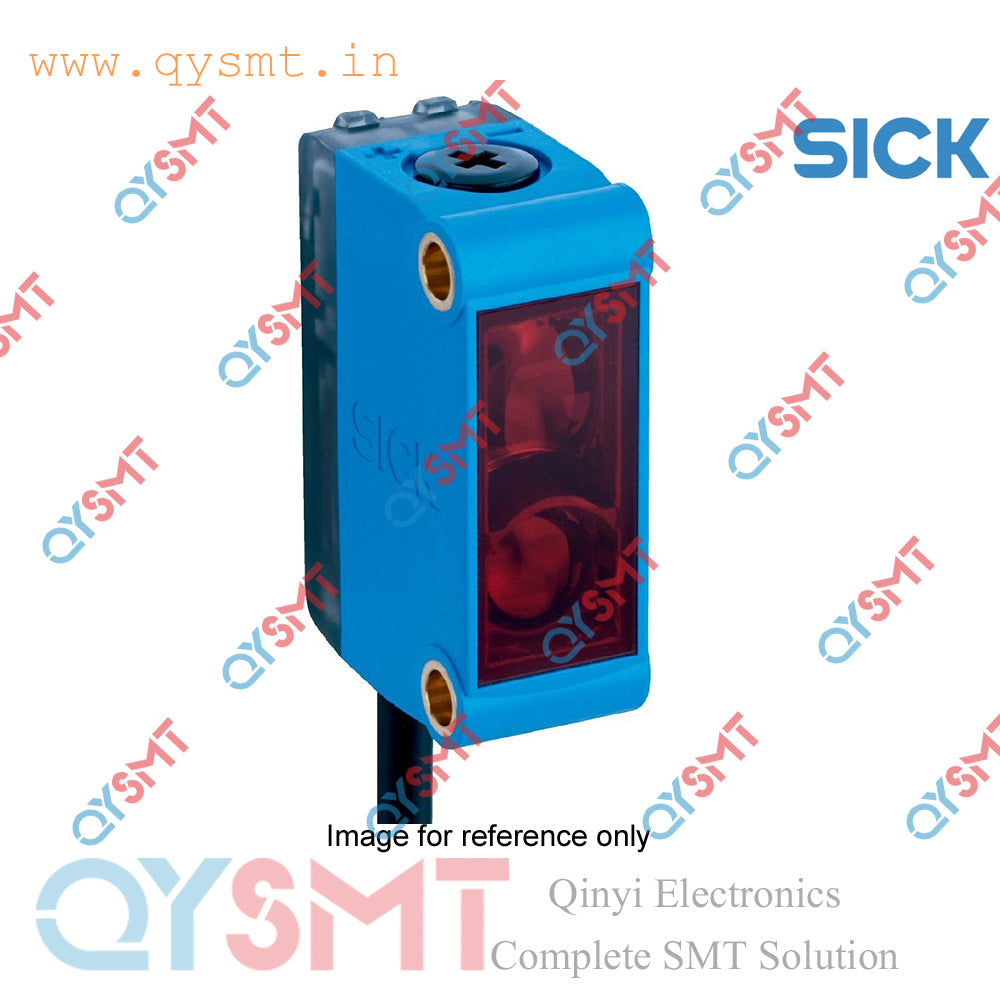

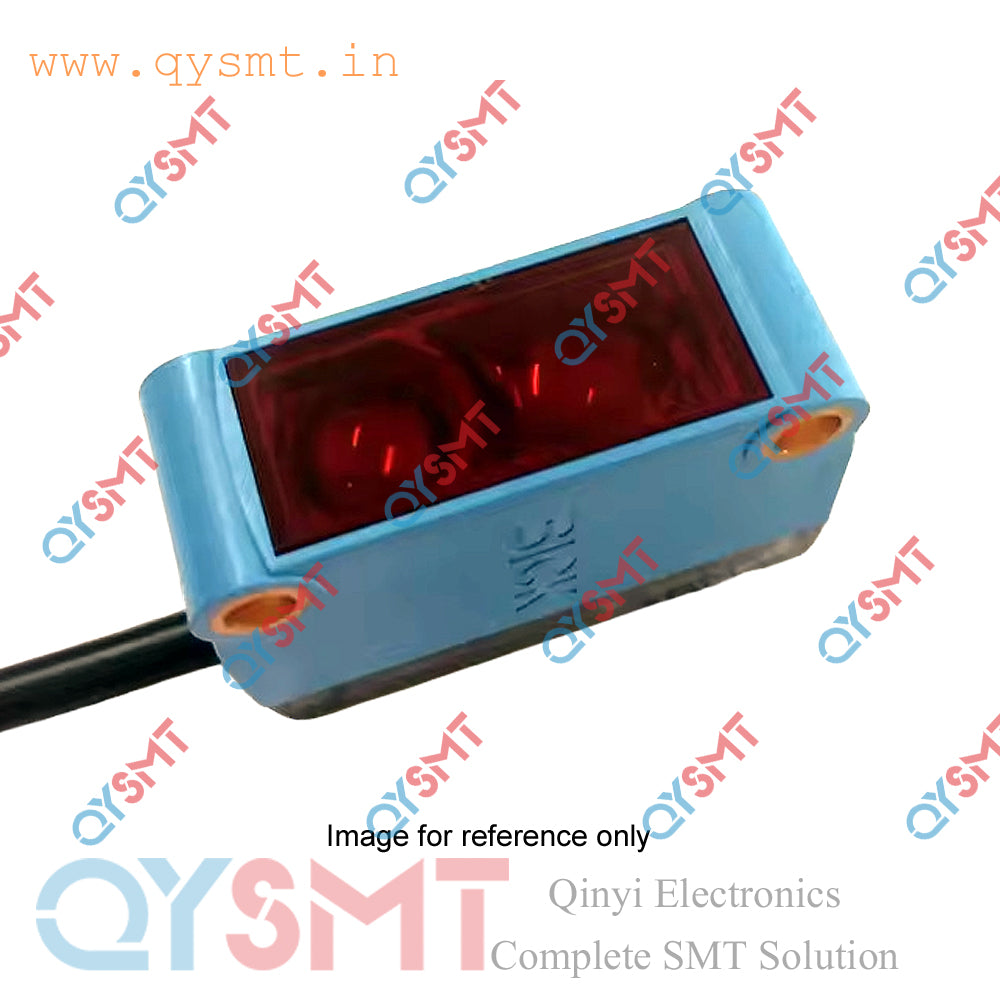

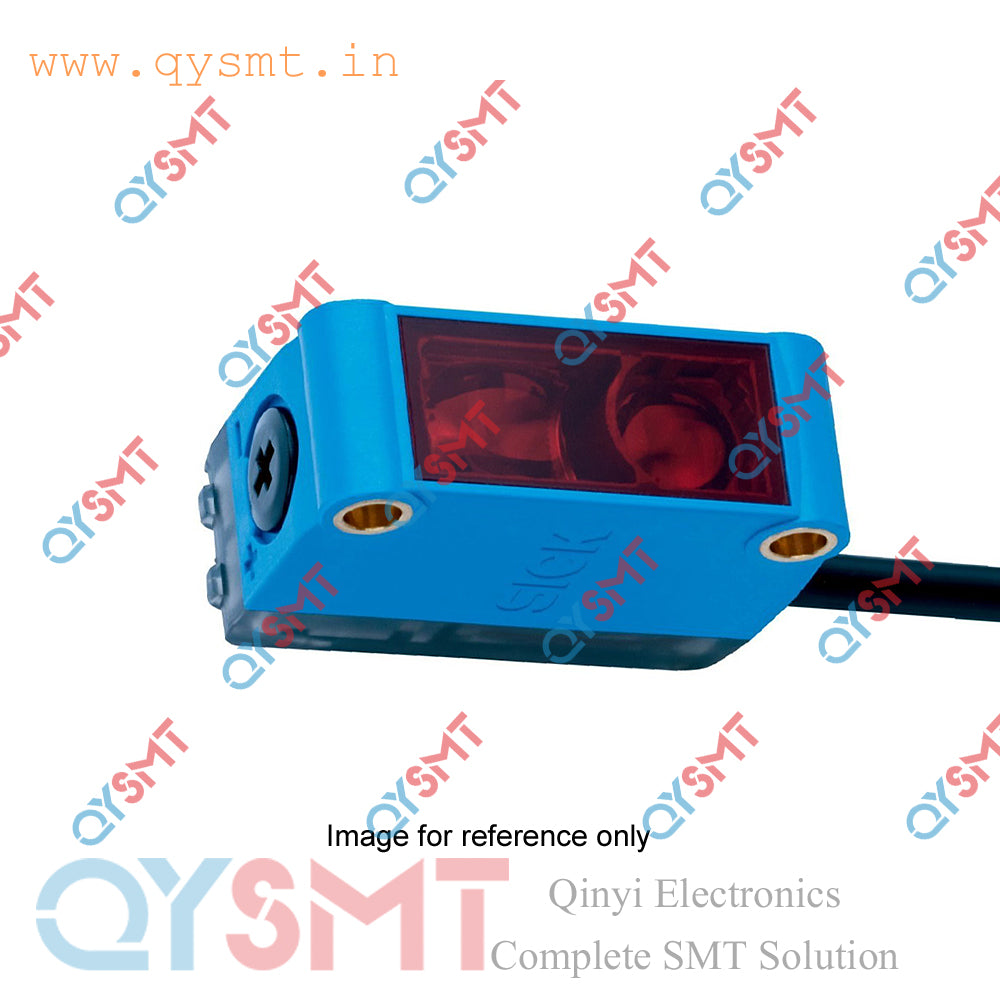

Sick GTB6-N1212 Photoelectric Sensor

SICK Sensor GTB6-N1212 1052445 Photoelectric Proximity Sensor Background Suppression, NPN open-collector transistor, Light-On/Dark-On Selectable, (5 mm to 250 mm) 35 mm to 140 mm Sensing Range, Pin Point LED, Visible red light, Cable, 3-wire, 2 m, IP67

Specification/Additional Details

• • Sensing Mode : Proximity
  • Functional principle detail : Background Suppression
  • Brand : SICK
  • Model : GTB6-N1212
  • Output : NPN open-collector transistor
  • Sensing range max. : 5 mm - 250 mm

  • Sensing range : 35 mm - 140 mm

  • Light source : Pin Point LED

  • Type of light : Visible red light

  • Light spot size (distance) : Dia. 6 mm (100 mm)

  • Wave length : 650 nm

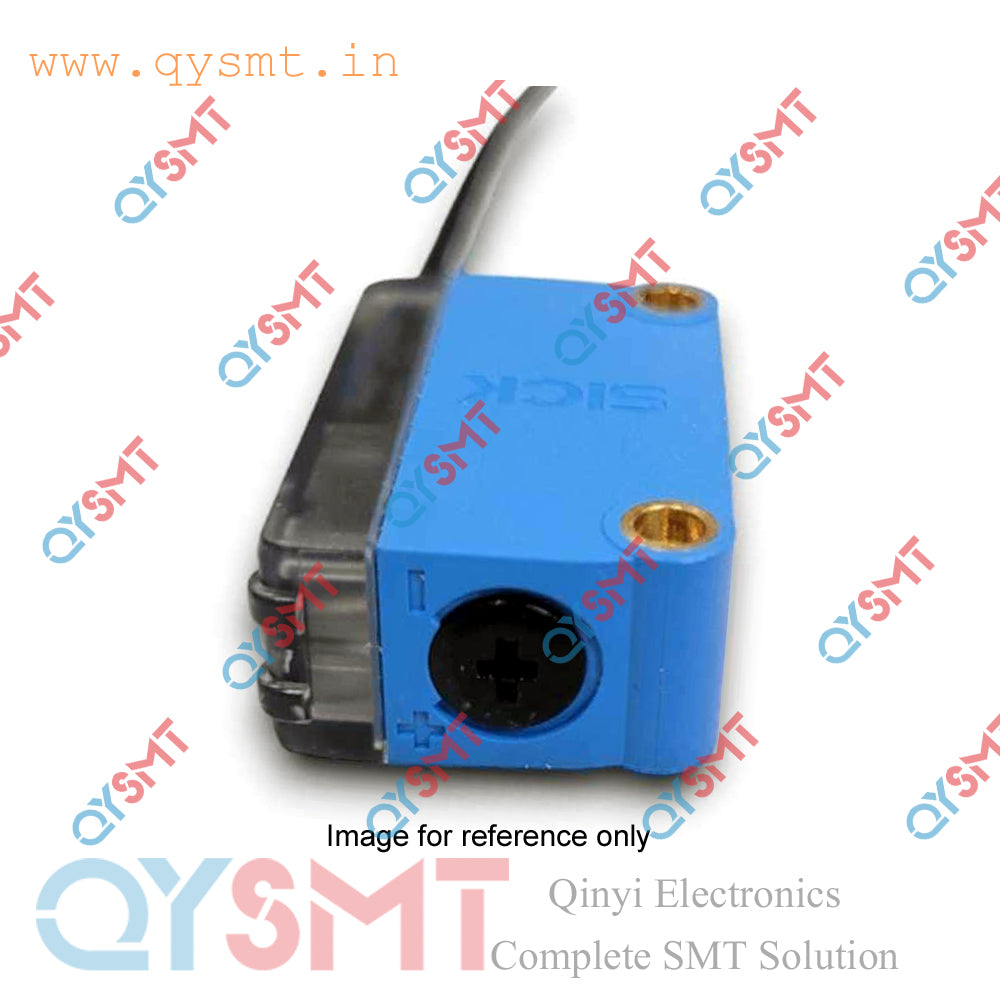

  • Adjustment : Mechanical spindle, 5 turns

  • Supply voltage : 10 V DC - 30 V DC

  • Switching mode : Light/dark switching

  • Dimensions : 12 mm x 31.5 mm x 21 mm (W x H x D)

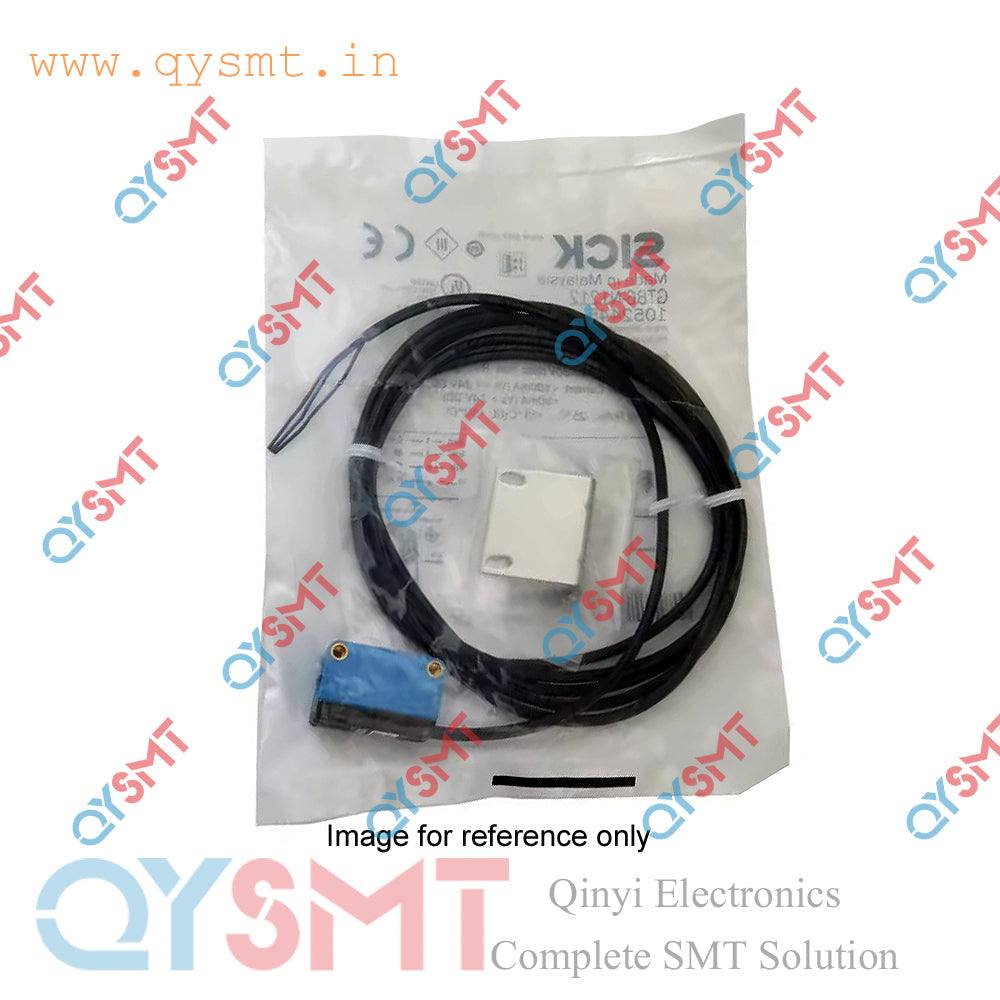

  • Connection : Cable, 3-wire, 2 m

  • Housing Plastic : ABS/PC, PMMA (Front screen Plastic), PVC (Cable)

  • Enclosure rating : IP67

  • Ambient operating temperature : -25°C to +55°C
