SMT Splicing Tool MTL30 MTL40 MTL60

SMT Splicing Tool MTL30 MTL40 MTL60

Contact Seller :- Call or Whatsapp +91-9354676493 Email: happy@qysmt.in

Call or Whatsapp +91-9354676493

Email: happy@qysmt.in

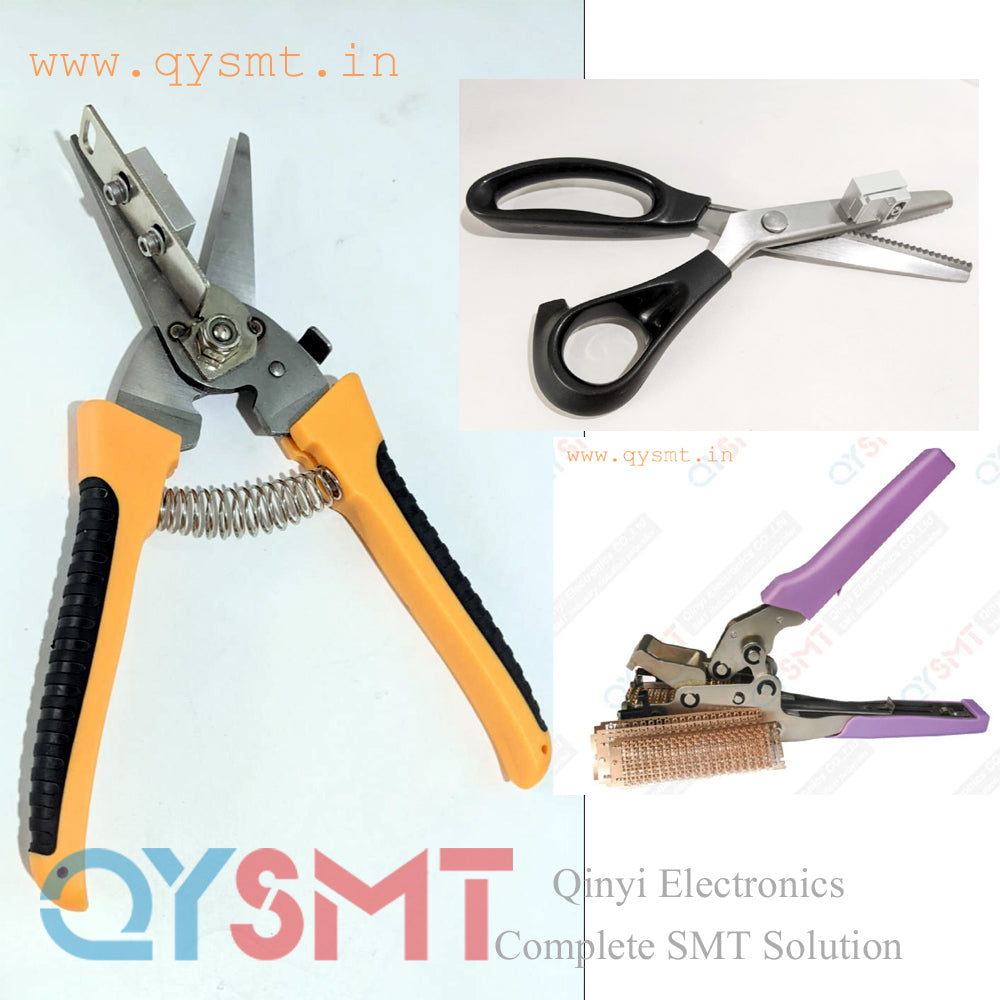

SMT Splicing Tool MTL30 MTL40 MTL60

We provide complete solution for SMT machinery spare parts.

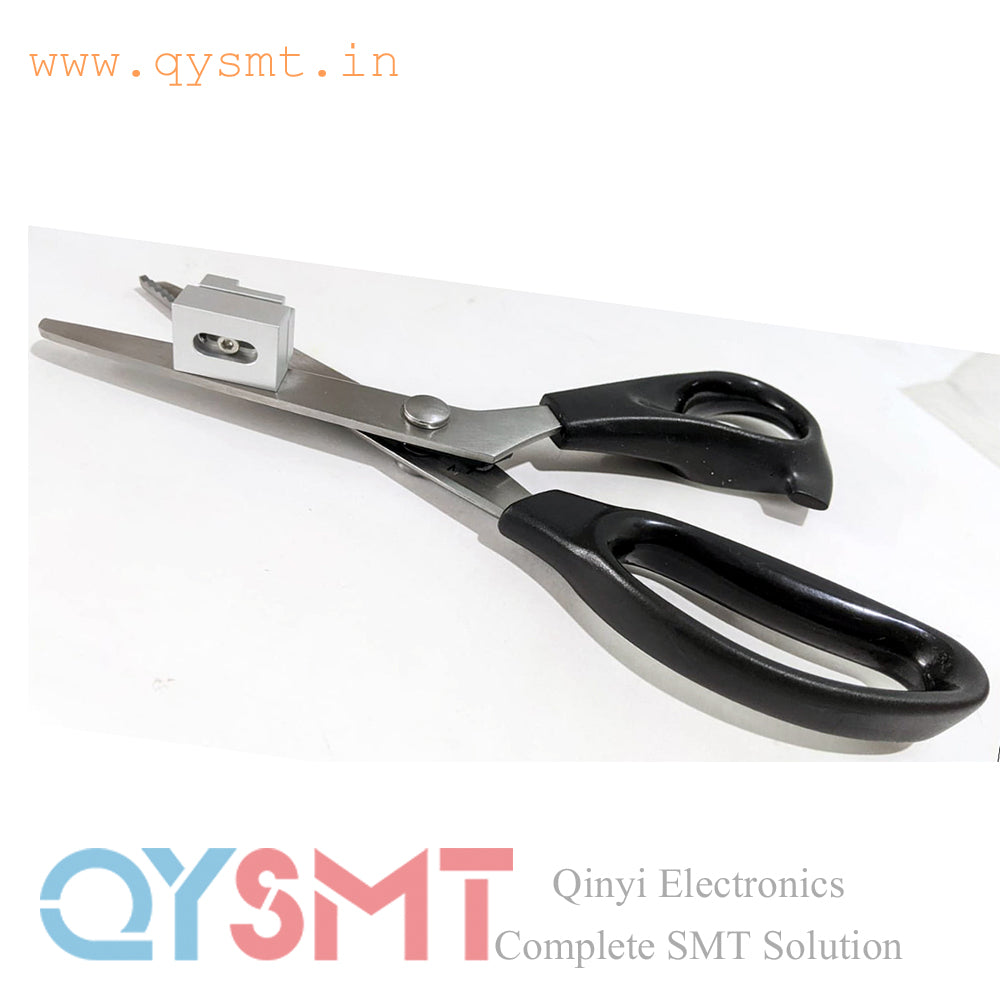

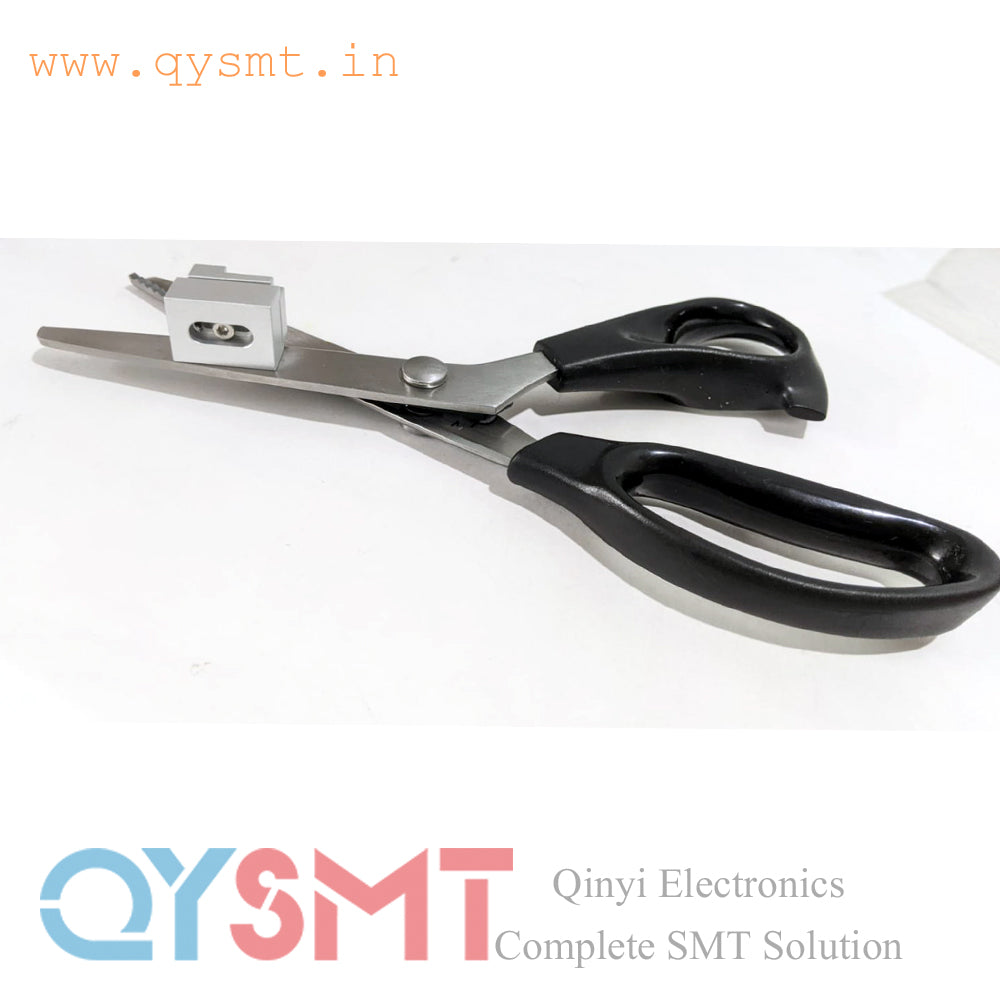

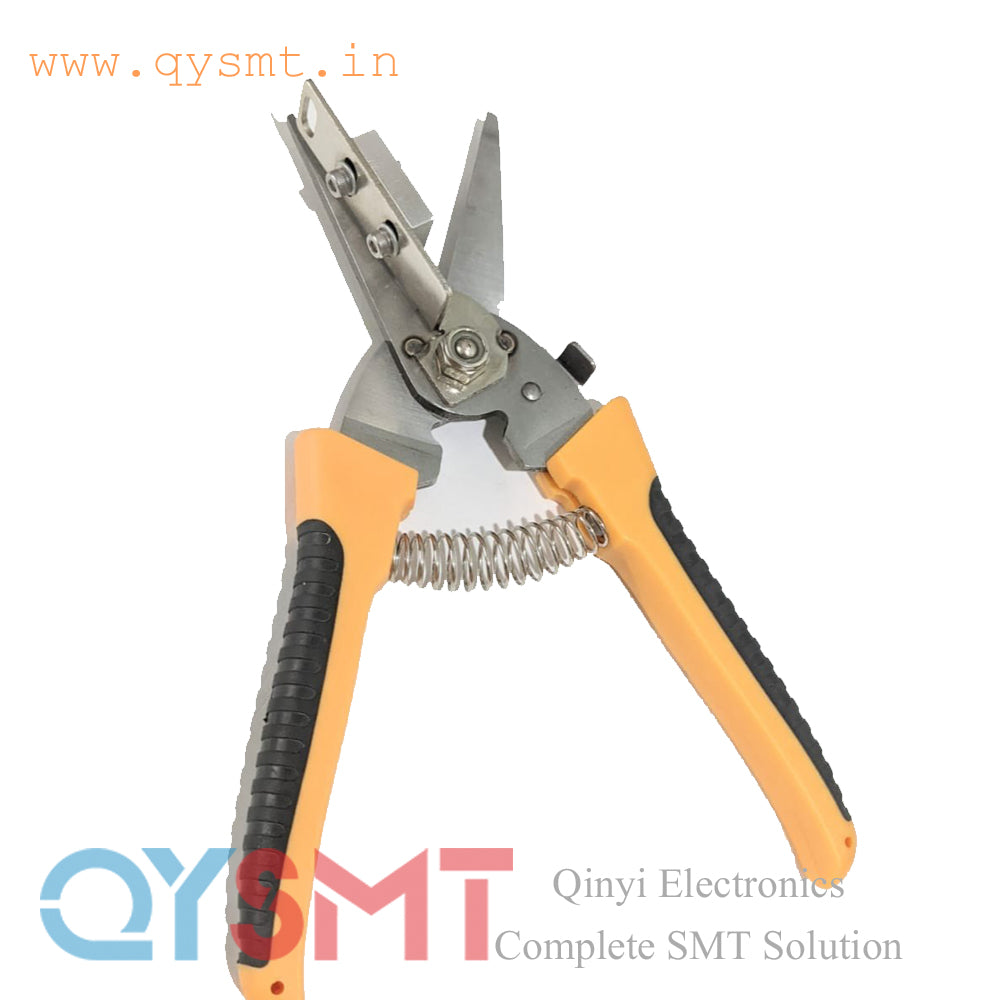

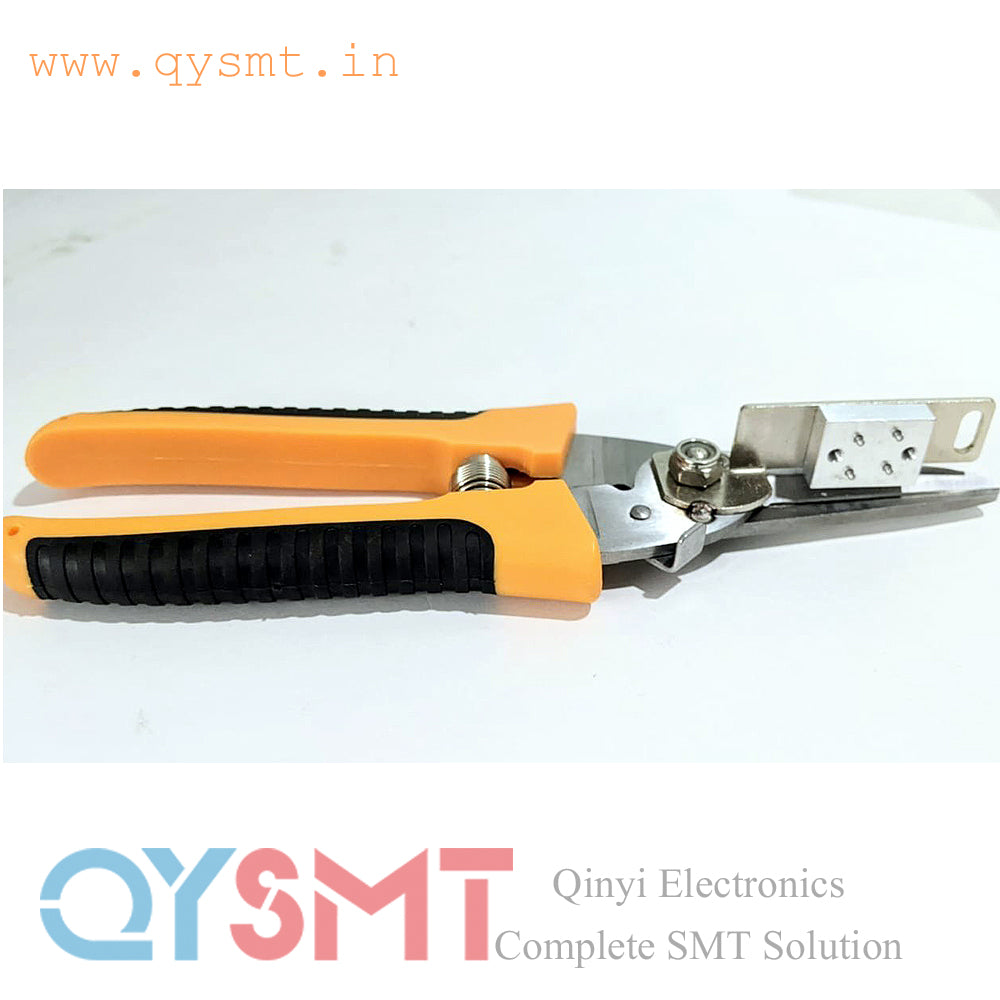

MTL 30

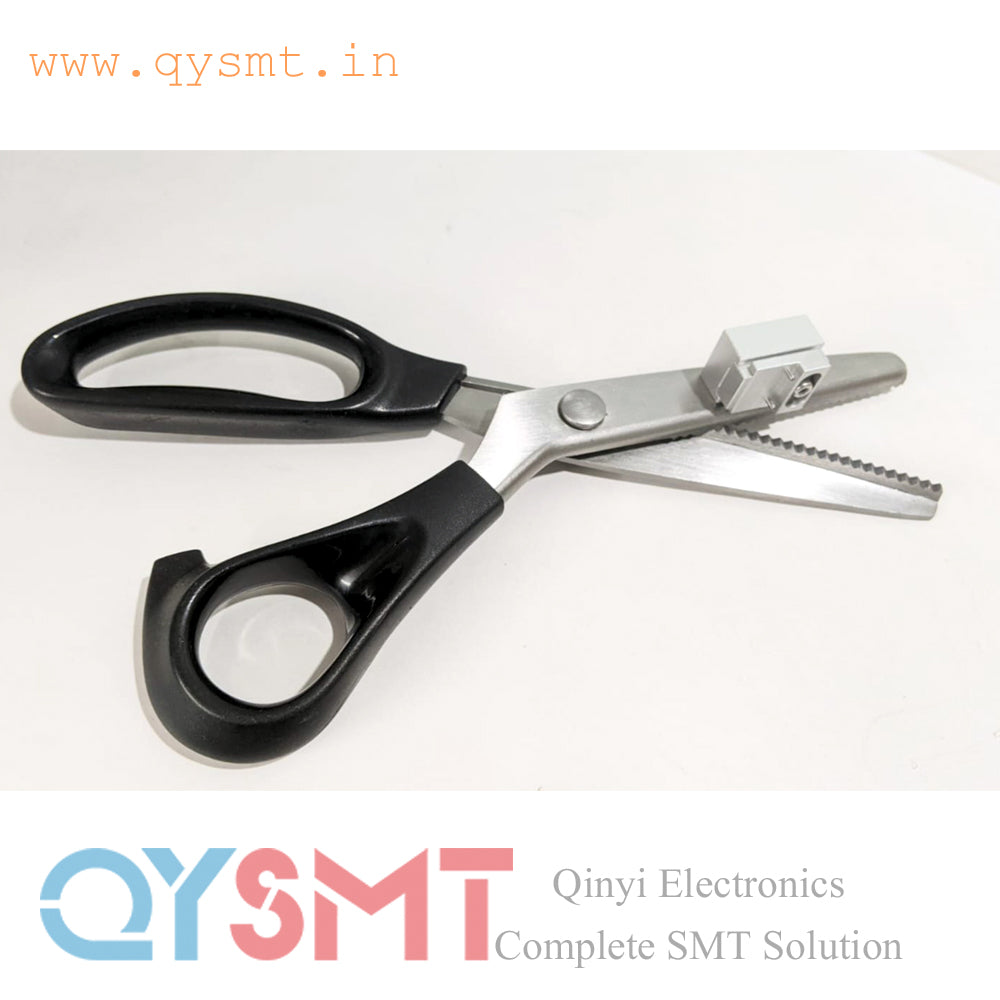

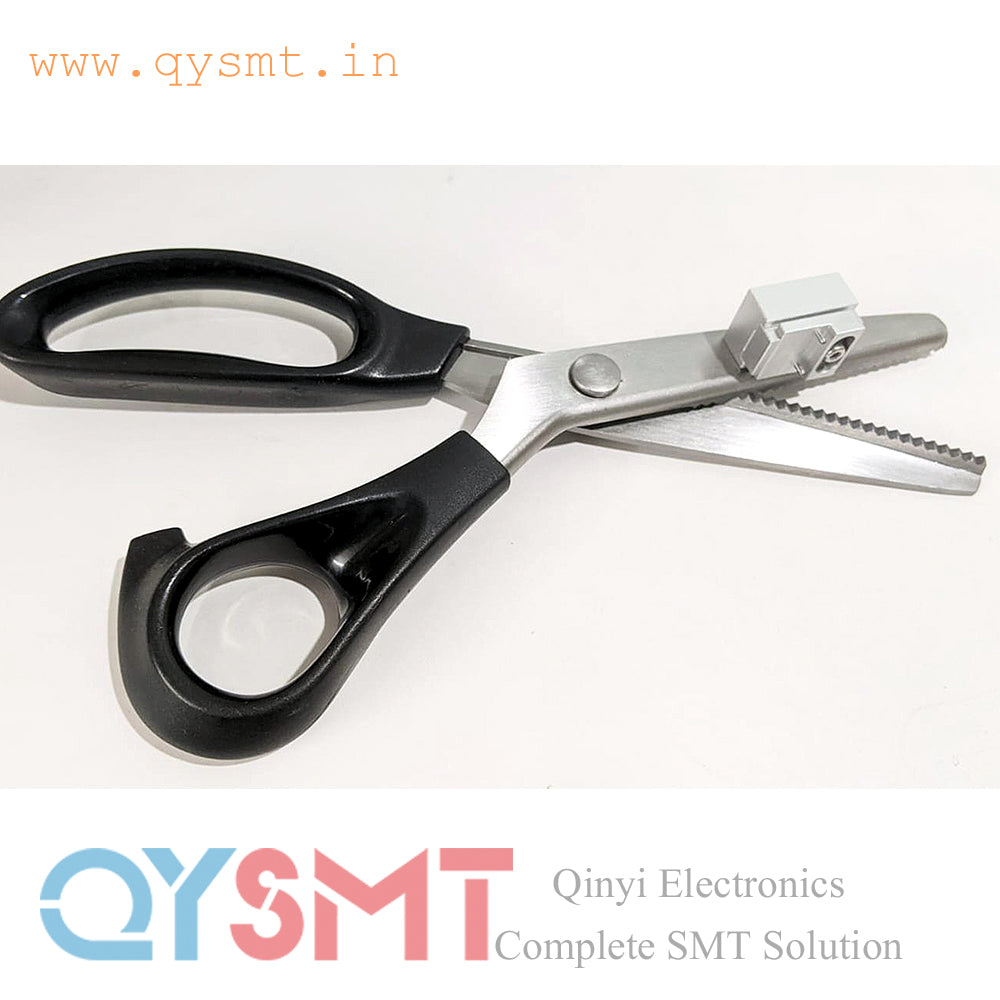

MTL 40

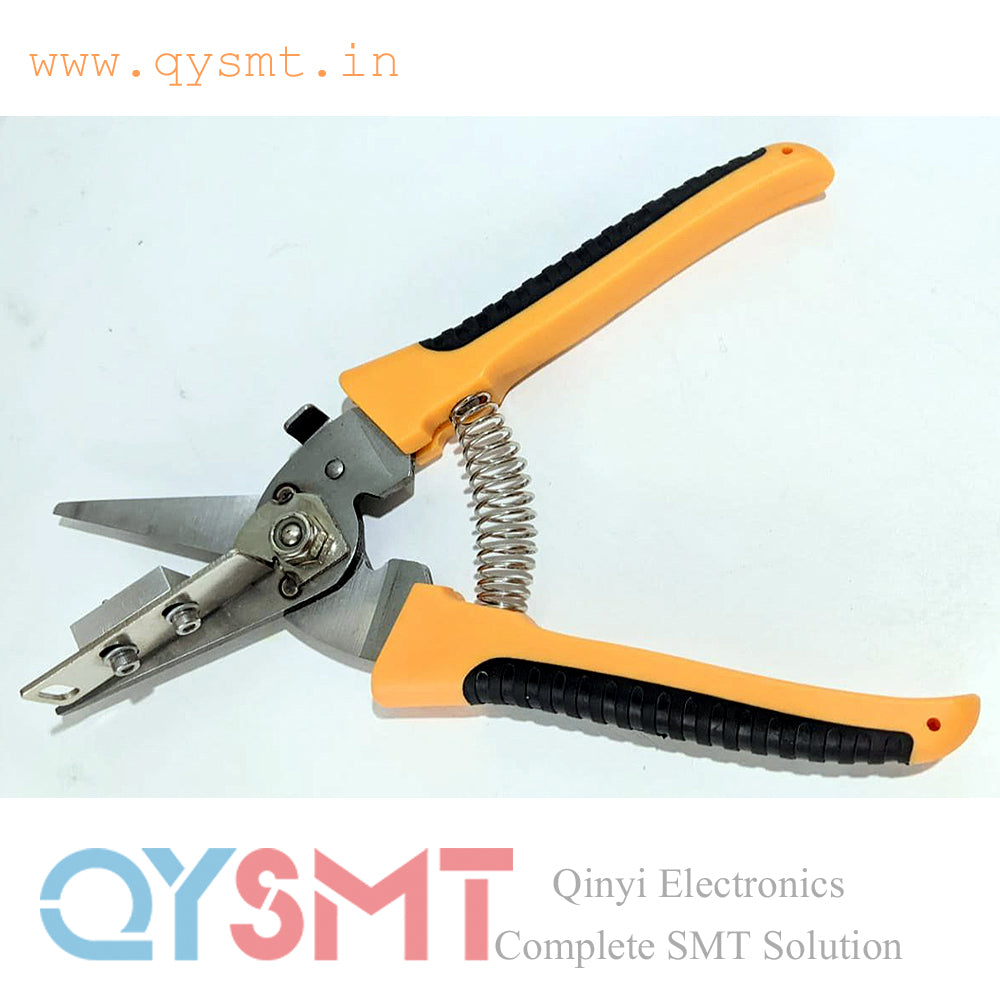

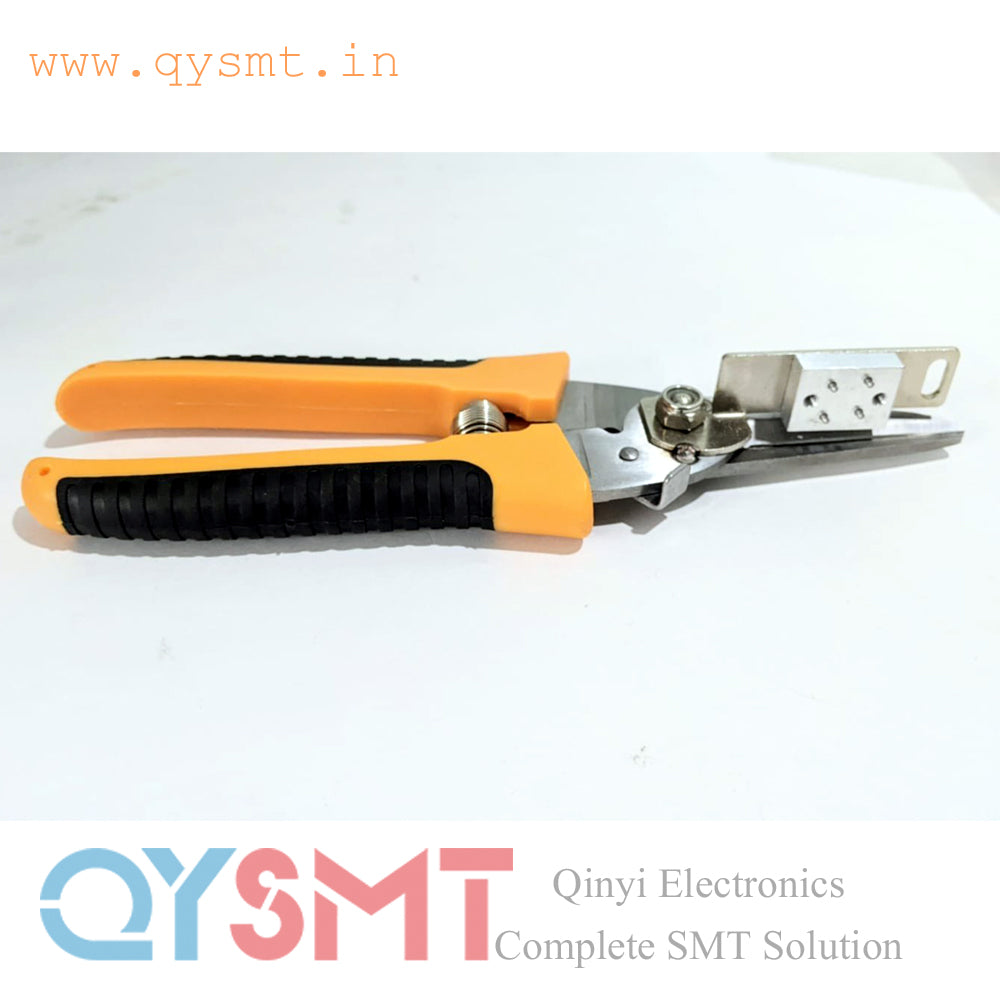

MTL  60

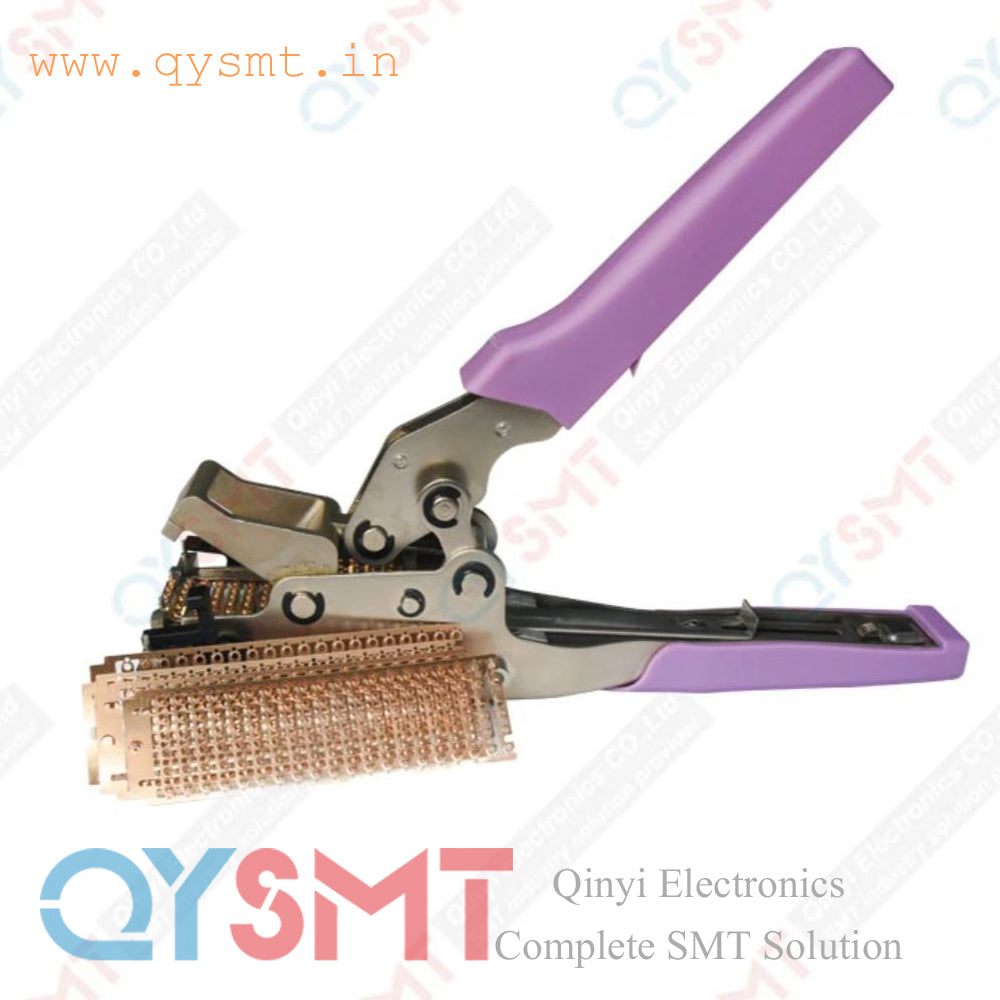

SMT splicing clips copper clips and strips.

Features:

1) The shim includes holes to allow the material to go through the sprocket wheel of tape feeder. and points to secure it to the carrier tape.

2) Brass shims with holes used with the tape splicing tool.

3) Single type clip used with Splice tool and tape of any width

4) Guarantees a secure connection of SMT component reels

5)  Increase SMT Pick and Place Machine output by 5% to 30%

6) Name:SMT Splicing Tool Splice Tape Use Consumable Copper Clip SMT Splice Clip


Specifications:

Name: SMT Splicing Tool Splice Tape Use Consumable Copper Clip SMT Splice Clip

Model Number: GSCC-01

Material: Brass

Dimension:22mm x 2.6mm

Thickness:0.1mm

Packing:200 pieces per box

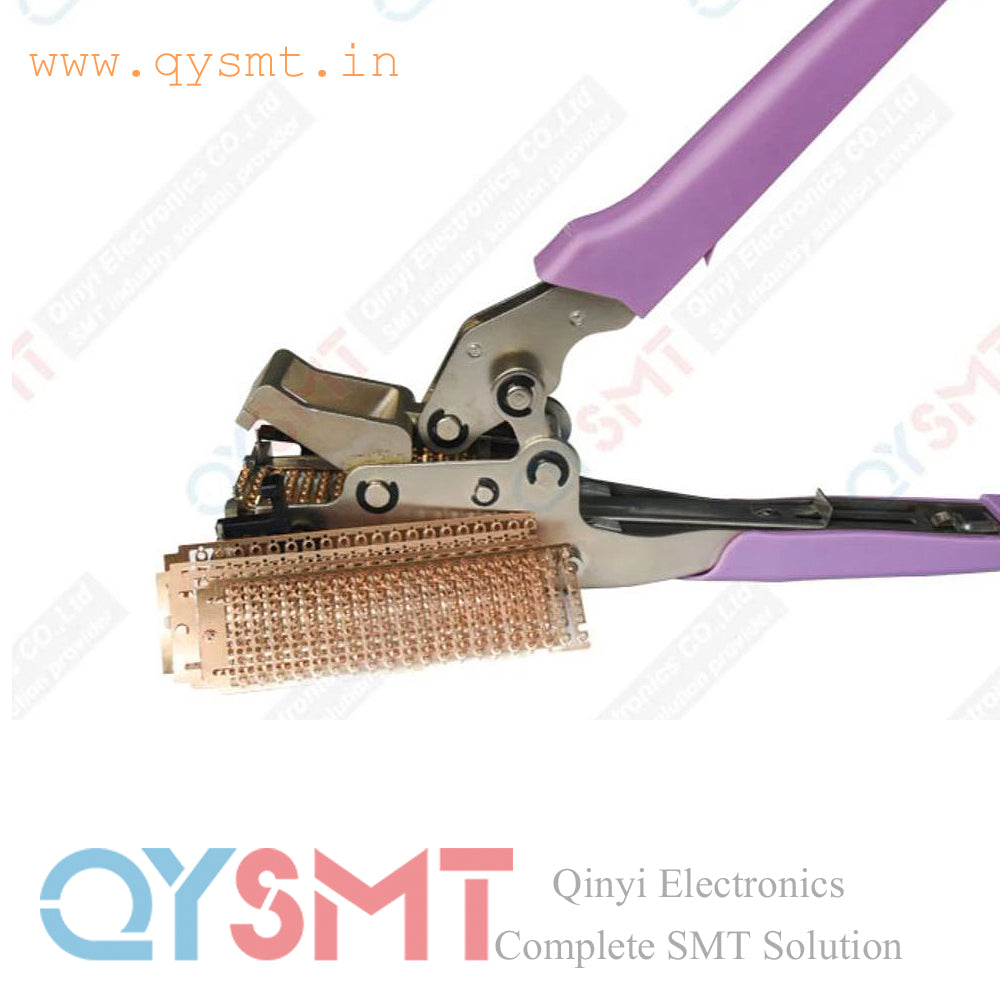

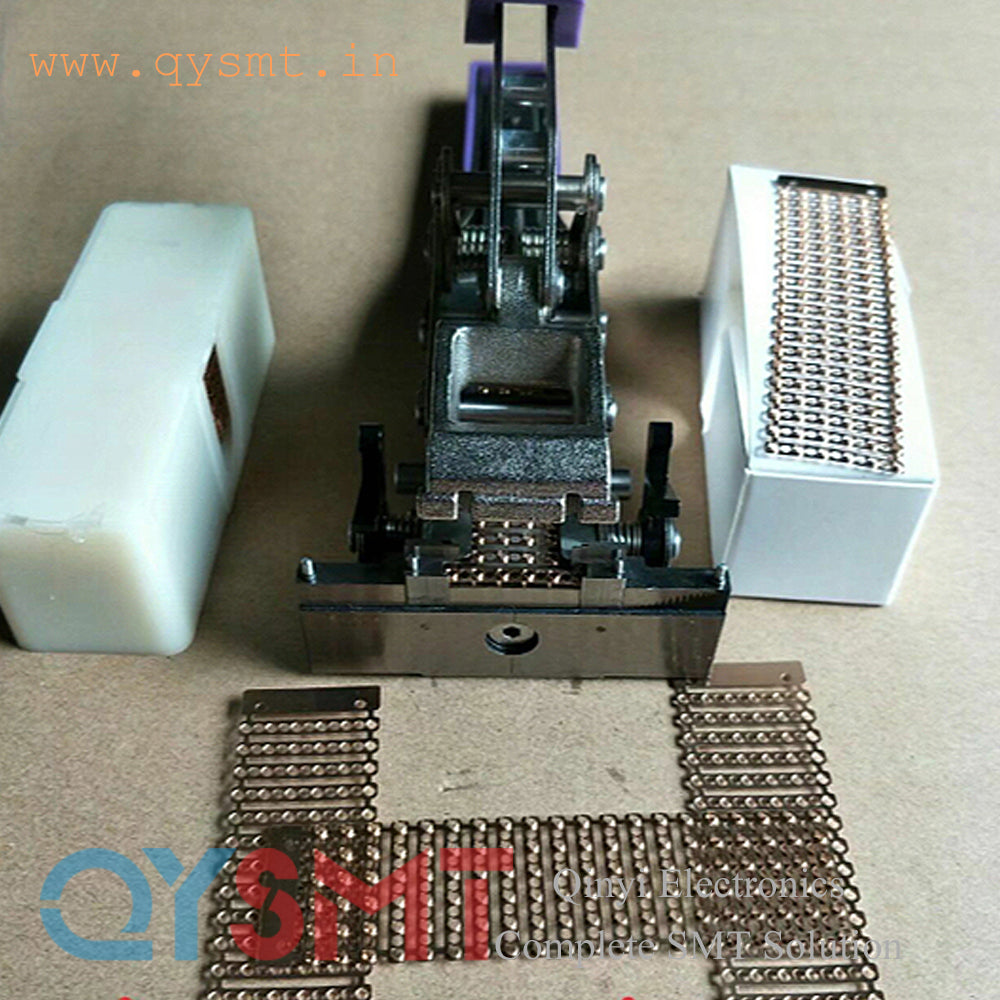

Using KHJ Splicing Tool ensures that SMD component tapes can be joined securely and quickly. A special brass shim is riveted into the ends of the SMD tape, joining them securely, and allowing them to still pass through the sprocket wheel of the feeder. Accurate alignment is achieved by arranging the tape on the locating pins of the splicing tool. Uses Stapler Clip Part no: SMS-0604.
TL 10 has an Integration of Imported cutter with indigenously designed and developed fixture ensures the proper cutting of tapes for effective and reliable splice joints. The tape having one component between two holes should be placed on top row and the three components between the two holes will be placed in bottom row for cutting the carrier tape. This arrangement is fool proof to avoid component damage.

Advantage:

  • SMT splicing tool.
  • Better handling and accuracy.
  • For use with splicing clips.
  • Ideal for splicing materials in SMT line.


SMT Splicing Tool with the following characteristics:


  • Designed specifically for SMD carrier tapes from 8mm to 44mm
  • Ensure that SMD component tapes can be joined securely and quickly
  • Ideal for splicing materials with shims in SMT line
  • Colour available :yellow, red
  • New innovative design: better handling and accuracy
  • For use with splicing clip
  • Packing: Standard package
Model No: TL 20

Two rows of placement pin (P/N: SMS-TL20). When cutting different kinds of carrier tape, big component (one component between two holes) will be put in first row of placement pin while small component (three components between two hole) will be put in second row of placement. Therefore, our cutter will definitely not cut the component.

Product Description

TL30 suitable for 8mm SMT splice tape. It is made for high quality stainless steel, specializing design for reduce tape. The cutting tape products are the new generation. The components pitch is 2mm or even smaller tape, especially in 0402, 0201. It will be accurately cut in the middle of two components and making this two joint perfectly, the distance between two holes is 4mm all the time so that it is reduce the waste. A special brass shim is crimped into the ends of the SMT tape, joining them securely, and allowing them to pass through the sprocket wheel of the feeder. Accurate alignment is achieved by placing the tape on the location pins of the splicing tool.


  • Wasting zero components.
  • Not damage the cutter blade.
  • Accurately cut all kinds of carrier tape.
View full details
