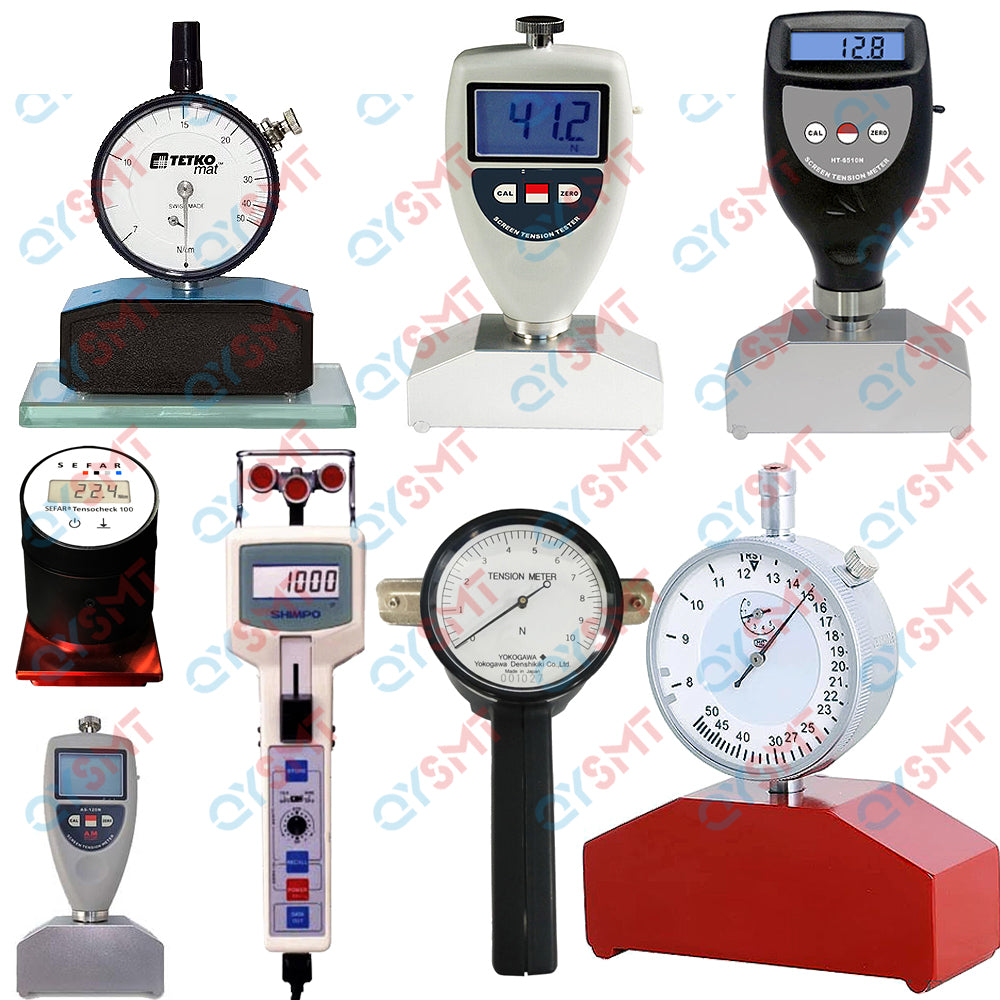

SMT Stencil Tension Meter

A stencil tension meter, or tensiometer, is a precision instrument used to measure the tautness of a screen printing or SMT (Surface Mount Technology) stencil. It is a critical tool for ensuring consistent, high-quality printing results in both textile and electronics manufacturing.

See All Tension Meters

Working
Stencil tension meters operate on a simple principle of force deflection, offering a standardized, objective measurement that replaces subjective "feel".

• Measurement: The device has a base with three contact points: a central sensor button and two outer supports.

• Force deflection: When placed on the stencil, the central plunger or button applies a calibrated downward force.

• Tension reading: The indicator mechanism measures the depth of the fabric's depression, translating it into a specific tension reading, typically in Newtons per centimeter (N/cm).

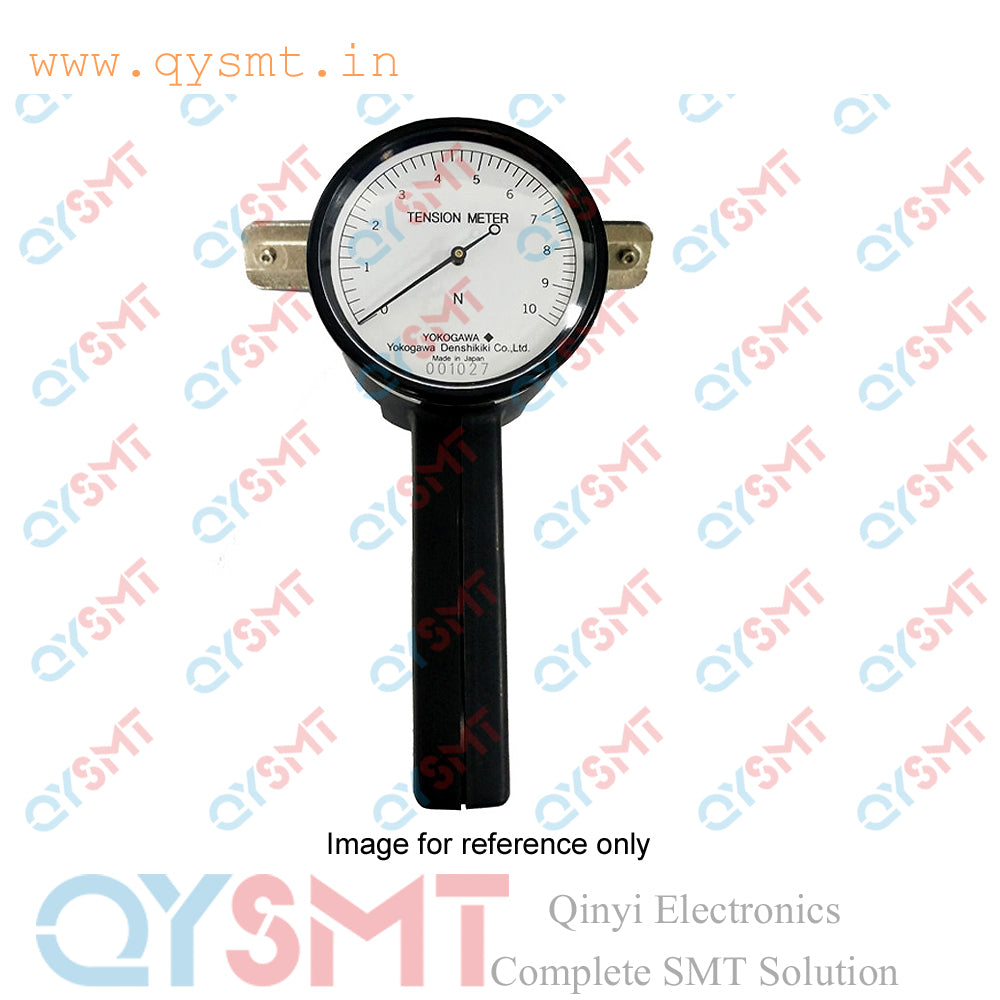

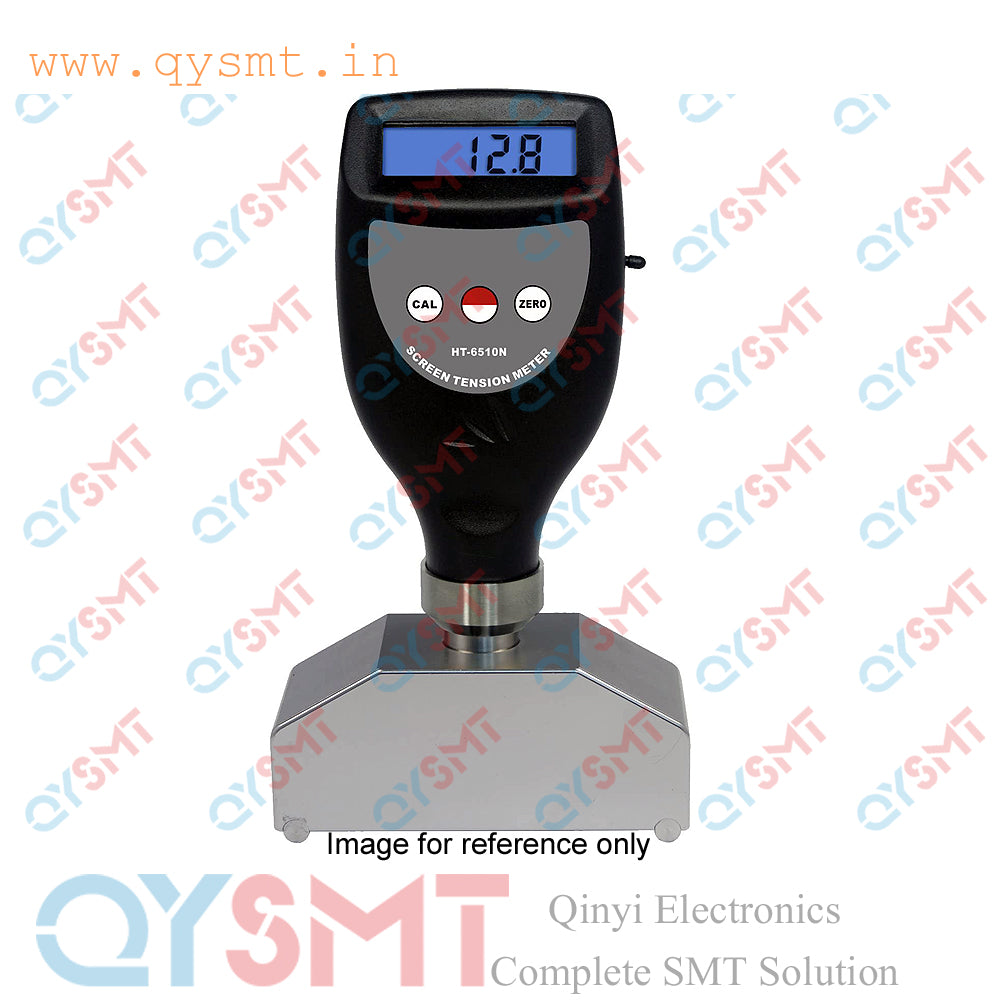

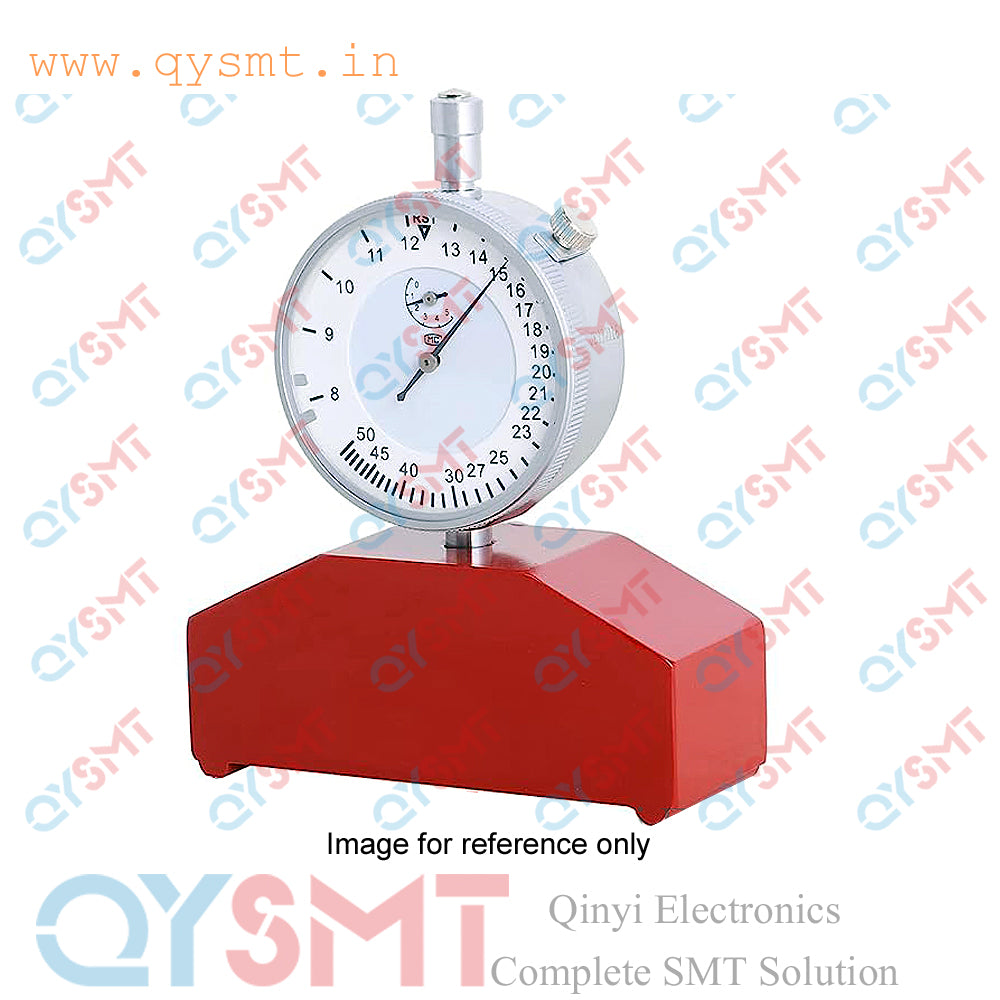

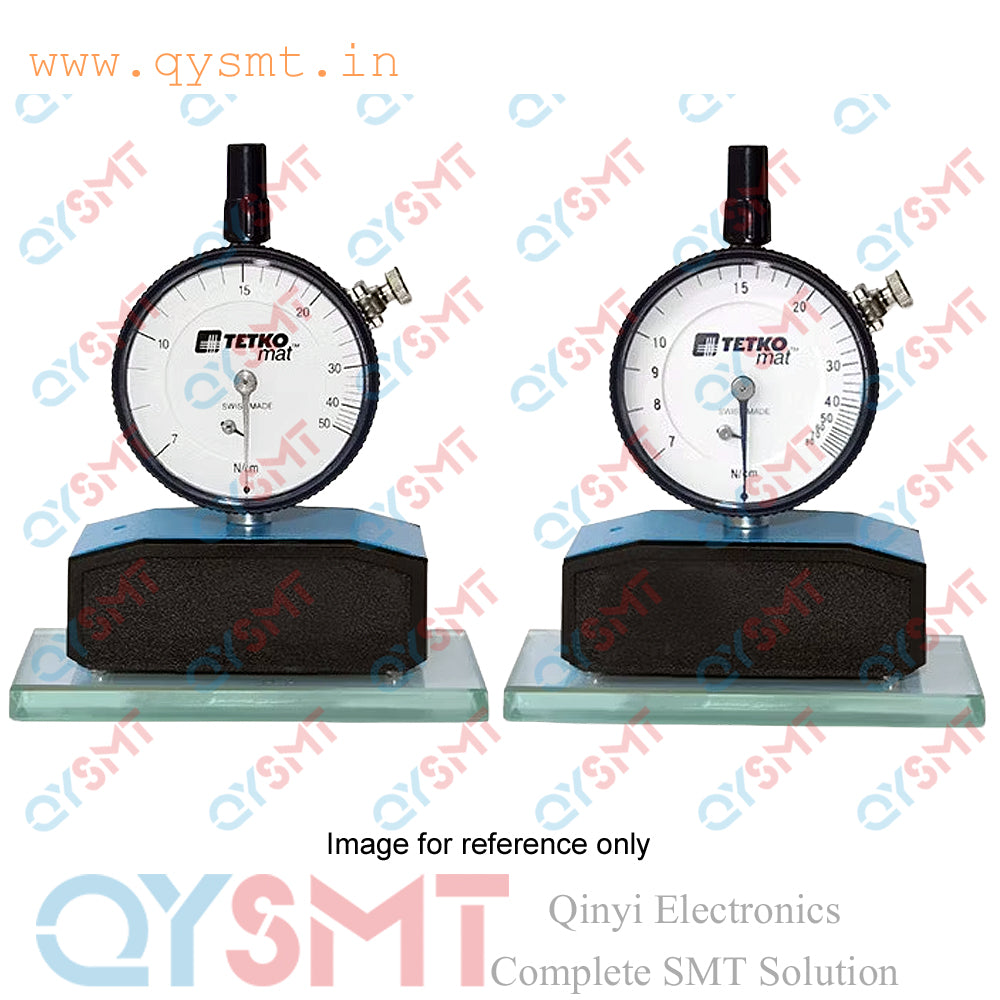

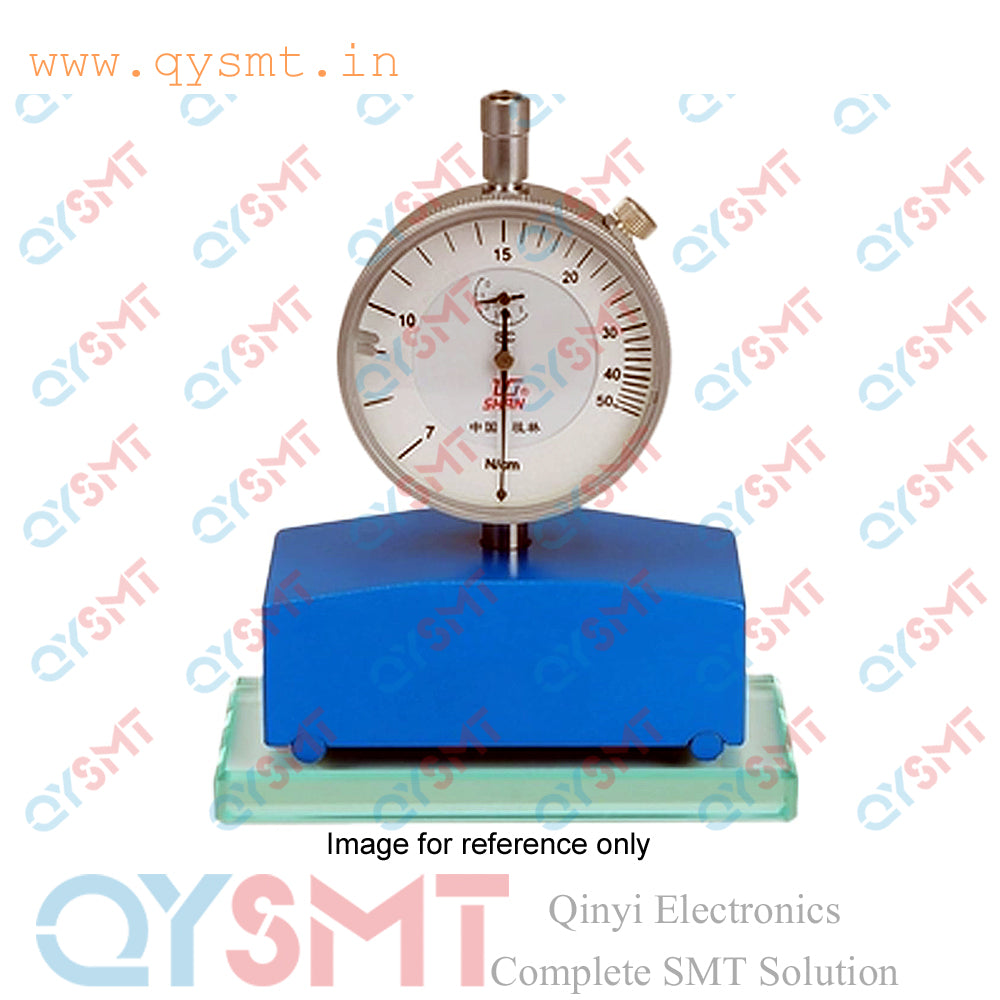

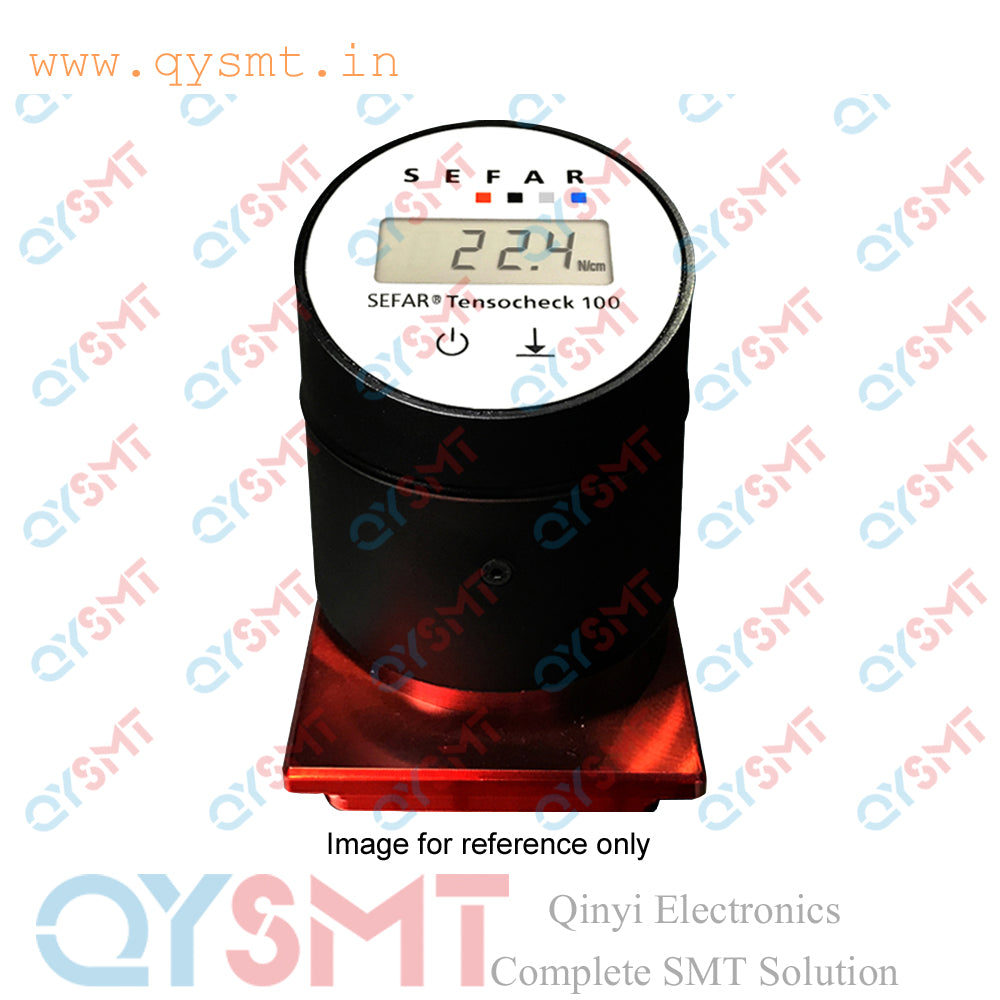

• Manual vs. Digital: Analog meters use a mechanical dial, while digital versions feature an LCD display for precise readings and can include data output options.

• Screen Printing: Ensures uniform tension across the mesh, which is essential for consistent ink deposition, sharp image quality, and print longevity. Over time, mesh can stretch, so regular checks help determine when a screen needs to be re-meshed.
• SMT Manufacturing: Provides a repeatable way to control solder paste printing, a crucial step in assembling printed circuit boards (PCBs). Consistent tension helps prevent defects like bridging and insufficient solder.
• Foil and Web Industries: Measures the tension of other sheet-like materials, including plastics, paper, wires, and belts.

• Improved print quality: Consistent, uniform tension on the screen or stencil prevents printing defects and improves overall quality.
• Repeatability: Provides an objective, numerical measurement, allowing different operators to reproduce the same tension specifications.
• Troubleshooting: Eliminates stencil tension as a variable when diagnosing printing problems.
• Extended stencil life: Proper tension reduces mechanical stress, extending the lifespan of stencils and minimizing replacement costs.
