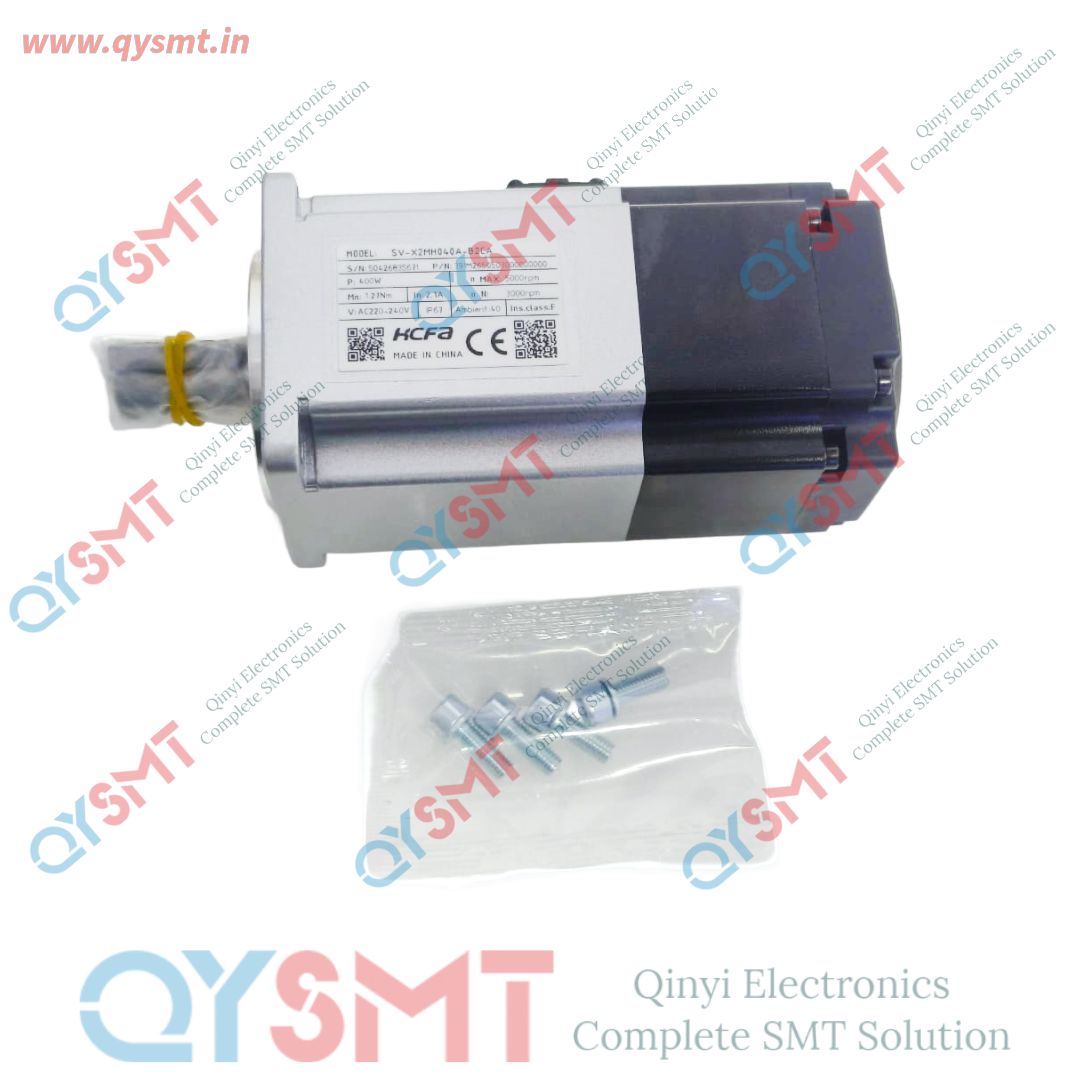

SV-X2MH040A-B2CA Servo Motor Assay

SV-X2MH040A-B2CA Servo Motor Assay

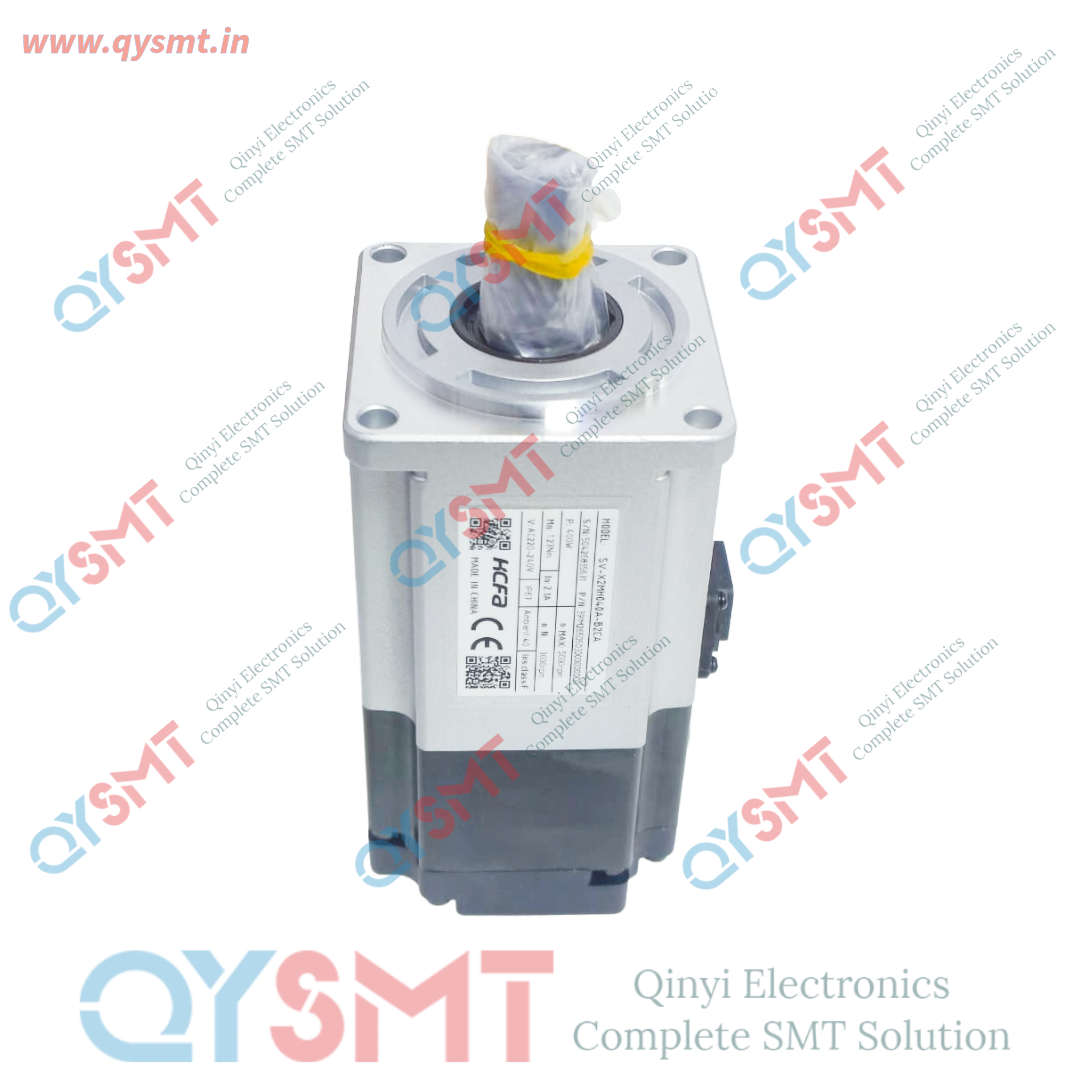

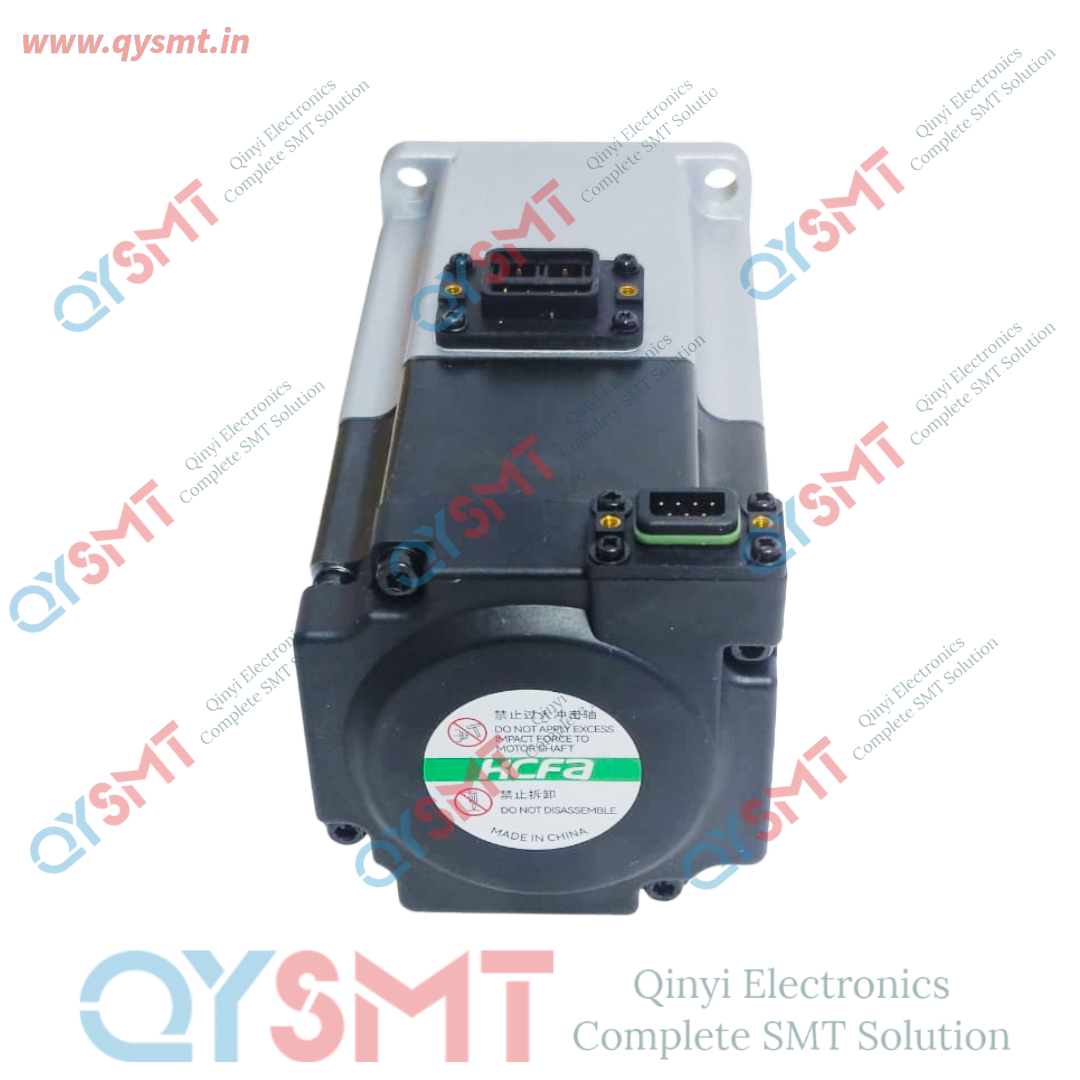

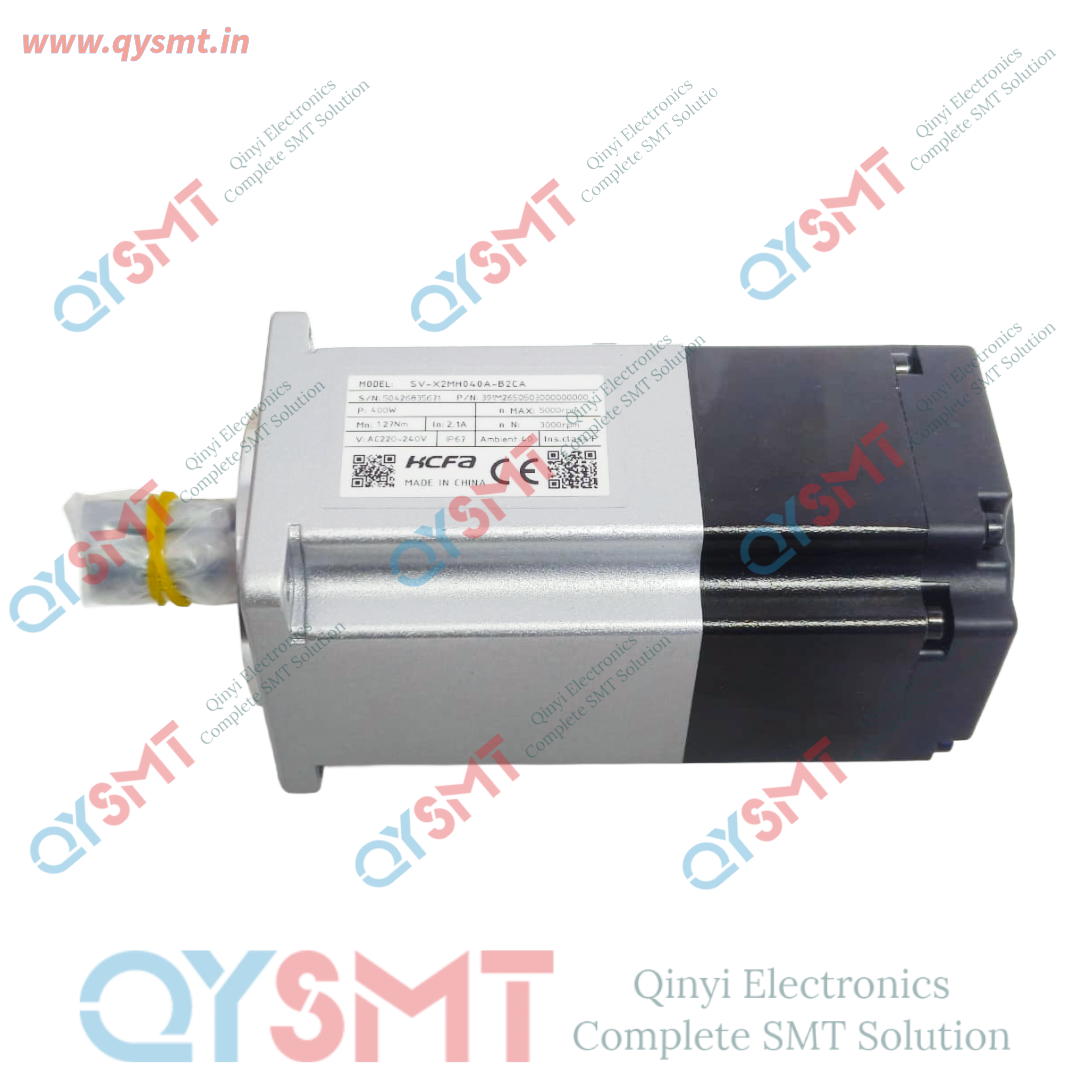

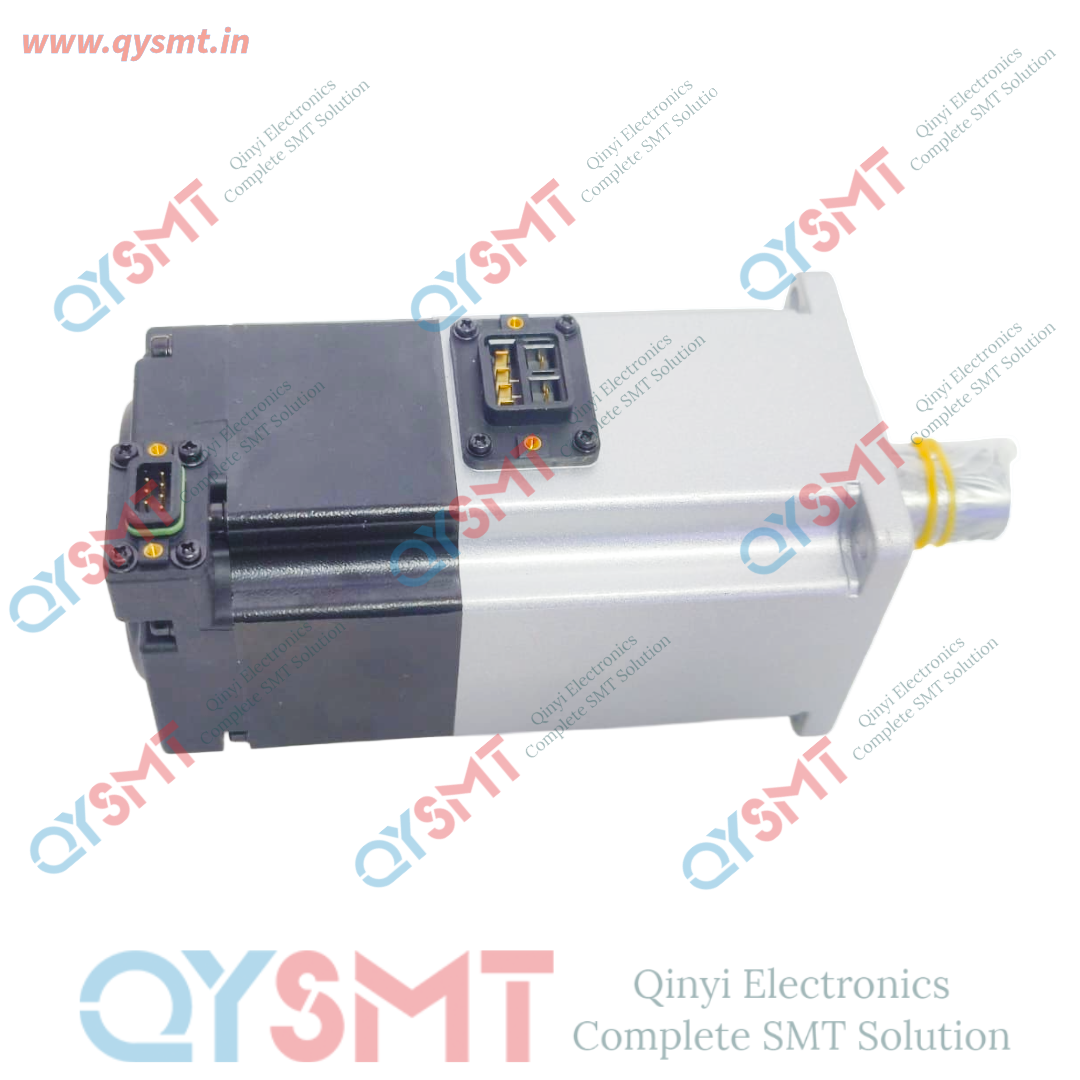

Motor Specifications

• Brand/Series: HCFA X2M Series (Medium Inertia)
• Power Output: 400 W (0.4 kW)
• Rated Voltage: 220 V - 230 V (Three-Phase / Single-Phase)
• Rated Speed: 3000 RPM
• Brake Type: Equipped with a holding brake (indicated by the "B" in the part number)
• Encoder: High-resolution absolute encoder (ranges from 17-bit to 23-bit depending on the sub-revision)
• Protection Rating: IP65 for dust and oil/water resistance

Troubleshooting & Testing (If assaying a unit)If you are testing this motor for shorts or open circuits:

1. Insulation Resistance Test: Measure the resistance between the motor frame/ground and each of the power leads (U, V, W). It should measure in the megaohm range.
2. Winding Resistance Test: Measure the resistance across the motor phases (U to V, V to W, W to U). The values should be balanced (typically very low resistance for AC servos).
3. Brake Check: Apply 24V DC to the brake leads to confirm the brake releases smoothly before attempting to rotate the shaft.
