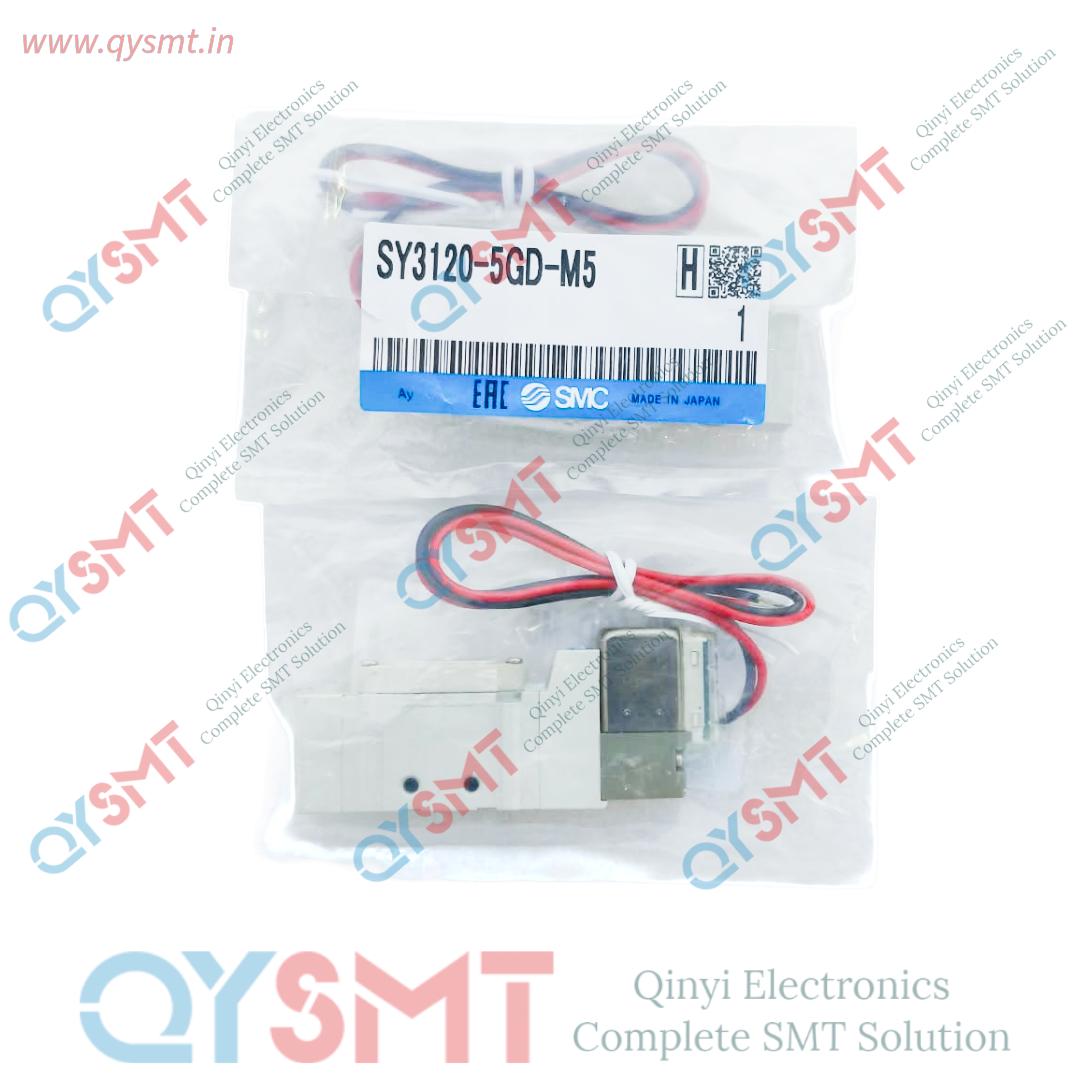

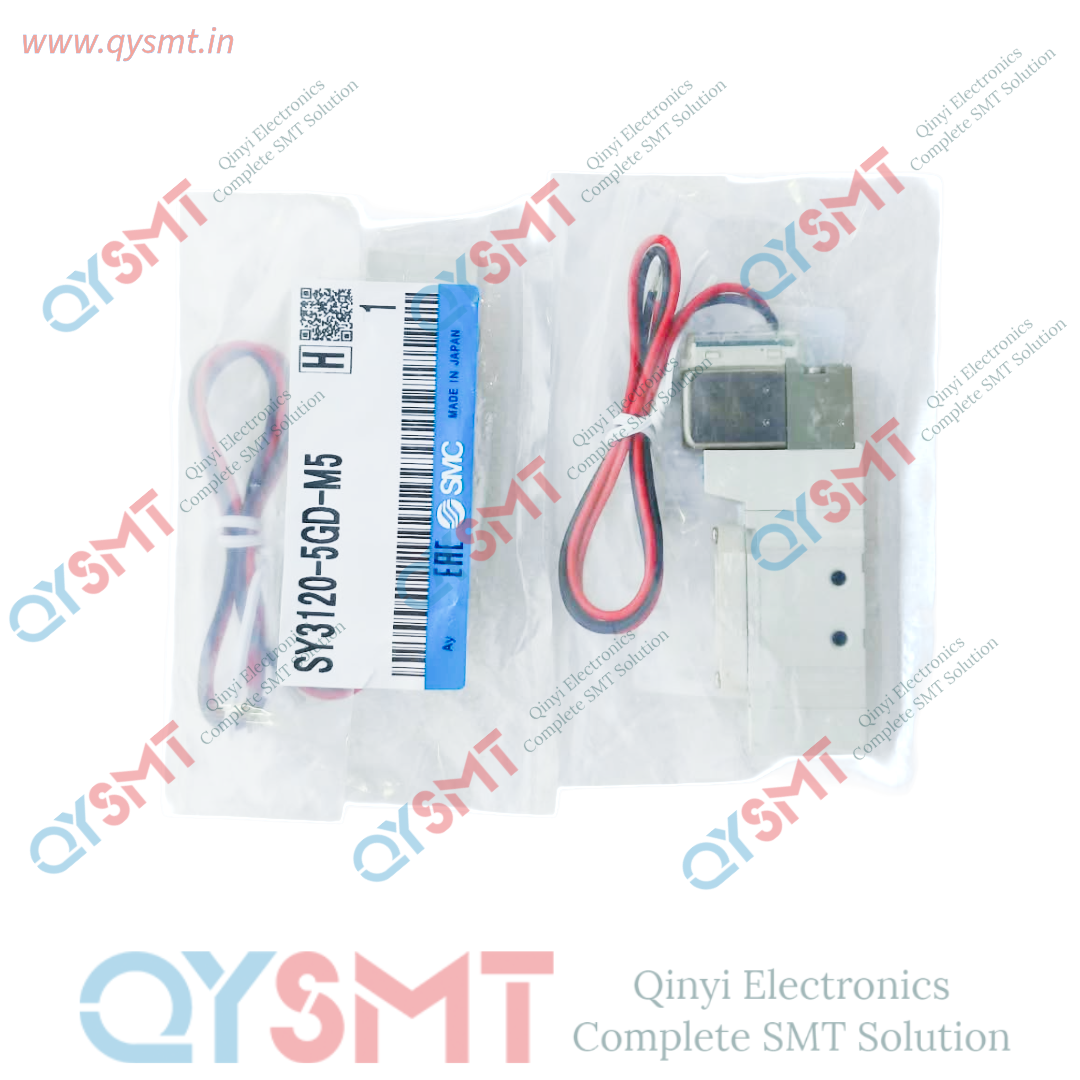

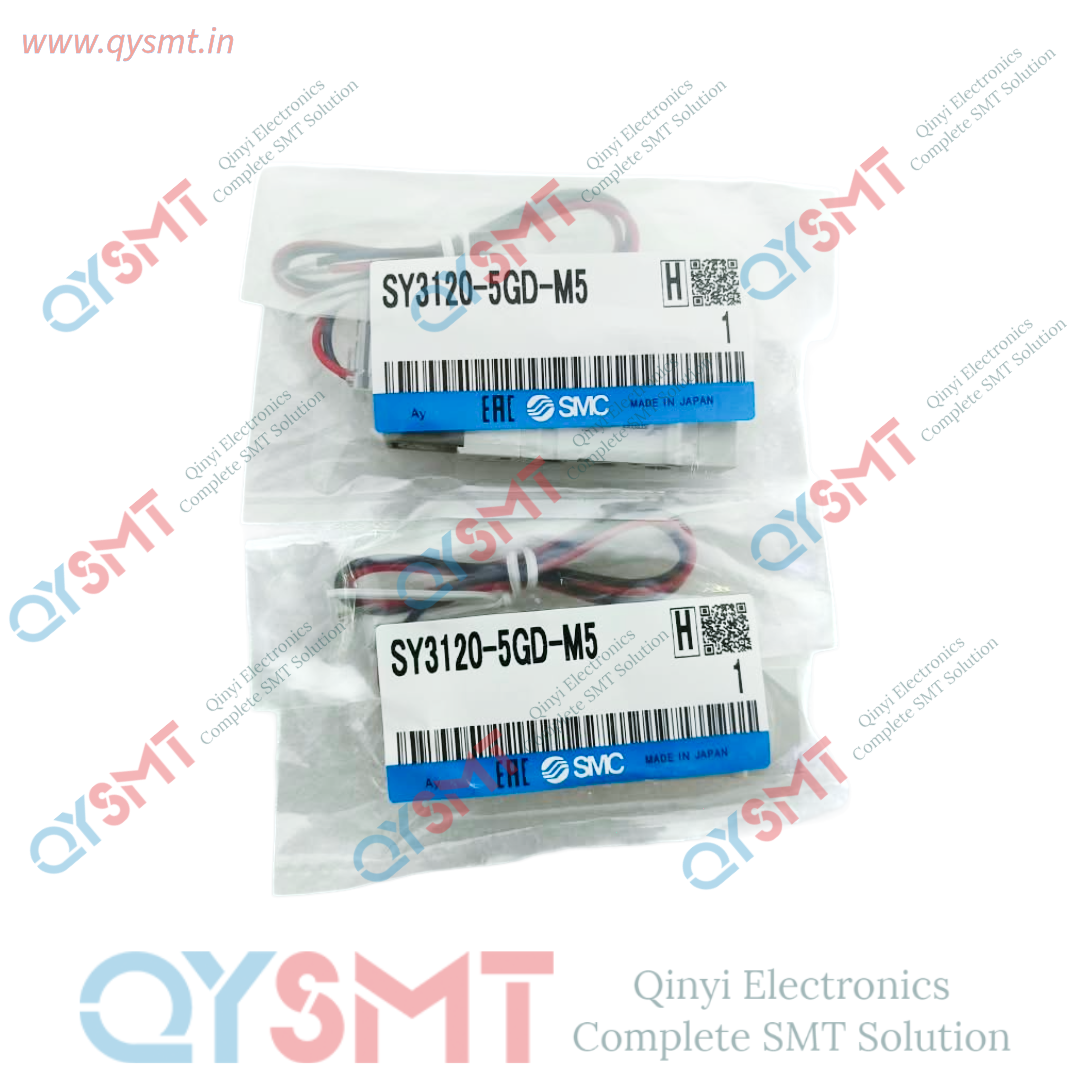

SY3120-5GD-M5 SMC valve
Technical Specifications BreakdownThe precise coding of the SY3120-5GD-M5 breaks down according to SMC’s catalog standards
| Specification Parameter | Configured Value | Context & Details |
|---|---|---|
| Series | SY3000 | Compact body size, ideal for tight cabinet layouts |
| Type of Actuation | 2-Position Single | Standard self-retaining spool configuration |
| Valve Mounting | Body Ported | Directly plumbed into lines without requiring an isolated base block |
| Rated Voltage | 5 (24 VDC) | Standard direct current industrial control voltage |
| Electrical Entry | GD (Grommet / Lead Wire) | Includes a standard 300 mm attached lead wire length |
| Light / Surge Suppressor | Without | Base standard electrical configuration |
| Manual Override | Push-turn locking screwdriver type | Enables explicit manual system testing and commissioning |
| Port Size | M5 x 0.8 | Metric standard physical port dimensions |
Operational Performance Metrics
- Pressure Operating Range: 0.15 to 0.7 MPa (Maximum operating threshold of 101.5 psi)
- Flow Coefficient: 0.16 Cv
- Seal Material: High-durability Halogenated Nitrile Rubber (H-NBR) for increased resistance to ambient ozone and heavy cycling environments
- Cylinder Capability: Designed to reliably actuate pneumatic cylinders up to Ø 50 mm at travel speeds reaching 300 mm/s.
