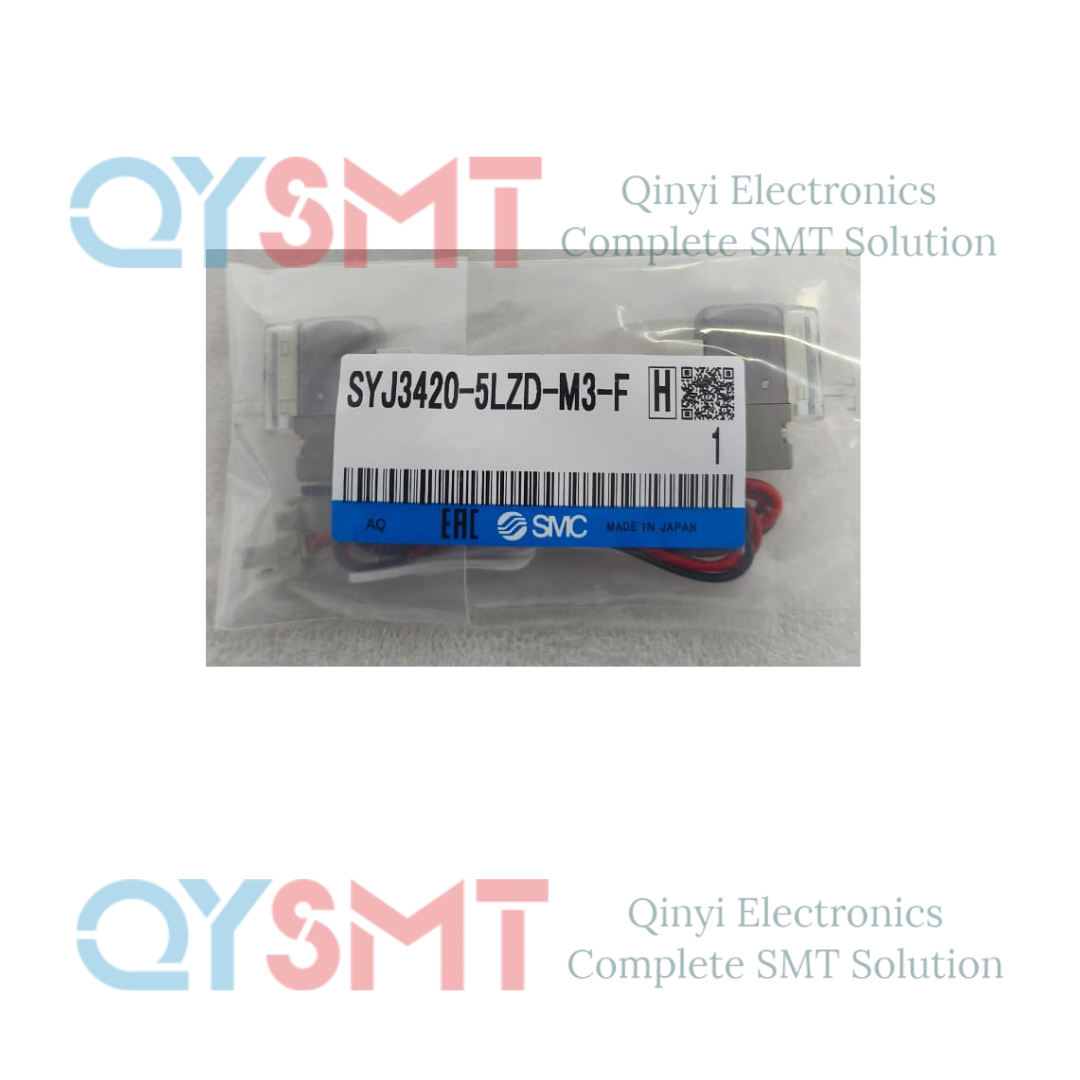

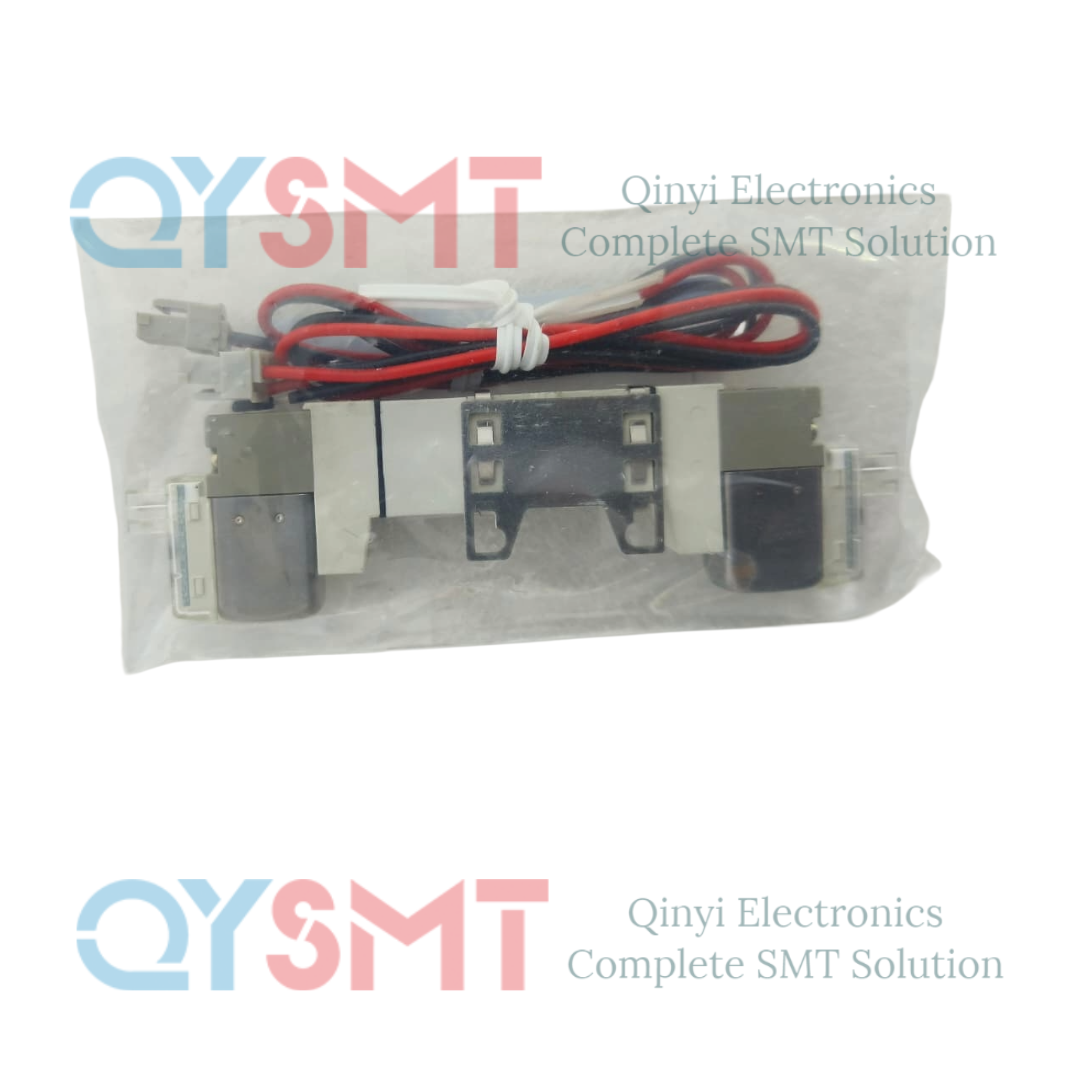

SYJ3420-5LZD-M3 solenoid valve

SYJ3420-5LZD-M3 solenoid valve
Key Specifications & Features:

• Series: SYJ3000 (SMC)
• Type: 4/5-Port Solenoid Valve (often used as 4/2 or 5/2 for pneumatic control)
• Seals: Rubber seals
• Power: Low-power (0.5W standard), reducing heat and energy costs.
• Control: Can be directly controlled by PLC outputs.
• Electrical: Available with indicator lights and surge suppression.
• Fluid: Air (Pneumatic).
• Pressure: Operates from 0.15 to 0.7 MPa.
• Temperature: -10°C to 50°C (no freezing).
• Design: Small profile, versatile for manifold mounting or sub-plates.

What it Does:
This valve controls the flow of compressed air in pneumatic systems, directing it to start, stop, or change the direction of actuators (like cylinders) in automated machinery, offering precise and efficient operation. In Simple Terms: It's a small, smart switch for air, saving space and energy in automated machines by precisely directing compressed air.
