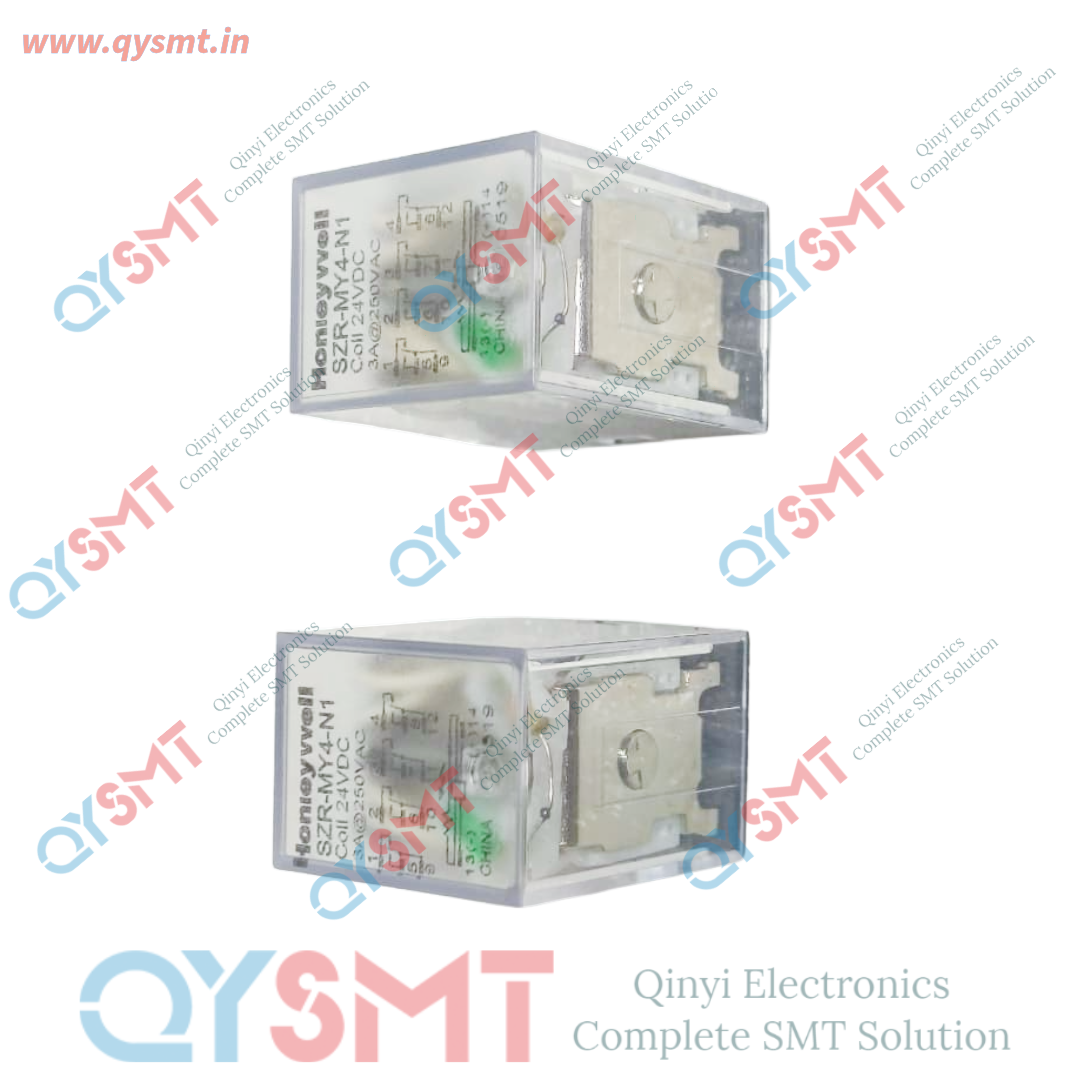

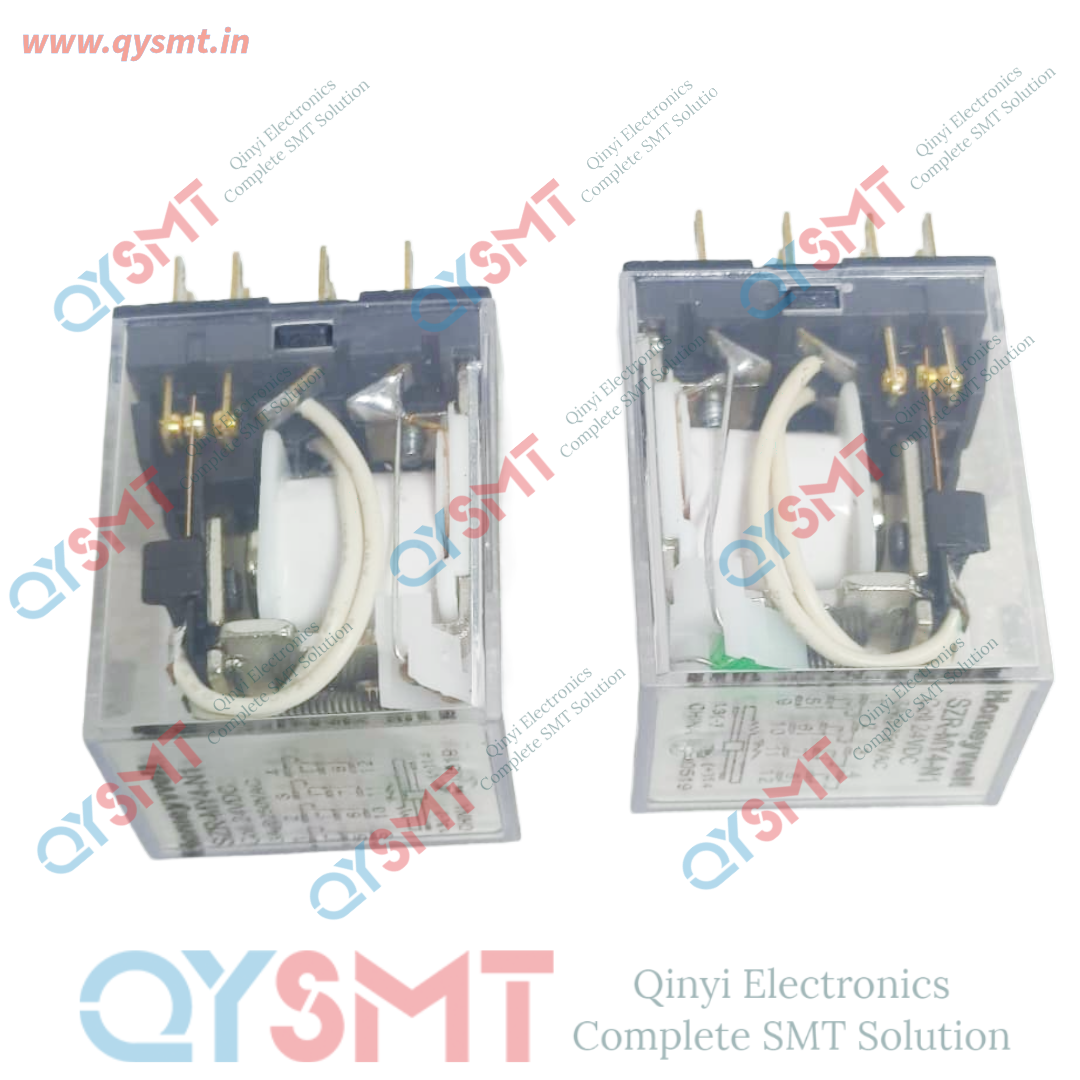

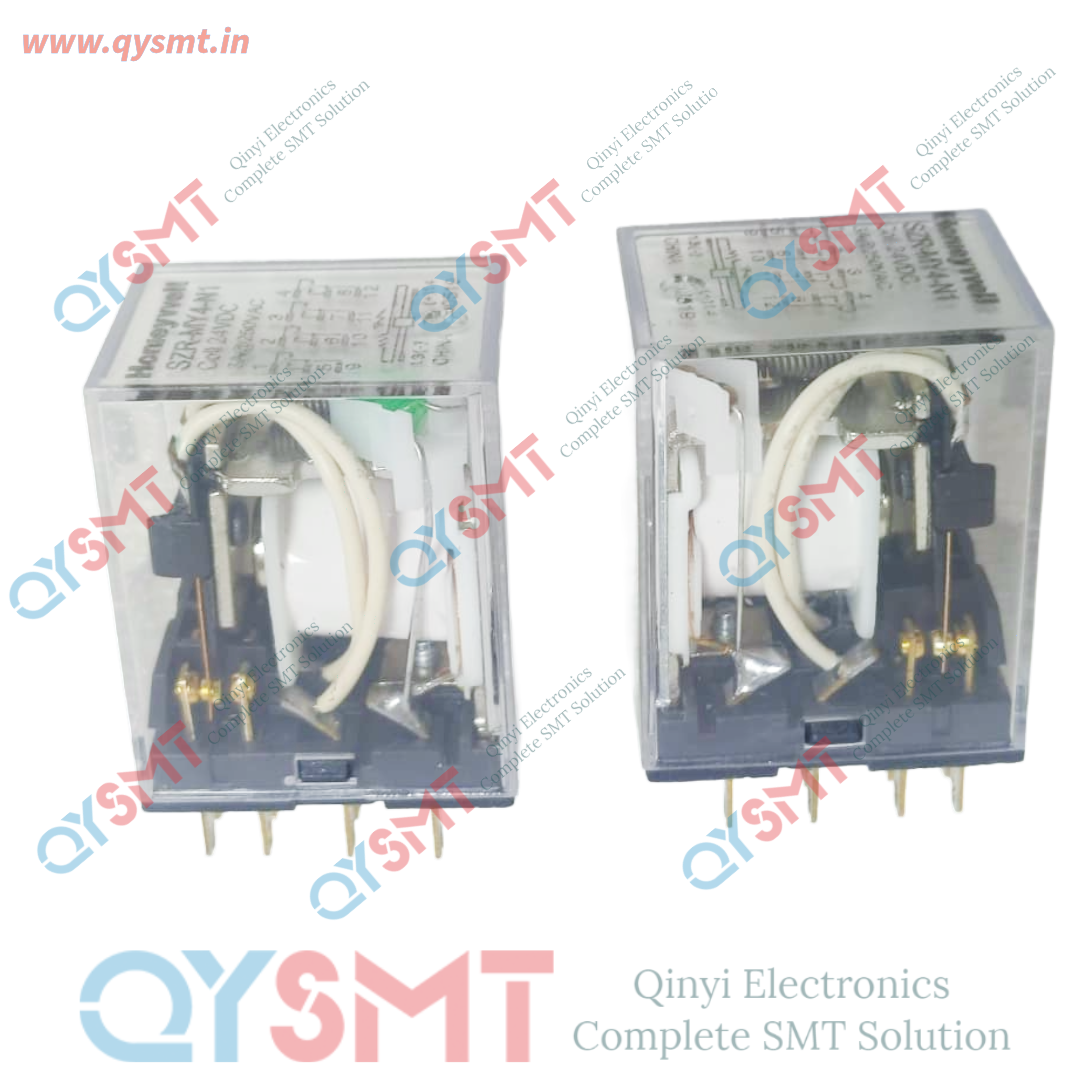

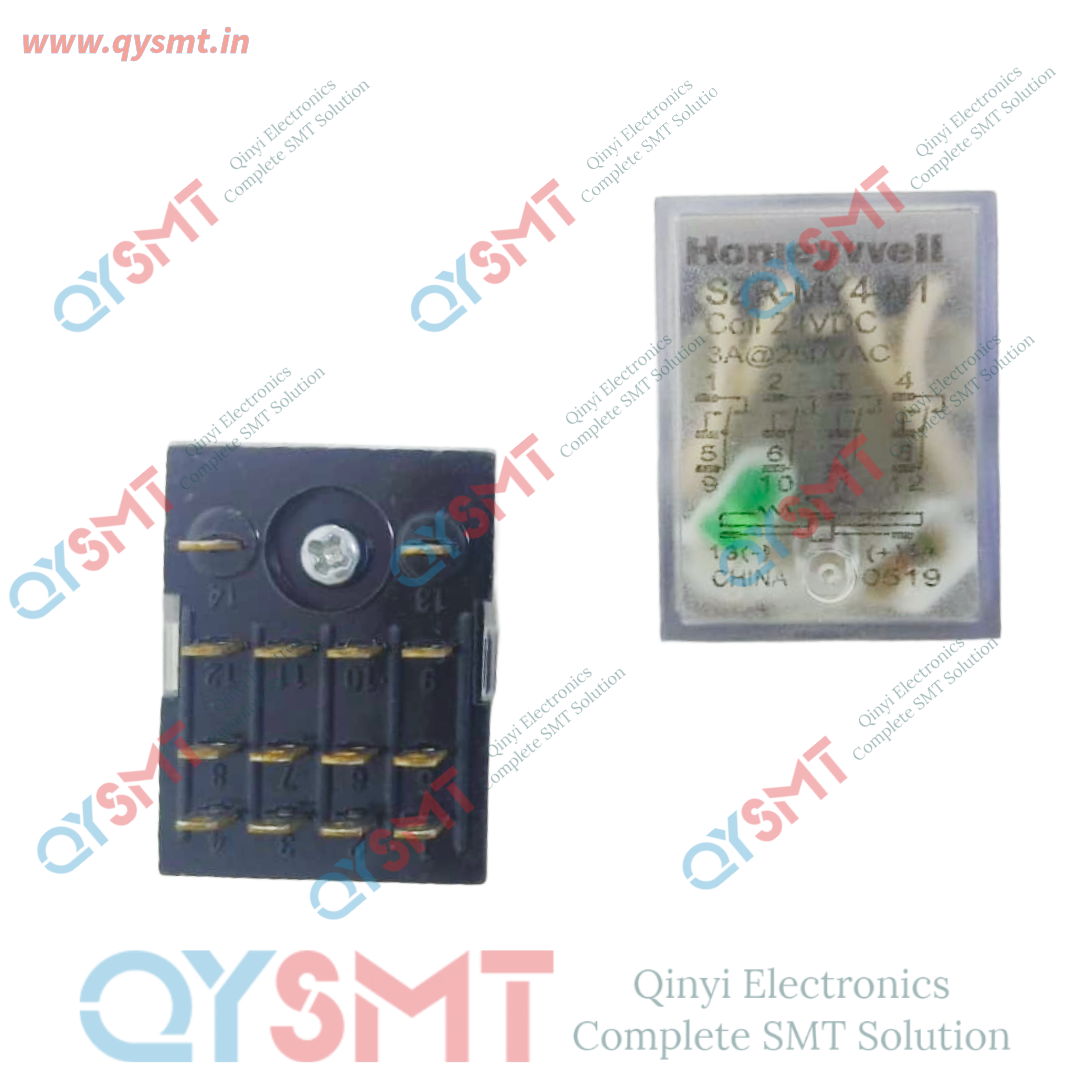

SZR-MY4-N DC24V plug-in general-purpose power relay

SZR-MY4-N DC24V plug-in general-purpose power relay
Electrical & Technical Specifications

• Coil Voltage: 24V DC
• Coil Resistance: 650 Ohms
• Power Consumption: 0.9 W (900 mW)
• Contact Configuration: 4PDT (4 Form C)
• Contact Current Rating: 3 A (Resistive load at 250V AC / 125V DC)
• Contact Material: Gold-plated silver
• Operation & Release Time: 20 ms maximum each
• Operating Temperature: -25°C to 75°C (-13°F to 167°F)

Features & Design

• Diagnostics: Contains a built-in LED operation indicator.
• Mounting Style: Plug-in / solder terminal socket mount.
• Certifications: CE certified, UL listed, and CSA certified.
