T-3010A Off Line Desktop Solder Paste Inspection Machine

T-3010A Off Line Desktop Solder Paste Inspection Machine

Contact Seller :- Call or Whatsapp +91-9354676493 Email: happy@qysmt.in

Call or Whatsapp +91-9354676493

Email: happy@qysmt.in

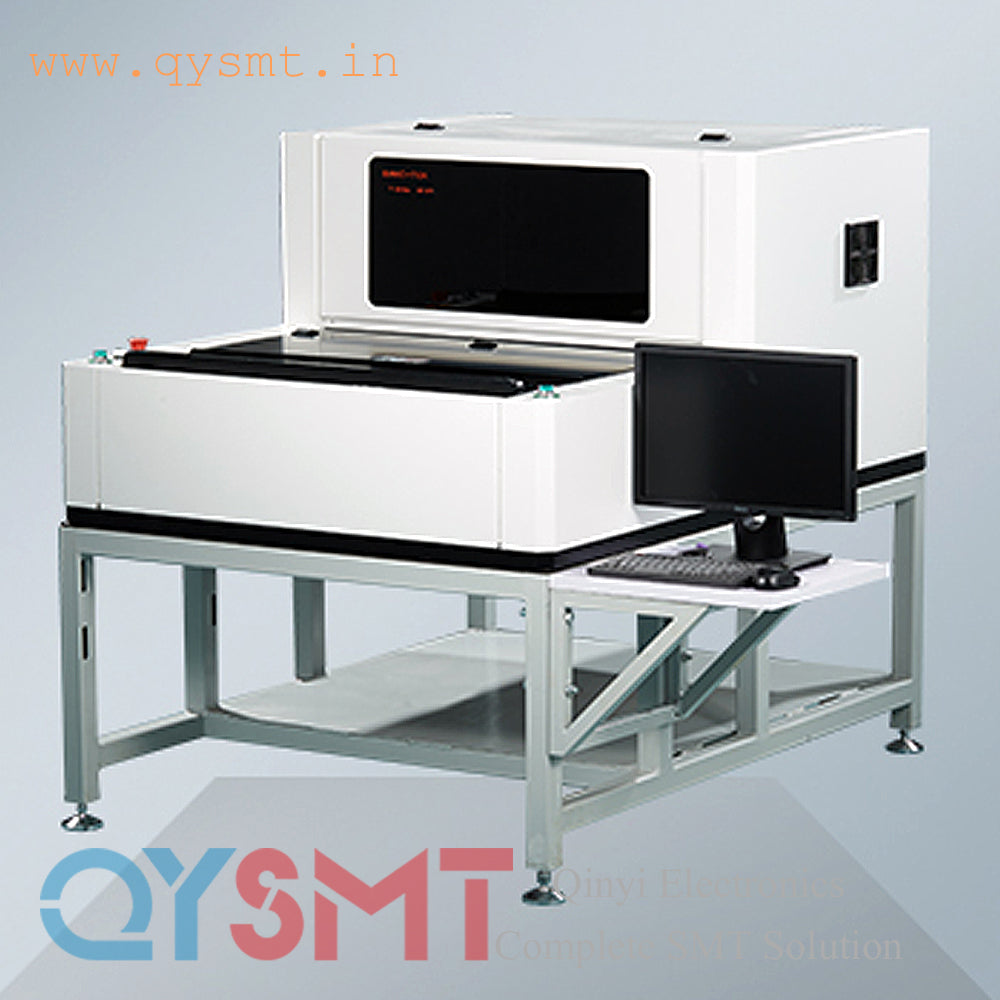

T-3010A Off Line Desktop Solder Paste Inspection Machine

Off-line high-speed 3D solder paste inspection system T-3010A

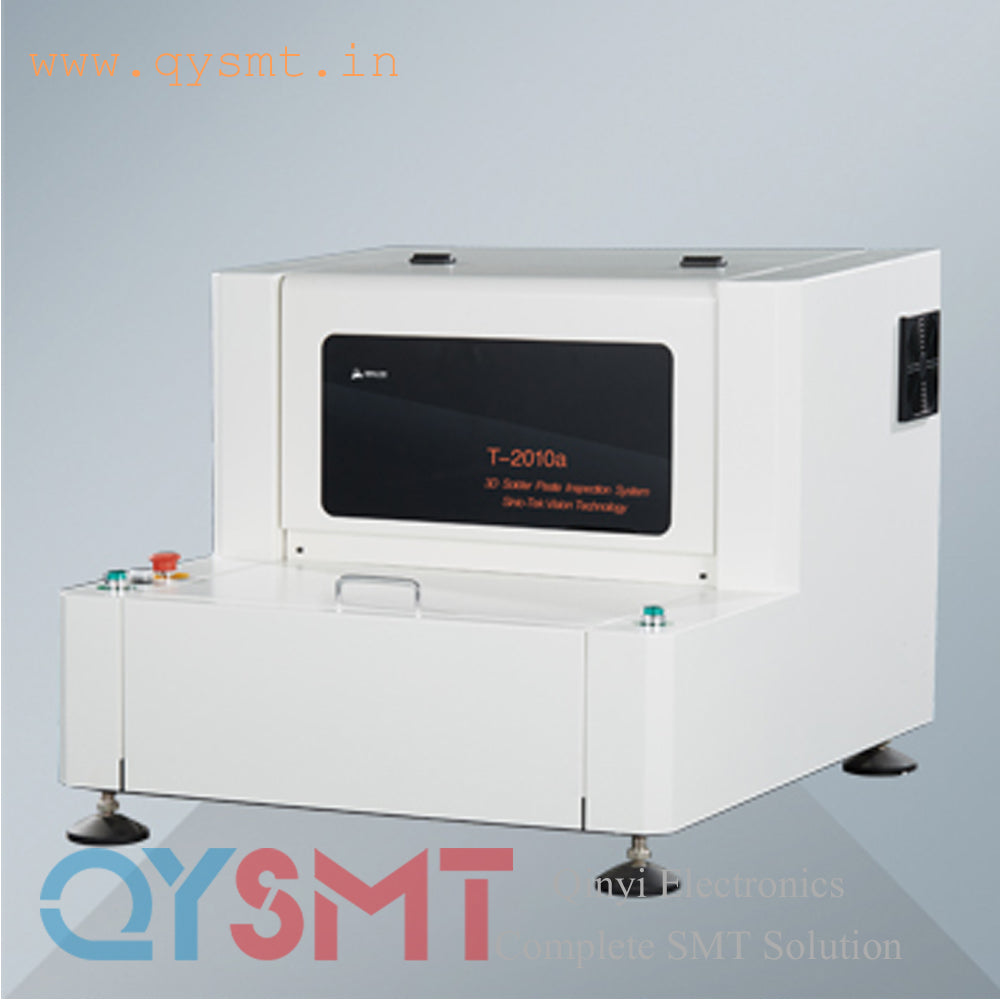

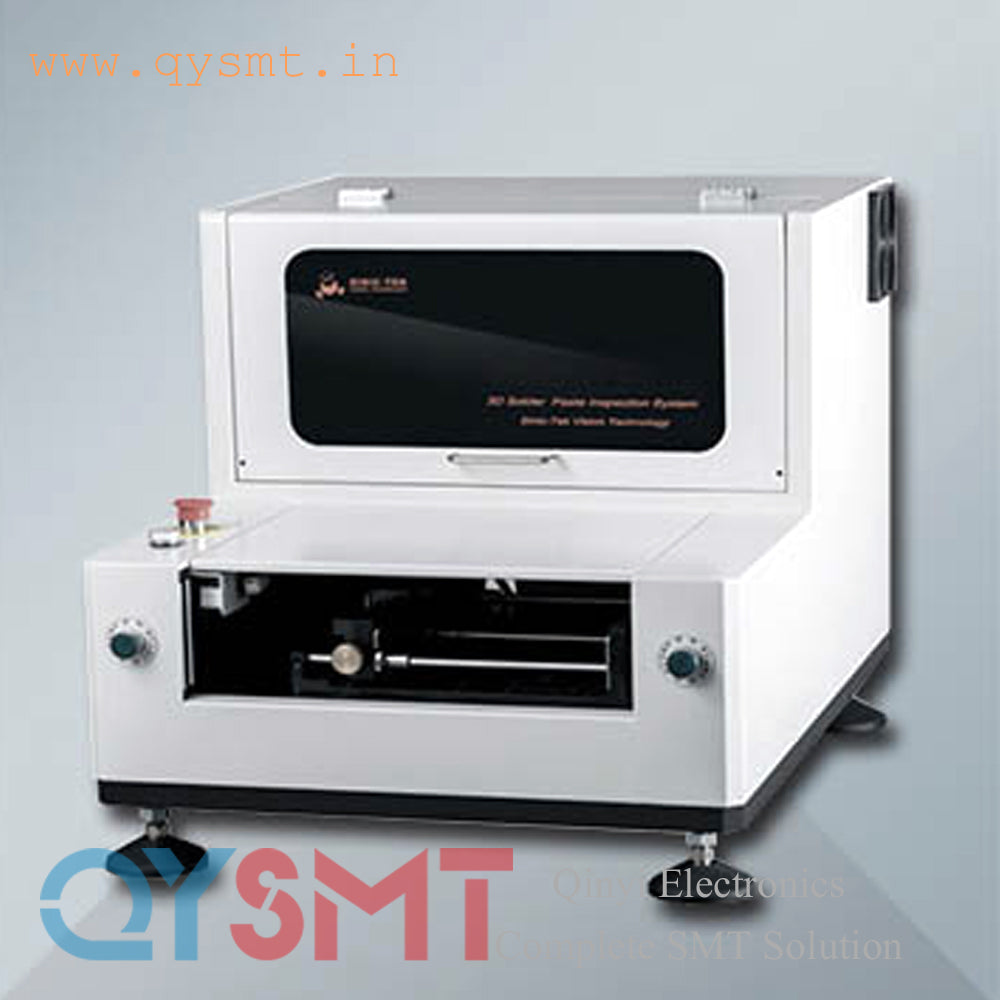

Off Line Desktop Solder Paste Inspection Machine T-3010A/T-1010A/T2010A


Features:

  • The use of PSLM combined with the PMP to achieve 100% high-precision solder paste 3D measurement in SMT production line. Using PSLM technology, changed the traditional way of generating 3D Struct Light, the traditional glass grating moire required mechanically driven by a piezoelectric motor(PZT).By using PSLM, no need glass grating and mechanical parts any more. The elimination of the mechanical drive and moving parts, greatly improving the ease of use and avoid mechanical wear and reduce maintenance costs.
  • By using the Stop&Catch methods combined with multiple image acquisition, realize highly repeatable 3D results on the solder paste measurement. Compared to conventional scanningjust take one pictures only on the solder paste a scan sampling, multiple image acquisition greatly enhancingthe accuracy and reliable test results.
  • Patened I-Lighting technology achieves full light spectrum detect ability. It is perfect solution to solve the shadow effect and reduce noise interference during 3D measurement.
  • Gerber data conversion and import, achieve automatic detection of the entire board. Manual "teach" function realize user-friendly programming and testjob generation in case of no Gerber data situation.
  • The maximum detectable height increased from the traditional±350um to±1200um, not only can detect solder paste, also applies to the detection of opaque objects, such as red glue and black epoxy and other none transported object
  • Friendly and simple user interface,five minutes of programming and one key operation.
  • Powerfu I "statistical process control(SPC)", Provide a plenty of tools, user-friendly real-time monitoring, reduce defects caused by poorsolder paste printing and improve final product quality.
