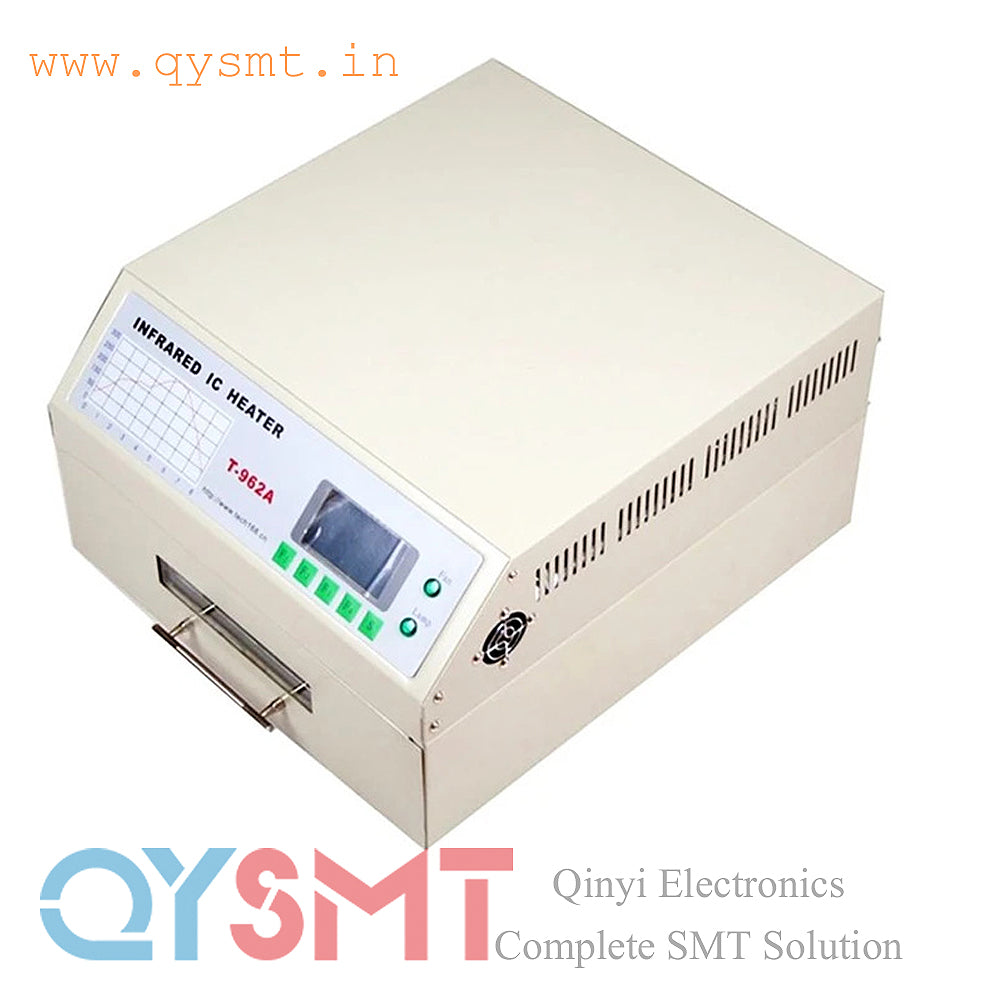

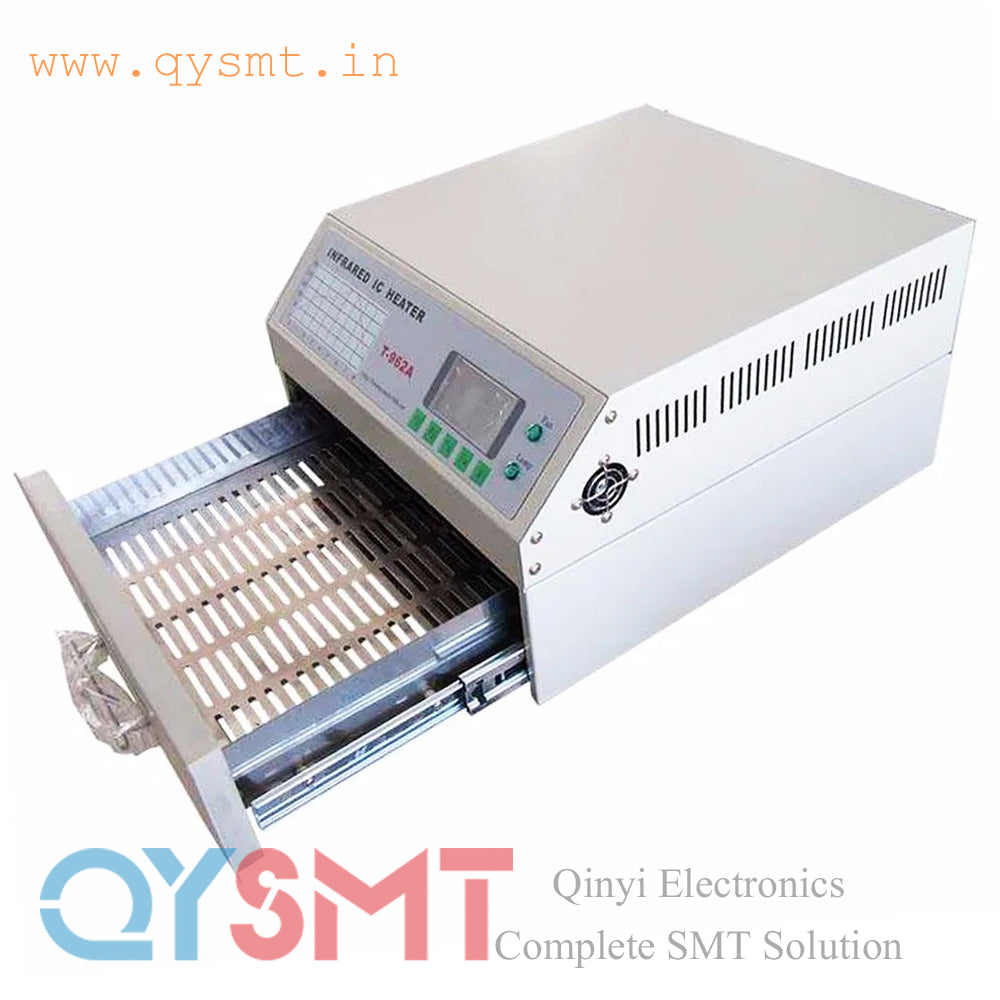

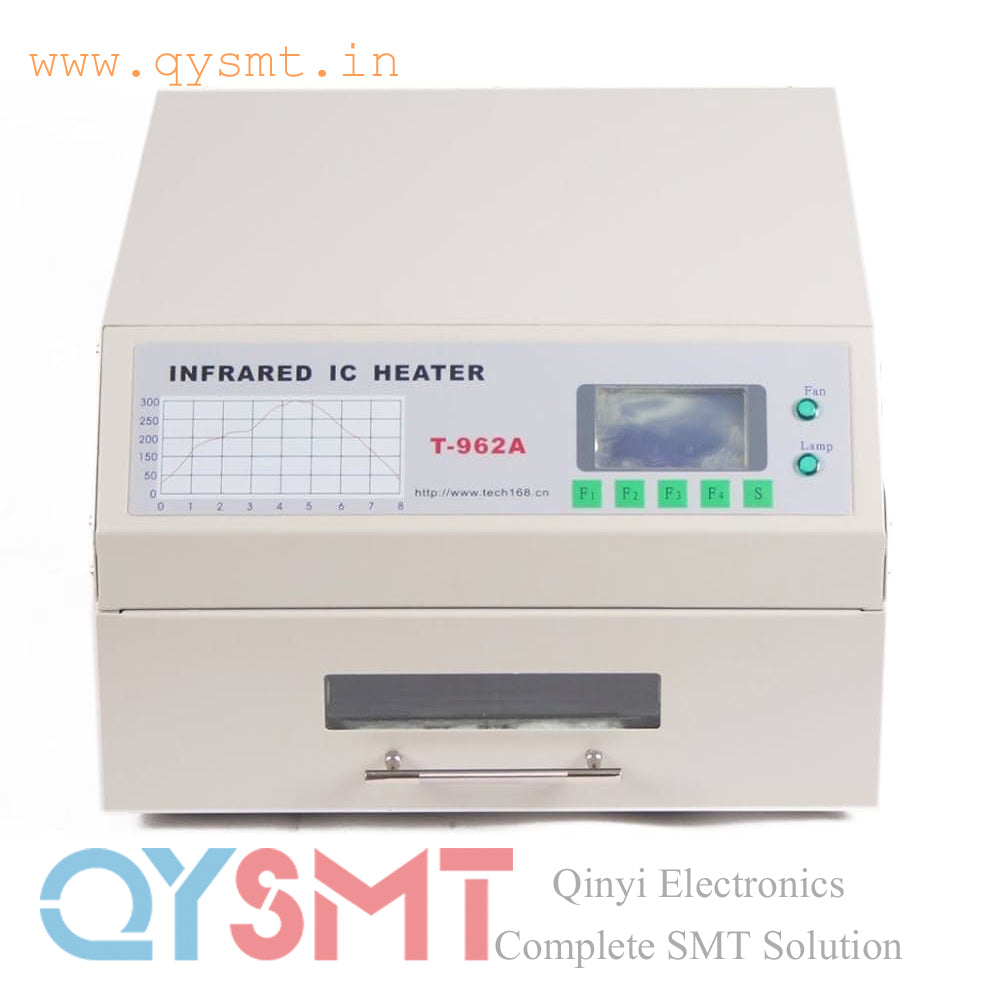

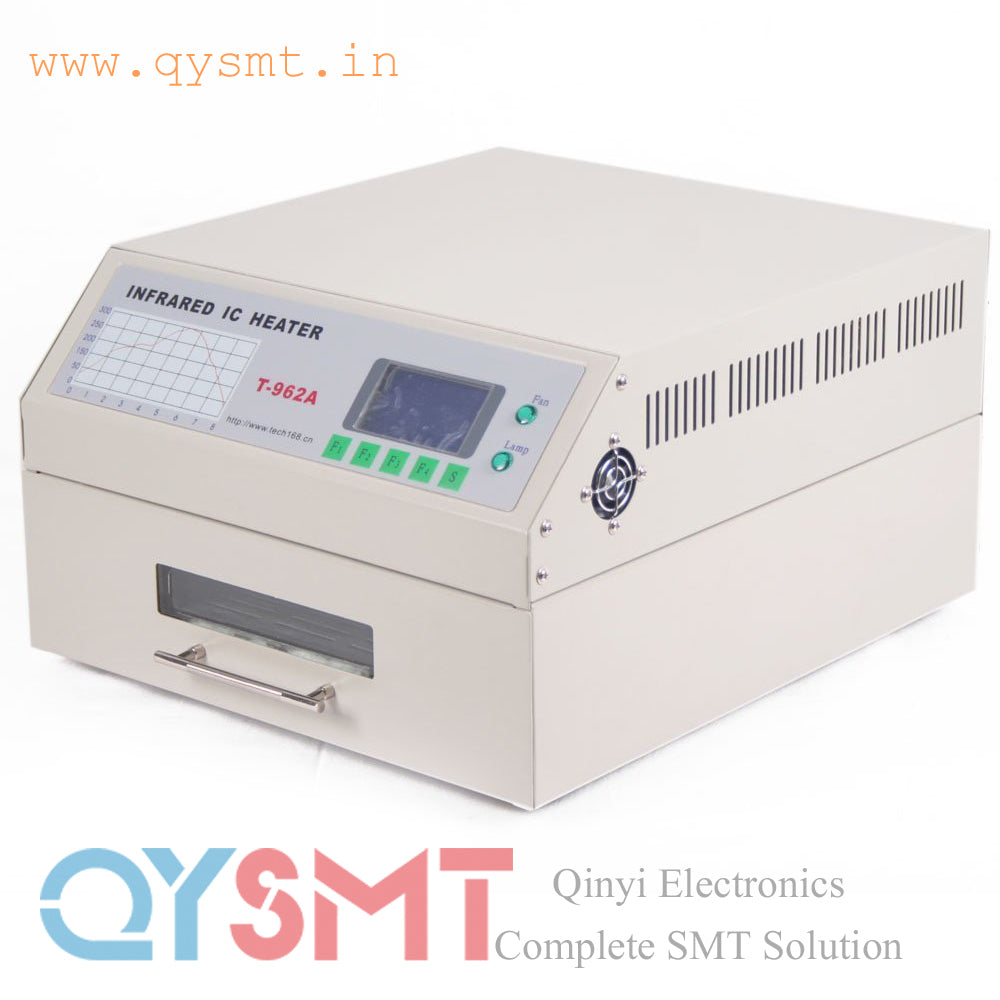

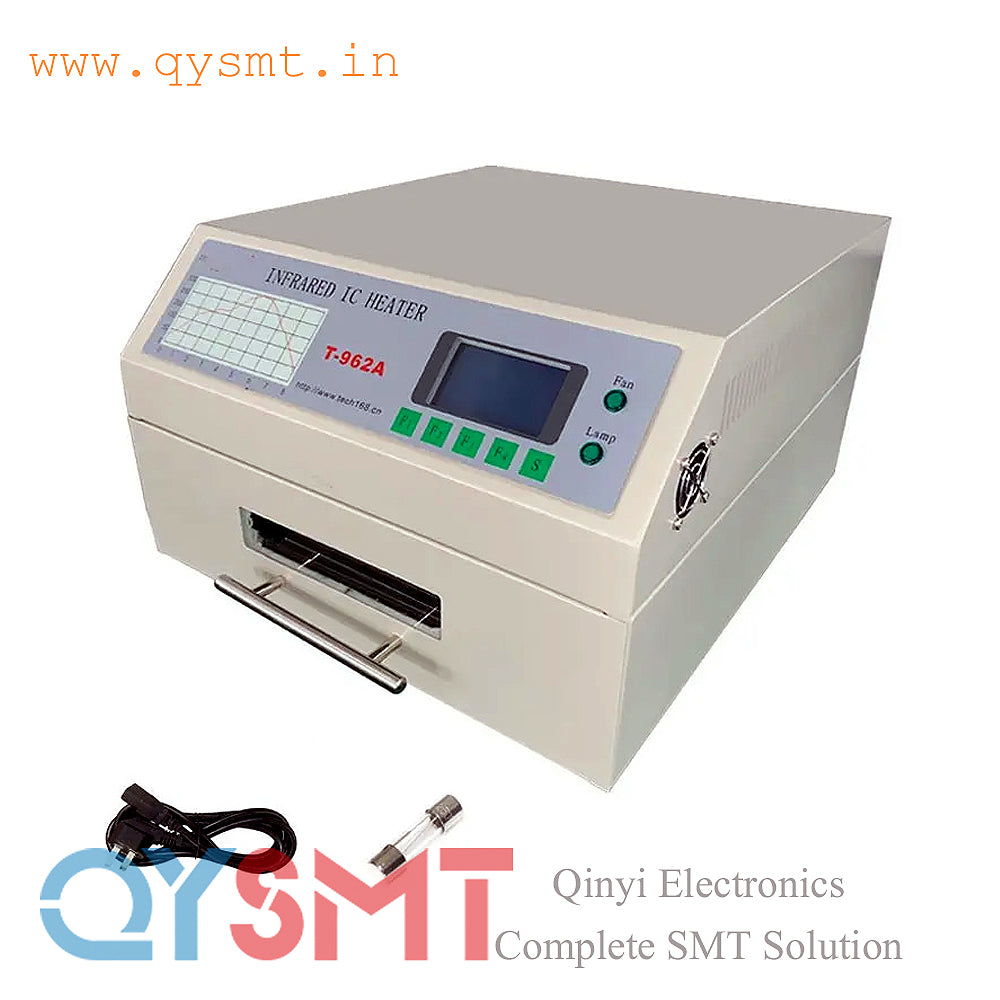

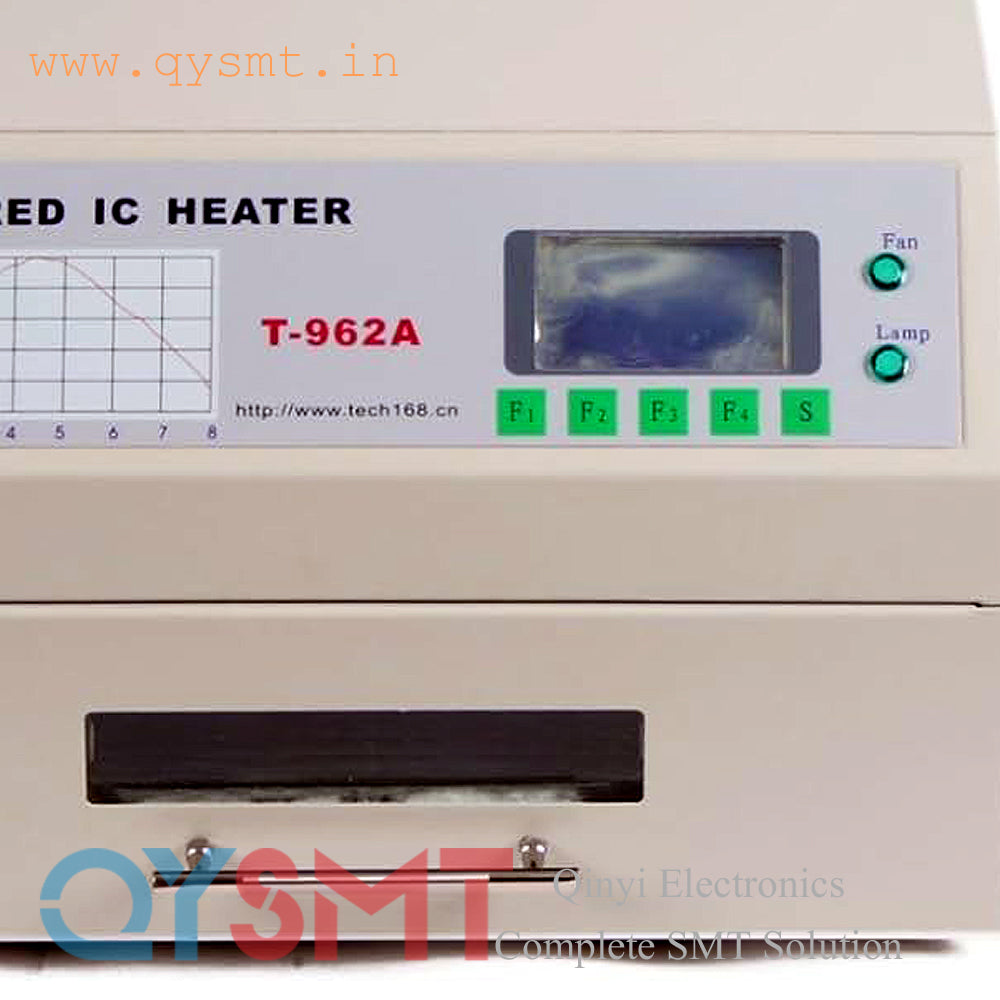

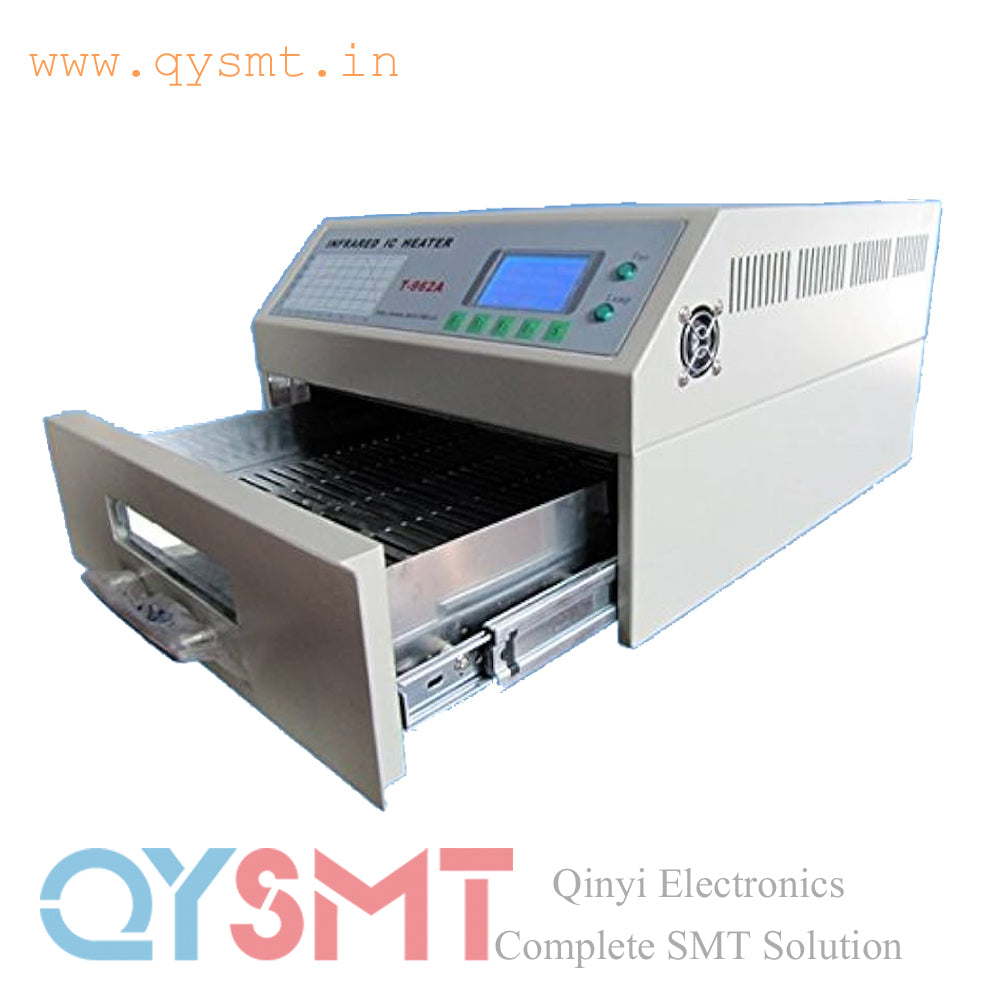

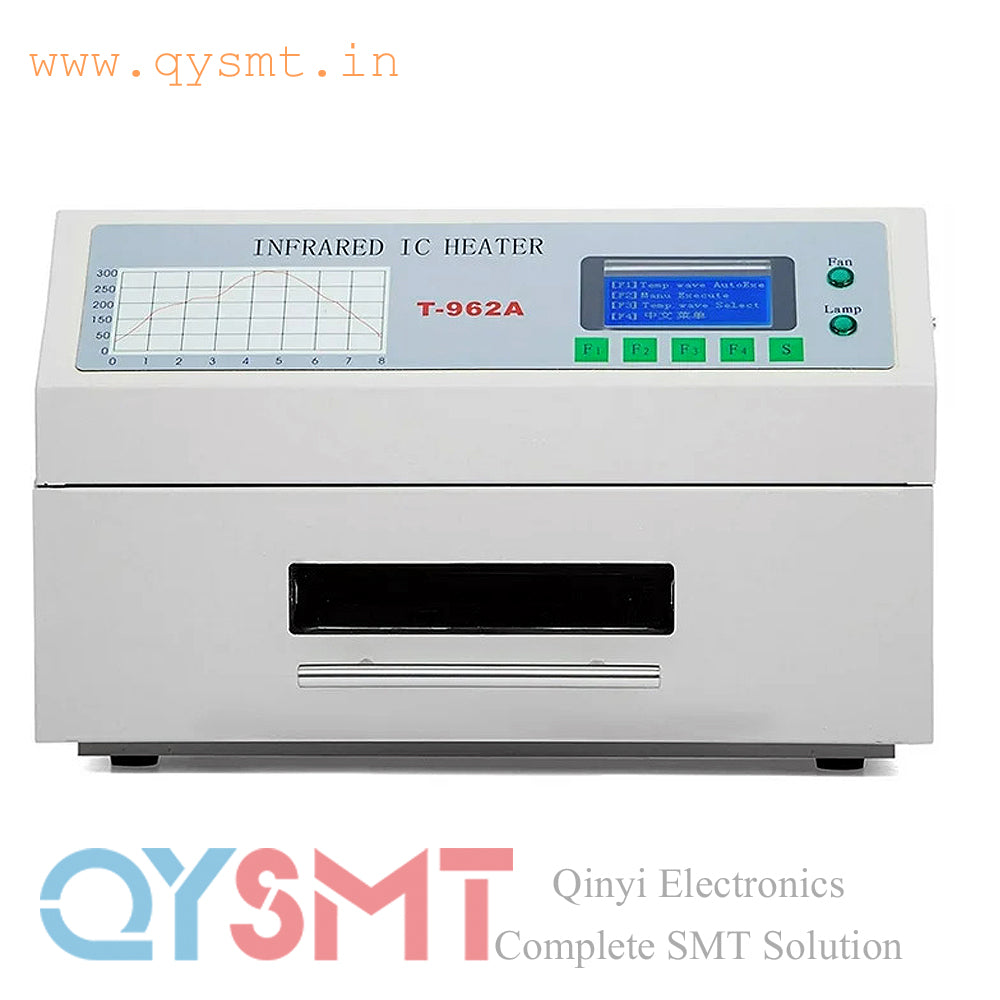

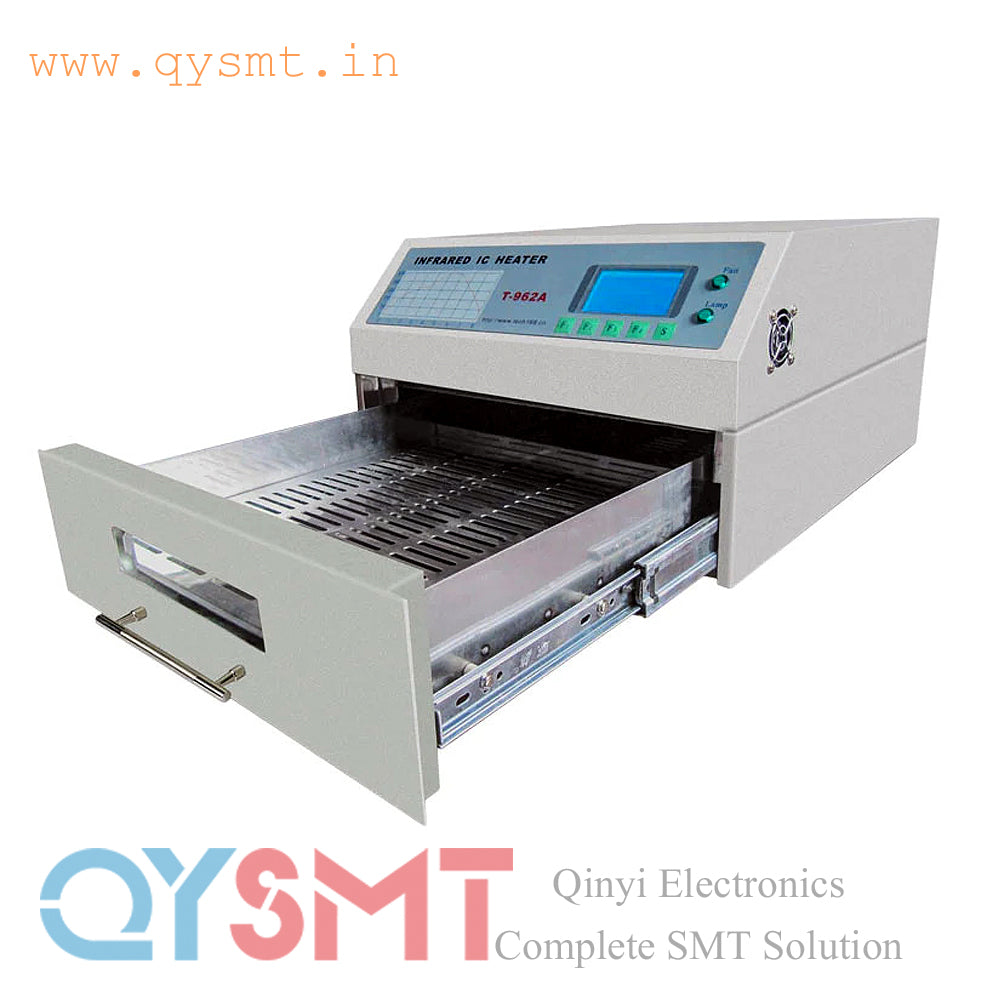

T-962A Table Top Reflow Infrared IC Heater
T-962A Table Top Reflow Infrared IC Heater
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Call or Whatsapp
+91 9319902096
Email: harshita@qysmt.in
Table Top Reflow Oven T-962A Infrared IC Heater
Infrared IC Heater T962A Reflow Oven Soldering Machine 1500W For 300 x 320 mm SMD SMT BGA Soldering
The T-962A Table Top Reflow Infrared IC Heater is a microprocessor-controlled reflow oven for surface-mount devices (SMD) and BGA components, featuring a large soldering area and automatic temperature control via eight pre-defined temperature curves. It is a popular and economical solution for hobbyists and small-batch production.
Key Specifications
| Heating Type | Infrared IC Heater with air circulation |
| Maximum Soldering Area | 300 x 320 mm (approx. 11.8 x 12.6 inches) |
| Peak Power | 1500 W |
| Temperature Range | 0°C - 280°C (room temp to 280°C) |
| Cycle Time | 1 - 8 minutes |
| Power Supply | AC 110V~ or AC 220V~ (50Hz/60Hz models available) |
| Dimensions | 430 x 370 x 260 mm |
| Weight | 13 - 15 kg |
Features
- Automated Operation: The entire soldering process (preheat, soak, reflow, cool-down) is automatic and controlled by a microcomputer, with eight selectable pre-defined temperature profiles for various solder types (leaded and lead-free).
- Versatile Applications: It can solder most single and double-sided PCB boards with components like CHIP, SOP, PLCC, QFP, and BGA parts. It can also be used for adhesive curing and PCB thermal aging.
- Even Heating: The machine uses both infrared emission and hot air circulation to maintain accurate and evenly distributed temperatures.
