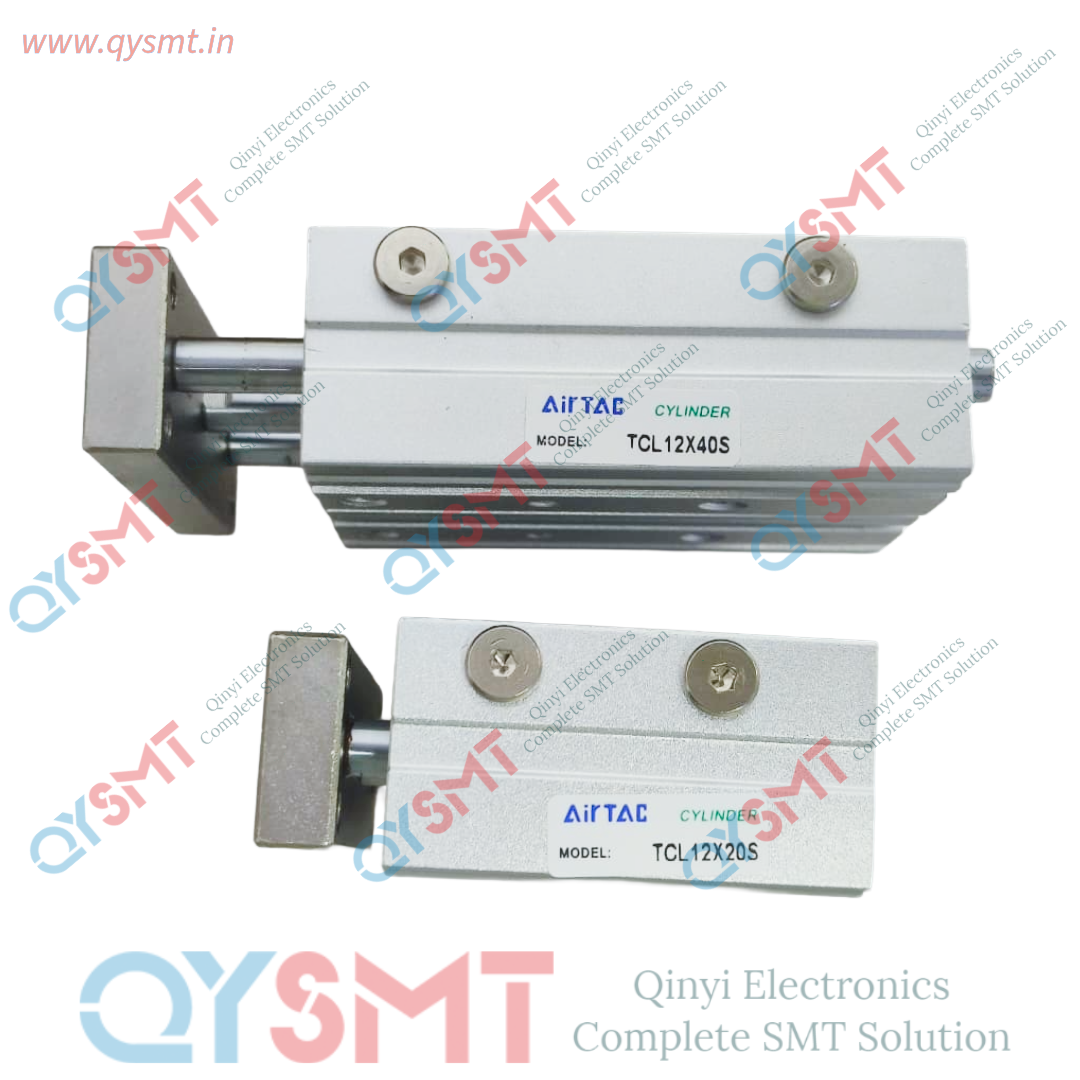

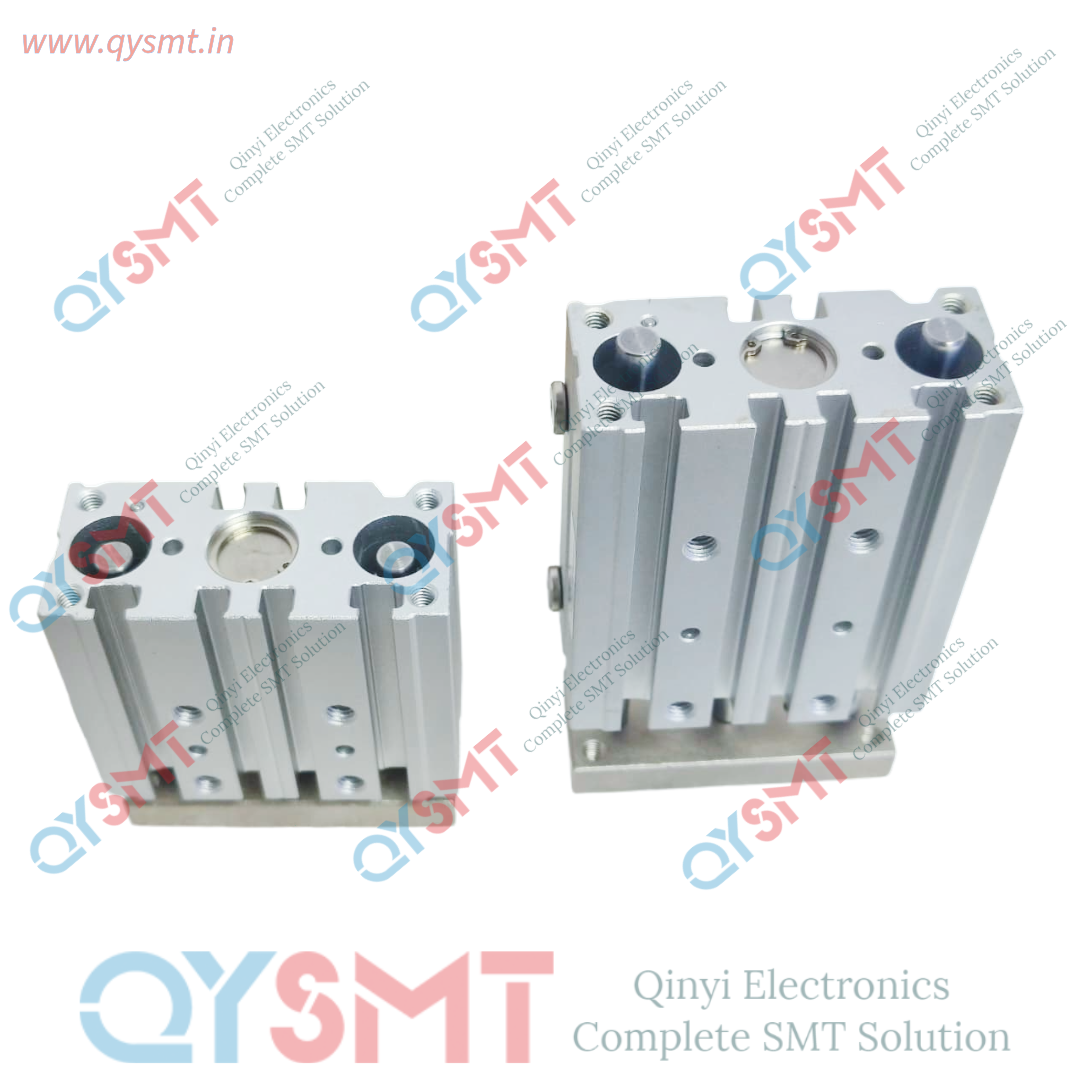

TCL12x20S , TCL12x40S cylinder
Model Number Breakdown
- TCL: Tri-rod guided cylinder series with a Linear Ball Bearing (ideal for high-precision elevation with low friction).
- 12: 12mm Bore size (inner diameter of the main cylinder).
-
20 / 40: Stroke length in millimeters.
- TCL12x20S: 20mm stroke length.
- TCL12x40S: 40mm stroke length.
- S: Built-in magnet included for position switch/sensor sensing.
Key Specifications
- Action Type: Double acting.
- Fluid Medium: Air (filtered by 40µm element).
- Operating Pressure: 0.1 to 1.0 MPa (approx. 15 to 145 psi).
- Temperature Range: -20°C to 70°C.
- Features: High resistance to torque and radial loads, multi-directional mounting options, and standard JIS compliance.
