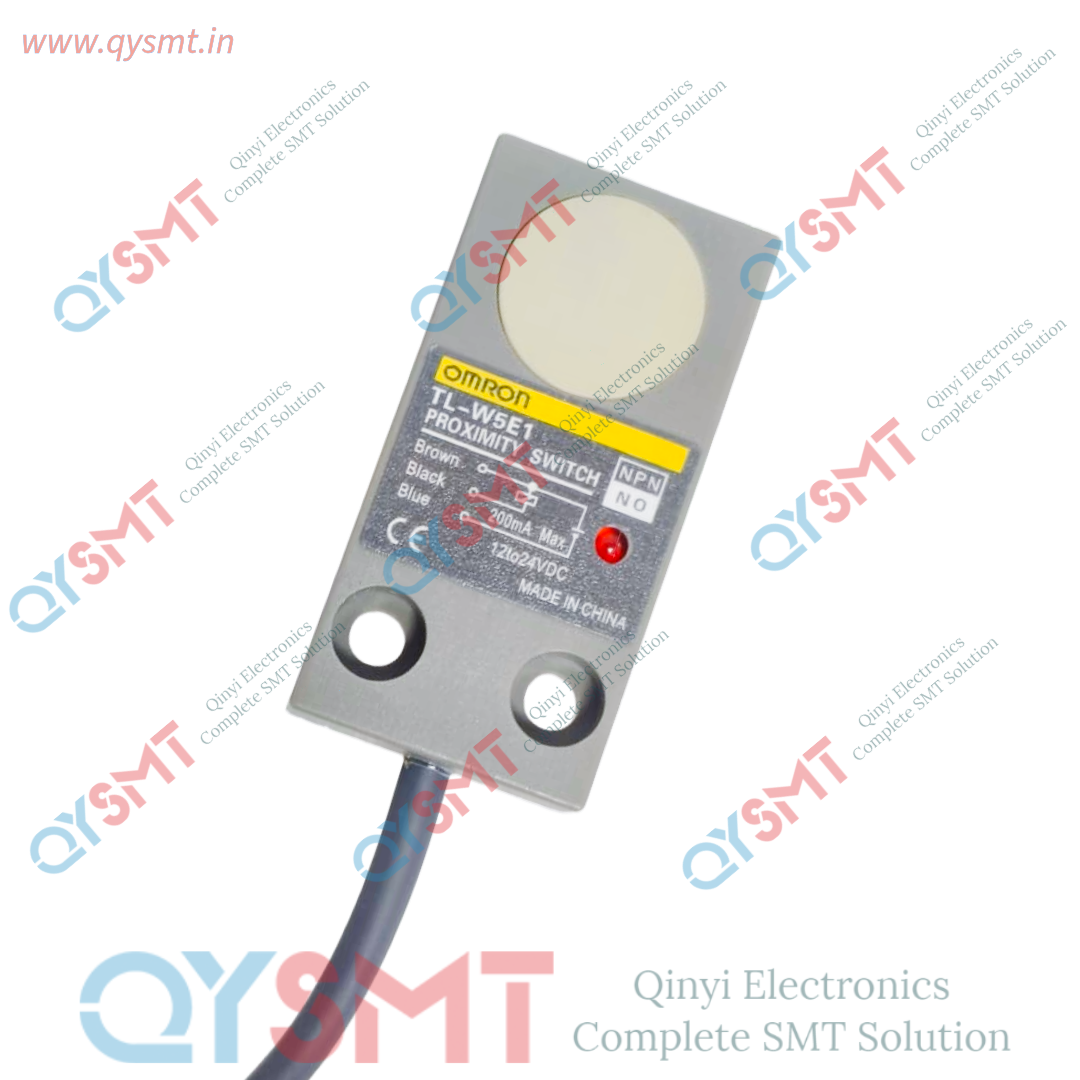

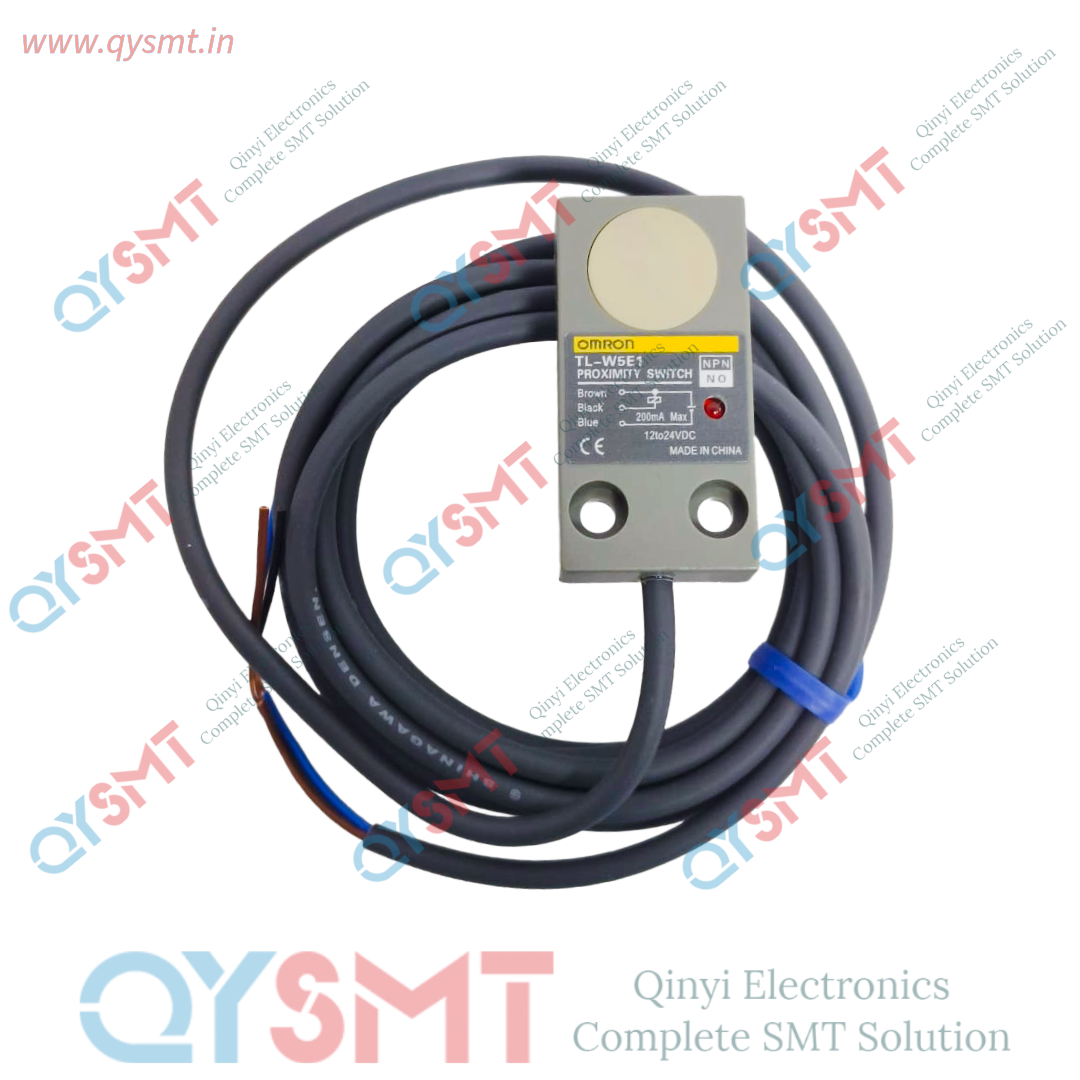

TL-W5E1 inductive proximity sensor

TL-W5E1  inductive proximity sensor
Technical Specifications

• Sensing Distance: 5 mm \(\pm \)10%.
• Output Configuration: 3-wire DC, NPN, Normally Open (NO).
• Operating Voltage: 10 to 30 VDC (Rated voltage: 12 to 24 VDC).
• Control Output Capacity: 200 mA maximum.
• Response Frequency: 300 Hz.
• Degree of Protection: IEC 60529 IP67 water and oil resistance.
• Standard Sensing Object: Iron (\(18 \times 18 \times 1\text{ mm}\)).

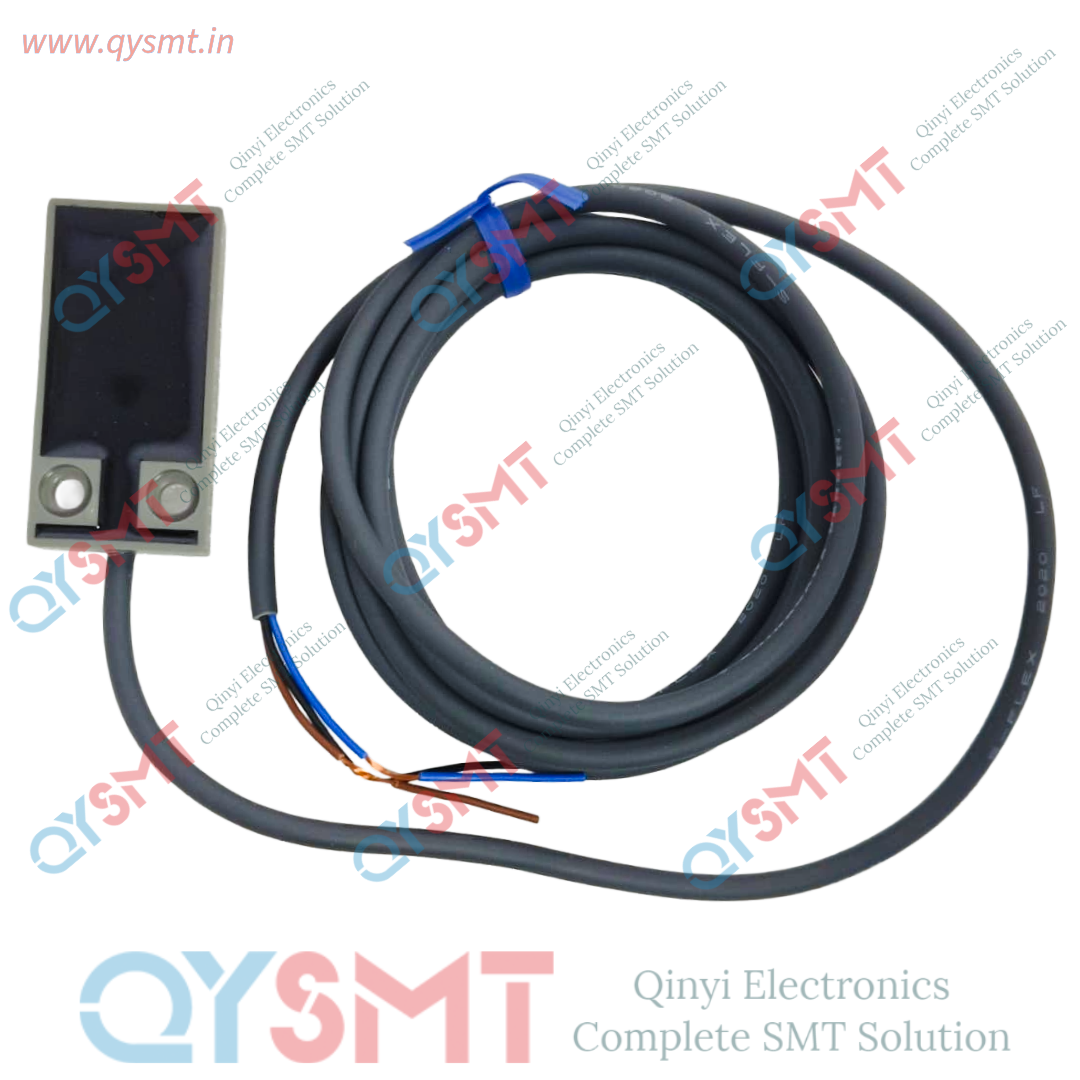

• Physical Structure: Heat-resistant ABS plastic housing with a 2-meter pre-wired connection cable.

Core Component Breakdow

• Oscillator: Generates a localized, alternating high-frequency electromagnetic field at the sensing surface.
• Switch Circuit: Detects amplitude changes when a metal object enters the field and induces eddy currents.
• Amplified Output Circuit: Converts internal amplitude drops into a distinct digital switching signal (NPN output).

• Positioning: Component orientation checking on conveyor belts and packaging lines.
• Counting: Non-contact piece counting of metallic components.
• Safety & Limits: Serving as electronic limit switches on robotics platforms and machine axes.
