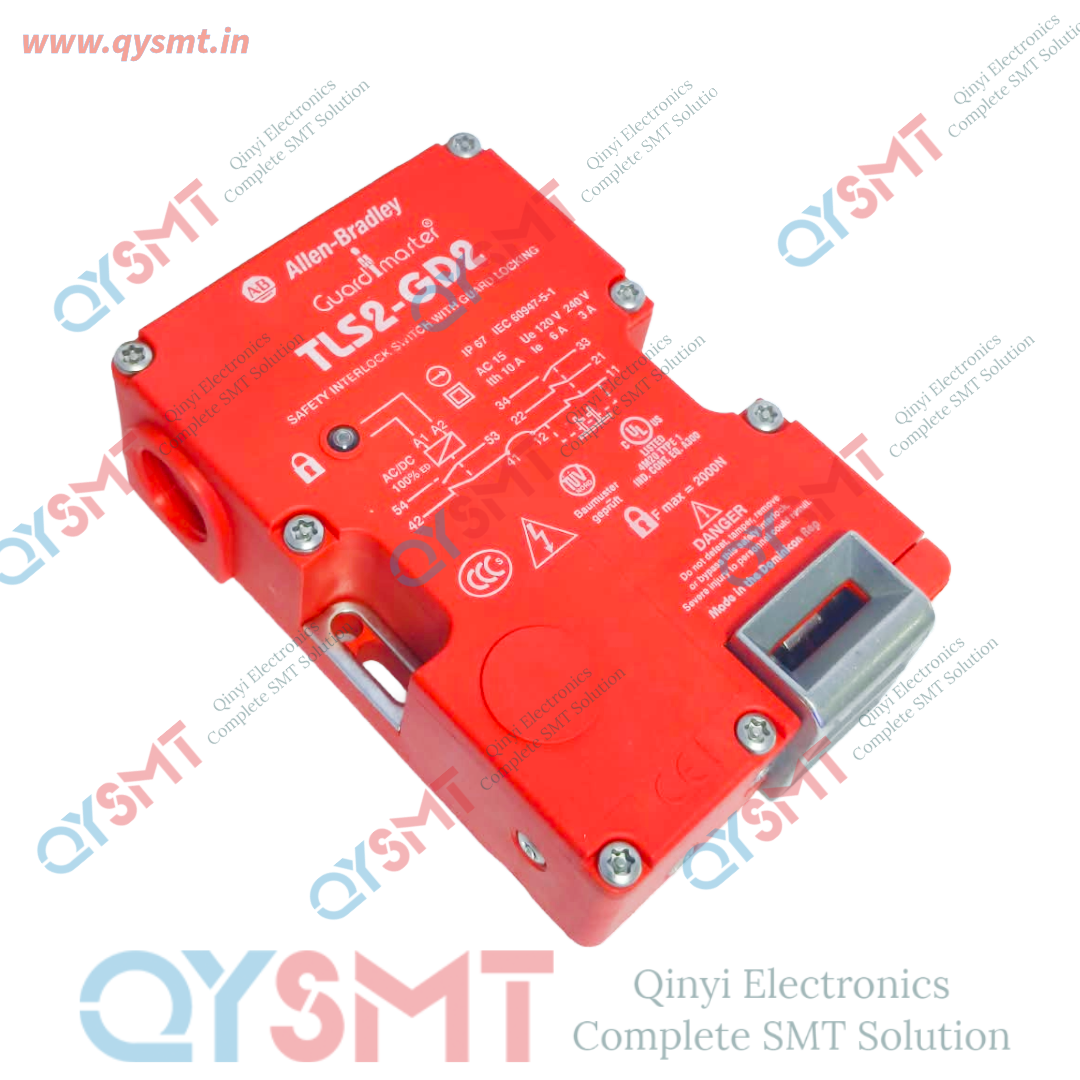

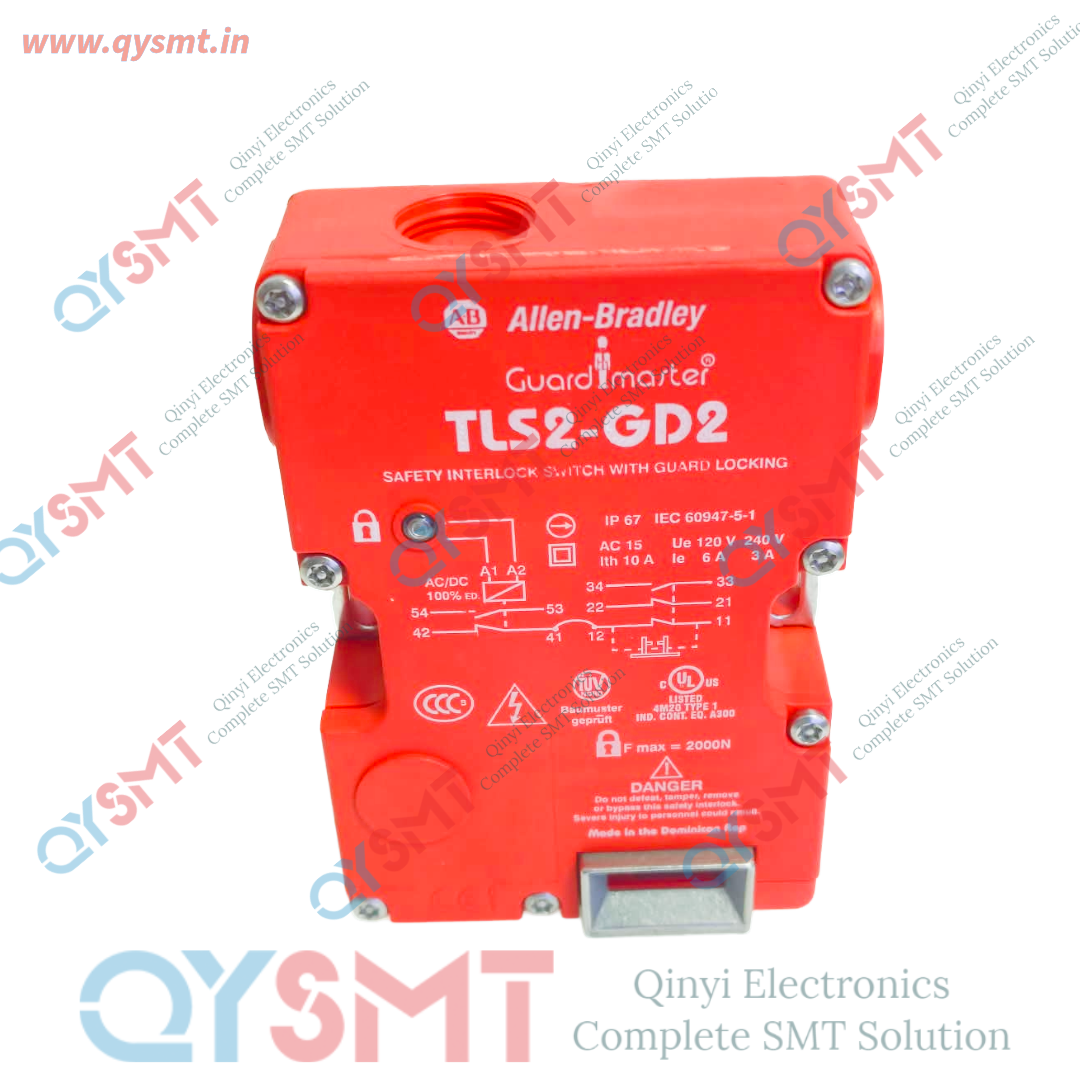

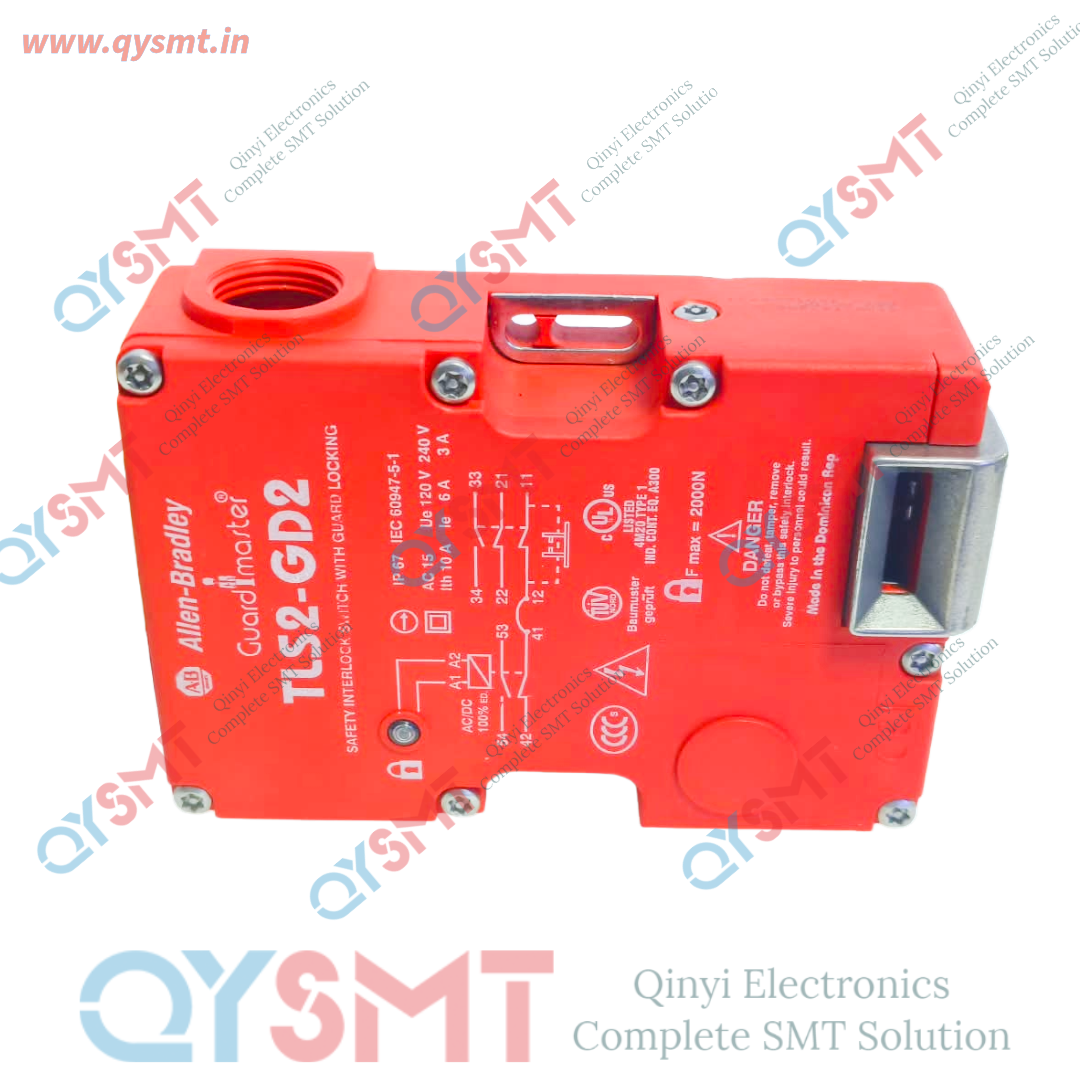

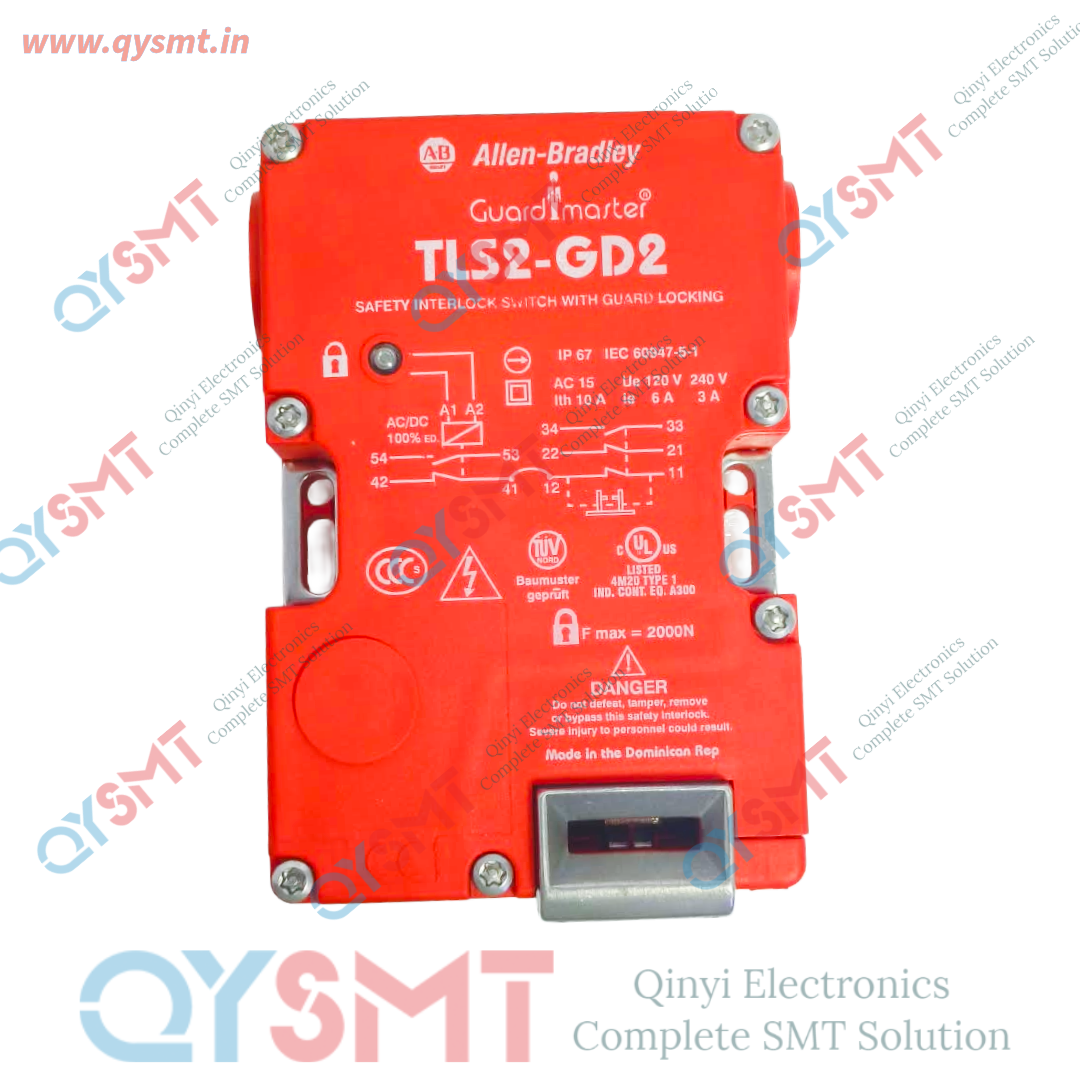

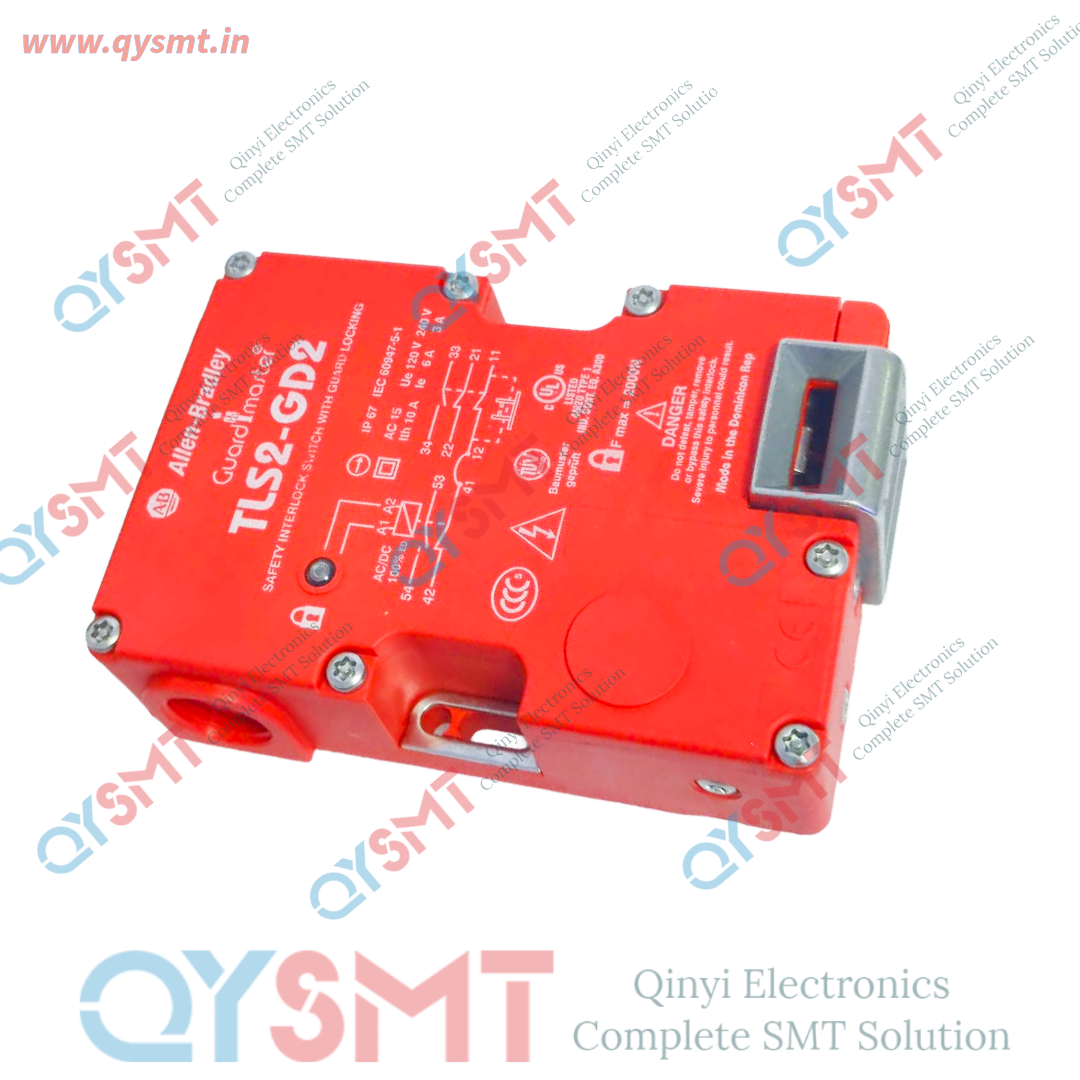

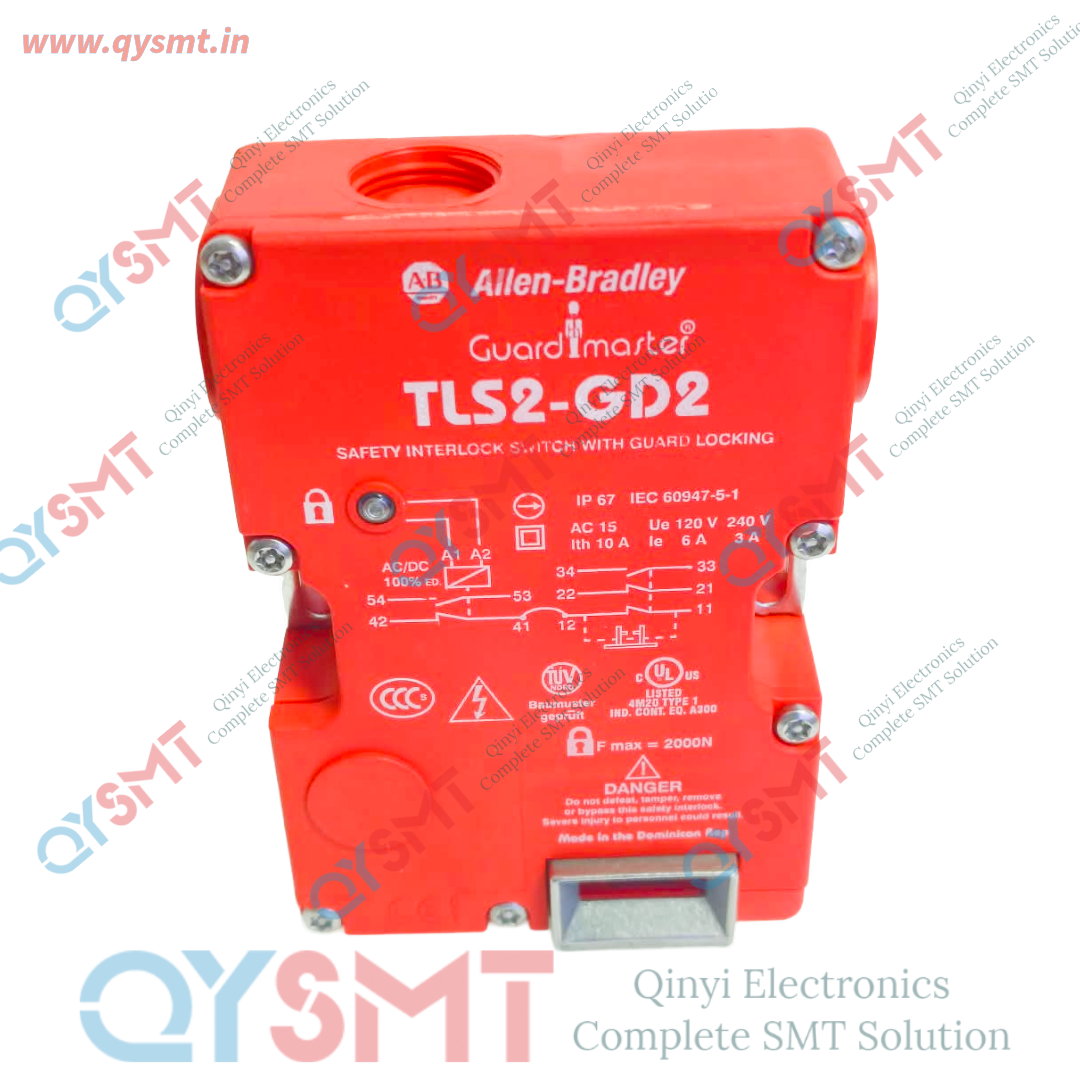

TLS2-GD2 Allen Bradley Guardmaster 440G-T27127 24VDC

TLS2-GD2 Allen Bradley Guardmaster 440G-T27127 24VDC
Technical Specifications

• Series / Model: TLS-2 GD2 (Power to Lock)
• Solenoid Voltage: 24V AC/DC
• Safety Contacts: 2 Normally Closed (N.C.)
• Solenoid Contacts: 1 Normally Closed (N.C.), 1 Normally Open (N.O.)
• Locking Force: 2000 N (2kN)
• Ingress Protection: IP66 rating (dust-tight and protected against powerful water jets)
• Housing Material: Red UL-approved glass-reinforced PBT (plastic)
• Conduit Entry: M20 x3
• Key Entry Slots: 4 rotatable positions

Key Functionality

• Power to Lock Mechanism: The guard remains unlocked when power is removed, allowing entry during power outages. Applying 24V power locks the guard mechanism.
• Tamper Prevention: Utilizes a positive-mode mechanism. It cannot be easily bypassed using simple tools like screwdrivers or wires.
• Status Indication: Features a lid-mounted semiconductor LED drive that indicates whether the switch is locked or unlocked, improving system troubleshooting.
