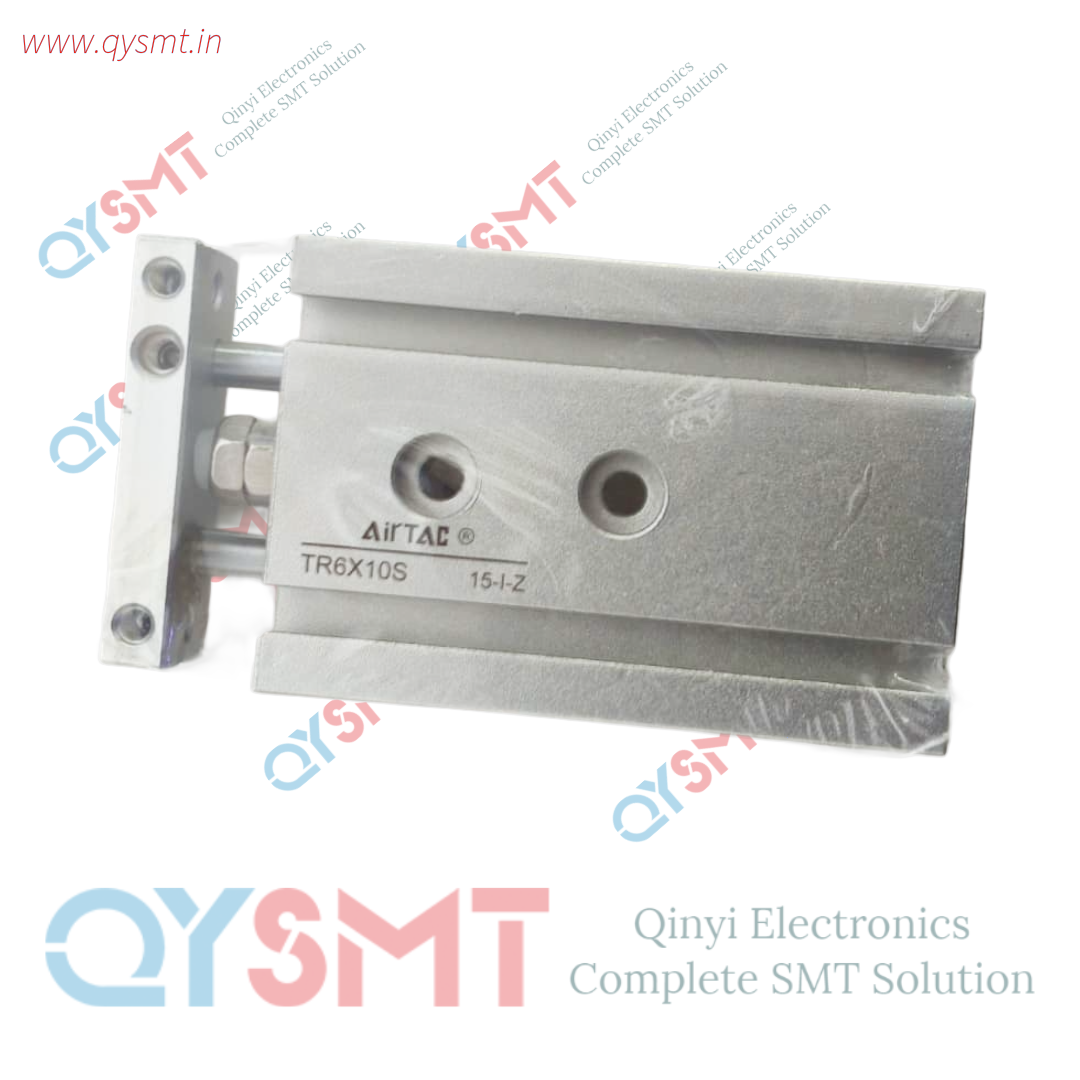

TR6X10S Twin-Rod Pneumatic Cylinder

TR6X10S Cylinder
Key Specifications

• Bore Size: 6mm.
• Stroke Length: 10mm.
• Type: Double acting, twin-rod (dual-axis).
• Magnet: Standard configuration includes a built-in magnet (indicated by the "S" suffix) for position sensing.
• Operating Pressure: Typically between 0.15–1.0 MPa (approx. 22–145 psi).
• Temperature Range: -20°C to 70°C.
• Port Size: M5 x 0.8.

Features and Benefits

• Precision Guidance: The dual-rod design and JIS standard implementation ensure high non-rotation accuracy and low piston rod end deflection.
• Flexible Mounting: Features mounting holes on three sides of the fixing plate, facilitating multi-position installation.
• Durability: Excellent resistance to bending and twisting movements, allowing it to withstand certain lateral loads.
• Maintenance-Free: Utilises an extended sliding support guide that requires no additional lubricant.
