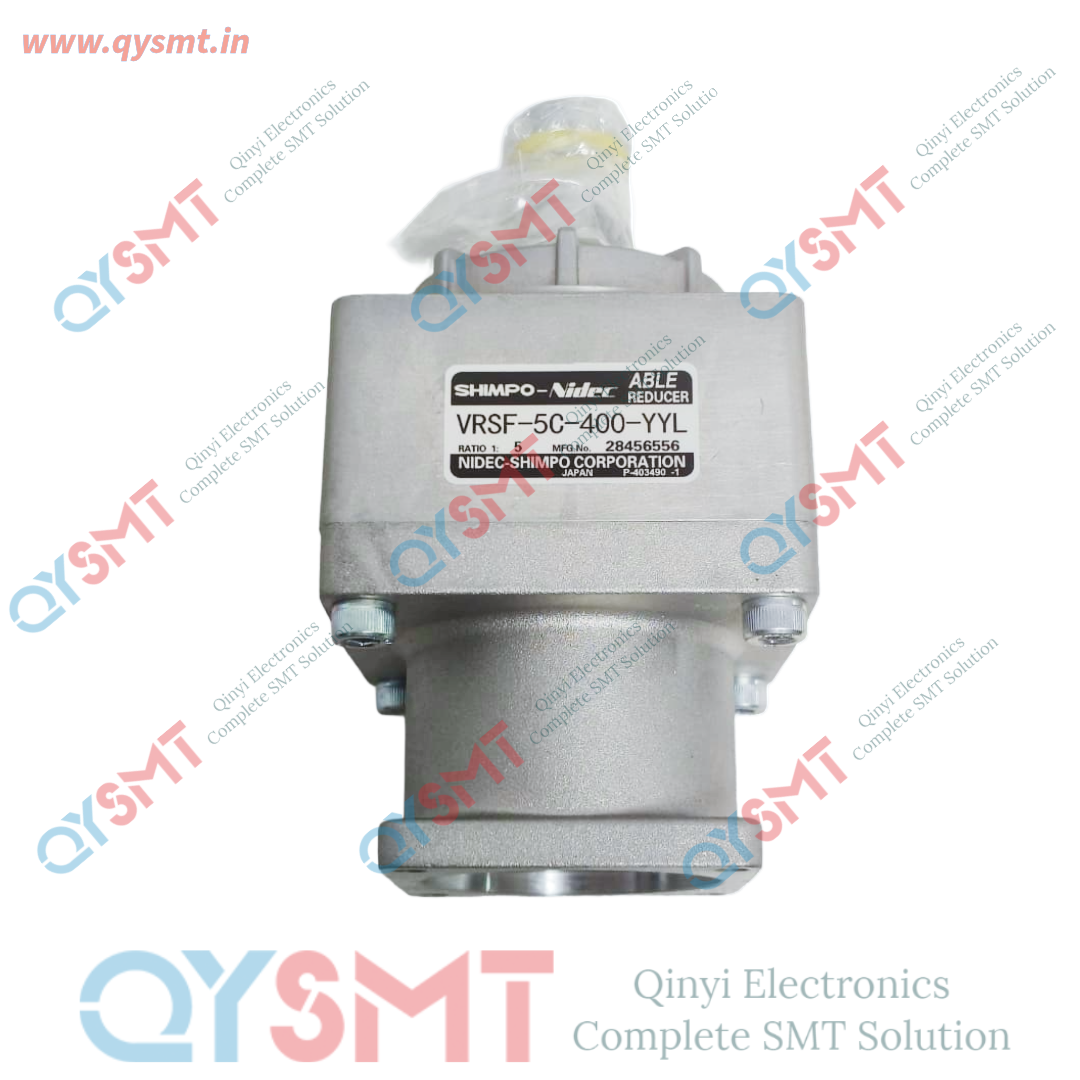

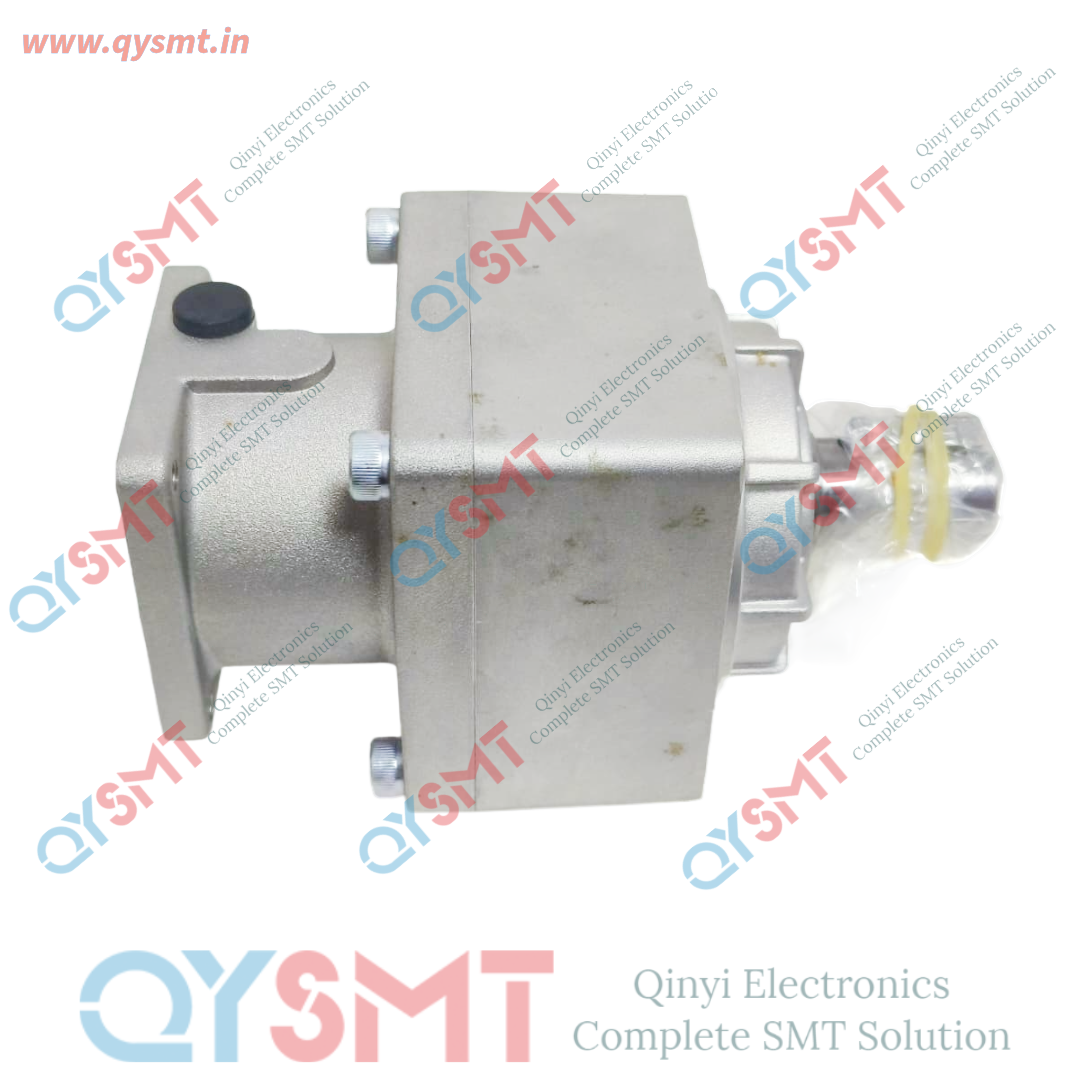

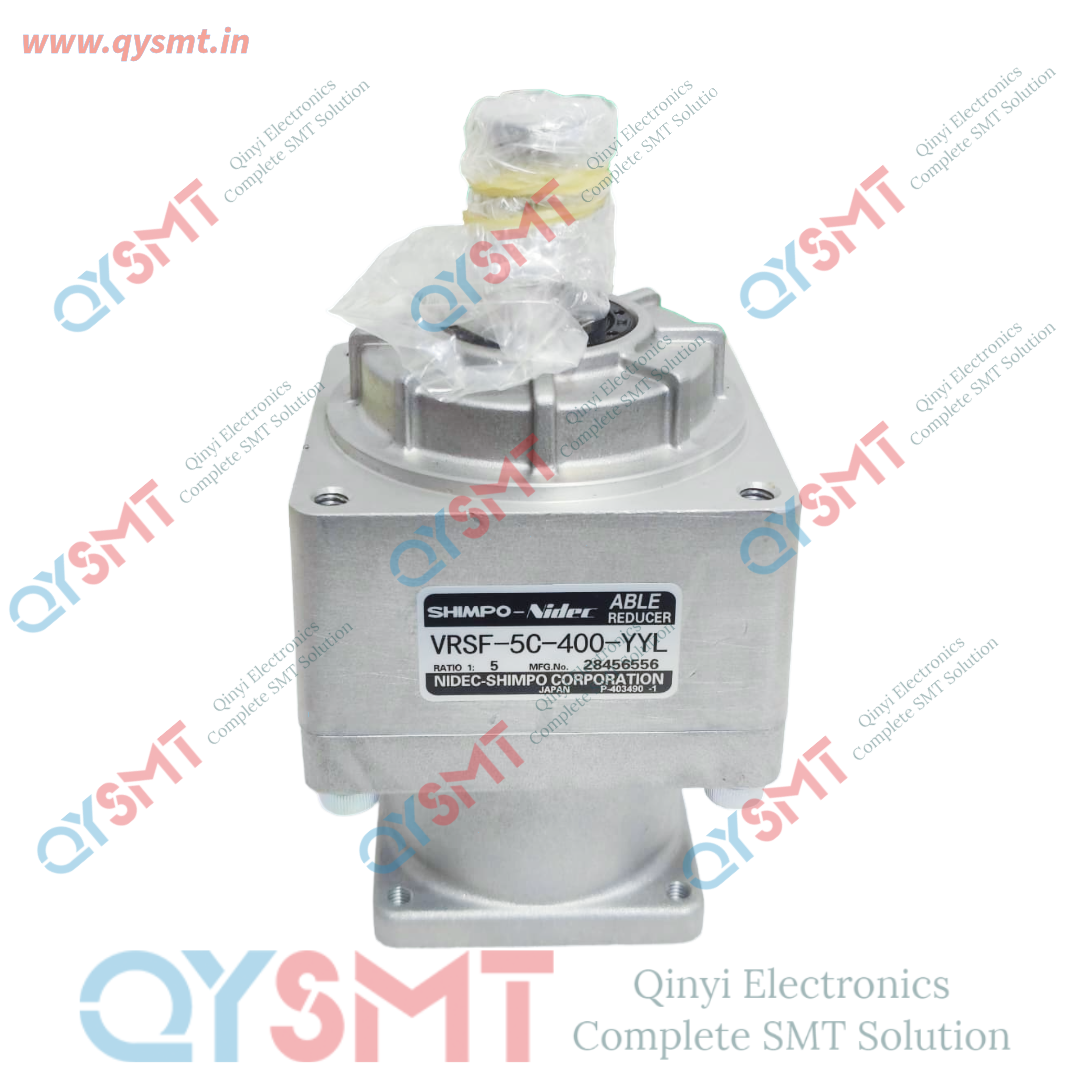

VRSF-5C-400-YYL SMT GEAR

VRSF-5C-400-YYL SMT GEAR
Part Number Breakdown

• VRSF: Model Series. Specifies a compact, inline coaxial planetary speed reducer featuring quiet, carburized helical gearing and an aluminum body.
• 5: Reduction Ratio. Denotes a 5:1 speed reduction ratio (1-Stage configuration).
• C: Frame Size. Refers to the physical frame dimensions of the reducer body.
• 400: Motor Capacity. Engineered to explicitly mount and pair with a 400W (0.4 kW) AC servo motor or stepper motor.
• YYL / SMT GEAR: Industrial or client-specific suffix denoting customization. This typically matches specialized mounting adapters, input clamp collars, output shaft styling, or proprietary gears integrated by SMT machinery brands.

Key Specifications

• Gearing Profile: Helical planetary arrangement providing higher accuracy and quieter operations than standard spur gears.
• Standard Backlash: Approximately 15 arc-minutes (with high-accuracy variations down to 3–5 arc-minutes available depending on prefix options).
• Output Shaft Configuration: 19mm standard solid shaft diameter with standard coaxial flange mounting.
• Lubrication: Factory sealed-filled with high-grade, long-life grease. It requires no ongoing grease replacement and allows mounting in any physical orientation.
