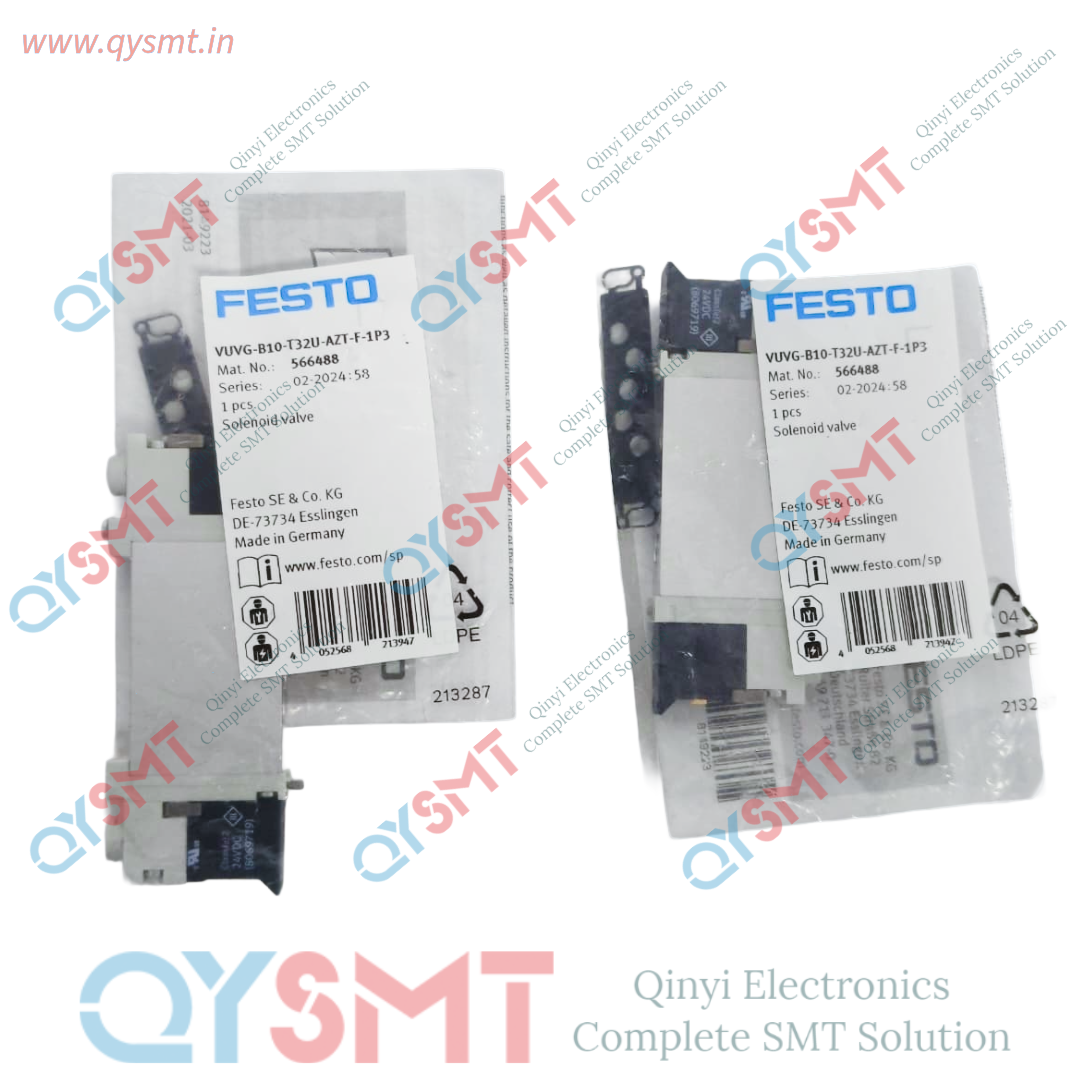

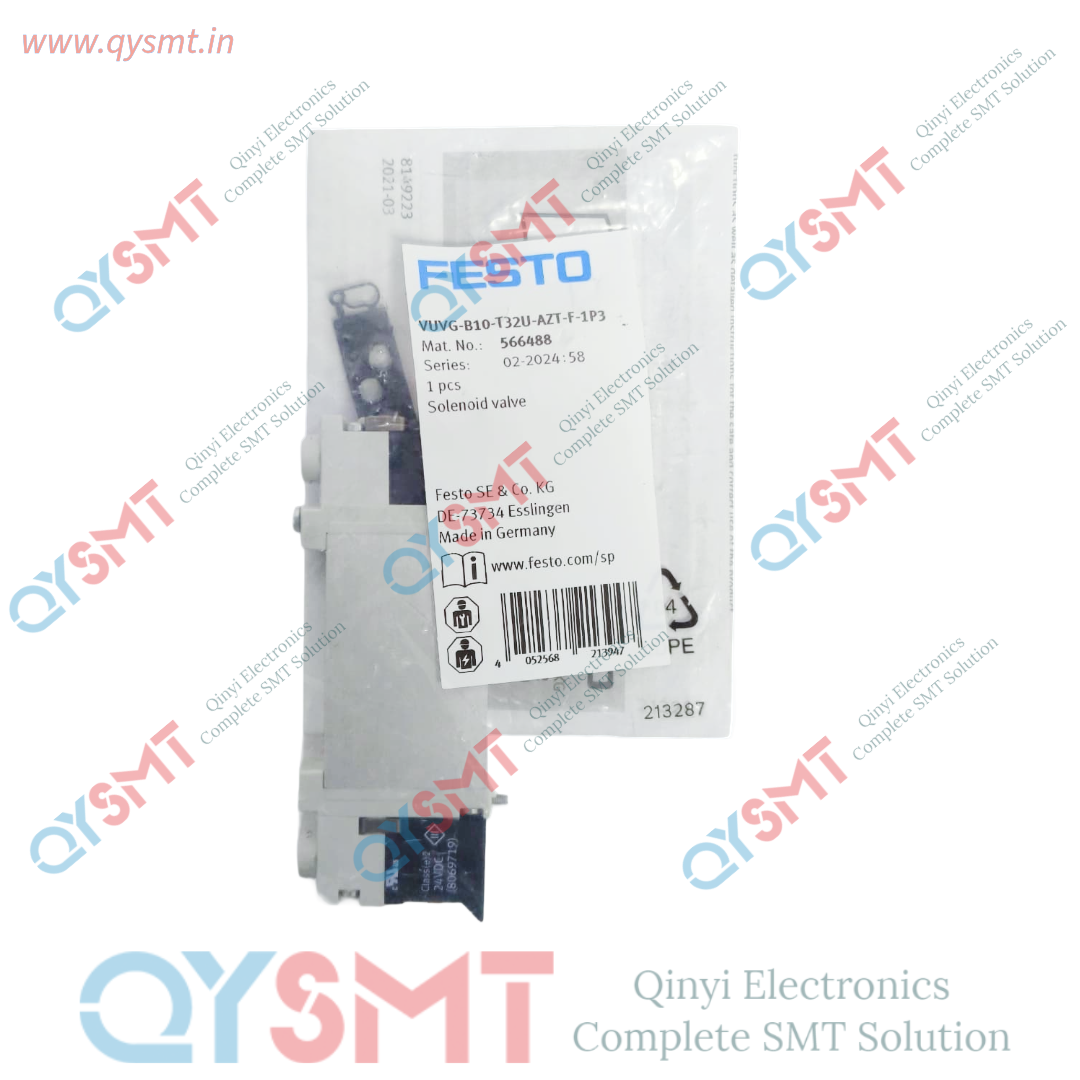

VUVG-B10-T32U-AZT-F-1P3 Solenoid valve VUVG-B10-T32C-AZT-F-1T1L | Festo IN

Solenoid valve VUVG-B10-T32C-AZT-F-1P3 | Festo IN

Part Number Breakdown

• VUVG: Valve series (Festo Compact Performance directional control valves).
• B: Design type – Sub-base valve (designed to mount onto a manifold rail).
• 10: Valve size – 10 mm width.
• T32U: Valve function – 2x3/2-way, normally open (NO), monostable (contains two independent 3/2-way valves in a single 10mm body).
• A: Operation type – Pilot actuated.
• Z: Manual override – Detenting/non-detenting (rachet/push style assist).
• T: Pilot air supply – External pilot air.
• F: Pneumatic connection – Flange/Sub-base mounting style.
• 1: Voltage option – 24V DC operating voltage.
• P: Electrical connection type – Connection style configured for an electrical sub-base or plug-in E-box connection. (Note: Full ordering codes usually end with an E-box identifier like -1P3 or -1T1L to designate the precise physical connector interface). [

Core Technical Specifications

• Standard Nominal Flow Rate: 150 l/min
• Operating Pressure Range: 1.5 bar to 10 bar (22 to 145 PSI)
• Reset Method: Pneumatic spring return
• Housing Material: Wrought aluminium alloy
• Sealing Principle: Soft sealing structure
• Switching Times: On: 8 ms / Off: 20 ms
• Protection Class: IP40 to IP67 depending on the attached electrical E-box
