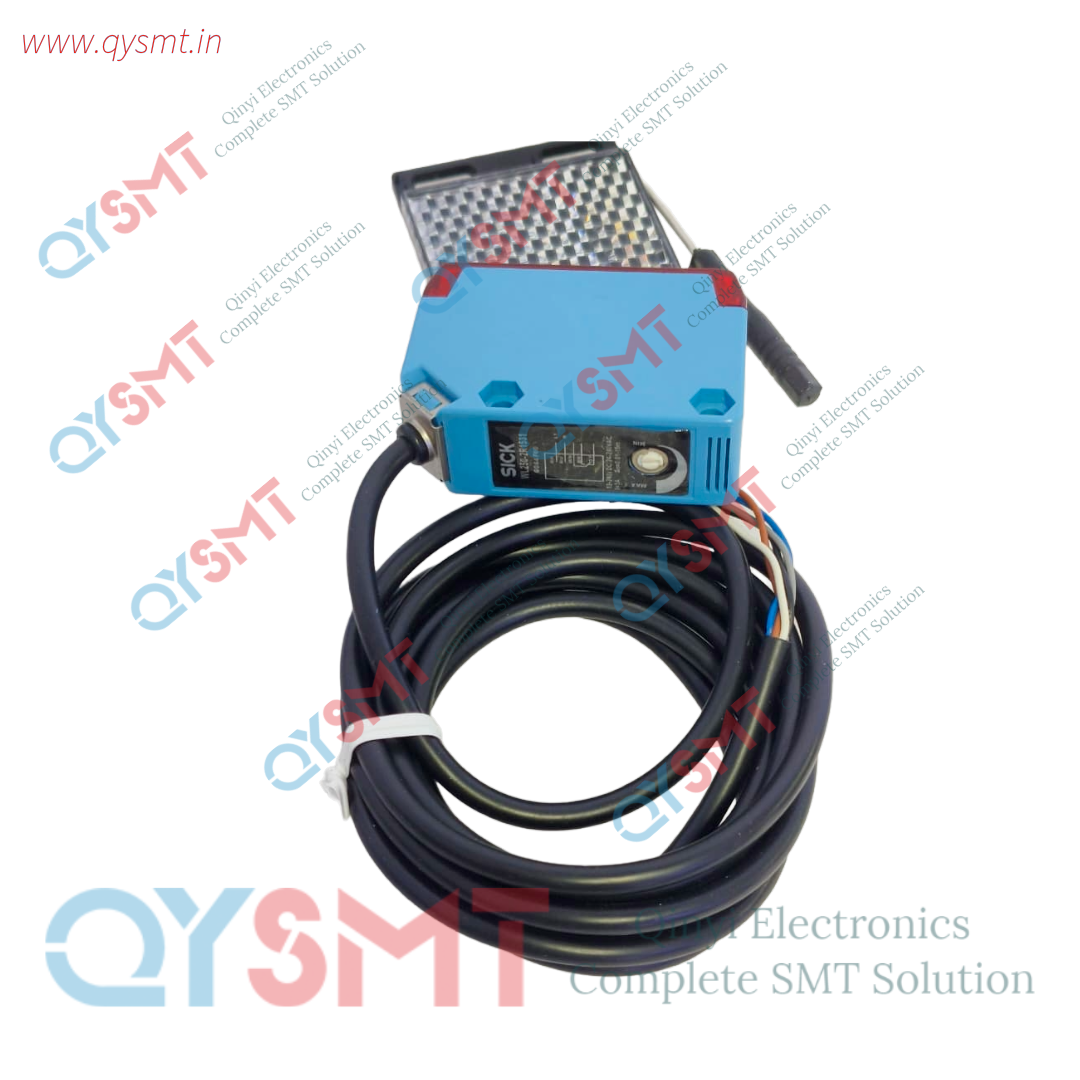

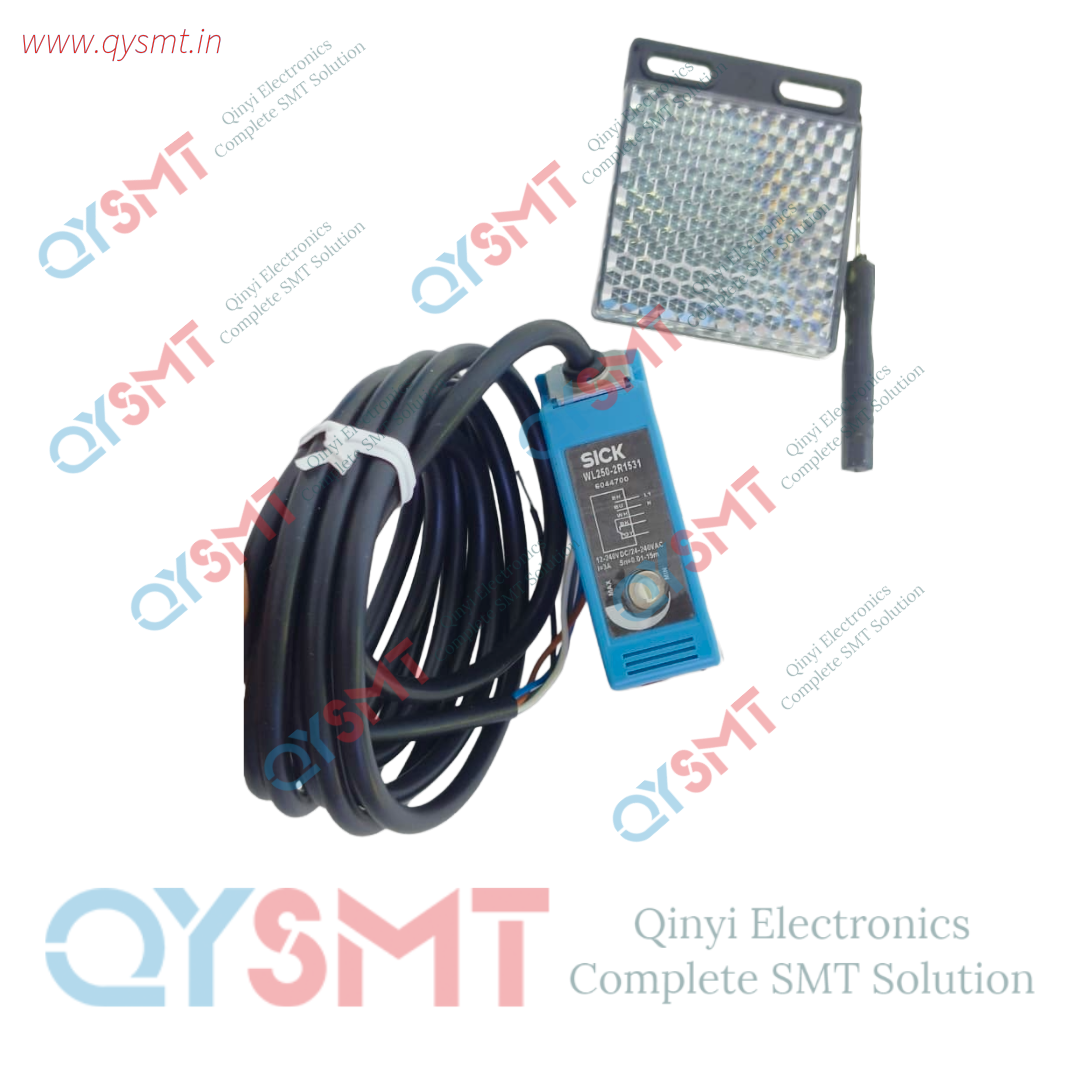

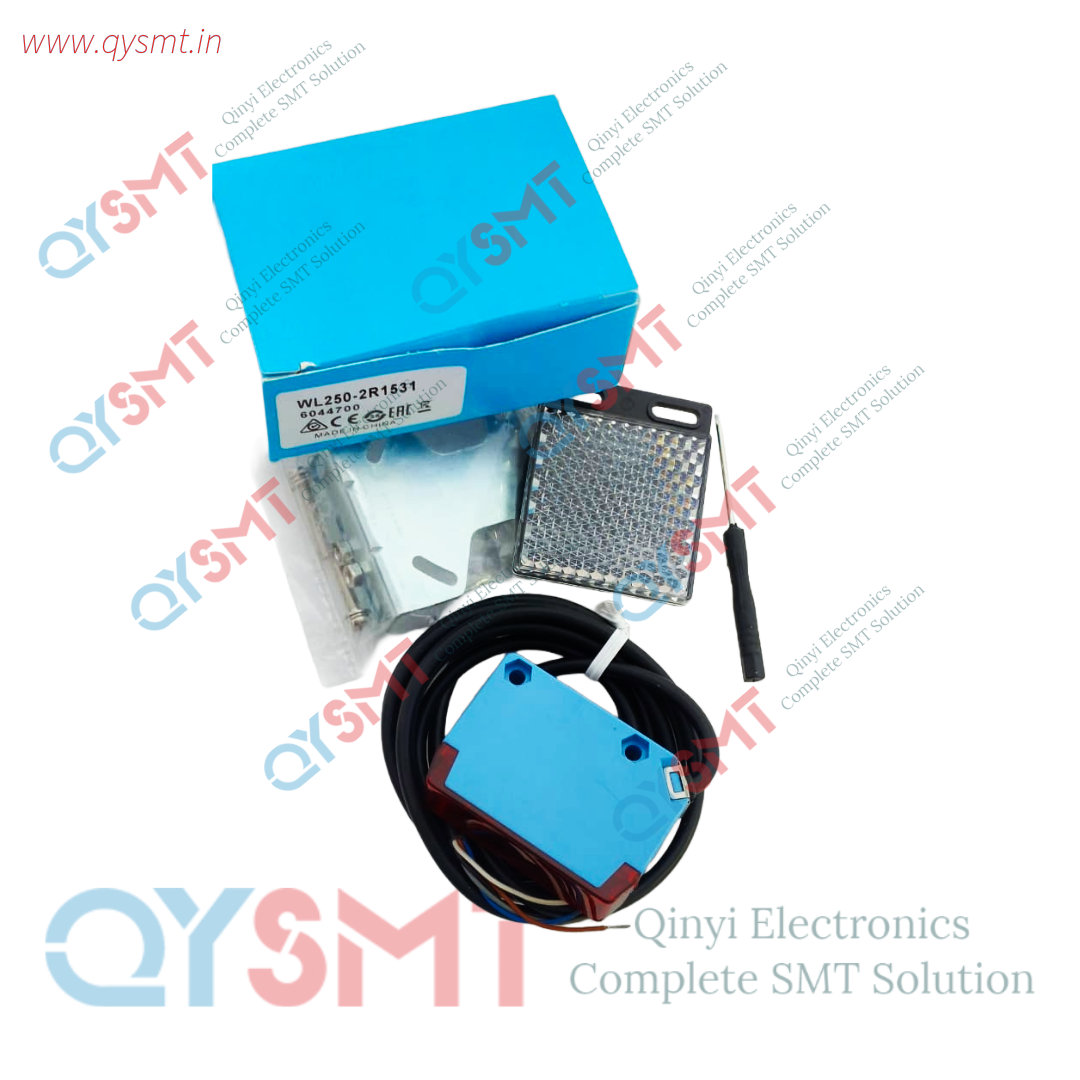

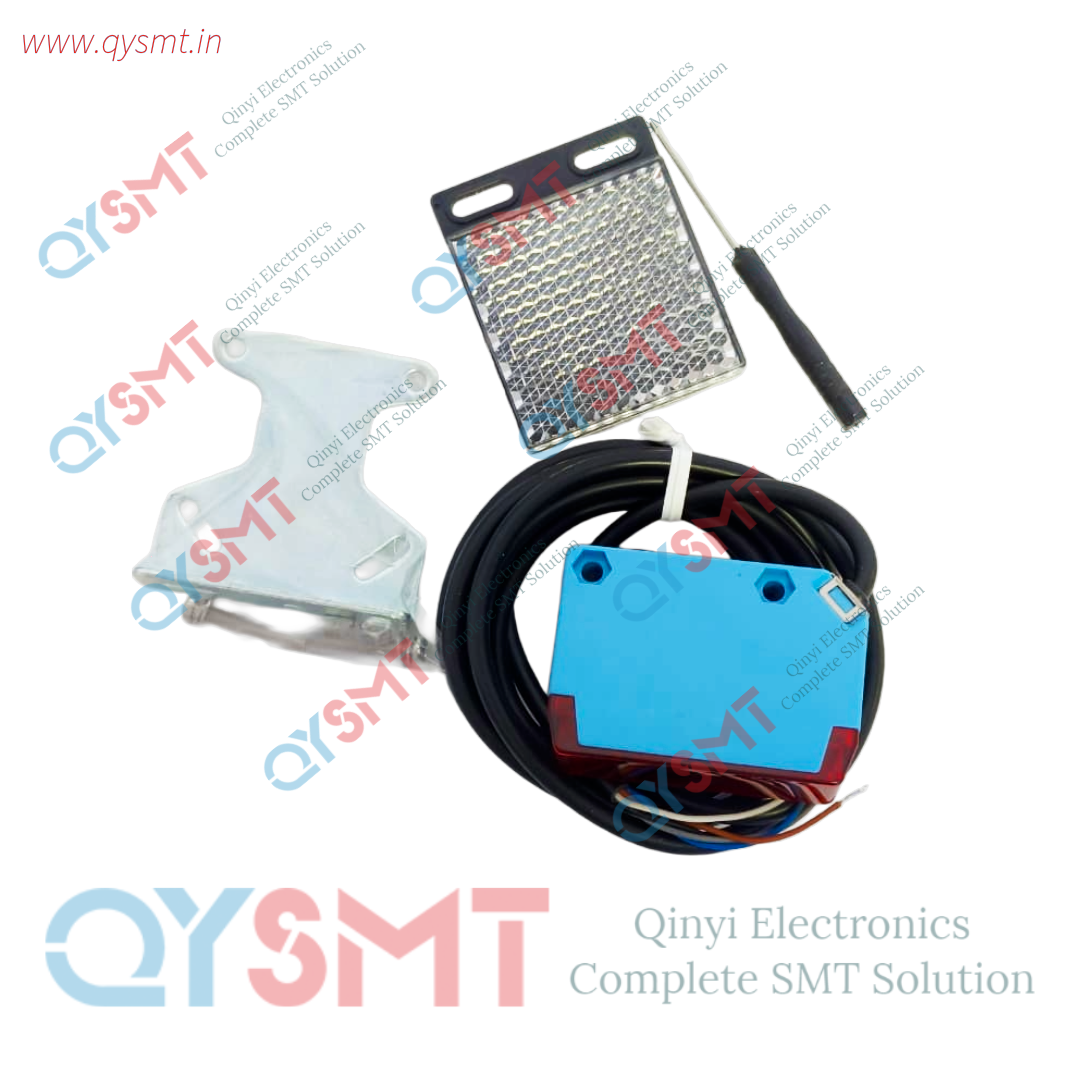

WL250-2R1531 Sick sensor

WL250-2R1531   Sick sensor

Specifications

Brand

Sick

Sensor Style

Block

Detection Type

Retroreflective

Detection Range

100 mm → 15 m

Output Type

Relay

Electrical Connection

5 Wire Cable 2 m

Maximum ac Voltage

240V

Maximum dc Voltage

240V

Light Source

LED

IP Rating

IP67

Response Time

=15 ms

Mounting Type

Panel Mount

Housing Material

ABS

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-25°C

Series

W250-2

Product details

Photoelectric W250 Sensors

SICK W250-2 series photoelectric sensors have long adjustable sensing distances. Designed for use in a wide variety of applications that reach far beyond handling, packaging, warehousing and wood industries. A visible red light used for an alignment aid makes the W250 photoelectric sensors particularly user-friendly. Users are aided by an easy-to-read positioning indicator when adjusting sensitivity and sensing distance. LED indicators located on the top panel provide instant feedback of the detection status.

Features and Benefits

· Glass reinforced plastic housing rated to IP67 with status indicator
· Easily visible red LED light source for reliable detection
· Large adjustable sensing range
· LEDs on the sensor body for detection status
· Mounting bracket provided for simple mounting
· Easily accessible terminal chamber for electrical connections simplifies installation
· Overload, reverse polarity, and short circuit protected
· Light/Dark operating mode selectable via a control cable
· Configuration controls are protected by a cover, ensuring less damage
· Potentiometer with a positioning indicator for adjusting the sensing range/sensitivity
