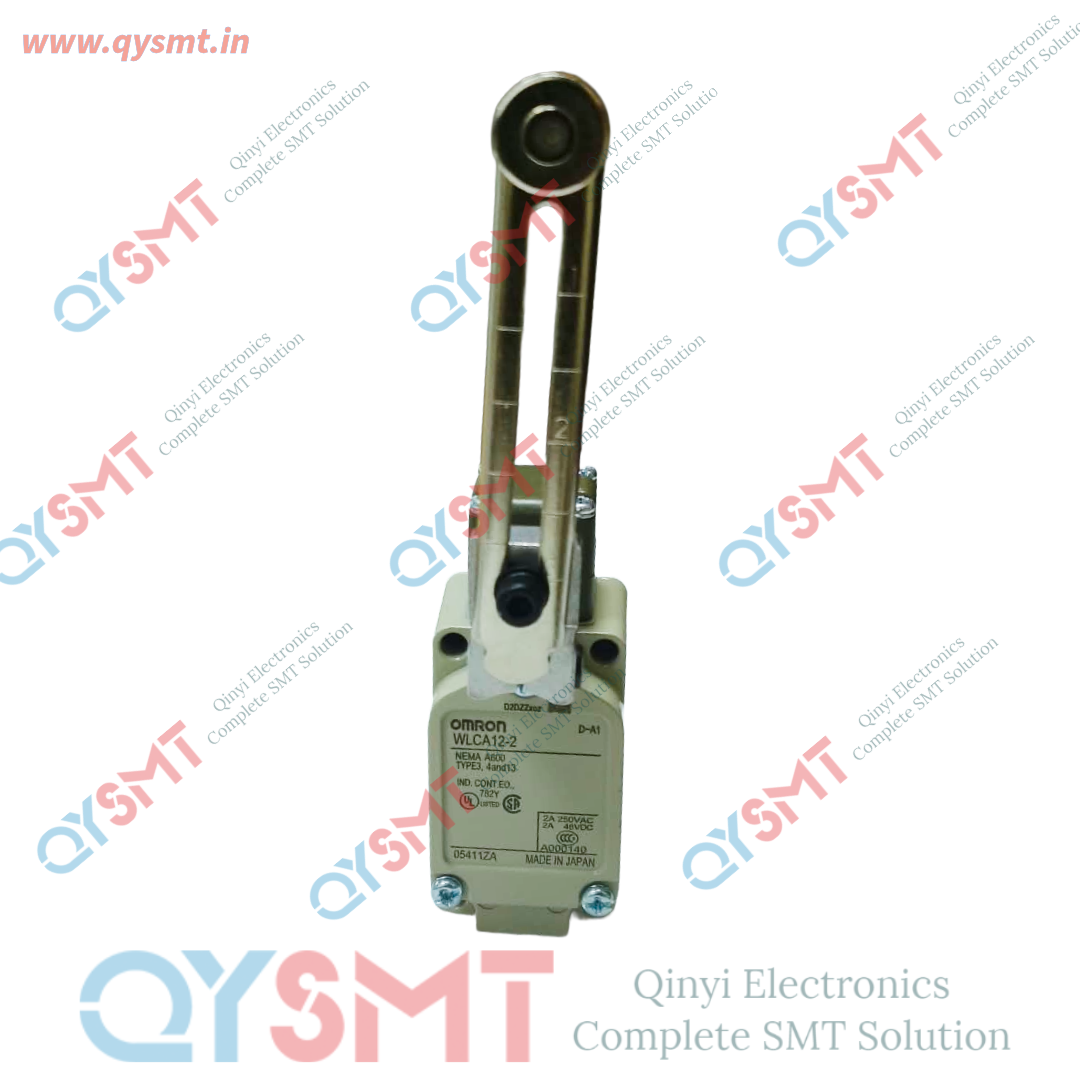

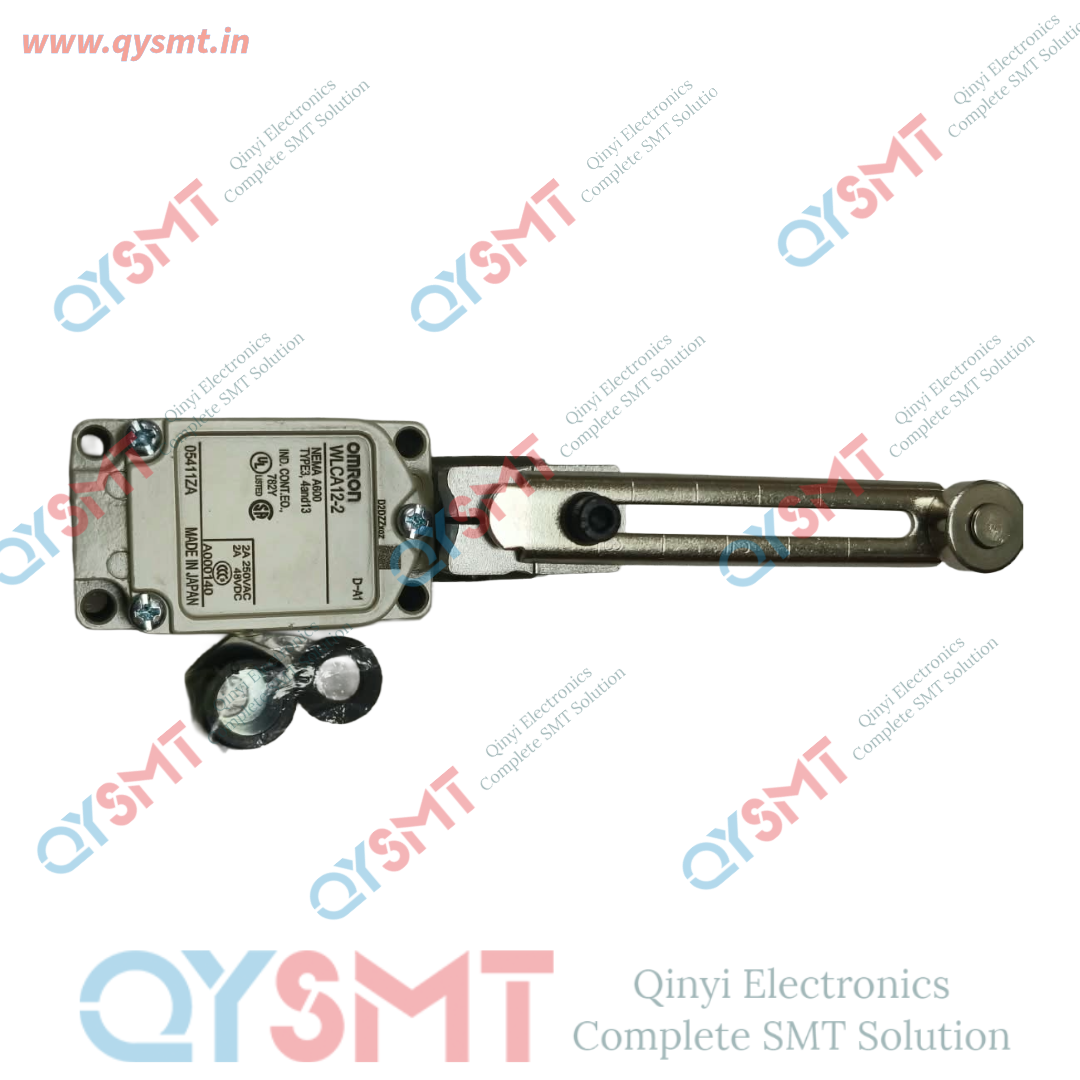

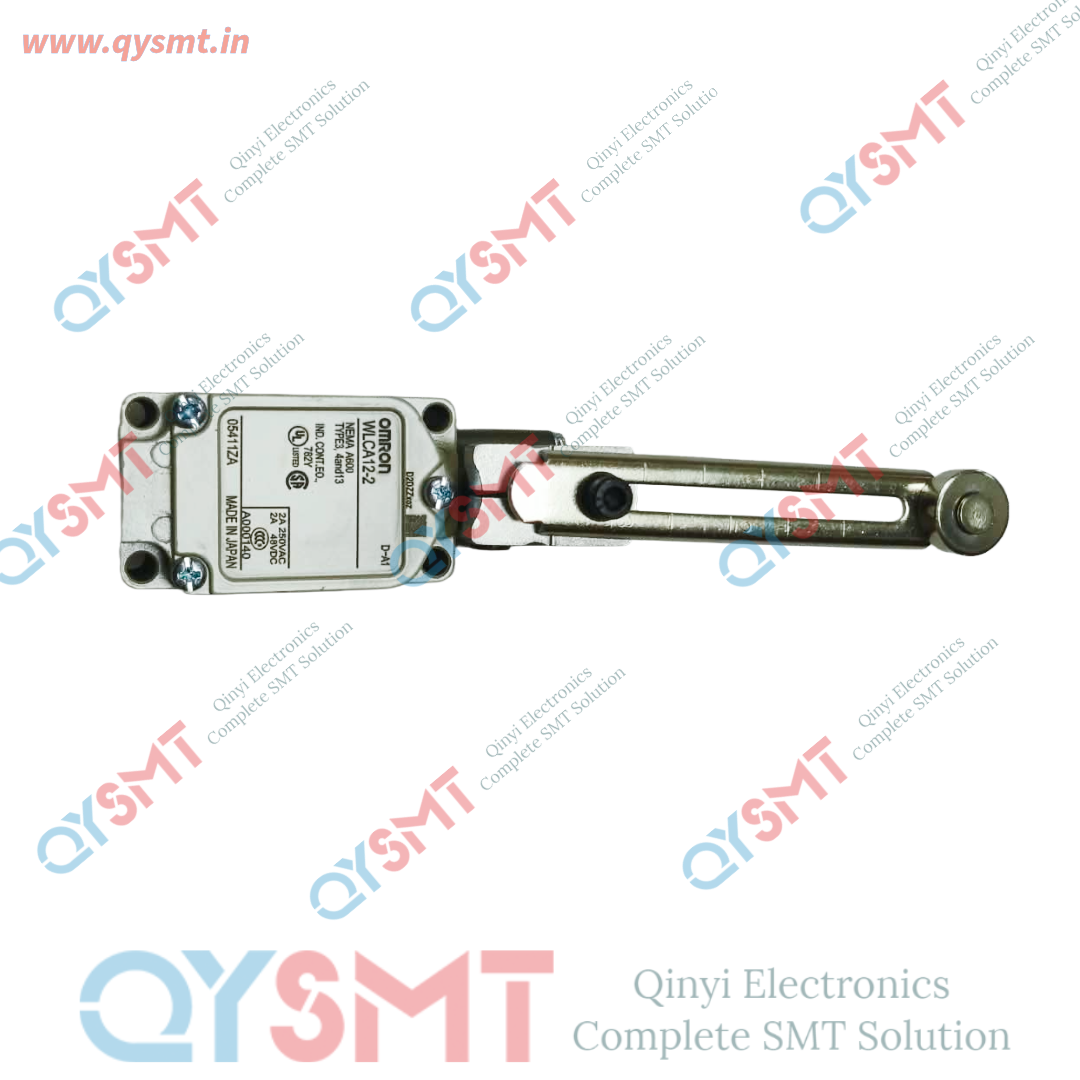

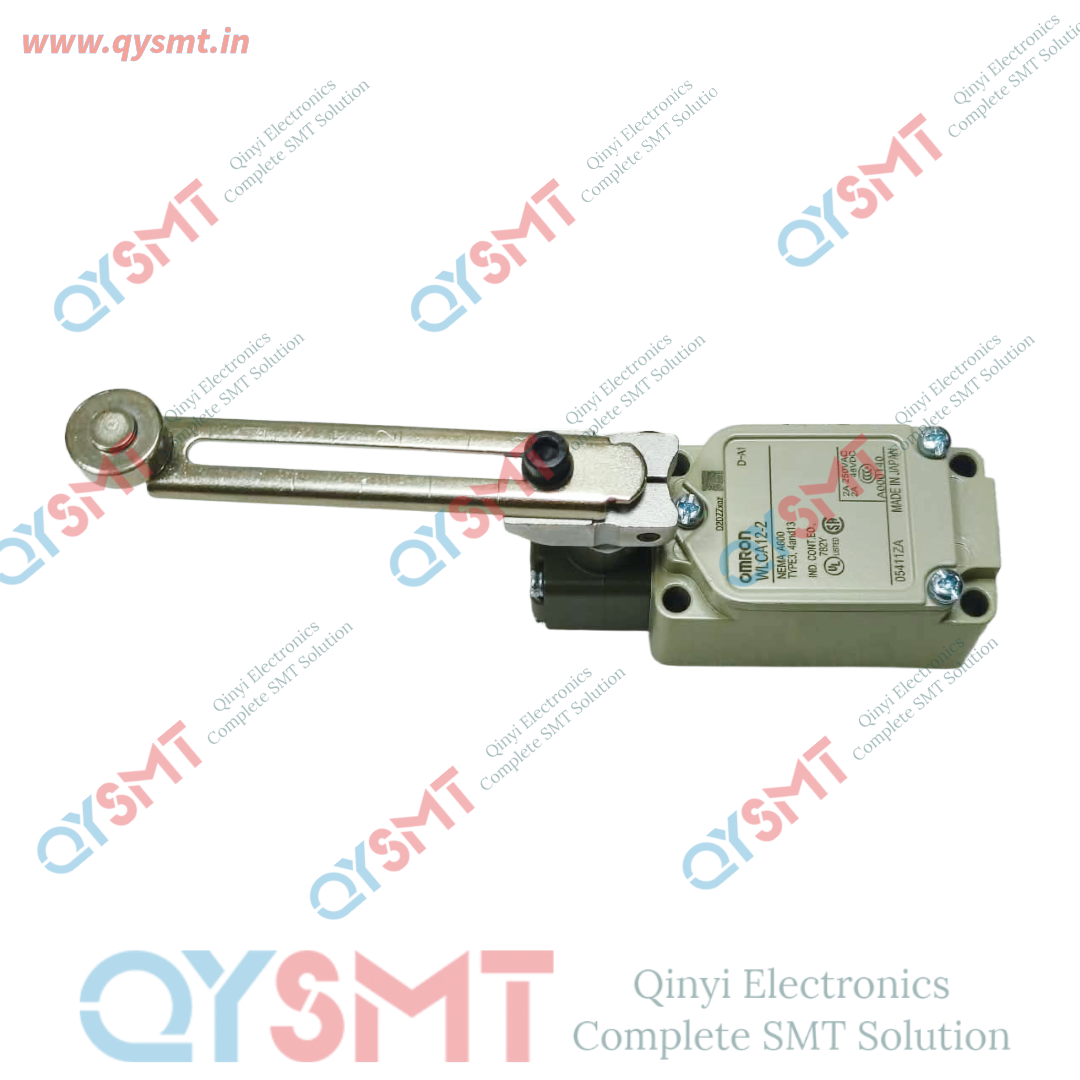

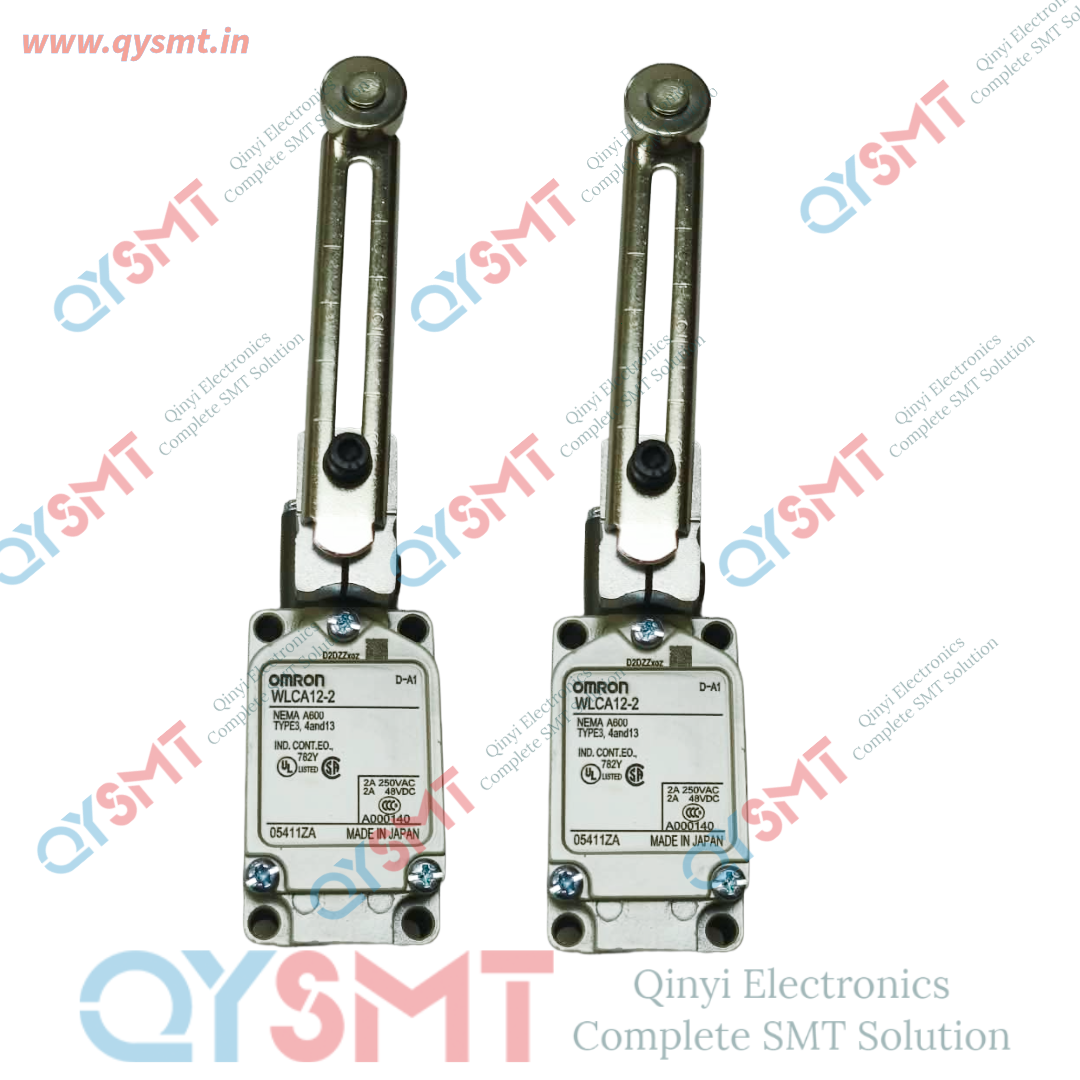

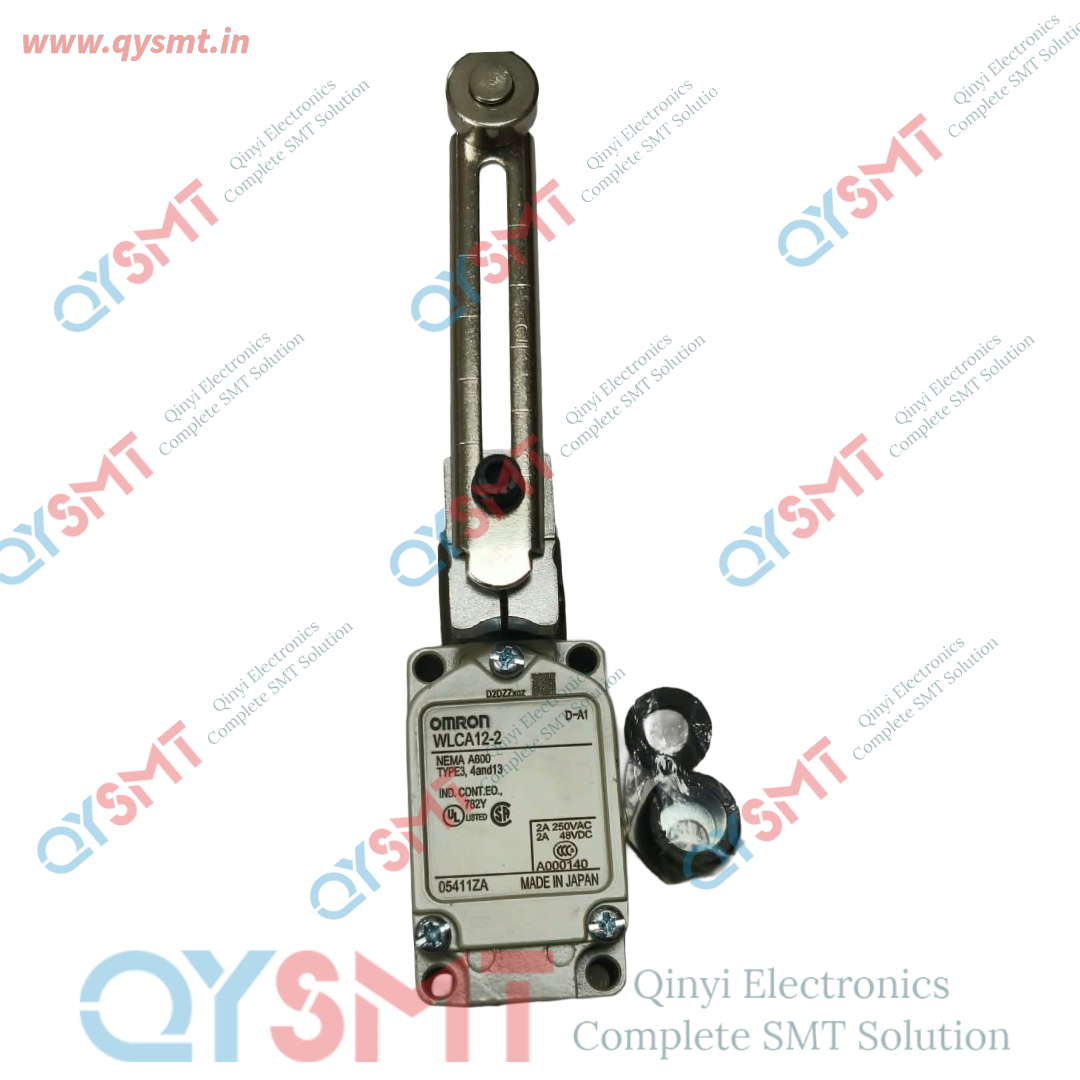

WLCA12-2 Omron Limit Switch

WLCA12-2 Omron Limit Switch
Key Technical SpecificationsBased on official product data from and trusted industrial suppliers, the device features the following core specifications:

• Actuator Type: Adjustable roller lever (with a versatile lever arm radius ranging from R25 to 89 mm).
• Electrical Ratings: Supports a high current capacity of up to 10 A with operational voltage tolerance up to 500 V AC.
• Environmental Protection: IP67 rated, offering full sealing against heavy dust, water submersion, oil, and industrial coolants.
• Temperature Range: Operates reliably from -10°C to +80°C.
• Durability: Built to withstand harsh environments with a mechanical life expectancy of up to 15,000,000 cycles.
• Circuitry: 2-circuit double-break mechanism (typically standard SPDT/DPST structural configurations depending on the precise sub-model wiring)
