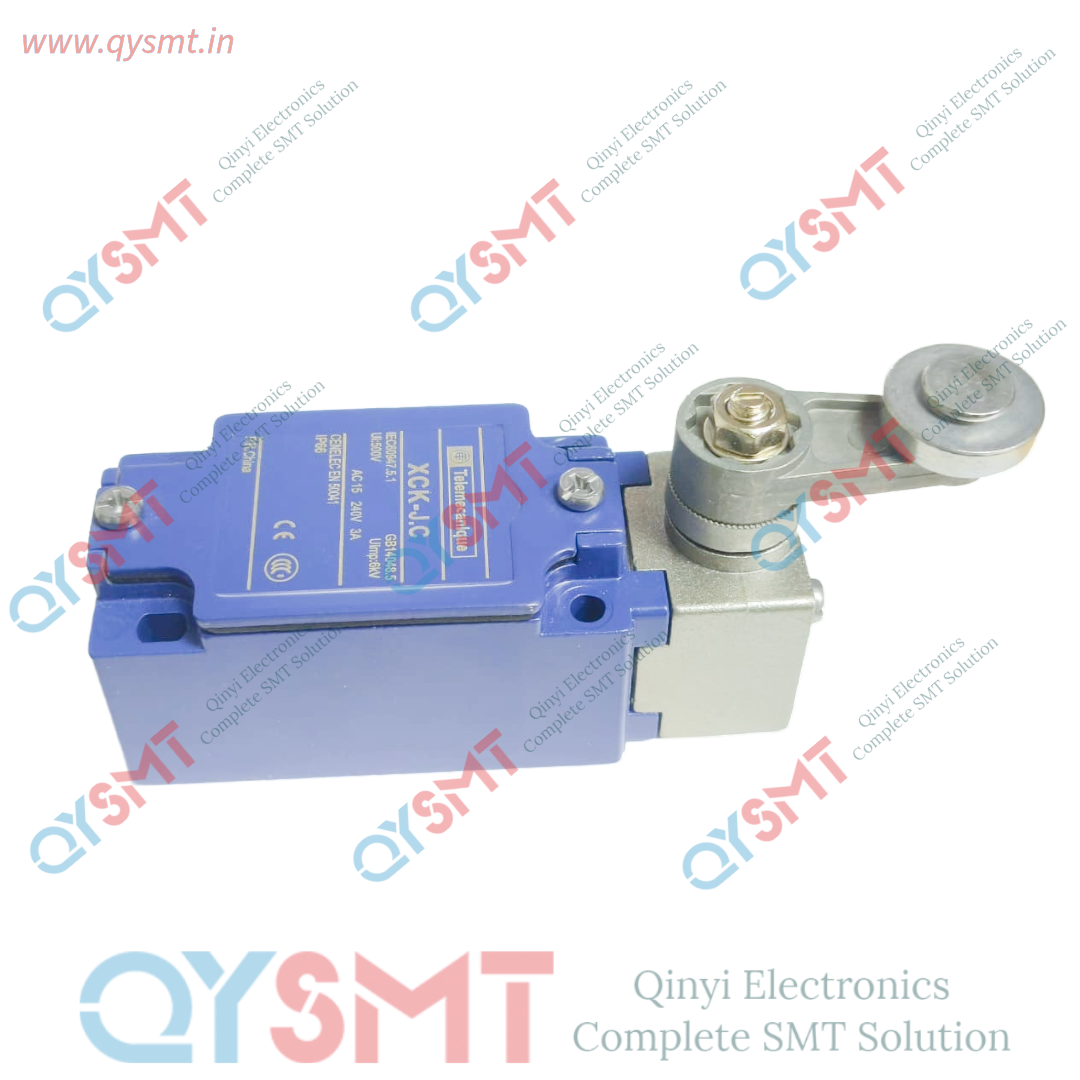

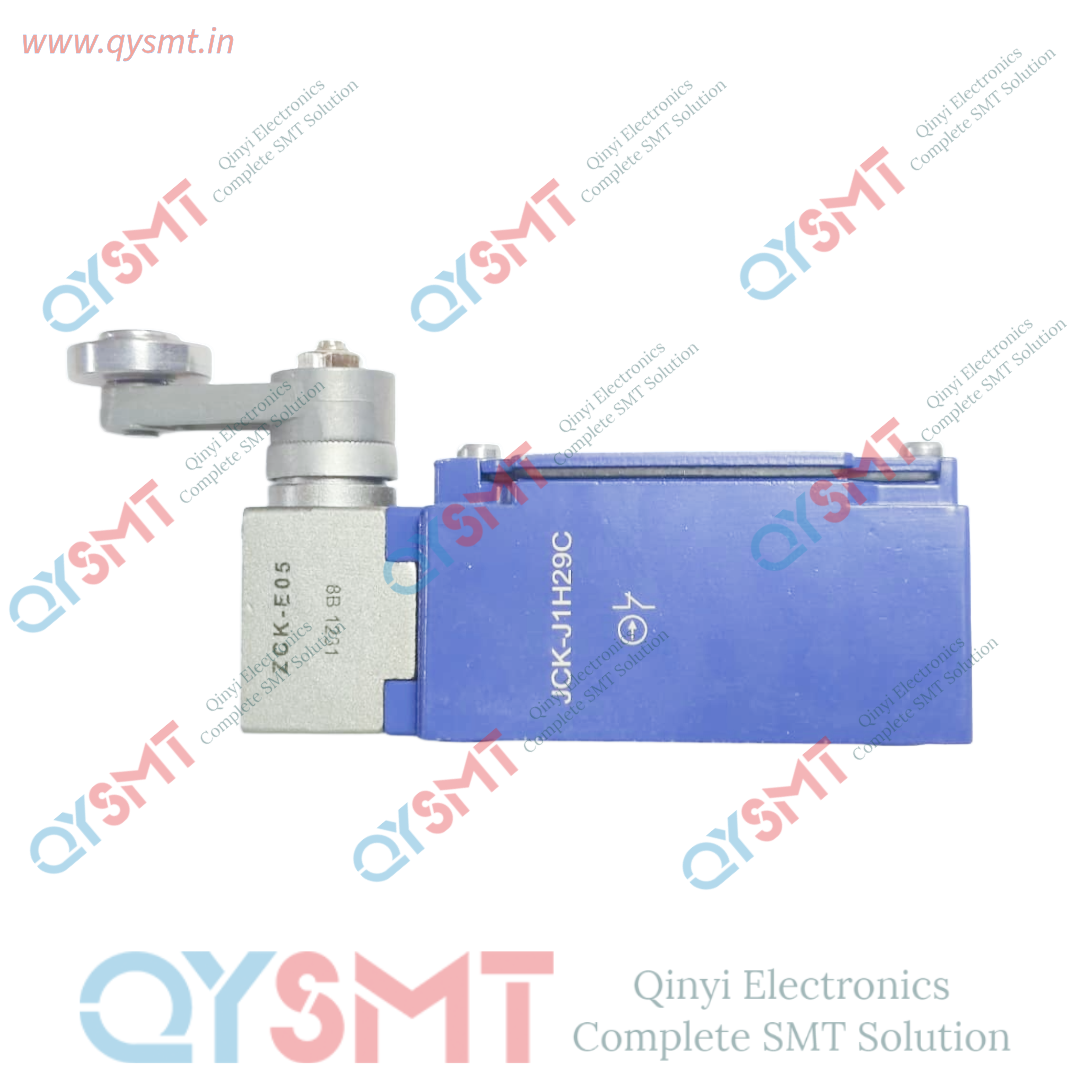

XCKJ10513 TELEMECANIQUE SENSORS - Limit switch

XCKJ10513 TELEMECANIQUE SENSORS - Limit switch

• Actuator Type: Spring return steel roller lever (Zamak rotary head) with lateral approach (1 or 2 programmable directions).
• Contact Configuration: 1 NO + 1 NC (Normally Open + Normally Closed) snap action contacts.
• Electrical Ratings: Supports up to 240V AC at 3A or 250V DC at 10A.
• Housing Material: Robust Zamak zinc alloy metal housing.
• Environmental Protection: IP66 rated for dust and water resistance, and IK07 for impact resistance.
• Cable Entry: 1 entry tapped for a Pg 13.5 cable gland.
• Global Certifications: Certified by UL, CSA, CCC, EAC, and CE.

• Harsh Environments: The IP66/IK07 rugged metal casing makes it ideal for conveyors, material handling, machine tools, and heavy-duty industrial automation where vibrations or washdowns occur.
• High Repeatability: The snap-action mechanism provides quick and reliable switching, crucial for safety-critical circuits.
• Lifecycle: Delivers high mechanical durability, capable of up to 5 million cycles.
• Lifecycle Replacement Note: Depending on your specific regional vendor, this exact Pg 13.5 model is sometimes substituted or upgraded to the XCKJ10513H29 model, which features an identical form factor but utilizes an M20 cable entry.
