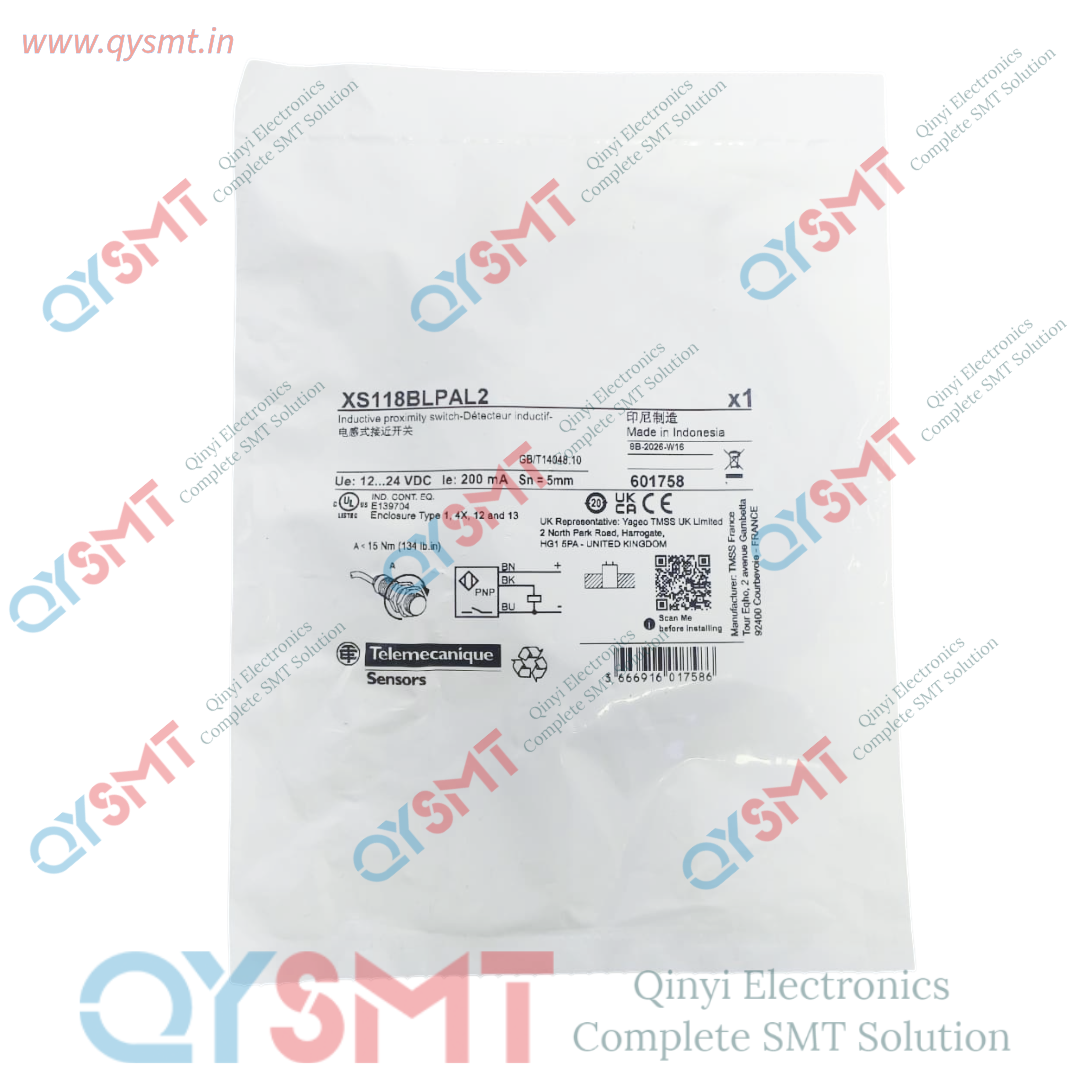

XS118BLPAL2 Proximity sensor
Core Technical Specifications

• Sensor Type: Inductive
• Sensing Distance (\(S_{n}\)): 5 mm
• Mounting Style: Flush (Shielded)
• Thread Size: M18 x 1
• Output Configuration: PNP, Normally Open (NO)
• Operating Voltage: 12 to 24 V DC (with limits stretching from 10 to 36 V DC)
• Electrical Connection: 2-meter pre-cabled 3-wire radial connection
• Switching Current Capacity: ≤ 200 mA
• Switching Frequency: Up to 1.2 kHz to 2 kHz (ideal for high-speed counting)
• Housing Material: Nickel-plated brass
• Ingress Protection: IP67 certified
• Operating Temperature: -25 °C to 70 °C
• Status Indicator: Yellow LED for easy visualization of output state

Standard 3-Wire Wiring DiagramBecause this is a standard DC 3-wire PNP sensor, the load is always connected between the switched output (Black wire) and the negative power rail (Blue wire).

• Brown Wire: Connect to Positive (+) Supply (12–24 V DC)
• Blue Wire: Connect to Negative (-) Supply (0 V / GND)
• Black Wire: Switched Positive Output (Signal to PLC or relay load)
