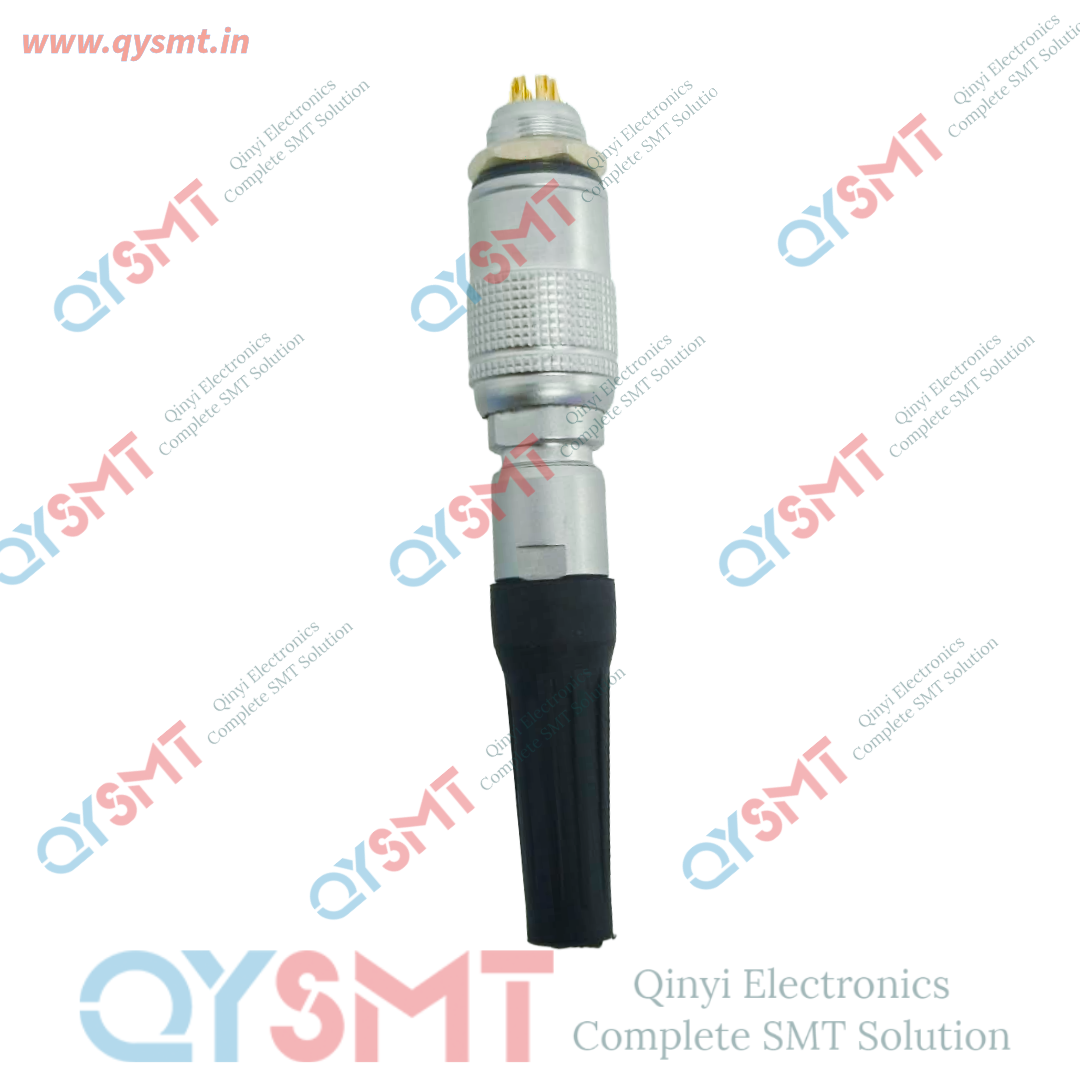

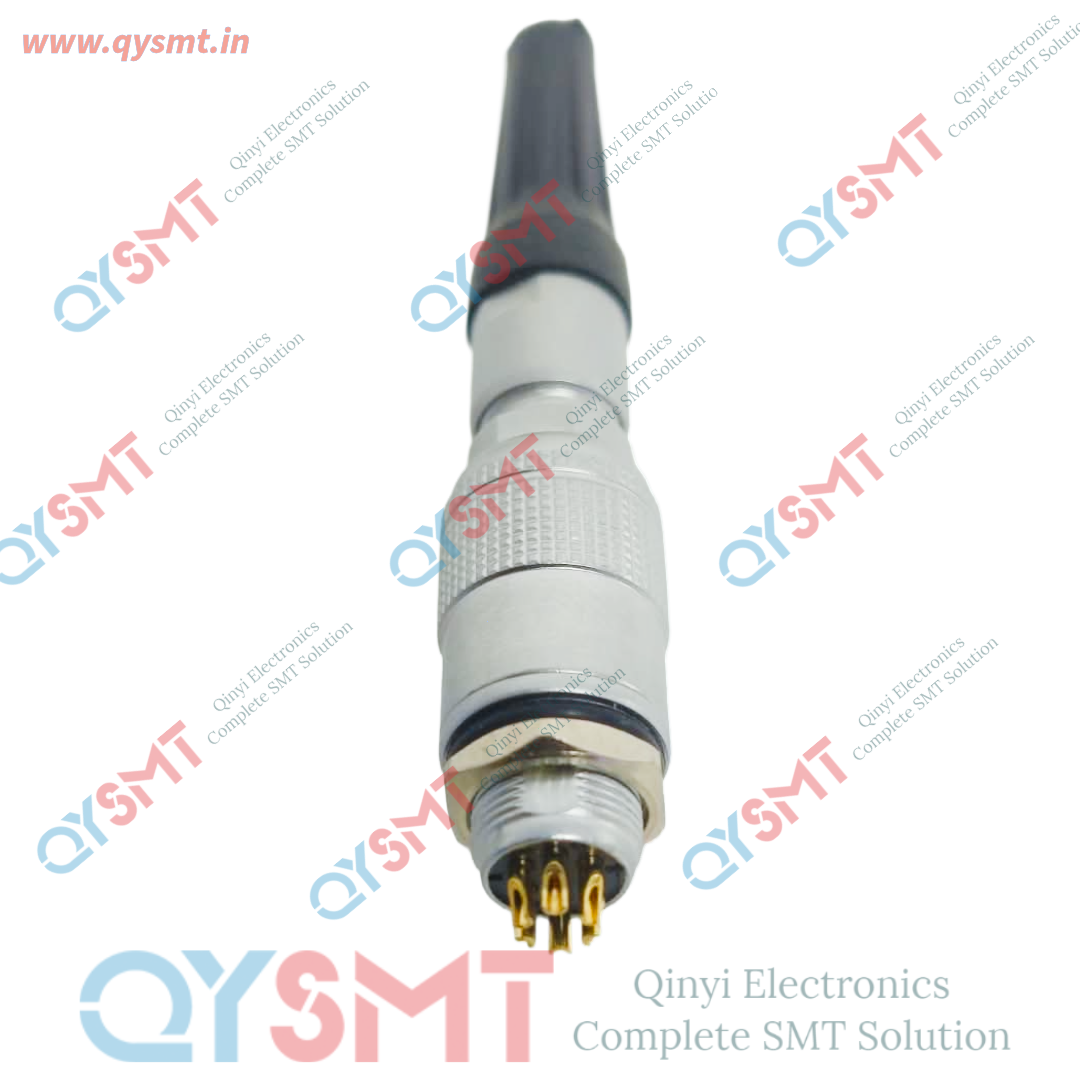

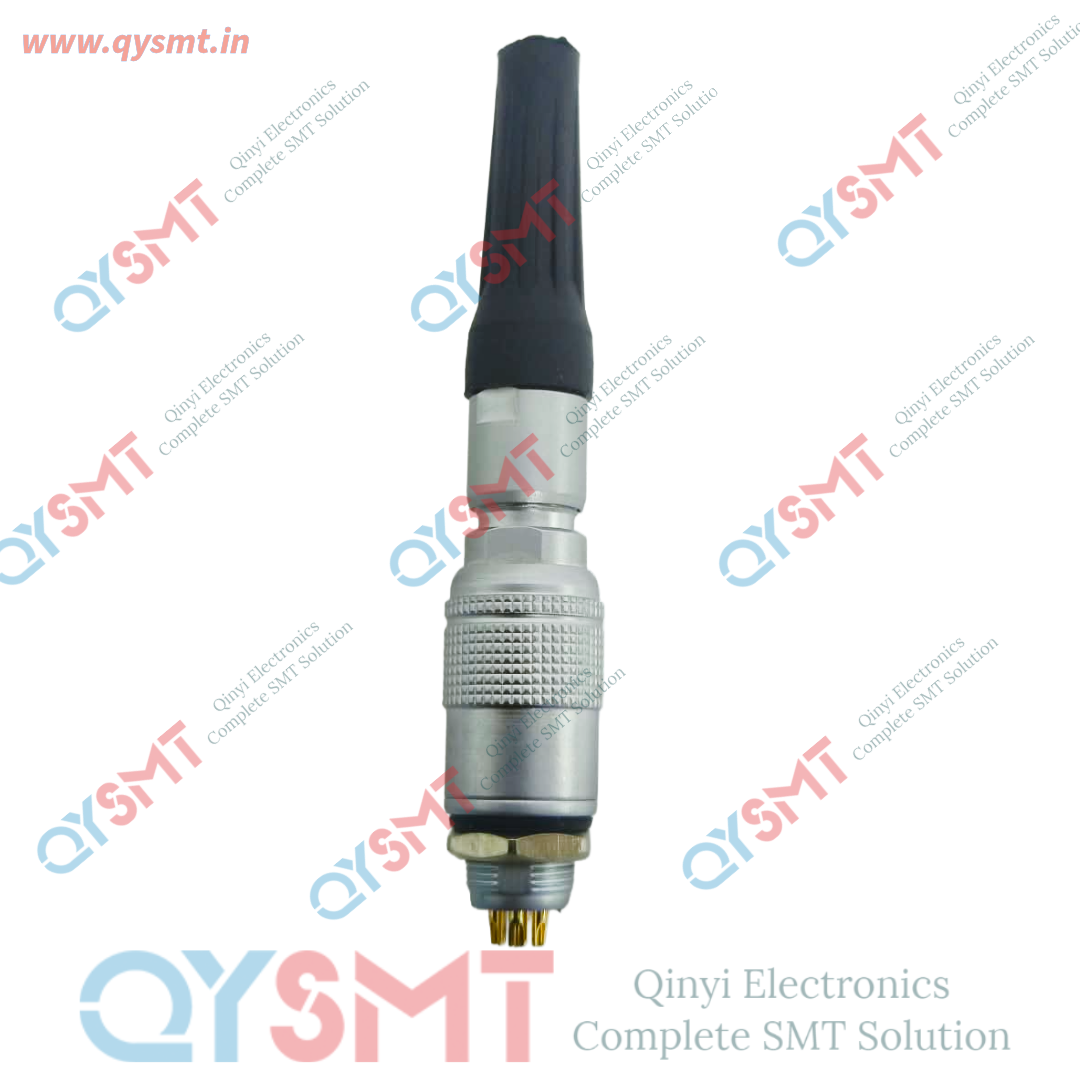

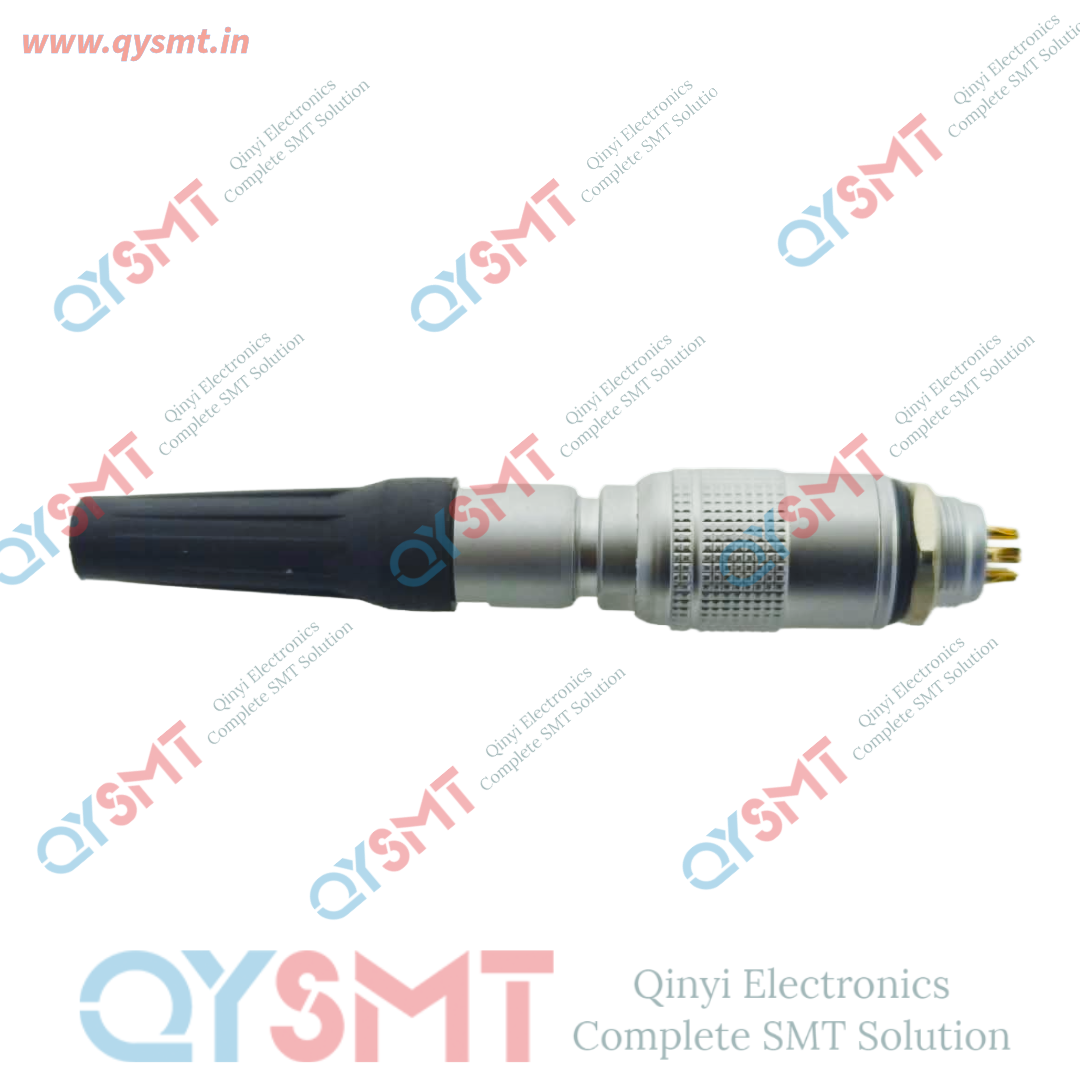

YC8-6P Upper CCD power YC8-6P Basler Camera Power

• YC8-6P Upper CCD power YC8-6P Basler Camera Power
• Pin 1: +12 VDC to +24 VDC Camera Power
• Pin 2: Line 1 (Opto-isolated Input)
• Pin 3: Not Connected or Line 4 (GPIO)
• Pin 4: Line 2 (Opto-isolated Output)
• Pin 5: Ground for I/O Lines
• Pin 6: Power Ground (GND)

2. Basler ace 2 / boost R / racer 2 S Cameras (M8 6-Pin Interface)Modern Basler camera series utilize an M8 6-pin A-coded connector for power delivery:

• Pin 1: +12 VDC to +24 VDC Camera Power
• Pin 2: Line 1 (Opto-coupled Input)
• Pin 3: Ground for opto-coupled I/O
• Pin 4: Line 2 (General Purpose I/O - GPIO)
• Pin 5: Line 3 (General Purpose I/O - GPIO)
• Pin 6: Power Ground (GND) & GPIO Ground

Custom Wiring Guide for YC8-6PIf you are custom soldering or pinning out a  to bridge to a Basler connection, ensure that your power supplier limits the current to under 2.0A to prevent permanent damage or over-temperature conditions in the camera chassis.

To provide exact wiring instructions, could you tell me:

• What is the exact model number of your Basler camera?
