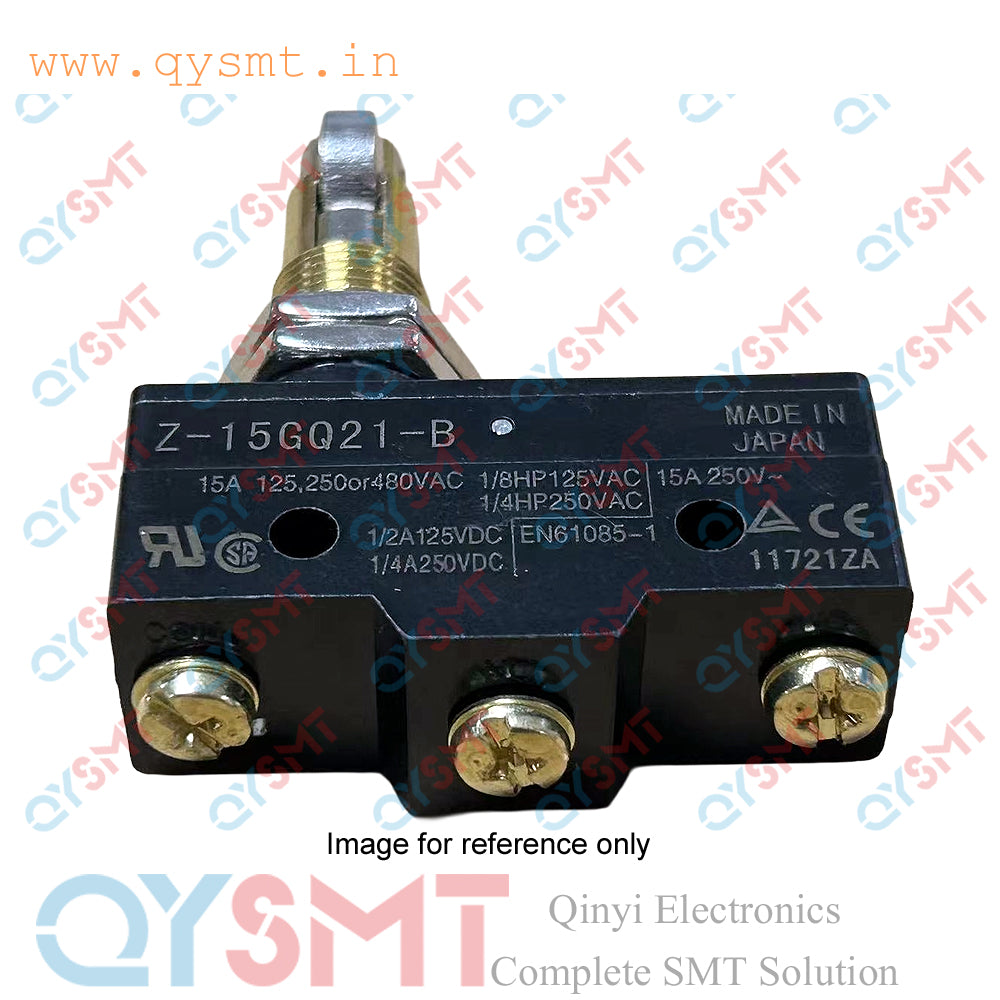

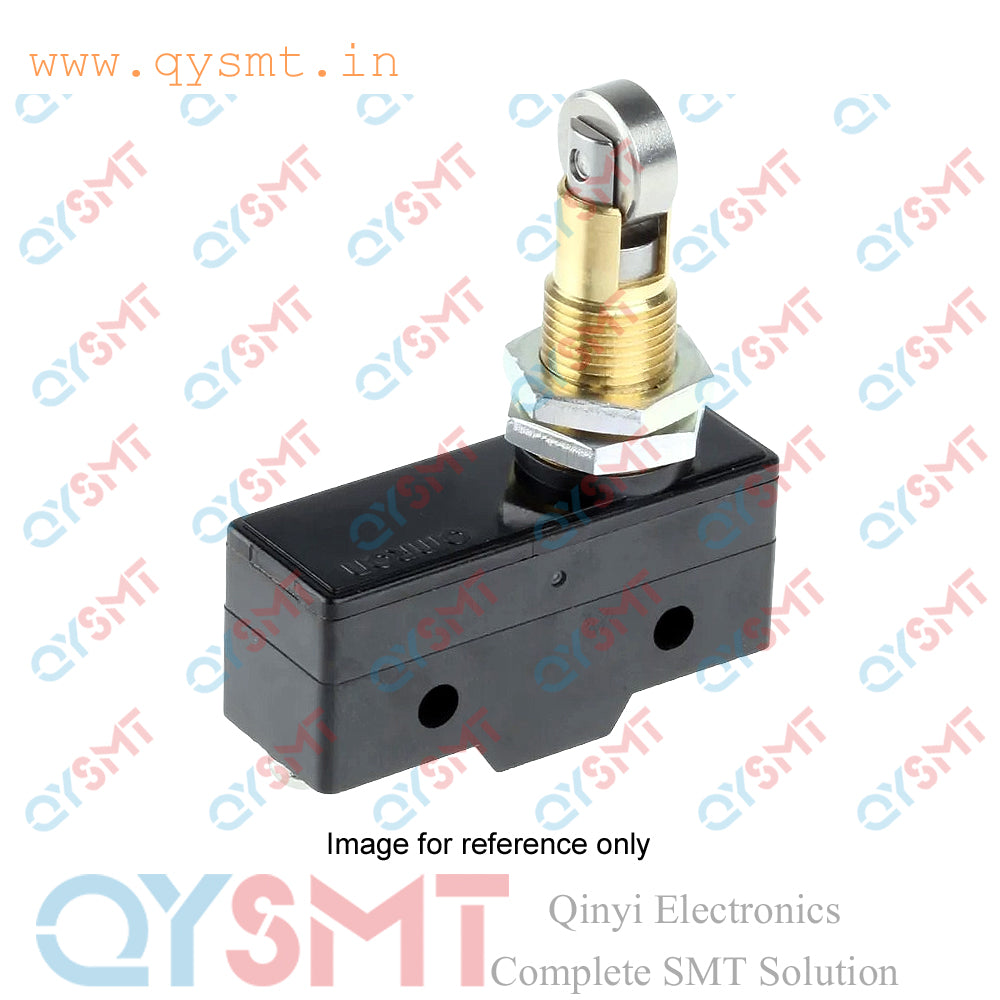

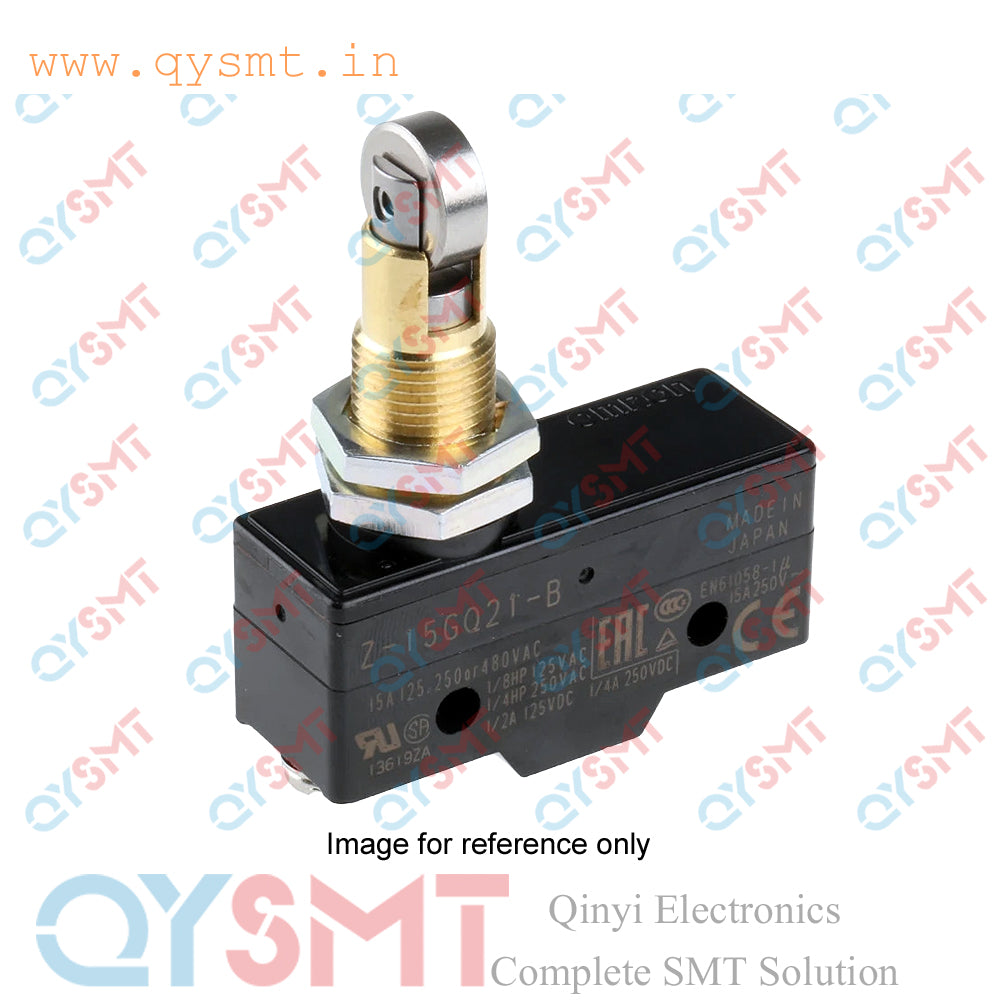

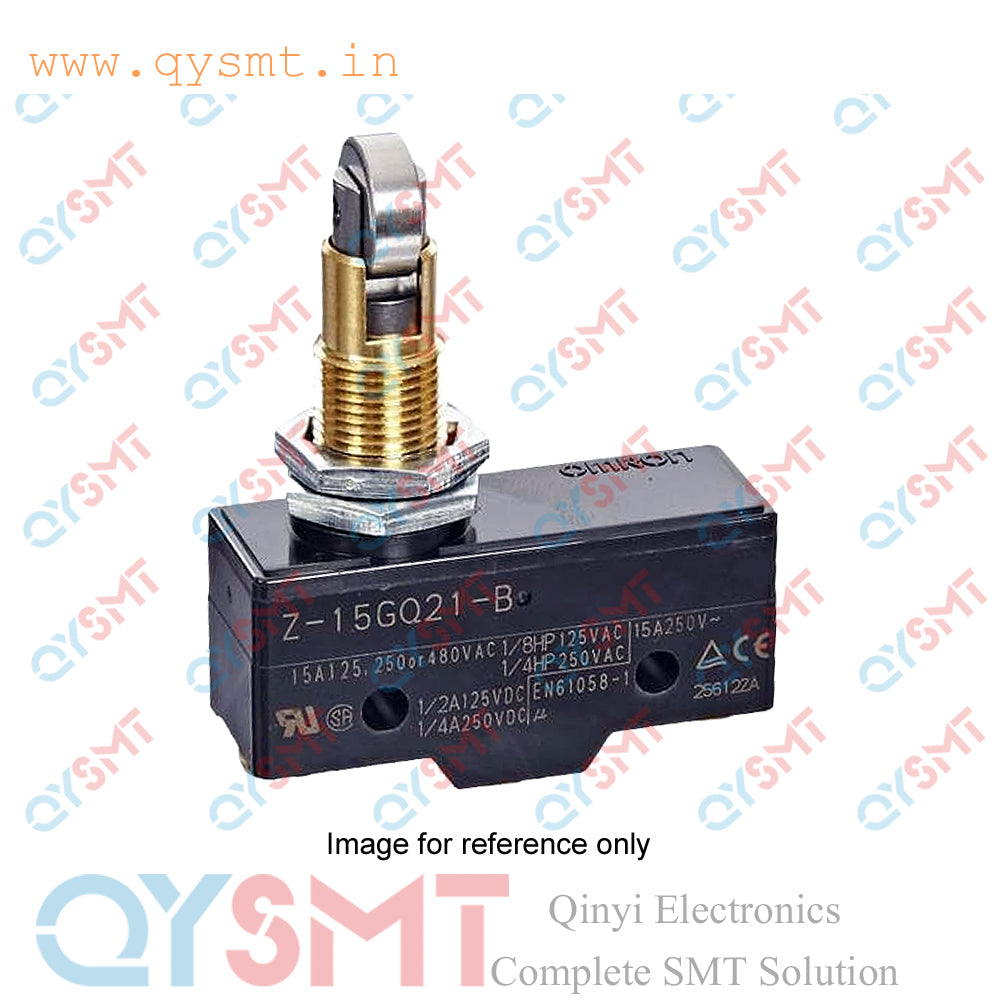

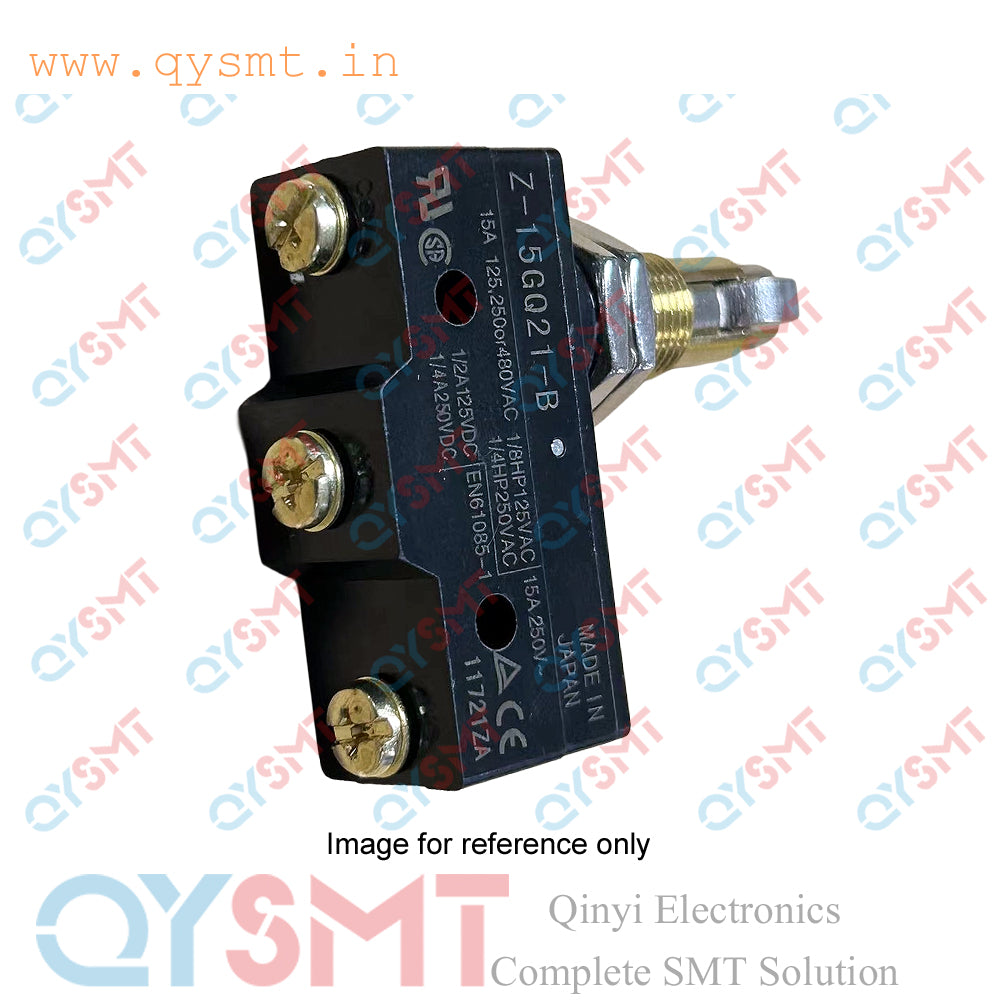

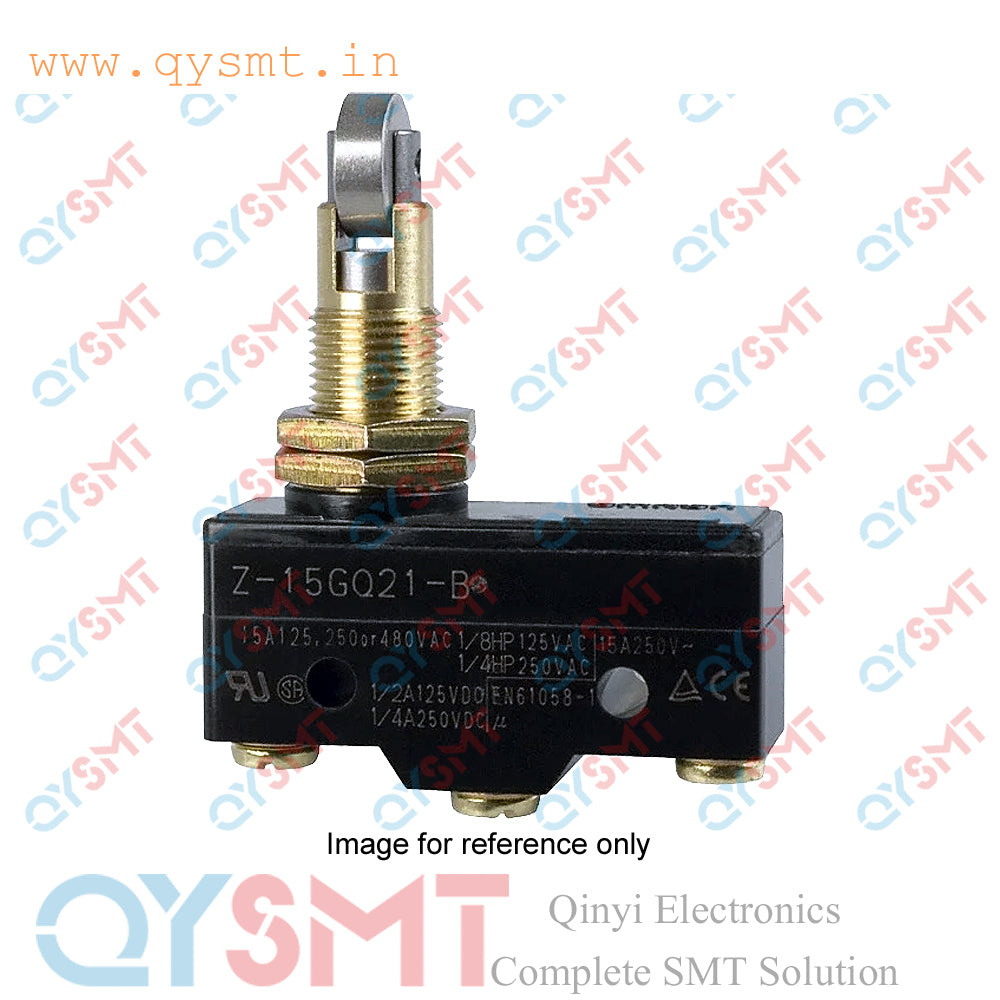

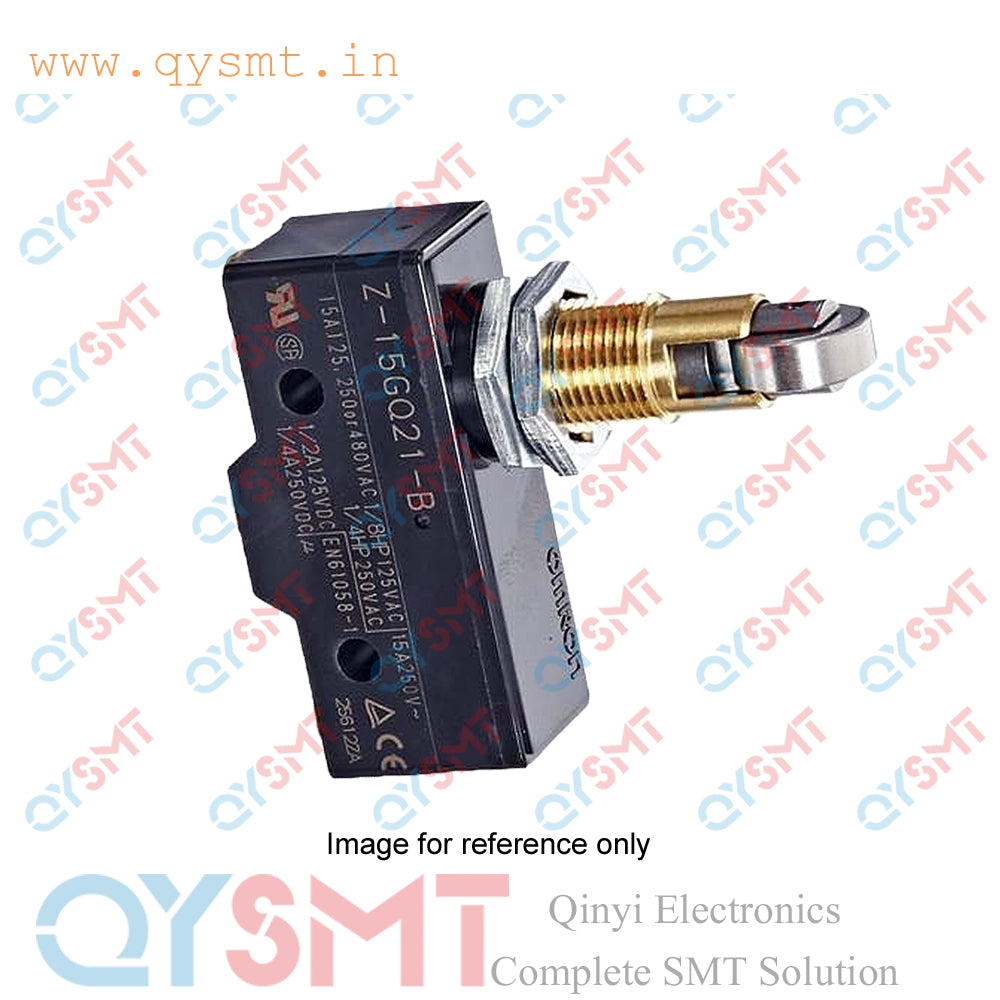

Omron Z-15GQ21-B Limit Switch
Omron General-purpose, single-pole, double-throw (SPDT) Snap-action Basic Limit Switch Z-15GQ21-B, Z-15GQ21-B Momentary Long Plunger Micro Switch 15A - 3 Pin Micro Switch, Snap Action Switch
The Omron Z-15GQ21-B is a general-purpose, single-pole, double-throw (SPDT) snap-action basic limit switch. It features a panel-mount cross-roller plunger actuator and a high breaking capacity of 15A.
Technical specifications
| Actuator Type | Panel-mount cross-roller plunger |
| Switch Function | SPDT (Single-pole, Double-throw) |
| Contact Form | Normally Open (NO) and Normally Closed (NC) contacts |
| Terminal Type | Screw terminals (M4) |
| Rated Current | 15 A |
| Rated Voltage (AC) | 250 VAC |
| Rated Voltage (DC) | 30 VDC |
| Operating Force (OF) | 2.45 to 3.43 N |
| Release Force (RF) | 1.12 N minimum |
| Mechanical Durability | 10 million operations minimum |
| Electrical Durability | 500,000 operations minimum |
| Pre-Travel (PT) | 0.4 mm maximum |
| Over-Travel (OT) | 3.58 mm minimum |
| Movement Differential (MD) | 0.05 mm maximum |
| Contact Resistance | 15 mΩ maximum (initial) |
| Insulation Resistance | 100 MΩ minimum |
| Operating Speed | 0.01 mm/s to 1 m/s |
| Protection Structure | IP00 |
| Operating Temperature | -25 to 80 °C (no icing) |
Key features
- High precision and repeat accuracy: The Z-15GQ21-B is a best-selling basic switch known for its high precision.
- Wide variation in contact form: Part of a series that offers various contact forms, including standard and split-contact types.
- High breaking capacity: Able to handle a large switching capacity of 15A.
- Safety standards: Compliant with standards such as TUV, UL, CE, and CSA.
