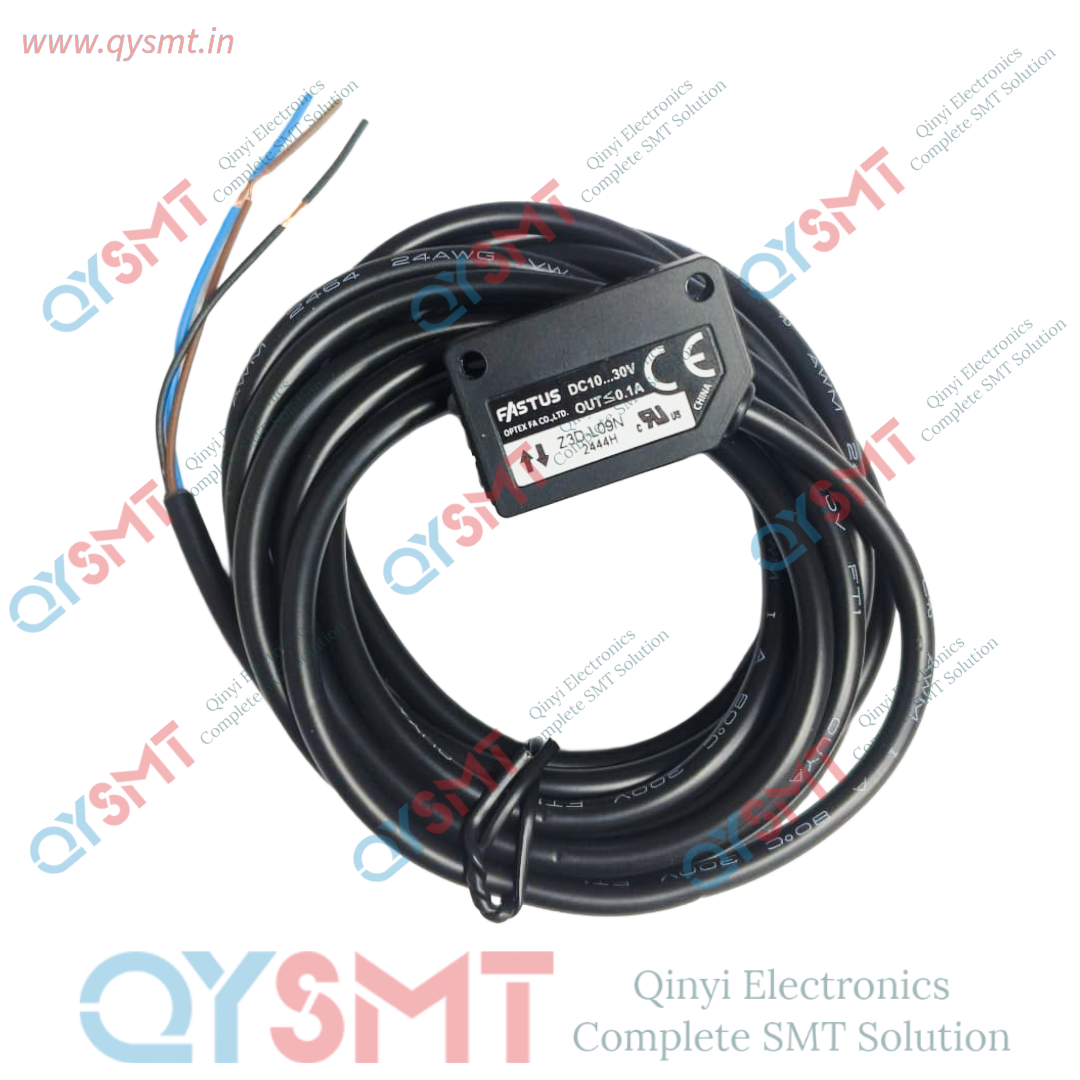

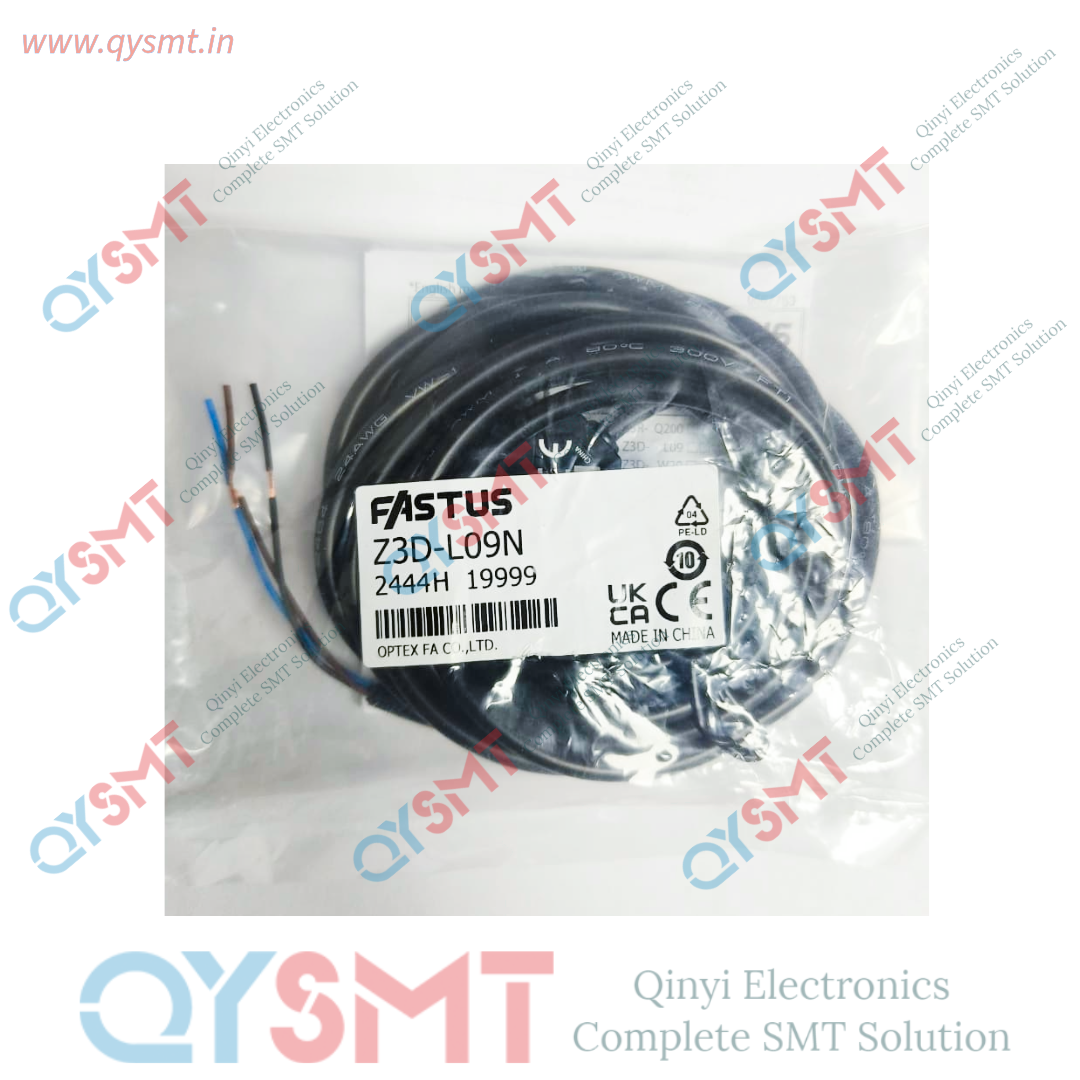

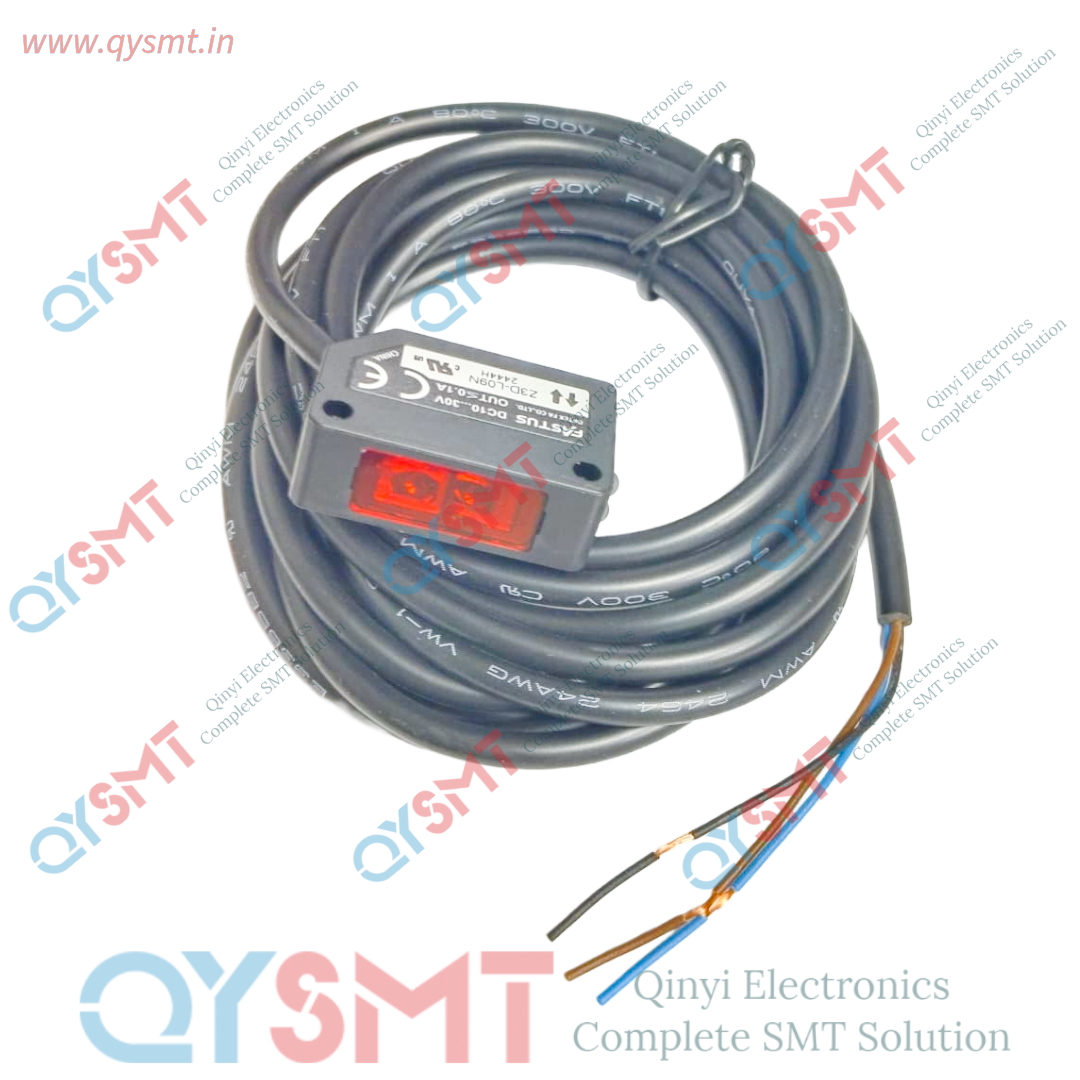

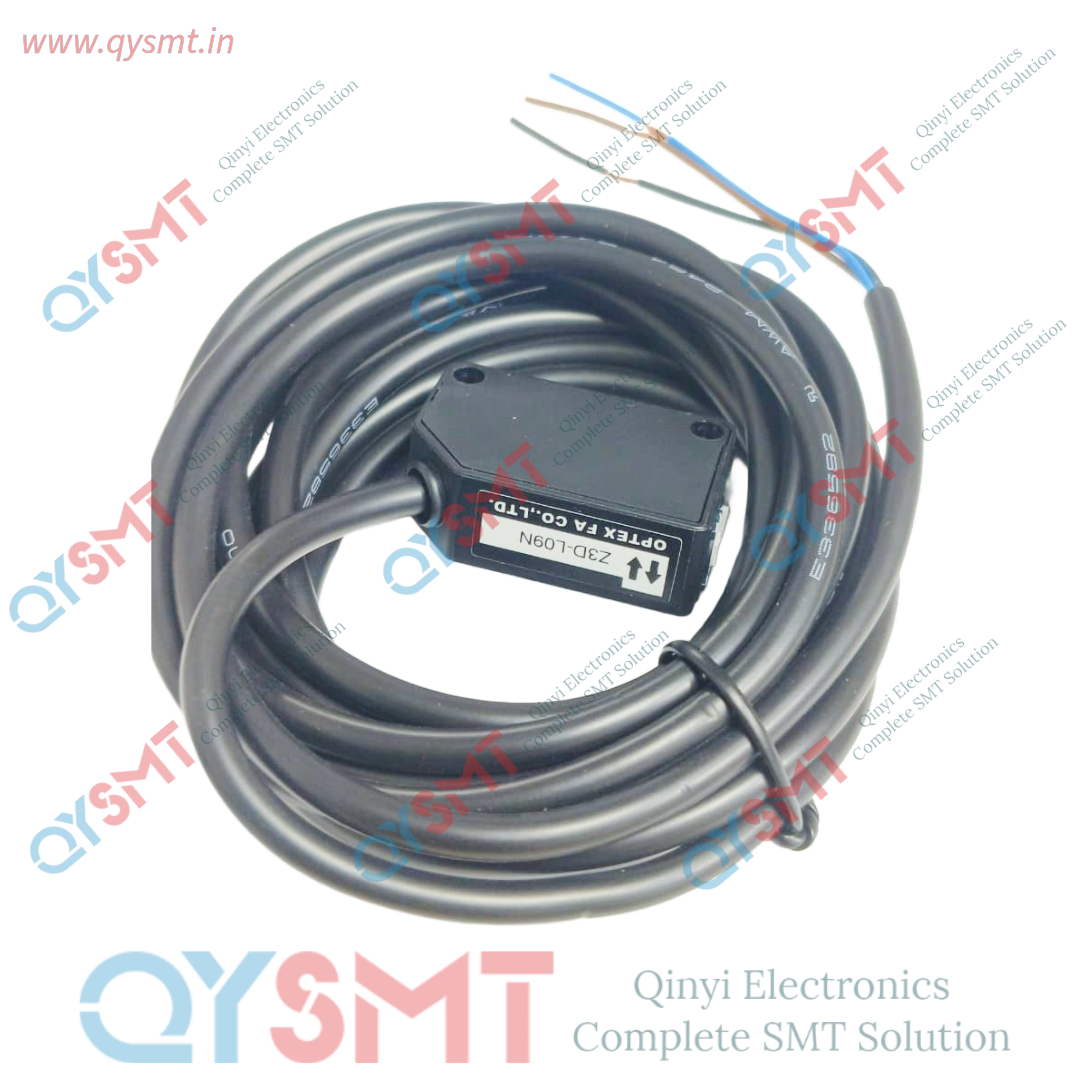

Z3D-L09N photoelectric switch sensor
Technical Specifications
- Sensing Mode: Convergent reflective (designed to accurately detect targets at a specific focal point while ignoring background objects).
- Sensing Distance: Adjustable from 10 mm to 90 mm (1 to 9 cm) using a built-in 1-turn potentiometer.
- Output Logic: NPN with selectable Light-On or Dark-On operating modes.
- Light Source: Bright visible Red LED forming an ø8mm beam spot.
- Response Time: Ultra-fast 0.5 milliseconds for high-speed automated lines.
- Supply Voltage: 10 to 30 VDC.
- Physical Build: Compact rectangular enclosure made of impact-resistant ABS plastic with a PMMA lens and an integrated 2-meter connection cable.
Product Context
This model serves as the official modern replacement for the older, discontinued ZD-L09N sensor variant, offering a significantly reduced dead zone and a higher-power LED core for stable detection in dusty environments.
Are you looking to buy a replacement Optex Z3D-L09N sensor, or do you need help wiring and integrating its NPN output into a specific PLC configuration?
