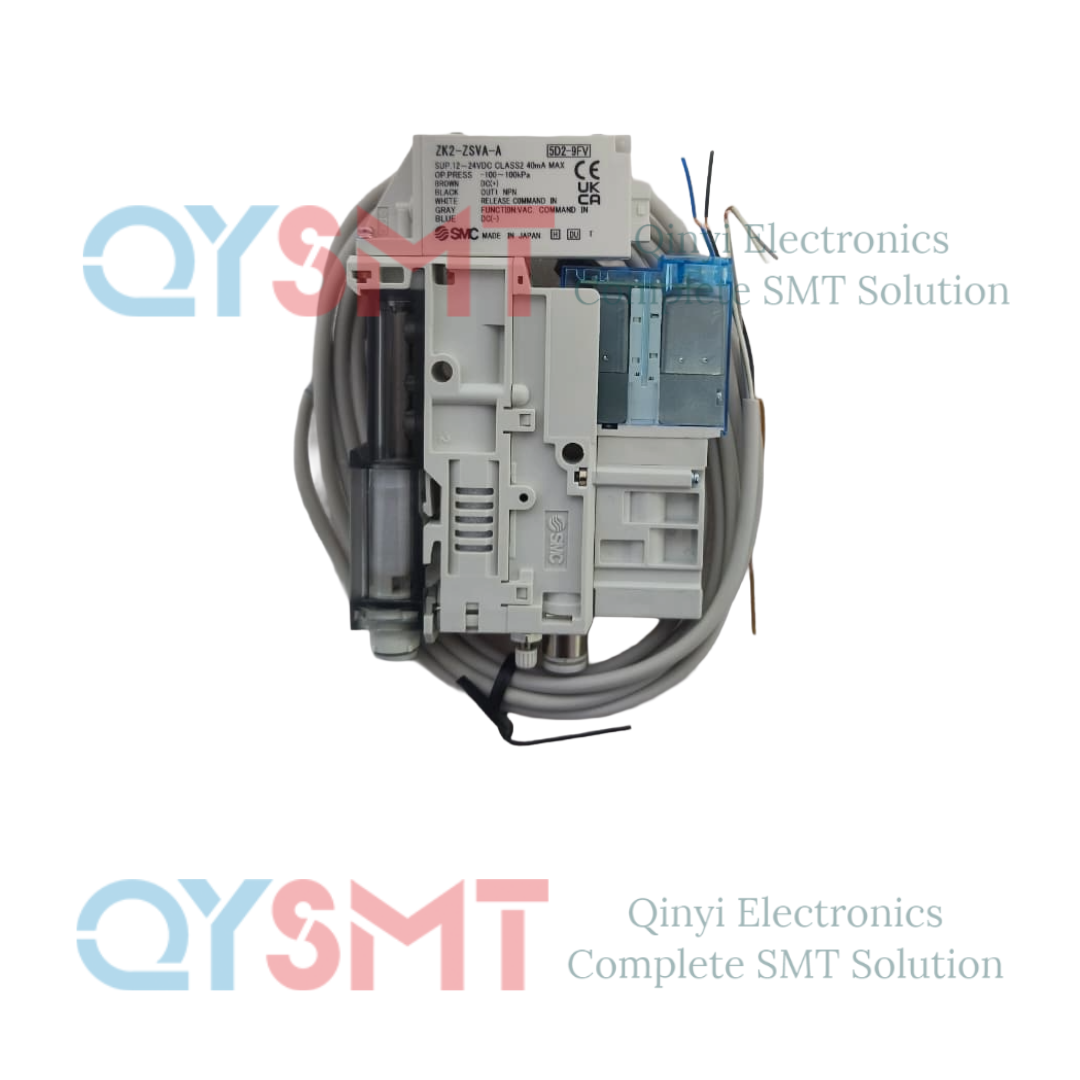

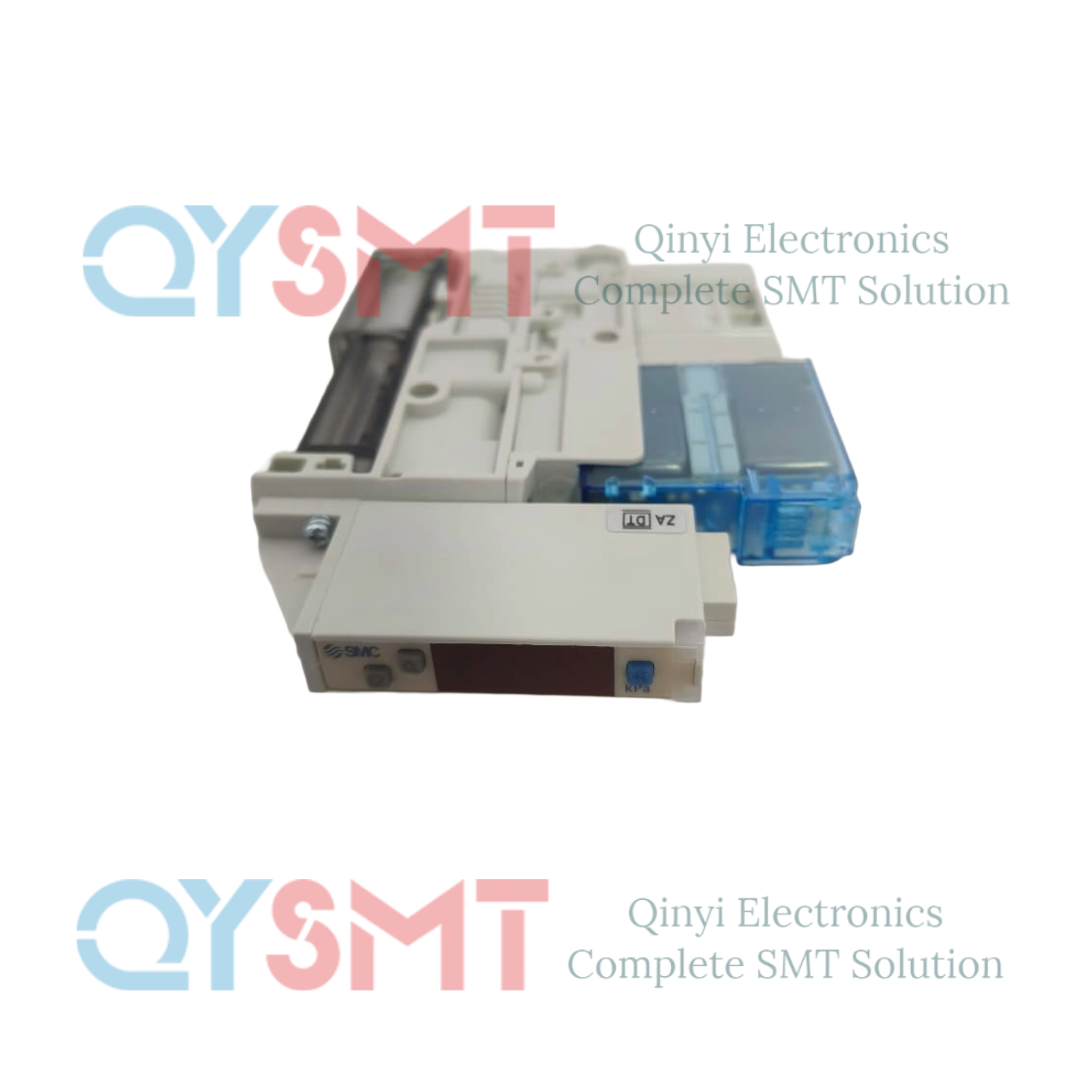

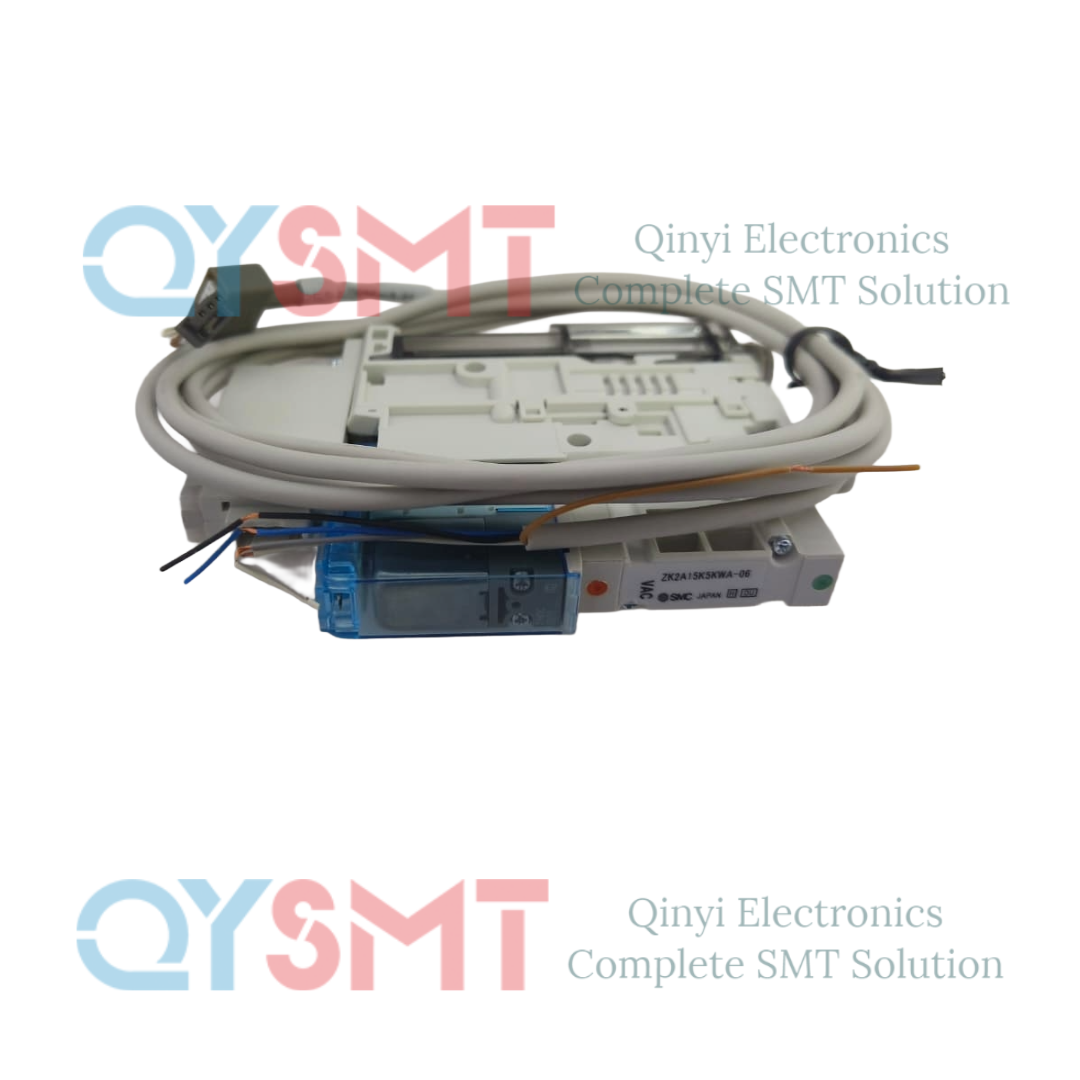

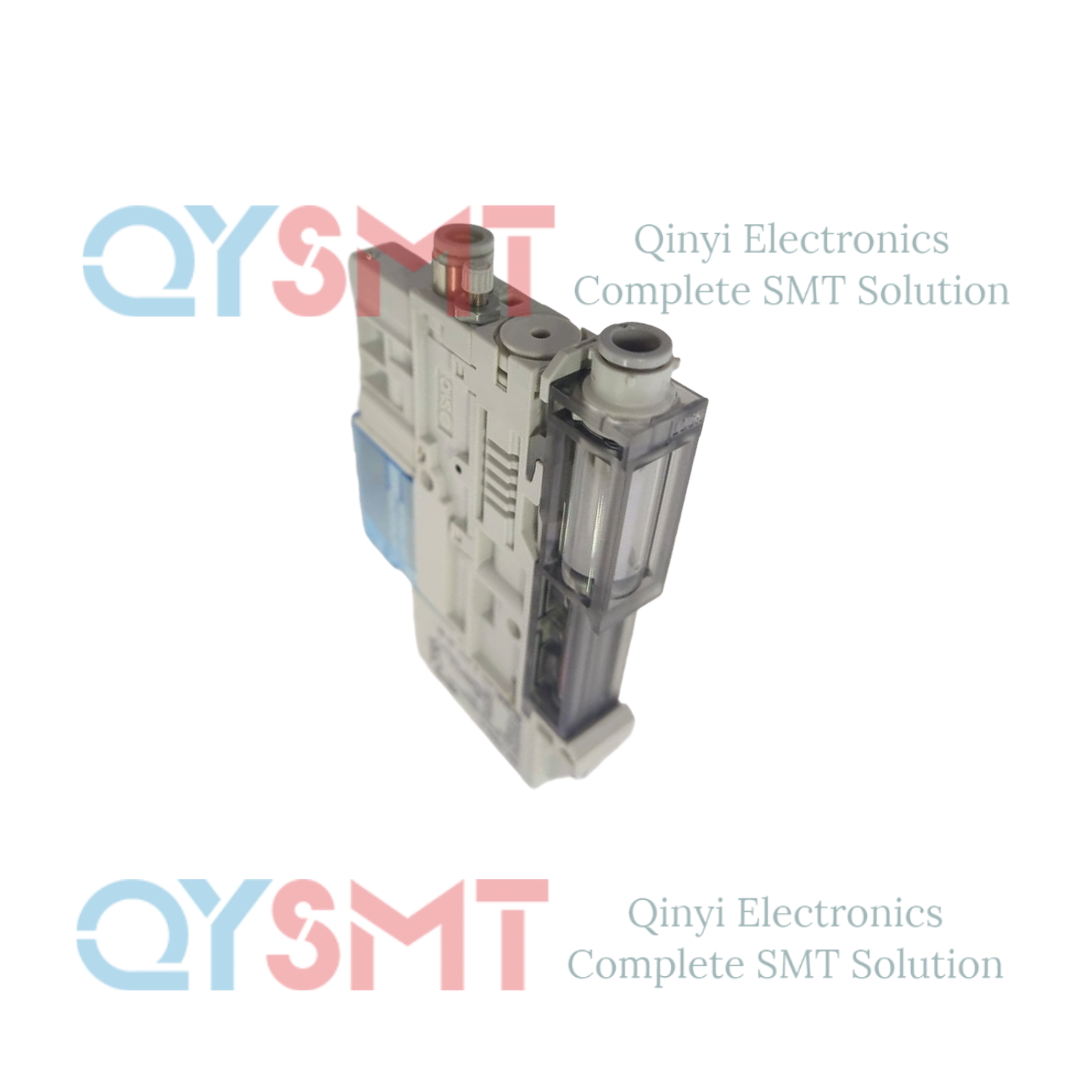

ZK2A155KWA-06 Vacumm generator SMC

• ZK2A155KWA-06 Vacumm generator SMC

• Series: ZK2A (Advanced Energy Saving Vacuum Ejector).
• Nozzle Size: 1.5 mm.
• Performance: High suction flow (e.g., 89L/min) and deep vacuum (e.g., -91kPa / -0.91bar).
• Energy Saving: Uses a digital vacuum switch to cycle supply/exhaust only when needed, saving up to 30% air.
• Noise Reduction: Equipped with an advanced silencer for low noise levels.
• Compact Design: All components integrated into one unit, making it compact and lightweight.
• Dual Valves: Includes supply and release valves for secure holding, preventing sudden drops.
• Versatile: Available as standalone units or on manifold rails for easy mounting and integration.

How it Works (Energy Saving):

1. A pressure sensor monitors the vacuum level.
2. When set vacuum is reached, the supply valve closes, stopping air flow.
3. If vacuum drops (due to leaks), the ejector briefly reopens to restore pressure, then shuts off again, consuming minimal air.

This model is ideal for automated applications needing reliable, efficient, and quiet vacuum generation for picking and placing objects.
