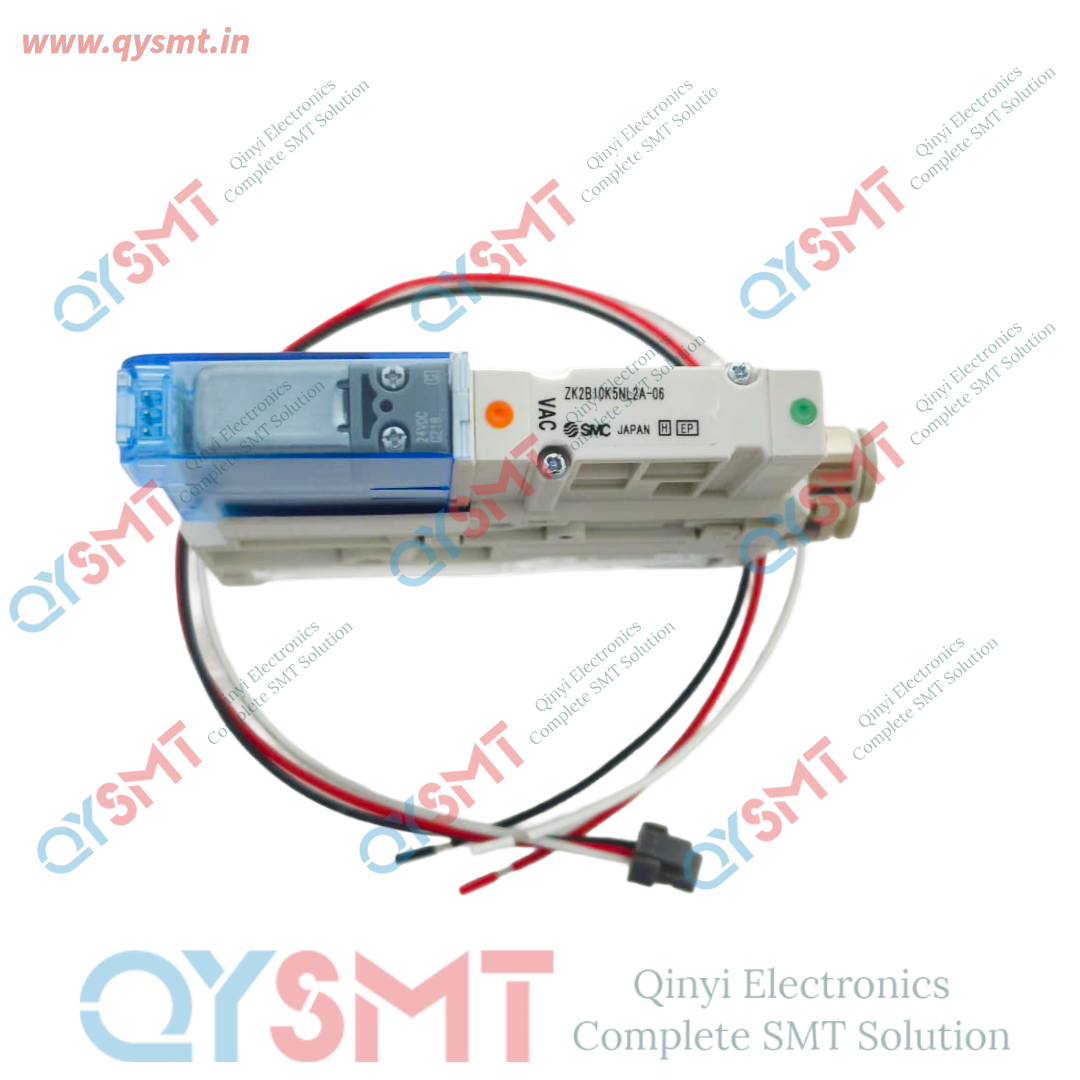

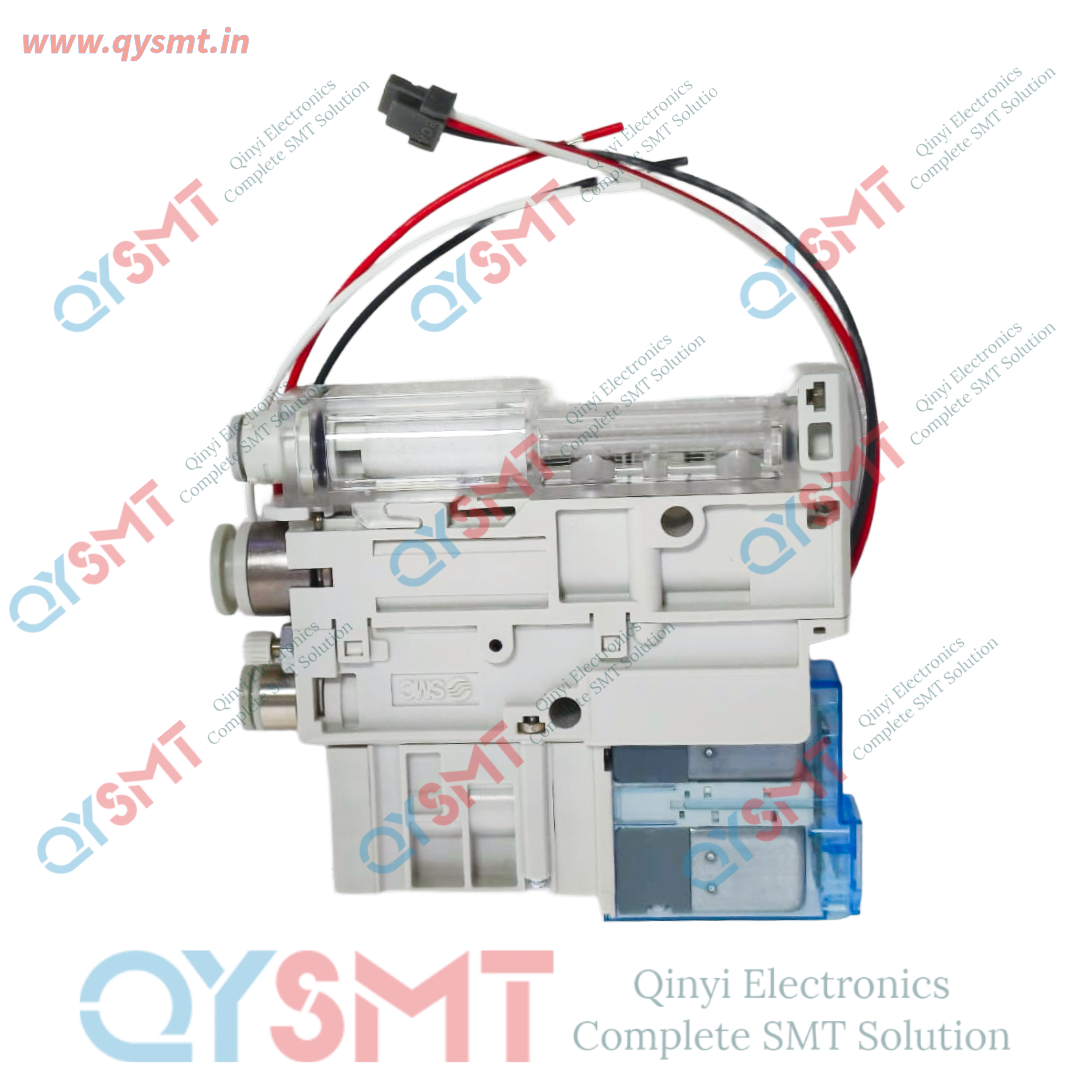

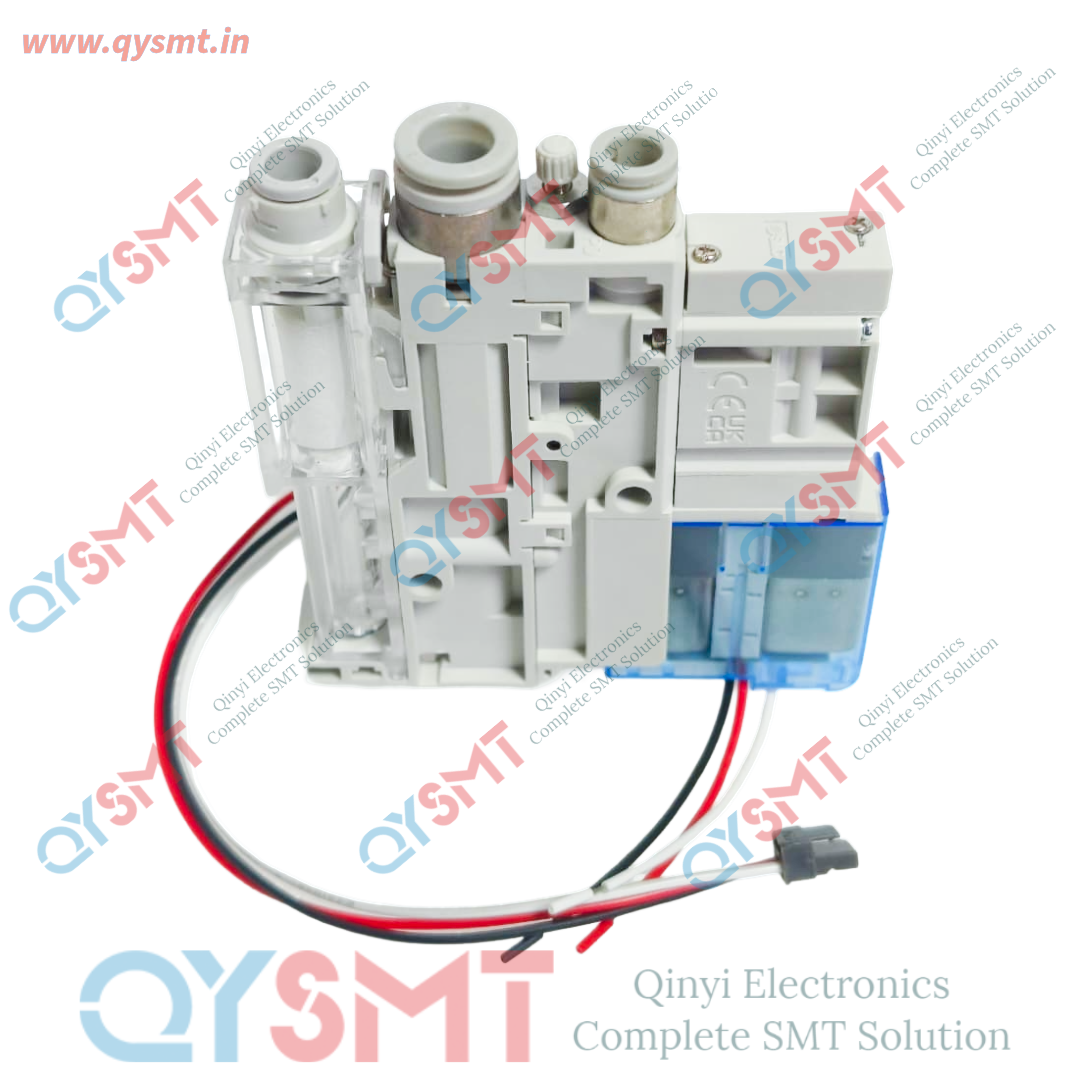

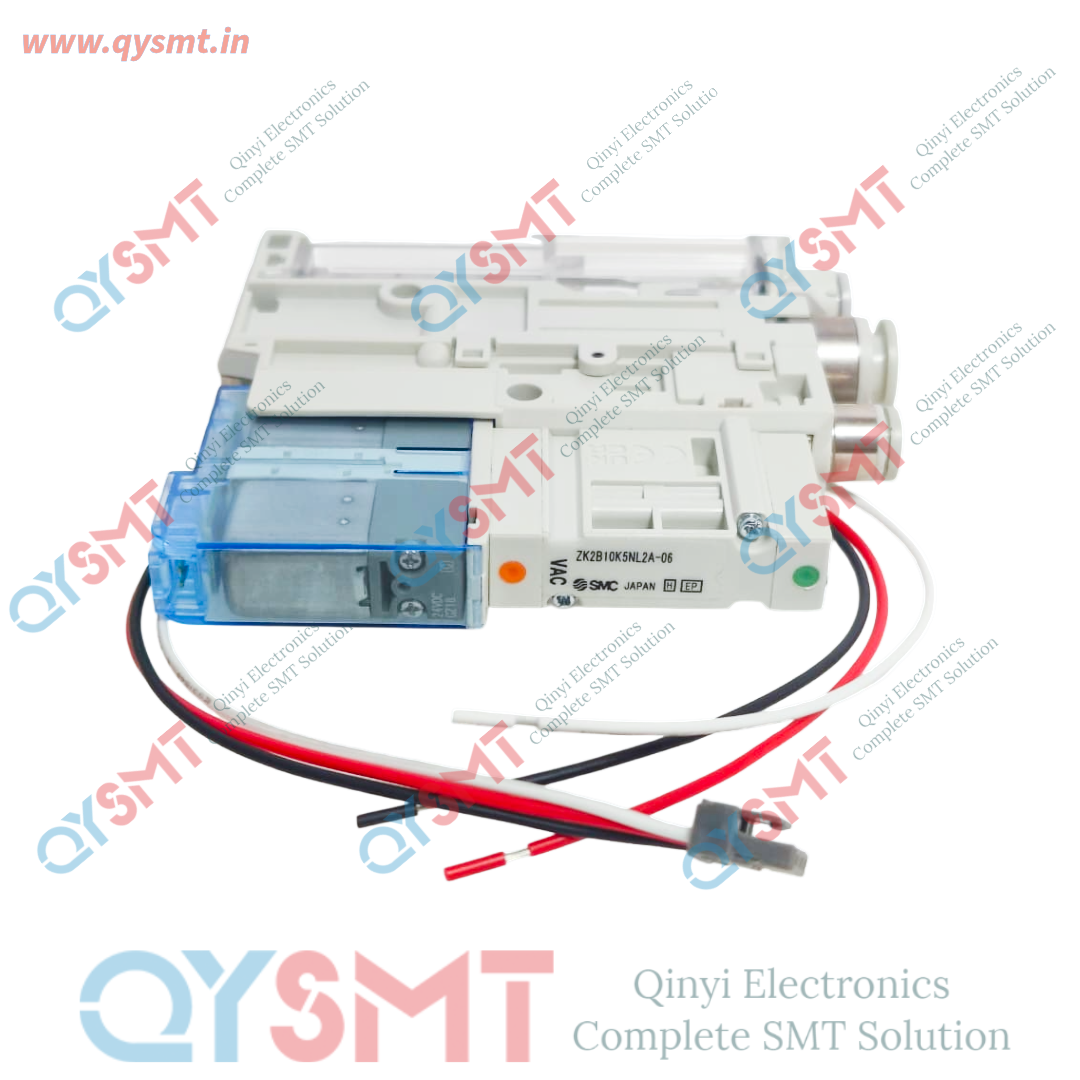

ZK2B10K5NL2A-06 SMT VACUUM EJECTOR

Technical Specifications

• Nozzle Diameter: 1.0 mm (denoted by 10)
• Exhaust Type: Port exhaust, Ø8 mm fitting size (denoted by B & 06)
• Vacuum Port Size: One-touch fitting for Ø6 mm tubing (denoted by -06)
• Rated Voltage: 24 V DC
• Valve Combination: N.C. (Normally Closed) supply valve and N.C. release valve (denoted by K5)
• Electrical Entry: L-type plug connector with a lead wire (denoted by NL2)
• Maximum Vacuum Pressure: -91 kPa (-0.91 bar)

Key Operational Features

• Integrated Design: This unit packs the piping, digital control wiring, and necessary dual valves into a single, compact body. This saves massive space on fast-moving SMT gantry heads.
• Energy-Saving Architecture: Part of the efficient SMC ZK2A series, it dramatically reduces air consumption by shutting off supply lines as soon as proper component adsorption is verified.
• Safety Hold: If your assembly line suffers a sudden electrical blackout, the internal mechanism preserves existing vacuum holds as long as pilot compressed air continues flowing. This single feature keeps microchips from dropping mid-cycle.
