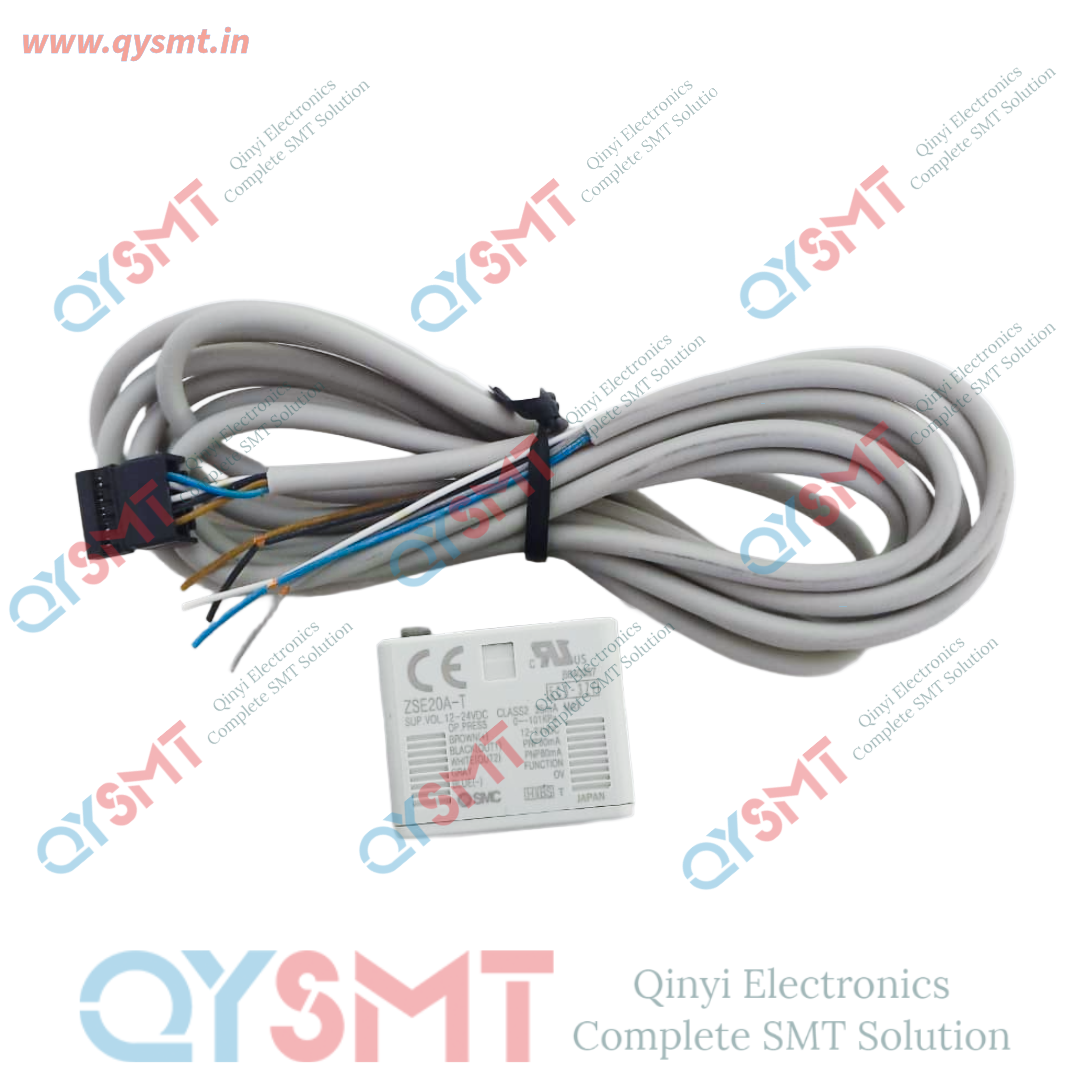

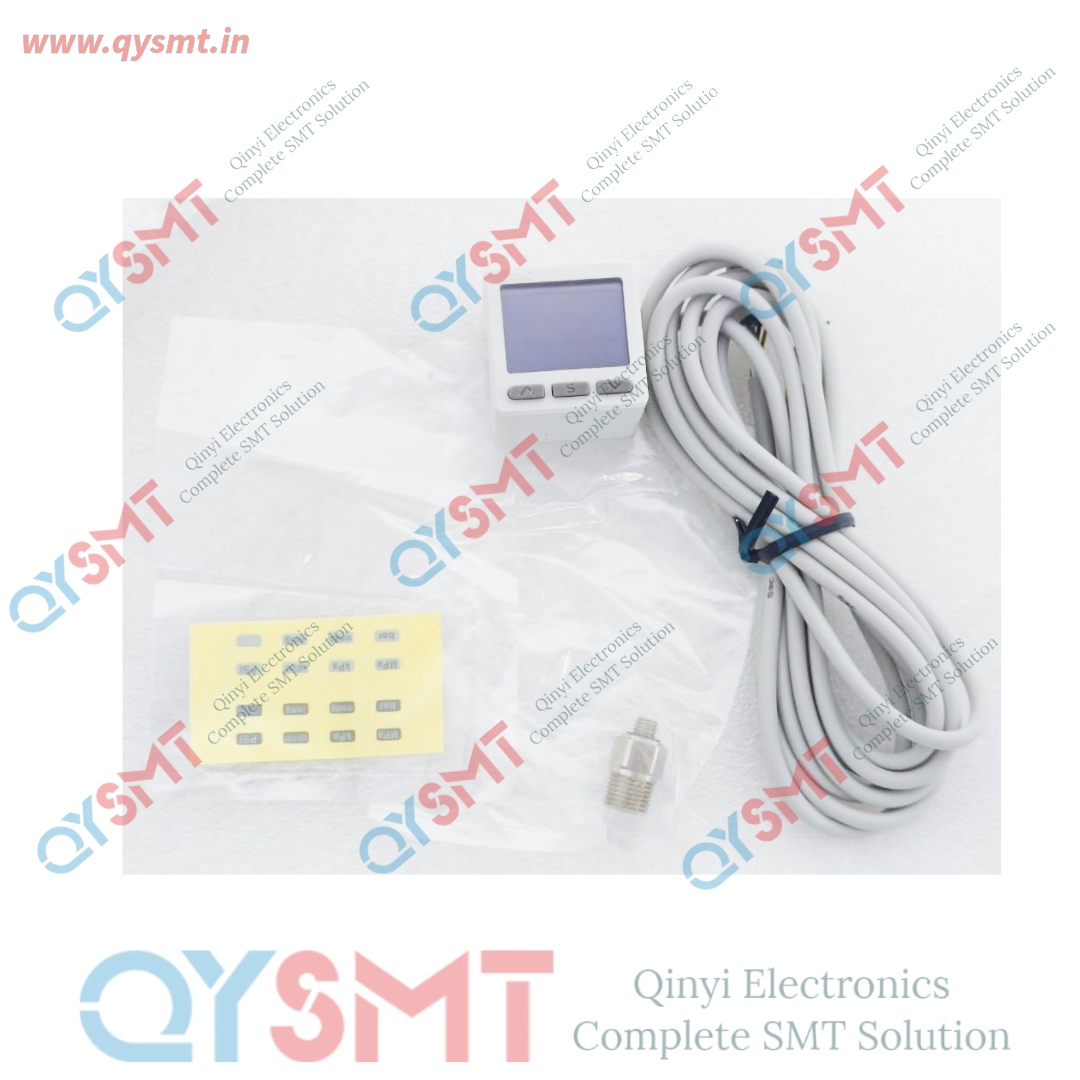

ZSE20A-T-01-J PRESSURE SWITCH

ZSE20A-T-01-J PRESSURE SWITCH
Core Specifications

• Pressure Range: -100 kPa to 10 kPa
• Port Size: R \(1\diagup8\) (commonly referred to as -01 in SMC part numbers)
• Output Type: 2 Switch Outputs (PNP or NPN, depending on variant) + Analog Output (1 to 5 V)

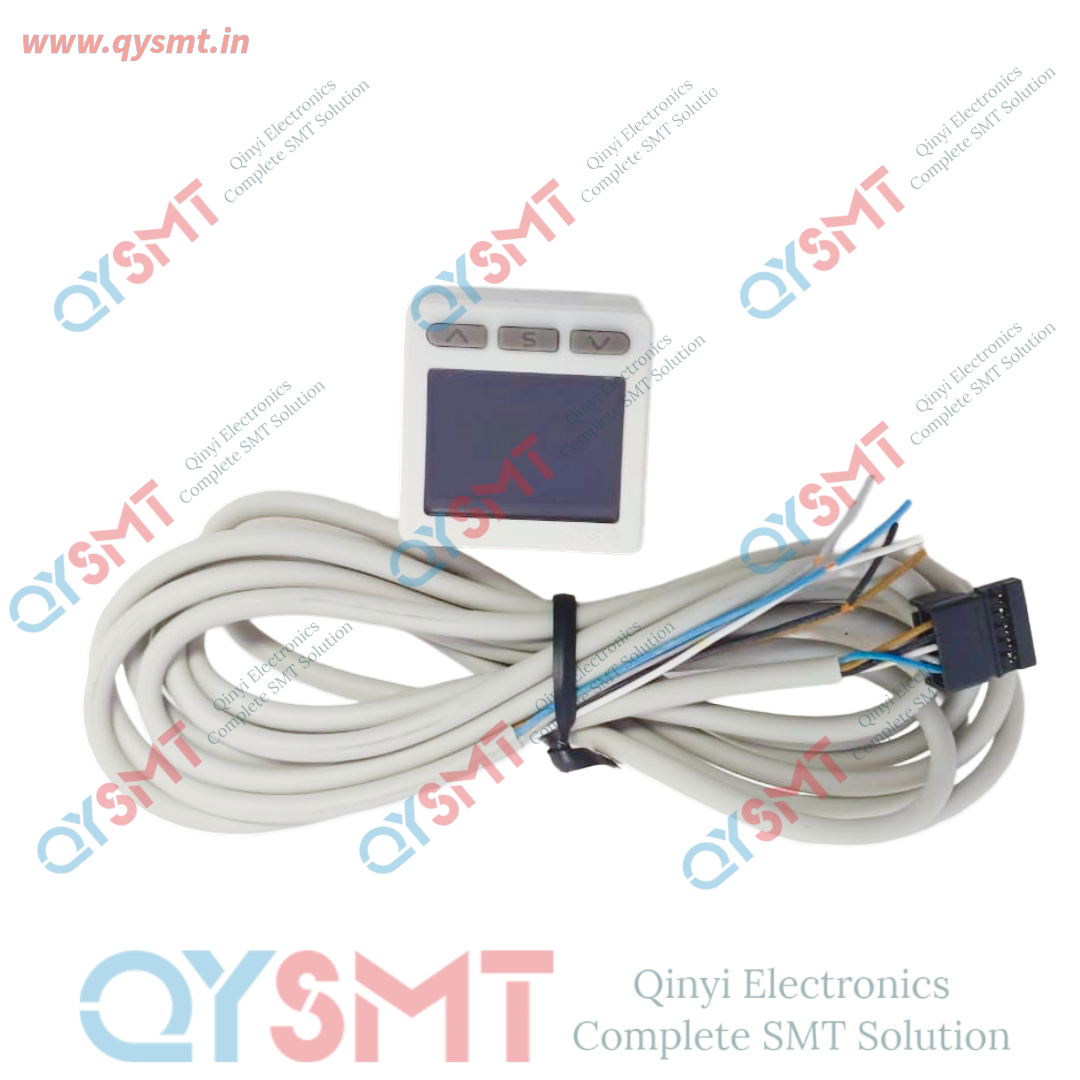

• Display: 3-screen, 3-color digital display for high visibility
• Response Time: ≤ 1.5 ms (selectable up to 5 seconds)

Key Features

• High Precision: Repeatability of ±0.2% full scale (F.S.) ensures accurate vacuum measurements.
• Energy Efficient: Power consumption is kept low, typically 35 mA or less.
• Fluid Compatibility: Designed for use with air, non-corrosive gases, and non-flammable gases.
• Durability: Built to IP40 enclosure standards.
